NCP150R-CHPGKE (2014)

Toyota Yaris

Production Mar 2014 - Sep 2016
Engine 1NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1310-1609)NCP15# ; (1310-1708)NSP15#..GCC,GEN,PH,TH,VN ; (1605- )TAIW..A ; (161

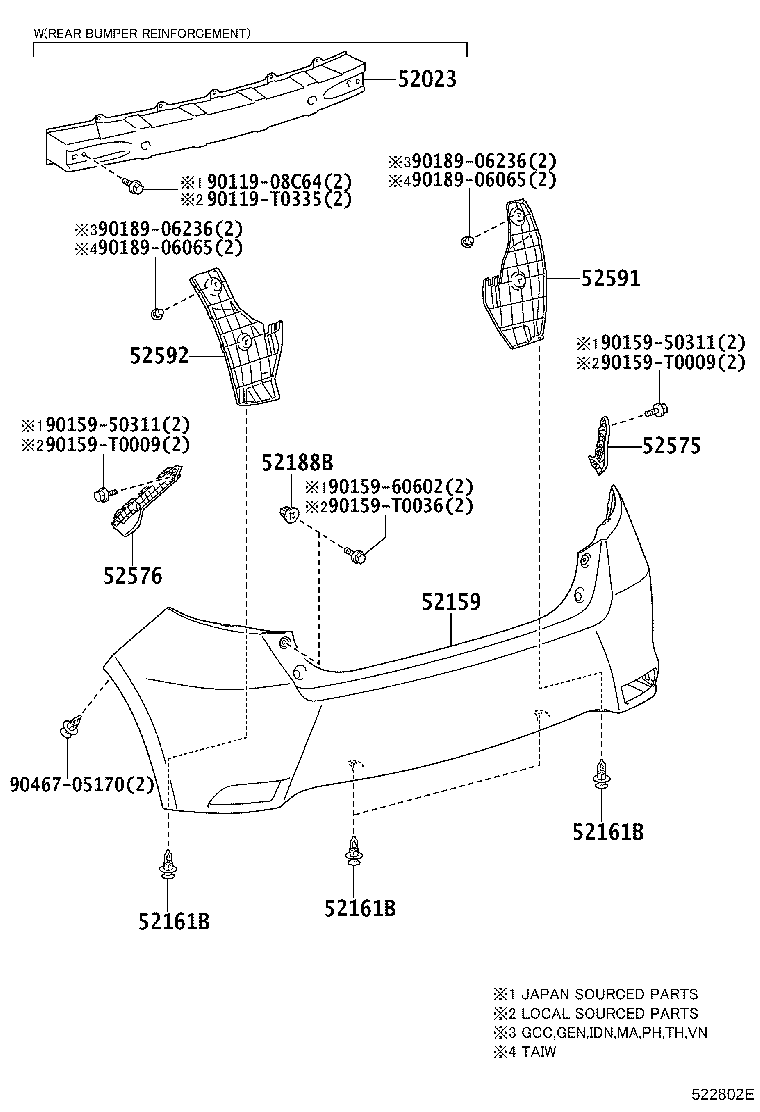

Click highlighted areas on diagram

diagram 52023 52159 52161B 52161B 52161B 52188B 52575 52576 52591 52592 9011908C64 90119T0335 9015950311 9015950311 9015960602 90159T0009 90159T0009 90159T0036 9018906065 9018906065 9018906236 9018906236 9046705170
Part # Description Qty Price
52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER
52023-0D100

NCP150..C

 1
52159 - COVER, REAR BUMPER
52159-0U910

NCP150..C

PAINT REQ.

 1
52161B - PIECE, REAR BUMPER
52161-0K040

NCP150..C

 4
52161B - PIECE, REAR BUMPER
52161-0K040

NCP150..C

 4
52161B - PIECE, REAR BUMPER
52161-0K040

NCP150..C

 4
52188B - SPACER, REAR BUMPER MOUNTING
52188-33040

NCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TAIW,TH,VN

 2
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-0D230

NCP150..C

 1
52576 - RETAINER, REAR BUMPER SIDE, LH
52576-0D230

NCP150..C

 1
52591 - SEAL, REAR BUMPER SIDE, RH
52591-0D260

NCP150..C

 1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-0D260

NCP150..C

 1
Common parts
90119-08C64
90119-T0335
90159-50311
90159-60602
90159-T0009
90159-T0036
90189-06065
90189-06236
90467-05170
