NCP150R-CHPGKE (2014)

Toyota Yaris

Production Mar 2014 - Sep 2016
Engine 1NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1310-1609)NCP15# ; (1310-1708)NSP15#..GCC,GEN,PH,TH,VN ; (1605- )TAIW..A ; (161

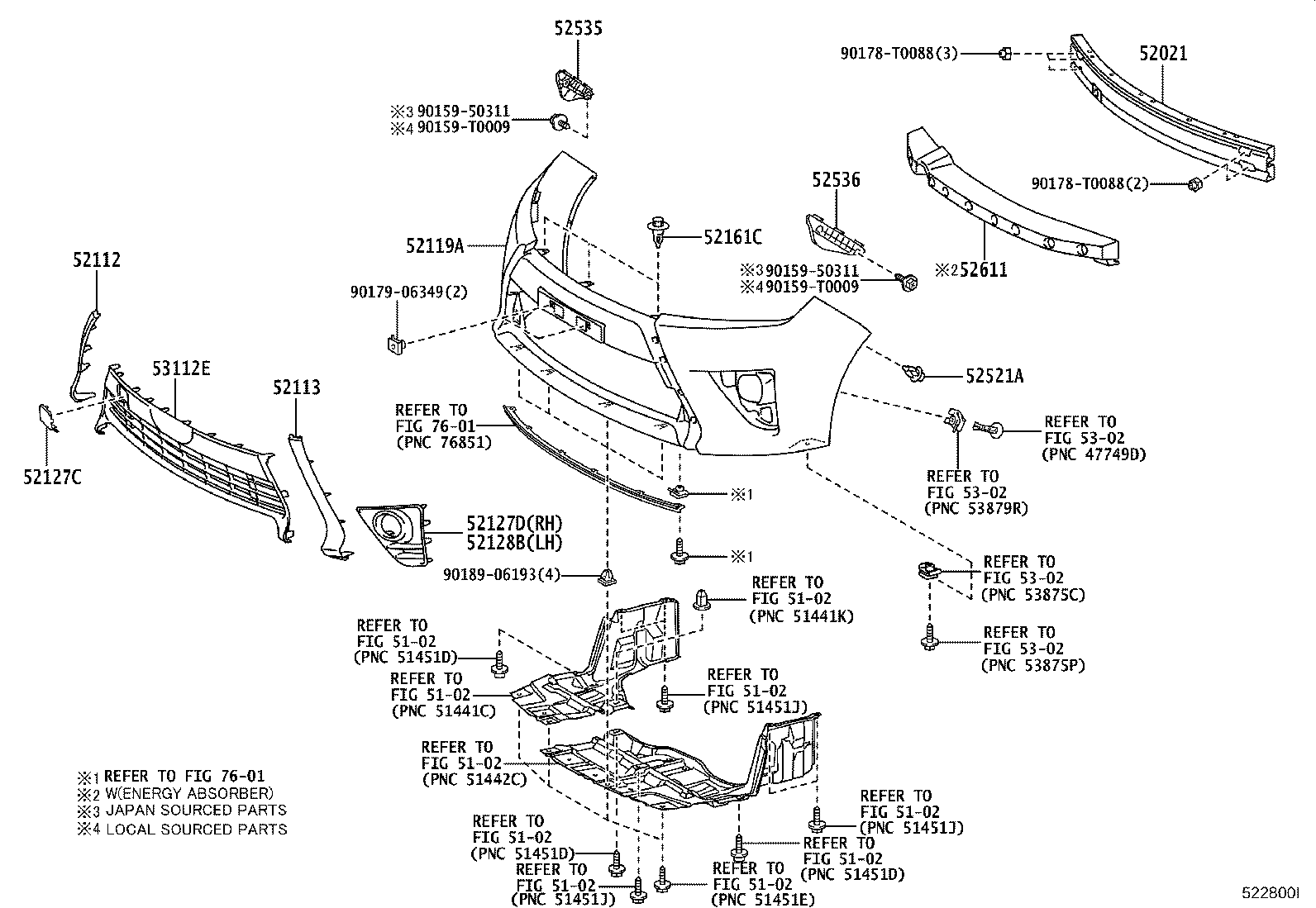

Click highlighted areas on diagram

diagram 5102 5102 52021 52112 52113 52119A 52127C 52127D 52128B 52161C 52521A 52535 52536 52611 5302 5302 5302 5302 53112E 7601 7601 9015950311 9015950311 90159T0009 90159T0009 90178T0088 90178T0088 9017906349 9018906193
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-0D140

NCP150..C

 1
52112 - BAR, FRONT BUMPER, RH
52112-0D160

NCP150..IDN..G

 1
52112-0D150

NCP150..MA;NCP150..(R,V)..C

 1
52113 - BAR, FRONT BUMPER, LH
52113-0D140

NCP150..IDN..G

 1
52113-0D130

NCP150..MA;NCP150..(R,V)..C

 1
52119A - COVER, FRONT BUMPER
52119-0U922

NCP150..C

PAINT REQ.

 1
52127C - COVER, FRONT BUMPER HOLE
52721-0D140

NCP150..C

 1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-0D460

NCP150..4FC..R..C

BRUNEI SPEC

 1
52127-0D450

NCP150..R..C

 1
52127-0D460

NCP150..(G,V)..C

 1
52128B - COVER, FRONT BUMPER HOLE, LH
52128-0D280

NCP150..4FC..R..C

BRUNEI SPEC

 1
52128-0D270

NCP150..R..C

 1
52128-0D280

NCP150..(G,V)..C

 1
52161C - PIECE, FRONT BUMPER
52161-0K040

NCP150..C

 3
52521A - CLIP(FOR FRONT BUMPER RETAINER)
90467-05170

NCP15#,NSP15#..GCC,GEN,IDN,MA,PH,TAIW,TH,VN

 2
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-0D180

NCP150..C

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-0D180

NCP150..C

 1
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-0D370

NCP150..C

NO PAINT REQ.

 1
Common parts
90159-50311
90159-T0009
90178-T0088
90179-06349
90189-06193
Linked diagrams
5102
5302
7601
