NCP150R-CHPGKE (2014)

Toyota Yaris

Production Mar 2014 - Sep 2016
Engine 1NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(1310- )RHD..A

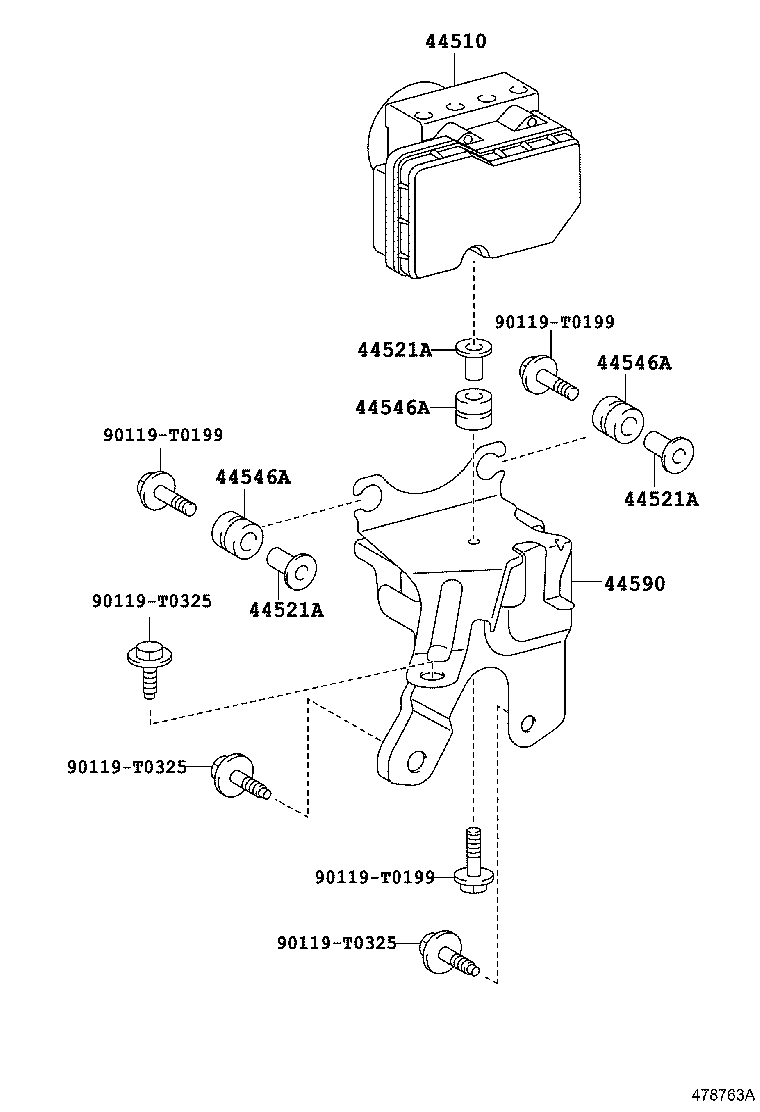

Click highlighted areas on diagram

BRAKE ACTUATOR

diagram 44510 44521A 44521A 44521A 44546A 44546A 44546A 44590 90119T0199 90119T0199 90119T0199 90119T0325 90119T0325 90119T0325
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-0D320

NCP150..MA;NCP150..V..C

 1
44050-0D300

NCP150..IDN..(G,R)

 1
44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1
44521-0D010

NCP150..C

 3
44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1
44521-0D010

NCP150..C

 3
44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1
44521-0D010

NCP150..C

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44547-02050

NCP150..C

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44547-02050

NCP150..C

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44547-02050

NCP150..C

 3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-0D220

NCP150..C

 1
Common parts
90119-T0199
90119-T0325

ILLUST NO. 2 OF 2(1403- )B,C

Click highlighted areas on diagram

BRAKE ACTUATOR

diagram 44510 44521A 44521A 44521A 44546A 44546A 44546A 44590 90119T0199 90119T0199 90119T0199 90119T0325 90119T0325 90119T0325
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-0D320

NCP150..MA;NCP150..V..C

 1
44050-0D300

NCP150..IDN..(G,R)

 1
44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1
44521-0D010

NCP150..C

 3
44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1
44521-0D010

NCP150..C

 3
44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1
44521-0D010

NCP150..C

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44547-02050

NCP150..C

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44547-02050

NCP150..C

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44547-02050

NCP150..C

 3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-0D220

NCP150..C

 1
Common parts
90119-T0199
90119-T0325
