NCP150R-CHPGKE (2014)

Toyota Yaris

Production Mar 2014 - Sep 2016
Engine 1NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1310- )RHD

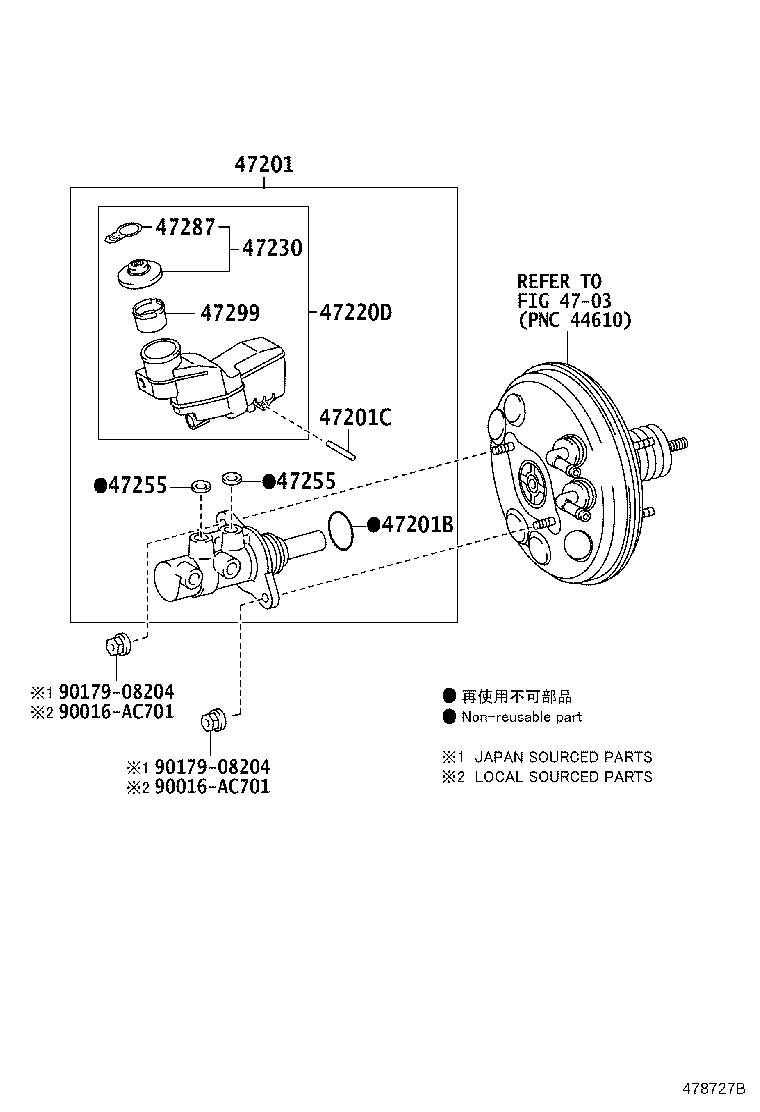

Click highlighted areas on diagram

diagram 4703 47201 47201B 47201C 47220D 47230 47255 47255 47287 47299 90016AC701 90016AC701 9017908204 9017908204
Part # Description Qty Price
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-0D410

NCP150..4FC..IDN..(G,R)

 1
47201-0D430

NCP150..MA;NCP150..4FC..V..C

 1
47201B - RING, O(FOR BRAKE MASTER CYLINDER)
90016-AH903

NCP150..C

 1
47201C - RING PIN, BRAKE MASTER CYLINDER
90029-15803

NCP150..C

 1
47220D - RESERVOIR ASSY, BRAKE MASTER CYLINDER
47220-0D220

NCP150..4FC..C

 1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-0D221

NCP150..C

 1
47230-0D220

NCP15#,NSP152..GCC,GEN,IDN,MA,PH,TH,VN

 1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
90016-AT001

NCP150..C

 2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
90016-AT001

NCP150..C

 2
47287 - LABEL, BRAKE FLUID INFORMATION
47287-02360

NCP150..C

 1
47287-20010

NCP15#,NSP152..GCC,GEN,IDN,MA,PH,TH,VN

 1
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-0K010

NCP150..C

 1
Common parts
90016-AC701
90179-08204
Linked diagrams
4703
