NCP150R-CHPGKE (2014)

Toyota Yaris

Production Mar 2014 - Sep 2016
Engine 1NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1310- )RHD

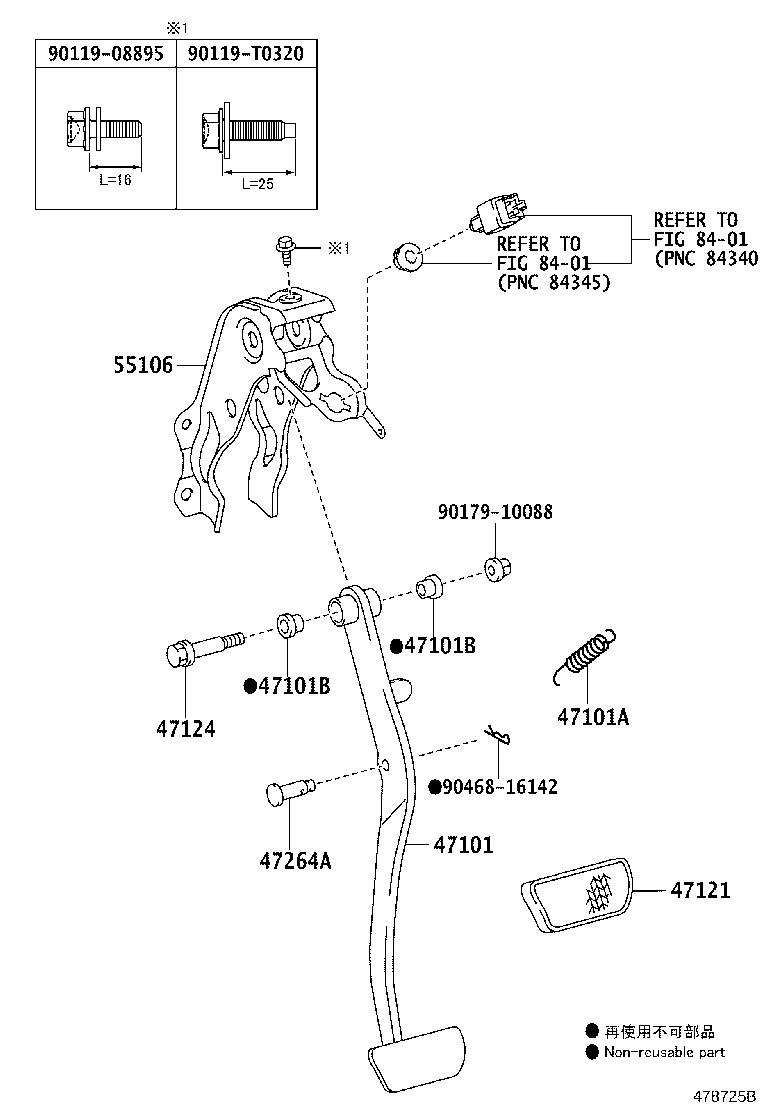

Click highlighted areas on diagram

diagram 47101 47101A 47101B 47101B 47121 47124 47264A 55106 8401 8401 9011908895 90119T0320 9017910088 9046816142
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47101-0D420

NCP150..4FC..C

 1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90506-T0015

NCP150..C

(L)

 1
90506-14088

NCP150..C

(J)

 1
47101B - BUSH(FOR BRAKE PEDAL)
90386-13015

NCP150..C

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13015

NCP150..C

 2
47121 - PAD, BRAKE PEDAL
47121-52010

NCP150..4FC..C

 1
47124 - SHAFT, BRAKE PEDAL
90109-10167

NCP150..C

 1
47264A - PIN(FOR PUSH ROD)
90249-08051

NCP150..C

 1
55106 - SUPPORT SUB-ASSY, BRAKE PEDAL
55106-0D200

NCP150..C

 1
Common parts
90119-08895
90119-T0320
90179-10088
90468-16142
Linked diagrams
8401
