Toyota Yaris NCP150 PARKING BRAKE & CABLE

NCP150R-CHPGKE (2014)

Toyota Yaris

Production Mar 2014 - Sep 2016

Engine 1NZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

Click highlighted areas on diagram

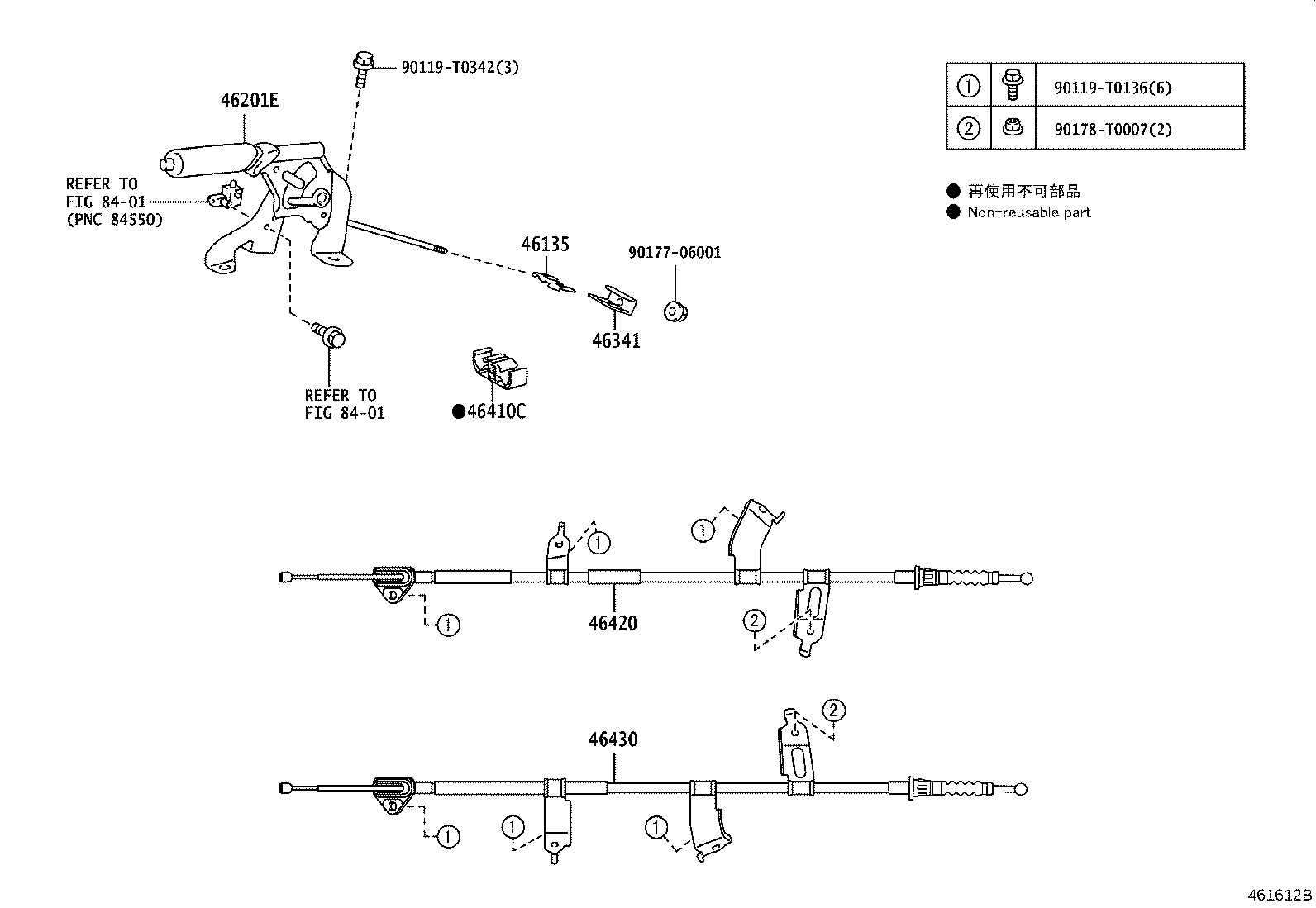

REAR DRUM BRAKE

Part #	Description	Period	Qty
46135 - STOPPER, PARKING BRAKE CABLE END
46135-0D060	NCP150..C	03/2014 - 09/2016	1
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-0D310C0	NCP15#..D;NCP151..RHD..R;NCP15#,NSP152..(GCC,PH,TH)..R BLACK,TRIM0#,2#	10/2013 - 06/2014	1
46201-0D170C0	NCP150..R..C BLACK,TRIM0#,2#	03/2014 - 09/2016	1
46201-0D400C0	NCP150..IDN..G BLACK,TRIM0#,2#	03/2014 - 09/2016	1
46201-0D311C0	NCP15#..D;NCP15#..GCC..R;NCP151..RHD..R BLACK,TRIM0#,2#	07/2014 - 06/2016	1
46201-0D410C0	NCP150..MA BLACK,TRIM0#,2#	03/2014 - 09/2016	1
46341 - EQUALIZER, PARKING BRAKE
46341-0D120	NCP150..C	03/2014 - 09/2016	1
46410C - CLAMP(FOR PARKING BRAKE FRONT CABLE)
46411-0D060	NCP150..C	03/2014 - 09/2016	1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-0D260	NCP150..IDN..(G,R)	10/2013 - 09/2016	1
46420-0D310	NCP150..MA;NCP150..V..C	03/2014 - 09/2016	1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-0D260	NCP150..IDN..(G,R)	10/2013 - 09/2016	1
46430-0D310	NCP150..MA;NCP150..V..C	03/2014 - 09/2016	1
Common parts
90119-T0136
90119-T0307
90119-T0342
90177-06001
90178-T0007
90179-06274
91671-80614
91671-80820
94151-80600
Linked diagrams
8401

Click highlighted areas on diagram

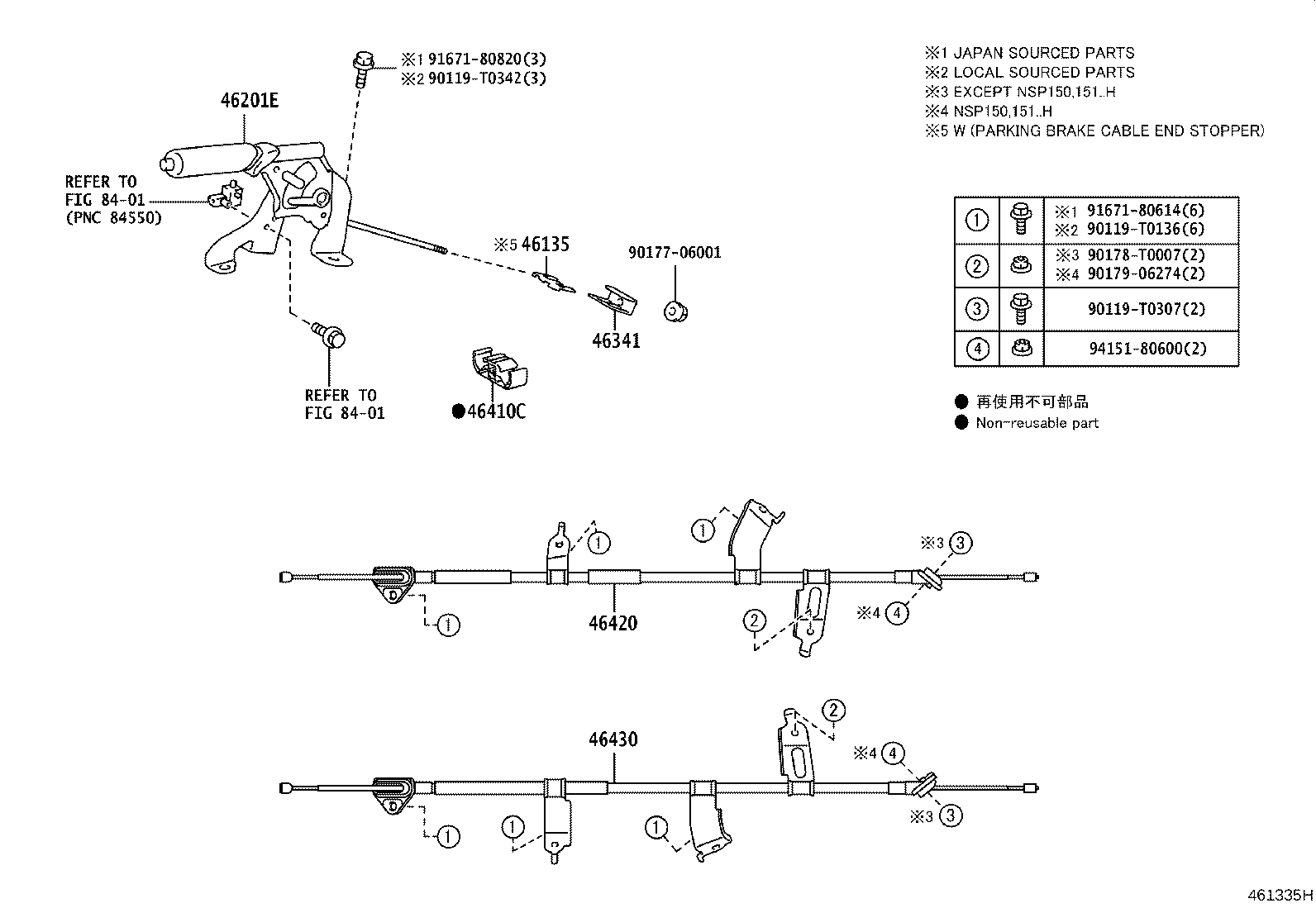

REAR DISC BRAKE

Part #	Description	Period	Qty
46135 - STOPPER, PARKING BRAKE CABLE END
46135-0D060	NCP150..C	03/2014 - 09/2016	1
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-0D310C0	NCP15#..D;NCP151..RHD..R;NCP15#,NSP152..(GCC,PH,TH)..R BLACK,TRIM0#,2#	10/2013 - 06/2014	1
46201-0D170C0	NCP150..R..C BLACK,TRIM0#,2#	03/2014 - 09/2016	1
46201-0D400C0	NCP150..IDN..G BLACK,TRIM0#,2#	03/2014 - 09/2016	1
46201-0D311C0	NCP15#..D;NCP15#..GCC..R;NCP151..RHD..R BLACK,TRIM0#,2#	07/2014 - 06/2016	1
46201-0D410C0	NCP150..MA BLACK,TRIM0#,2#	03/2014 - 09/2016	1
46341 - EQUALIZER, PARKING BRAKE
46341-0D120	NCP150..C	03/2014 - 09/2016	1
46410C - CLAMP(FOR PARKING BRAKE FRONT CABLE)
46411-0D060	NCP150..C	03/2014 - 09/2016	1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-0D260	NCP150..IDN..(G,R)	10/2013 - 09/2016	1
46420-0D310	NCP150..MA;NCP150..V..C	03/2014 - 09/2016	1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-0D260	NCP150..IDN..(G,R)	10/2013 - 09/2016	1
46430-0D310	NCP150..MA;NCP150..V..C	03/2014 - 09/2016	1
Common parts
90119-T0136
90119-T0342
90177-06001
90178-T0007
Linked diagrams
8401
