NCP150R-CHPGKE (2014)

Toyota Yaris

Production Mar 2014 - Sep 2016
Engine 1NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1310- )RHD

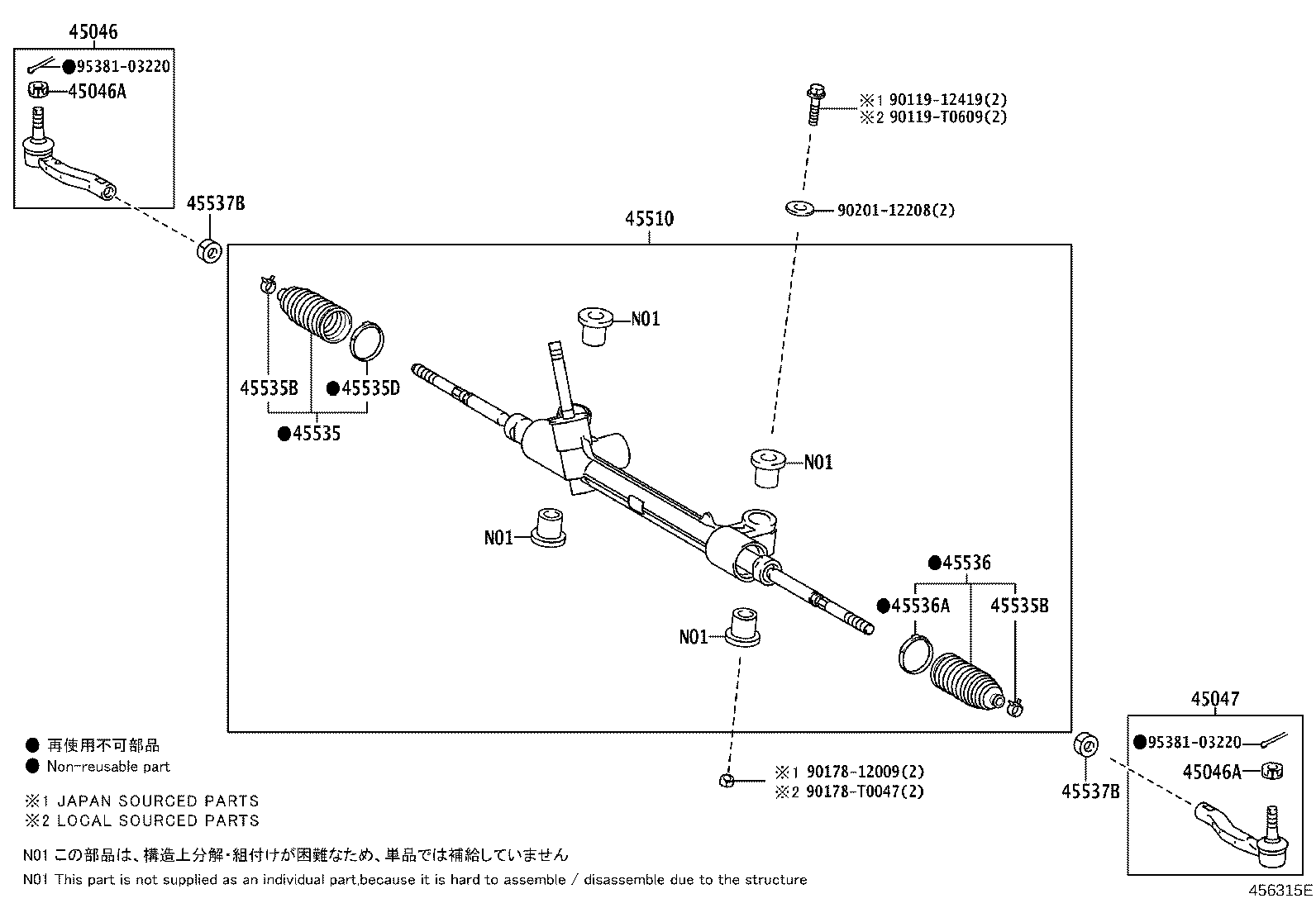

Click highlighted areas on diagram

diagram 45046 45046A 45046A 45047 45510 45535 45535B 45535B 45535D 45536 45536A 45537B 45537B 9011912419 90119T0609 9017812009 90178T0047 9020112208 9538103220 9538103220
Part # Description Qty Price
45046 - END SUB-ASSY, TIE ROD, RH
45046-09760

NCP150..C

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-T0004

NCP150..C

(L)

 2
90171-12028

NCP150..C

(J)

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-T0004

NCP150..C

(L)

 2
90171-12028

NCP150..C

(J)

 2
45047 - END SUB-ASSY, TIE ROD, LH
45047-09390

NCP150..C

 1
45535 - BOOT, STEERING RACK, NO.1
45535-09330

NCP150..C

 1
45535B - CLIP(FOR STEERING RACK BOOT)
45537-0D090

NCP150..C

 2
45535B - CLIP(FOR STEERING RACK BOOT)
45537-0D090

NCP150..C

 2
45535D - CLAMP(FOR STEERING RACK BOOT NO.1)
45538-0D030

NCP150..C

 1
45536 - BOOT, STEERING RACK, NO.2
45535-09330

NCP150..C

 1
45536A - CLAMP(FOR STEERING RACK BOOT NO.2)
45538-0D030

NCP150..C

 1
45537B - NUT, RACK END LOCK
90170-14012

NCP150..C

 2
45537B - NUT, RACK END LOCK
90170-14012

NCP150..C

 2
Common parts
90119-12419
90119-T0609
90178-12009
90178-T0047
90201-12208
95381-03220
