NCP150R-CHPGKE (2014)

Toyota Yaris

Production Mar 2014 - Sep 2016
Engine 1NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

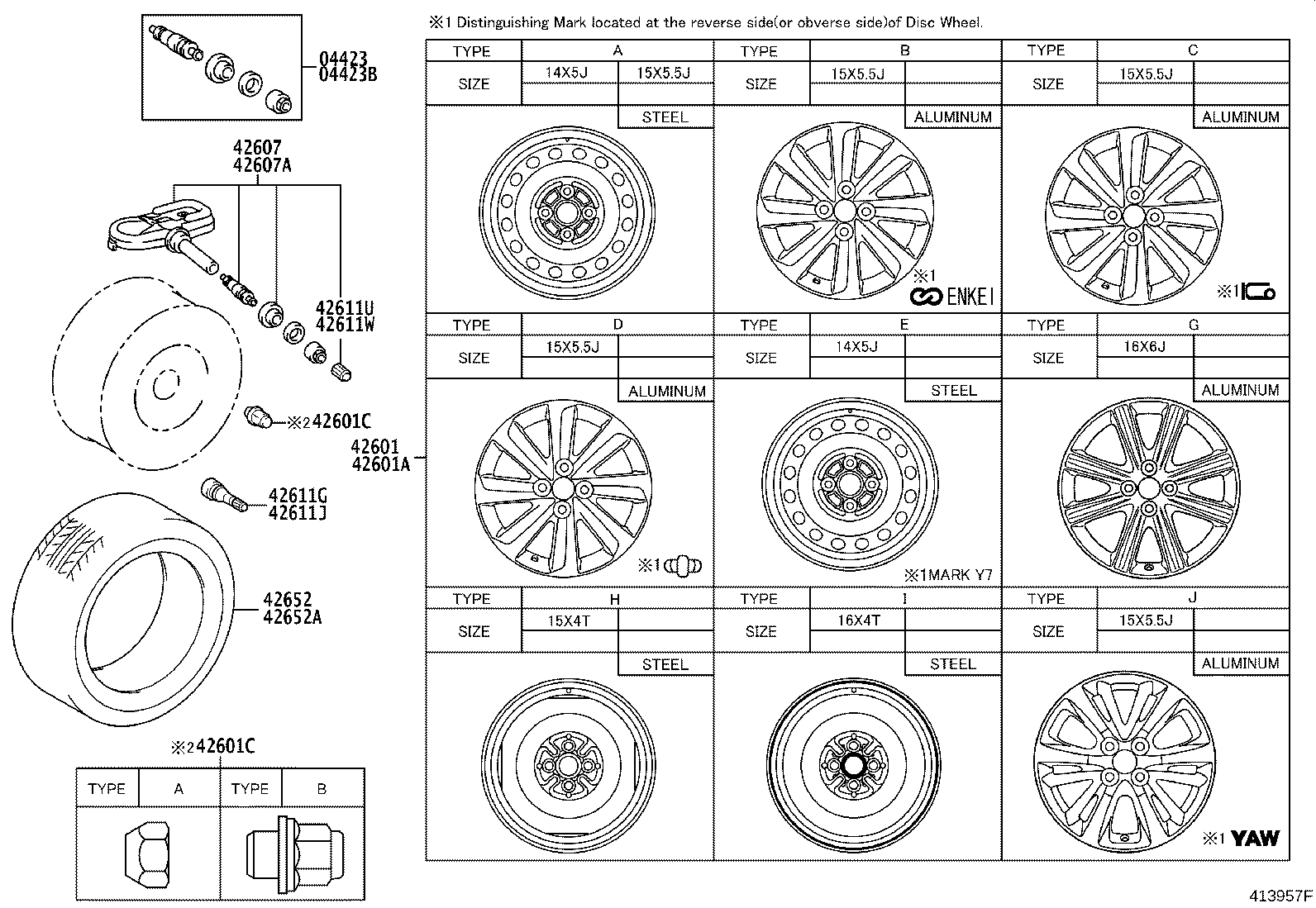

ILLUST NO. 1 OF 6(1310- )

Click highlighted areas on diagram

DISC WHEEL

diagram 04423 04423B 42601 42601A 42601C 42601C 42607 42607A 42611G 42611J 42611U 42611W 42652 42652A
Part # Description Qty Price
42601 - WHEEL, DISC
42611-0D750

NCP150..4FC..IDN..(G,R)

15X5.5J, #,BRUNEI SPEC,TYPE A:REFER ILLUST.

 4
42611-0D750

NCP15#..D

15X5.5J, #,TYPE A:REFER ILLUST.

 4
42611-0D751

NCP150..4FC..IDN..(G,R)

15X5.5J, #,BRUNEI SPEC,TYPE A:REFER ILLUST.

 4
42611-0DB90

NCP150..R..C

15X5.5J, #,TYPE D:REFER ILLUST.

 4
42611-0DC00

NCP150..(G,V)..C

16X6J, #,TYPE G:REFER ILLUST.

 4
42601A - WHEEL, DISC (FOR SPARE)
42611-0D750

NCP150..4FC..IDN..(G,R)

15X5.5J, #,BRUNEI SPEC,TYPE A:REFER ILLUST.

 1
42611-0D750

NCP15#..D

15X5.5J, #,TYPE A:REFER ILLUST.

 1
42611-0DB90

NCP150..R..C

15X5.5J, #,TYPE D:REFER ILLUST.

 1
42601C - NUT, HUB (FOR AXLE)
90942-01007

NCP150..4FC..IDN..(G,R)

BRUNEI SPEC,TYPE A:REFER ILLUST.

 16
90942-01007

NCP15#..D;NCP15#..GCC..R

TYPE A:REFER ILLUST.

 16
90942-01033

NCP150..C

TYPE B:REFER ILLUST.

 16
42601C - NUT, HUB (FOR AXLE)
90942-01007

NCP150..4FC..IDN..(G,R)

BRUNEI SPEC,TYPE A:REFER ILLUST.

 16
90942-01007

NCP15#..D;NCP15#..GCC..R

TYPE A:REFER ILLUST.

 16
90942-01033

NCP150..C

TYPE B:REFER ILLUST.

 16

ILLUST NO. 4 OF 6(1310- )

Click highlighted areas on diagram

WHEEL HUB ORNAMENT & WHEEL CAP

diagram 42603 42621
Part # Description Qty Price
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-0D070

NCP150..C

*ALU,TYPE A:REFER ILLUST.

 4
42621 - CAP, WHEEL
42602-0D260

NCP15#..D

TYPE B:REFER ILLUST.

 4

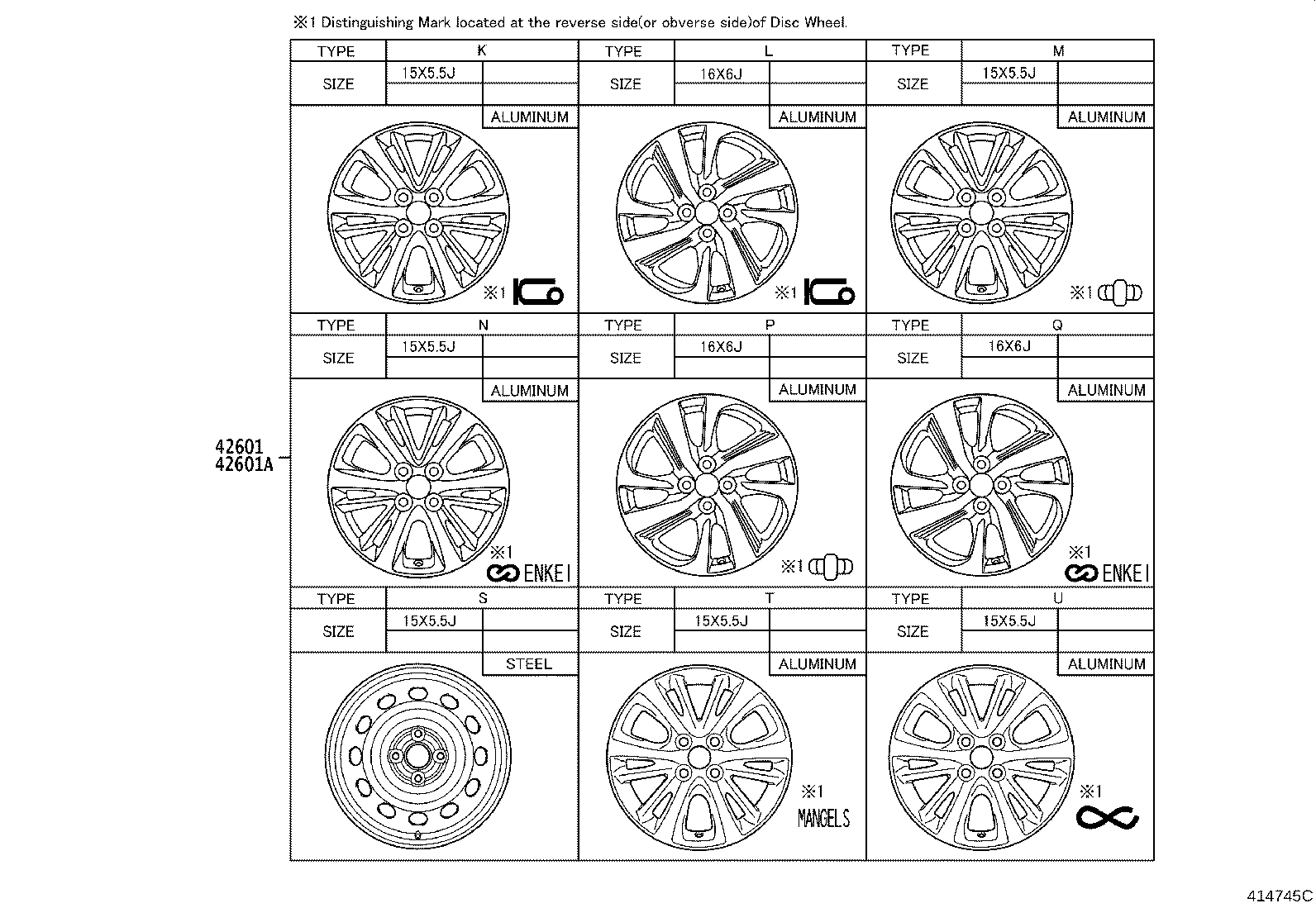

ILLUST NO. 2 OF 6(1310- )

Click highlighted areas on diagram

DISC WHEEL

diagram 42601 42601A
Part # Description Qty Price
42601 - WHEEL, DISC
42611-0D750

NCP150..4FC..IDN..(G,R)

15X5.5J, #,BRUNEI SPEC,TYPE A:REFER ILLUST.

 4
42611-0D750

NCP15#..D

15X5.5J, #,TYPE A:REFER ILLUST.

 4
42611-0D751

NCP150..4FC..IDN..(G,R)

15X5.5J, #,BRUNEI SPEC,TYPE A:REFER ILLUST.

 4
42611-0DB90

NCP150..R..C

15X5.5J, #,TYPE D:REFER ILLUST.

 4
42611-0DC00

NCP150..(G,V)..C

16X6J, #,TYPE G:REFER ILLUST.

 4
42601A - WHEEL, DISC (FOR SPARE)
42611-0D750

NCP150..4FC..IDN..(G,R)

15X5.5J, #,BRUNEI SPEC,TYPE A:REFER ILLUST.

 1
42611-0D750

NCP15#..D

15X5.5J, #,TYPE A:REFER ILLUST.

 1
42611-0DB90

NCP150..R..C

15X5.5J, #,TYPE D:REFER ILLUST.

 1

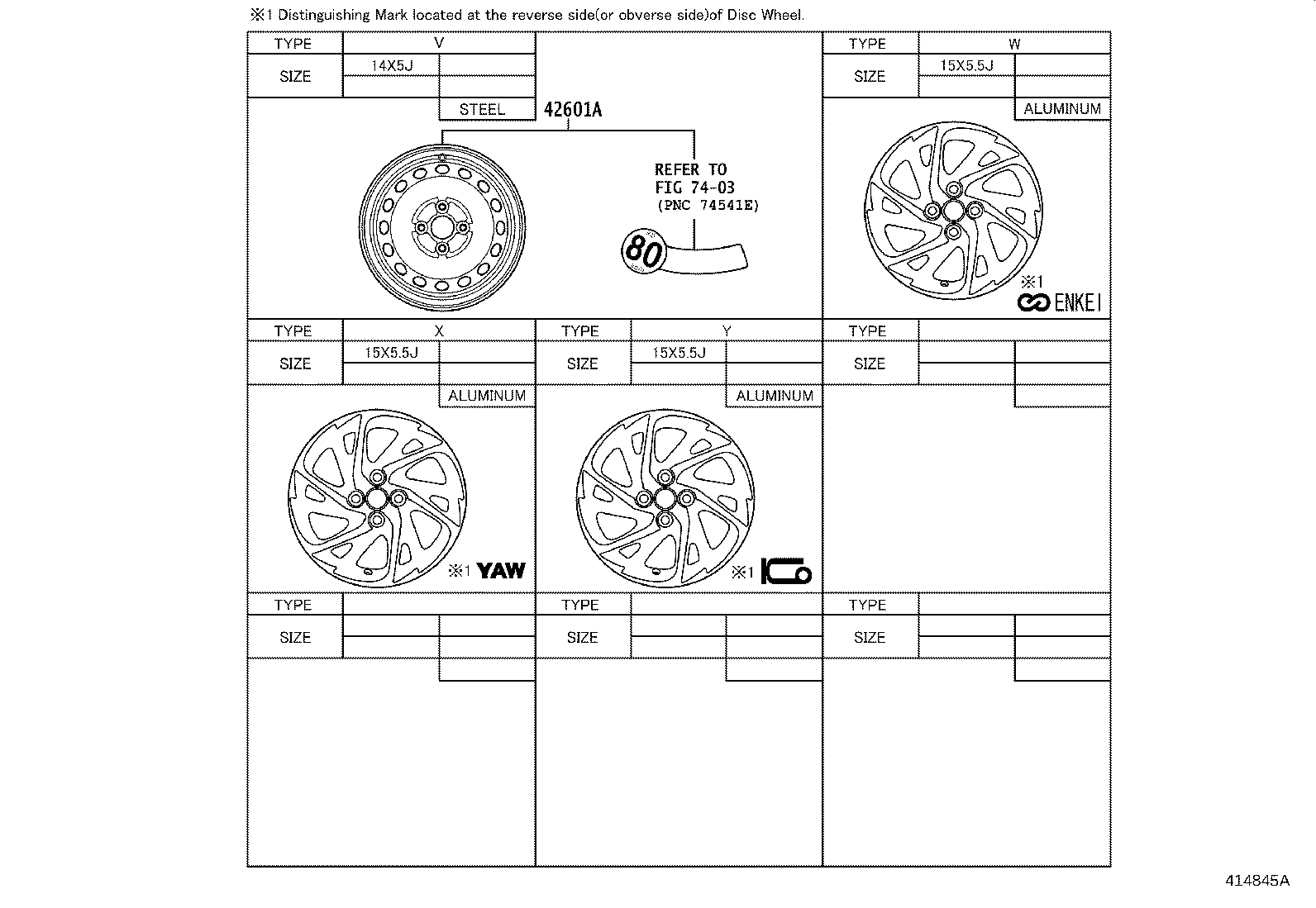

ILLUST NO. 3 OF 6(1310- )

Click highlighted areas on diagram

DISC WHEEL

diagram 42601A 7403
Part # Description Qty Price
42601A - WHEEL, DISC (FOR SPARE)
42611-0D750

NCP150..4FC..IDN..(G,R)

15X5.5J, #,BRUNEI SPEC,TYPE A:REFER ILLUST.

 1
42611-0D750

NCP15#..D

15X5.5J, #,TYPE A:REFER ILLUST.

 1
42611-0DB90

NCP150..R..C

15X5.5J, #,TYPE D:REFER ILLUST.

 1
Linked diagrams
7403
