NCP150R-CHPGKE (2014)

Toyota Yaris

Production Mar 2014 - Sep 2016
Engine 1NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1403- )NCP150..4FC

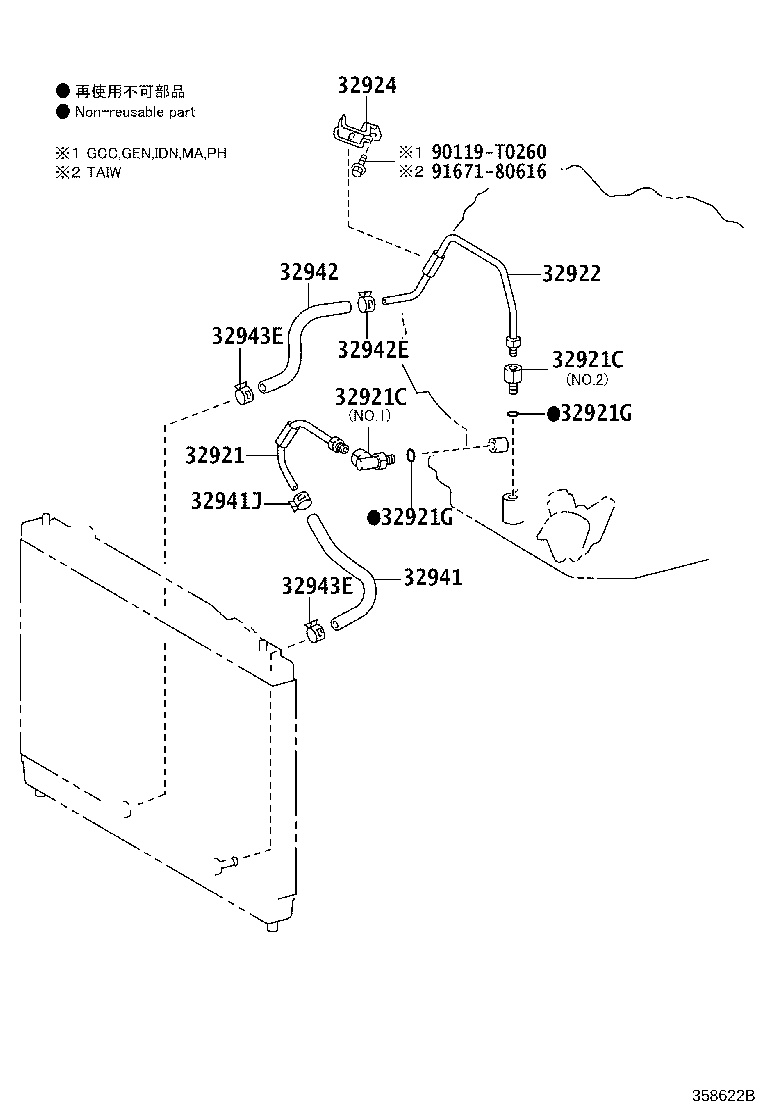

Click highlighted areas on diagram

U340E

diagram 32921 32921C 32921C 32921G 32921G 32922 32924 32941 32941J 32942 32942E 32943E 32943E 90119T0260 9167180616
Part # Description Qty Price
32921 - TUBE, OIL COOLER INLET, NO.1
32921-0D090

NCP150..4FC..C

 1
32921C - UNION(FOR OIL COOLER TUBE)
90407-14003

NCP150..4FC

NO.1

 1
90404-14007

NCP150..4FC

NO.2

 1
32921C - UNION(FOR OIL COOLER TUBE)
90407-14003

NCP150..4FC

NO.1

 1
90404-14007

NCP150..4FC

NO.2

 1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10018

NCP150..4FC

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10018

NCP150..4FC

 2
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-0D090

NCP150..4FC..C

 1
32924 - CLAMP, OIL COOLER TUBE, NO.2
32924-52010

NCP150..4FC

 1
32941 - HOSE, OIL COOLER INLET, NO.1
90445-T0027

NCP150..4FC..(GCC,GEN,IDN,MA,PH)

 1
32941J - CLIP, NO.1(FOR OIL COOLER HOSE)
96137-41501

NCP15#..4FC

 1
32942 - HOSE, OIL COOLER OUTLET, NO.1
90445-T0027

NCP150..4FC..(GCC,GEN,IDN,MA,PH)

 1
32942E - CLIP, NO.2(FOR OIL COOLER HOSE)
96137-41501

NCP15#..4FC

 1
32943E - CLIP, NO.3(FOR OIL COOLER HOSE)
90466-T0009

NCP15#..4FC..(GCC,GEN,IDN,MA,PH,VN)

 2
32943E - CLIP, NO.3(FOR OIL COOLER HOSE)
90466-T0009

NCP15#..4FC..(GCC,GEN,IDN,MA,PH,VN)

 2
Common parts
90119-T0260
91671-80616
