NCP150R-CHPGKE (2014)

Toyota Yaris

Production Mar 2014 - Sep 2016
Engine 1NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1403- )1NZFE,2NZFE..GCC,GEN,IDN,MA,PH,VN

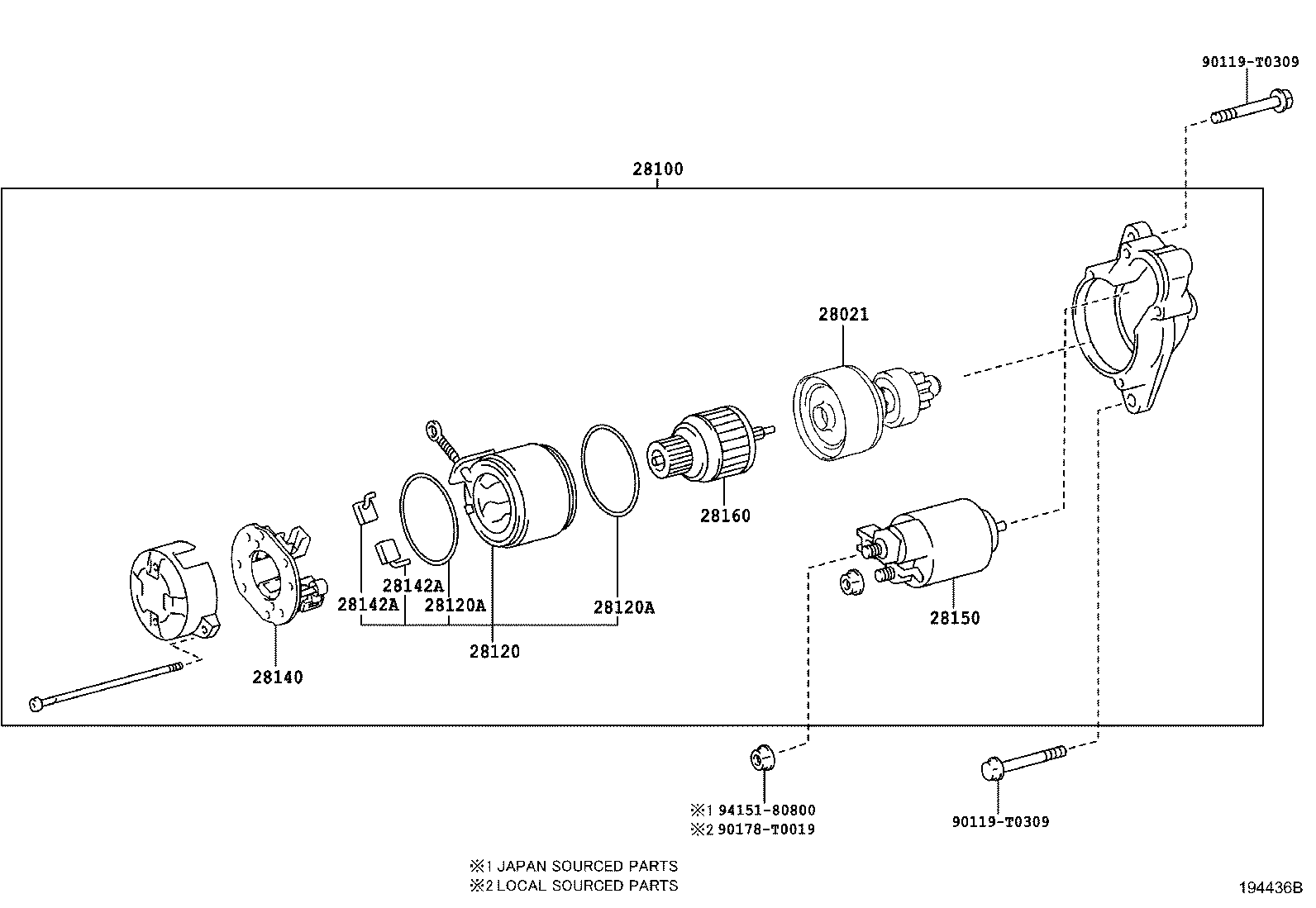

Click highlighted areas on diagram

12V 0.8KW

diagram 28021 28100 28120 28120A 28120A 28140 28142A 28142A 28150 28160 90119T0309 90119T0309 90178T0019 9415180800
Part # Description Qty Price
28021 - CLUTCH SUB-ASSY, STARTER CENTER BEARING
28021-0T070

1NZFE..NCP150..C

 1
28100 - STARTER ASSY
28100-0M110

1NZFE..NCP150..C

12V 0.8KW

 1
28120 - YOKE ASSY, STARTER
28120-0D040

1NZFE..NCP150..C

 1
28120A - RING, O(FOR STARTER YOKE)
90068-14029

1NZFE..NCP150..C

 2
28120A - RING, O(FOR STARTER YOKE)
90068-14029

1NZFE..NCP150..C

 2
28140 - HOLDER ASSY, STARTER BRUSH
28140-0T070

1NZFE..NCP150..C

 1
28142A - STARTER KIT
28142-70020

1NZFE..NCP150..C

 2
28142A - STARTER KIT
28142-70020

1NZFE..NCP150..C

 2
28150 - SWITCH ASSY, MAGNET STARTER
28150-0M050

1NZFE..NCP150..C

 1
28160 - ARMATURE ASSY, STARTER
28160-0T100

1NZFE..NCP150..C

 1
Common parts
90119-T0309
90178-T0019
94151-80800
