NCP150R-CHPGKE (2014)

Toyota Yaris

Production Mar 2014 - Sep 2016
Engine 1NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1310- )

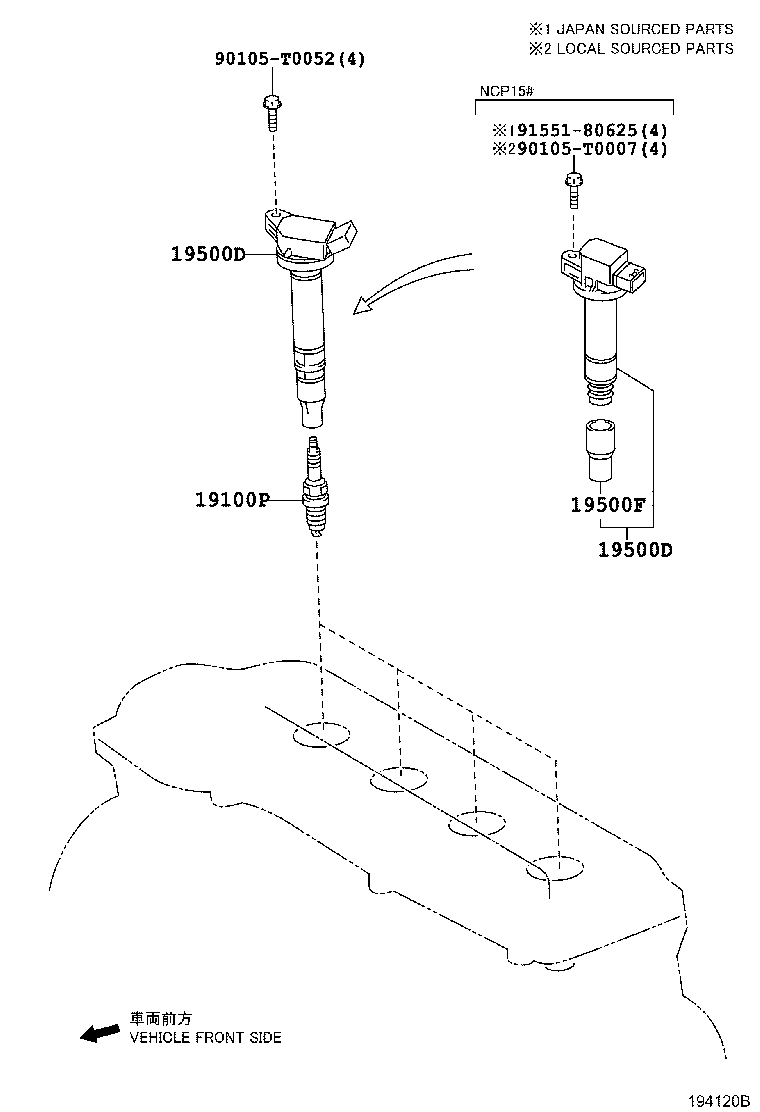

Click highlighted areas on diagram

diagram 19100P 19500D 19500D 19500F 90105T0007 90105T0052 9155180625
Part # Description Qty Price
19100P - PLUG, SPARK
90919-T1002

1NZFE..NCP150..C

K16R-U,(L)

 4
90919-01176

1NZFE..NCP150..C

K16R-U,(J)

 4
19500D - COIL, IGNITION, NO.1
90919-T2007

1NZFE..NCP150..C

(L)

 4
90919-02265

1NZFE..NCP150..C

(J)

 4
19500D - COIL, IGNITION, NO.1
90919-T2007

1NZFE..NCP150..C

(L)

 4
90919-02265

1NZFE..NCP150..C

(J)

 4
19500F - CAP, PLUG
90919-11009

1NZFE..NCP150..C

 4
Common parts
90105-T0007
90105-T0052
91551-80625
