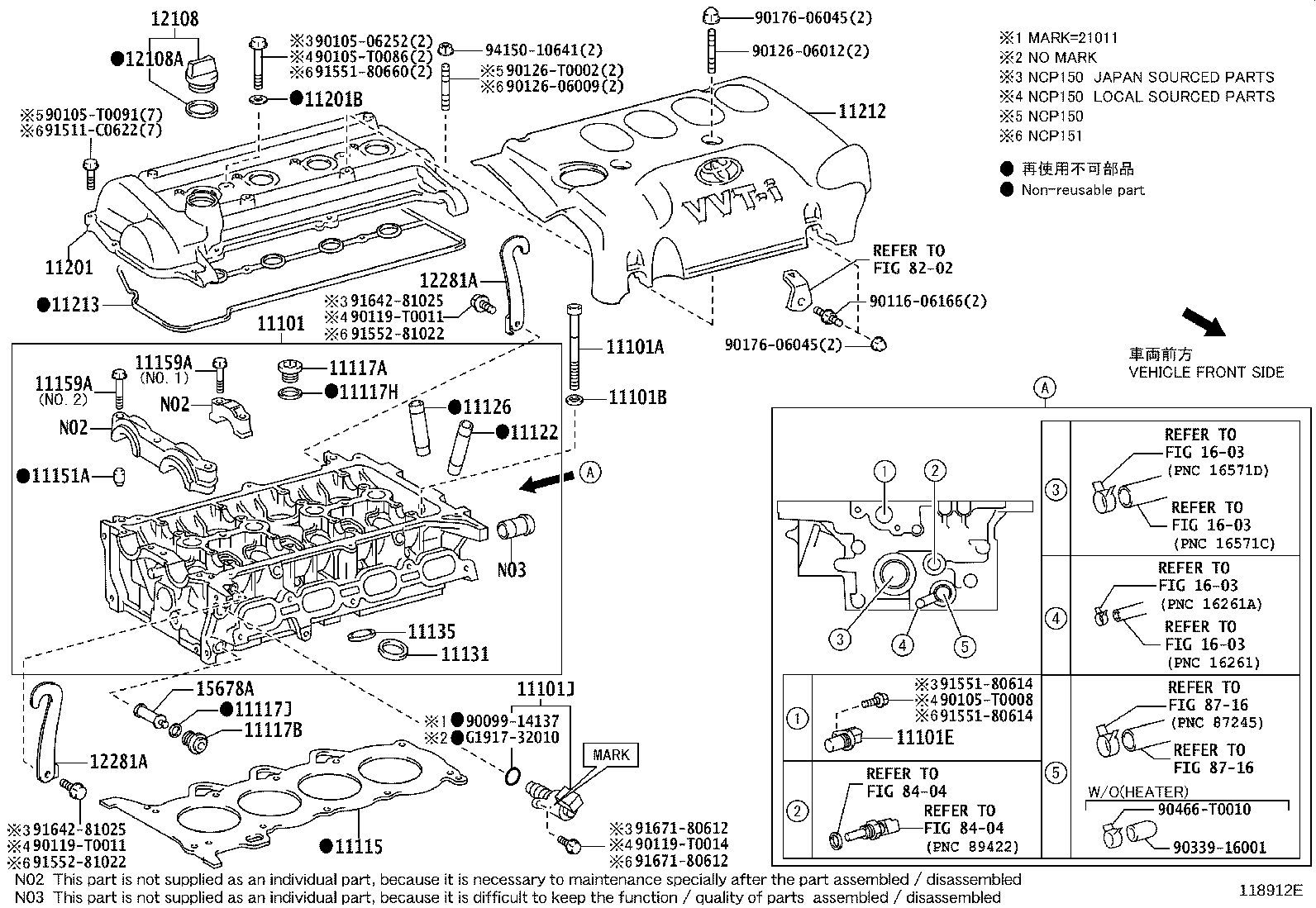

Toyota Yaris NCP150 CYLINDER HEAD

Part #	Description	Period	Qty
11101 - HEAD SUB-ASSY, CYLINDER
11101-21034	1NZFE,2NZFE..NCP15#	03/2014 - 09/2016	1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02170	1NZFE,2NZFE..NCP15#	03/2014 - 09/2016	10
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-09024	1NZFE,2NZFE..NCP15#	03/2014 - 09/2016	10
11101E - SENSOR, CAM POSITION
90919-05024	1NZFE..NCP150..C	03/2014 - 09/2016	1
11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL
15330-21011	1NZFE..NCP150..C	03/2014 - 09/2016	1
11115 - GASKET, CYLINDER HEAD
11115-21090	1NZFE,2NZFE..NCP15#	03/2014 - 03/2015	1
11115-21091	1NZFE,2NZFE..NCP15#	04/2015 - 09/2016	1
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90341-20002	1NZFE..NCP150..C	03/2014 - 09/2016	1
11117B - PLUG, W/HEAD TAPER SCREW, NO.2
90341-14013	1NZFE..NCP150..C (J)	03/2014 - 09/2016	1
90341-T0012	1NZFE..NCP150..C (L)	03/2014 - 09/2016	1
11117H - GASKET(FOR WATER HOLE)
90430-20004	1NZFE..NCP150..C	03/2014 - 09/2016	1
11117J - GASKET(FOR CYLINDER HEAD SCREW PLUG)
90430-14009	1NZFE..NCP150..C	03/2014 - 09/2016	1
11122 - BUSH, INTAKE VALVE GUIDE
11123-21010	1NZFE..NCP150..C O/S 0.05	03/2014 - 09/2016	8
11122-21010	1NZFE..NCP150..C STD	03/2014 - 09/2016	8
11126 - BUSH, EXHAUST VALVE GUIDE
11122-21010	1NZFE..NCP150..C STD	03/2014 - 09/2016	8
11123-21010	1NZFE..NCP150..C O/S 0.05	03/2014 - 09/2016	8
11131 - SEAT, INTAKE VALVE
11131-21021	1NZFE,2NZFE..NCP15# STD	04/2016 - 09/2016	8
11132-21020	1NZFE,2NZFE..NCP15# O/S 0.03	03/2014 - 04/2016	8
11131-21020	1NZFE..NCP150 STD	03/2014 - 04/2016	8
11132-21021	1NZFE,2NZFE..NCP15# O/S 0.03	04/2016 - 09/2016	8
11135 - SEAT, EXHAUST VALVE
11135-21040	1NZFE,2NZFE..NCP15# STD	03/2014 - 09/2016	8
11136-21040	1NZFE,2NZFE..NCP15# O/S 0.03	03/2014 - 09/2016	8
11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
90250-06001	1NZFE..NCP150..C L=14,OD=6	03/2014 - 09/2016	2
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90109-06080	1NZFE..NCP150..C NO.1	03/2014 - 09/2016	16
90119-08A29	1NZFE..NCP150..C NO.2	03/2014 - 09/2016	3
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90109-06080	1NZFE..NCP150..C NO.1	03/2014 - 09/2016	16
90119-08A29	1NZFE..NCP150..C NO.2	03/2014 - 09/2016	3
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-21051	1NZFE..NCP150..C (J)	03/2014 - 09/2016	1
11201-0M011	1NZFE..NCP150..C (L)	03/2014 - 09/2016	1
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-05008	1NZFE..NCP150..C	03/2014 - 09/2016	2
11212 - COVER, CYLINDER HEAD, NO.2
11212-0M040	1NZFE,2NZFE..NCP15#..GCC,GEN,IDN,MA,PH,VN	03/2014 - 09/2016	1
11213 - GASKET, CYLINDER HEAD COVER
11213-21011	1NZFE..NCP150..C (J)	03/2014 - 09/2016	1
11213-0M010	1NZFE..NCP150..C (L)	03/2014 - 09/2016	1
12108 - CAP SUB-ASSY, OIL FILLER
12180-0H020	1NZFE..NCP150..C	10/2013 - 09/2016	1
12108A - GASKET(FOR OIL FILLER CAP)
90080-43027	1NZFE..NCP150..C	10/2013 - 09/2016	1
12281A - HANGER, ENGINE, NO.1
12281-21010	1NZFE..NCP150..C (J)	03/2014 - 09/2016	2
12281-0M020	1NZFE..NCP150..C (L)	03/2014 - 09/2016	2
12281A - HANGER, ENGINE, NO.1
12281-21010	1NZFE..NCP150..C (J)	03/2014 - 09/2016	2
12281-0M020	1NZFE..NCP150..C (L)	03/2014 - 09/2016	2
15678A - FILTER, OIL CONTROL VALVE
15678-0C010	1NZFE..NCP150..C (L)	03/2014 - 09/2016	1
15678-21010	1NZFE..NCP150..C (J)	03/2014 - 09/2016	1
Common parts
90099-14137
90105-06252
90105-T0008
90105-T0086
90105-T0091
90116-06166
90119-T0011
90119-T0014
90126-06009
90126-06012
90126-T0002
90176-06045
90339-16001
90466-T0010
91511-C0622
91551-80614
91551-80660
91552-81022
91642-81025
91671-80612
94150-10641
G1917-32010
Linked diagrams
1603
8202
8404
8716

NCP150R-CHPGKE (2014)

(1403- )1NZFE,2NZFE
