NCP150L-AHPRKR (2014)
Toyota Yaris

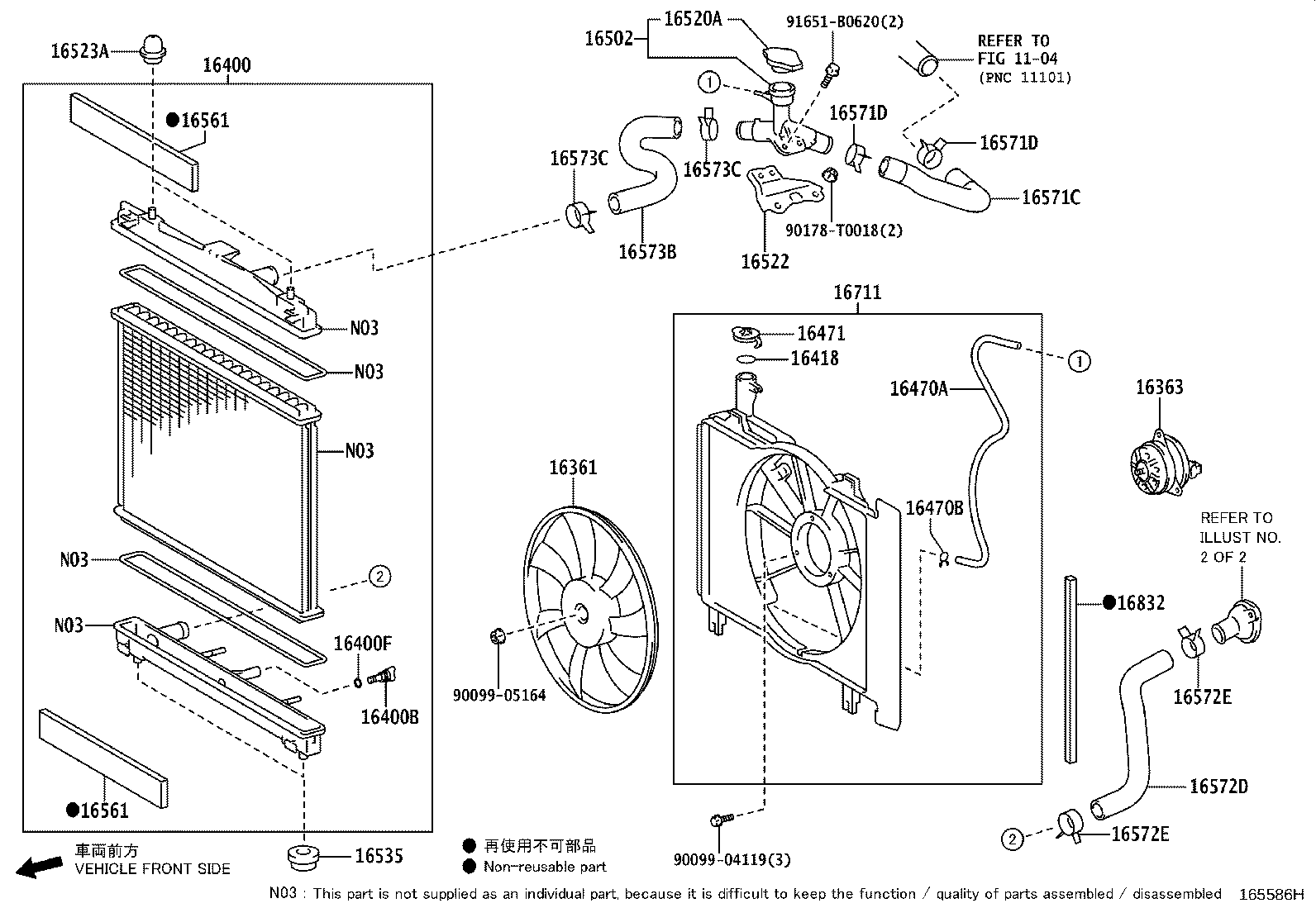

ILLUST NO. 1 OF 2(1409- )1NZFE..TAIW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-0M130 |
1NZFE..NCP150..TAIW |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-0Y050 |
1NZFE..NCP150..TAIW |
1 | ||
| 16363-0Y040 |
1NZFE..NCP150..C |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-0M250 |
1NZFE..NCP150..TAIW |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-0C180 |
1NZFE..NCP150..TAIW |
1 | ||
| 16417-0C180 |
1NZFE..NCP150..C |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
1NZFE..NCP150..C |
1 | ||
| 16492-21050 |
1NZFE..NCP150..TAIW |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16377-0M140 |
1NZFE..NCP150..TAIW |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1NZFE..NCP150..TAIW |
1 | ||
| 90467-11085 |
1NZFE..NCP150..C |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16376-0M140 |
1NZFE..NCP150..TAIW |
1 | ||
| 16502 - FILLER SUB-ASSY, WATER | ||||
| 16502-0M040 |
1NZFE..NCP150..TAIW |
1 | ||
| 16520A - CAP SUB-ASSY, WATER FILLER | ||||
| 16401-31520 |
1NZFE..NCP150..TAIW |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-0M040 |
1NZFE..NCP150..TAIW |
2 | ||
| 16523-21030 |
1NZFE..NCP150..C (J) |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90480-22025 |
1NZFE..NCP150..TAIW (J) |
2 | ||
| 90480-T0008 |
1NZFE..NCP150..TAIW (L) |
2 | ||
| 90480-22025 |
1NZFE..NCP150..C |
2 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-0M080 |
1NZFE..NCP150..TAIW |
2 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-0M080 |
1NZFE..NCP150..TAIW |
2 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 96136-43901 |
1NZFE..NCP150..C |
2 | ||
| 96136-43901 |
1NZFE..NCP150..TAIW |
2 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 96136-43901 |
1NZFE..NCP150..C |
2 | ||
| 96136-43901 |
1NZFE..NCP150..TAIW |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-43901 |
1NZFE..NCP150..C |
2 | ||
| 96136-43901 |
1NZFE..NCP150..TAIW |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-43901 |
1NZFE..NCP150..C |
2 | ||
| 96136-43901 |
1NZFE..NCP150..TAIW |
2 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-0M140 |
1NZFE..NCP150..TAIW |
1 | ||
| 16832 - SEAL, FAN SHROUD | ||||
| 16561-0M050 |
1NZFE..NCP150..TAIW |
1 | ||
| Common parts | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 90178-T0018 | ||||
| 91651-B0620 | ||||
| Linked diagrams | ||||
| 1104 | ||||
