NSP152R-AEXRBT (2019)

Toyota Yaris/Vios/Limo

Production Nov 2019 - Sep 9999
Engine 3NRFKE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1911- )3NRFKE

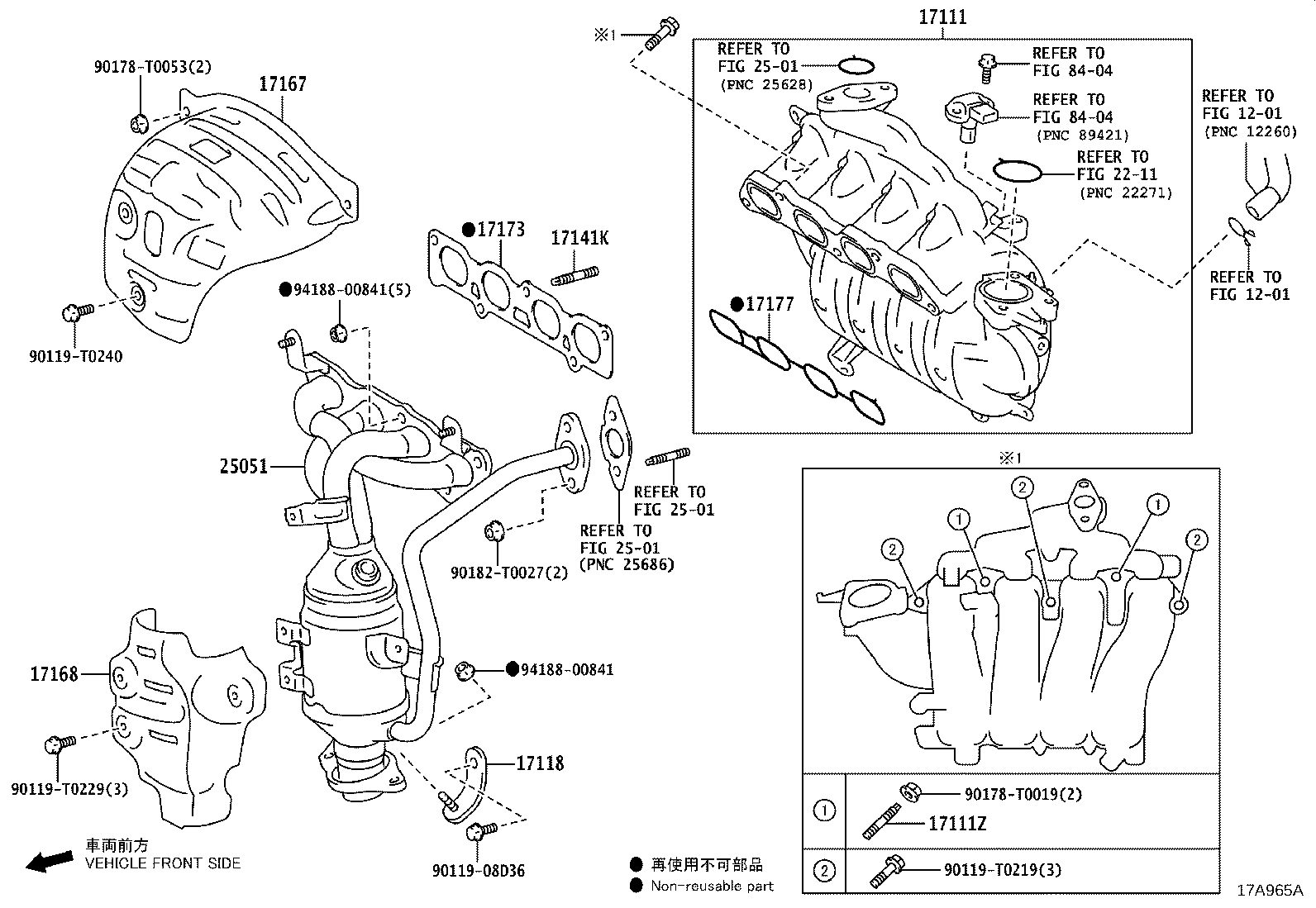

Click highlighted areas on diagram

diagram 1201 1201 17111 17111Z 17118 17141K 17167 17168 17173 17177 2211 2501 2501 2501 25051 8404 8404 9011908D36 90119T0219 90119T0229 90119T0240 90178T0019 90178T0053 90182T0027 9418800841 9418800841
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17120-0Y040

3NRFKE..NSP152

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-0Y100

3NRFKE..NSP152

 1
25051 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD
25051-47240

3NRFKE..NSP152

 1
Common parts
90119-08D36
90119-T0219
90119-T0229
90119-T0240
90178-T0019
90178-T0053
90182-T0027
94188-00841
Linked diagrams
1201
2211
2501
8404
