NSP151R-CEXRKD (2016)

Toyota Yaris/Vios/Limo

Production Oct 2016 - Dec 2017
Engine 2NRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1708- )HTWC ; (1708- )NSP150,151..A,F,G ;(1801- )C,D,E,H ; (1901- )MA

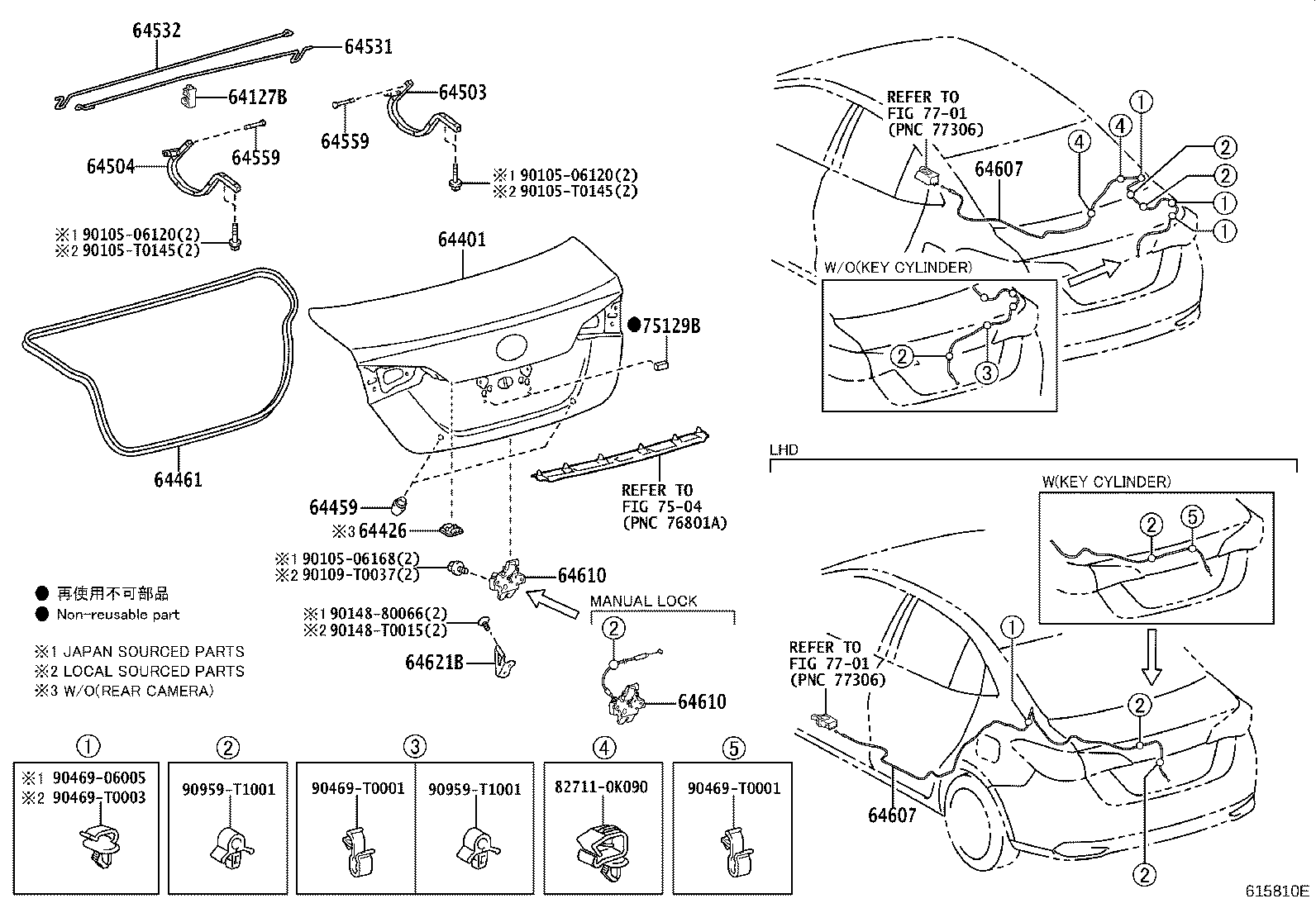

Click highlighted areas on diagram

diagram 64127B 64401 64426 64459 64461 64503 64504 64531 64532 64559 64559 64607 64607 64610 64610 64621B 7504 75129B 7701 7701 827110K090 9010506120 9010506120 9010506168 90105T0145 90105T0145 90109T0037 9014880066 90148T0015 9046906005 90469T0001 90469T0001 90469T0003 90959T1001 90959T1001
Part # Description Qty Price
64127B - SUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR
64127-0D060

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

 1
64127-0D060

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

 1
64459 - CUSHION, LUGGAGE COMPARTMENT DOOR
90541-09069

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

 2
64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64461-0D180

NSP151,152..A,E;NSP150..CVT..G..A;NSP150..5F..GCC..R..A;NSP150..CVT..GCC..(D,R)..A;NSP150..(GEN,VN)..(D,R)..(A,E)

 1
64503 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH
64503-0D040

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

 1
64503-0D090

NSP151,152..A,D,E;NSP150..CVT..G..A;NSP150..5F..GCC..R..A;NSP150..CVT..GCC..(D,R)..A;NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

 1
64504 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH
64503-0D040

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

 1
64503-0D090

NSP151,152..A,D,E;NSP150..CVT..G..A;NSP150..5F..GCC..R..A;NSP150..CVT..GCC..(D,R)..A;NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

 1
64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH
64531-0D300

NSP151..A,D,E;NSP150..CVT..G..A;NSP150..5F..GCC..R..A;NSP150..CVT..GCC..(D,R)..A;NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

 1
64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH
64532-0D290

NSP151..A,D,E;NSP150..CVT..G..A;NSP150..5F..GCC..R..A;NSP150..CVT..GCC..(D,R)..A;NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

 1
64559 - PIN, LUGGAGE DOOR HINGE
64559-12040

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

 2
64559-12040

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

 2
64559 - PIN, LUGGAGE DOOR HINGE
64559-12040

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

 2
64559-12040

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

 2
64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64607-0D480

NSP150,152..PKN,TH;NSP151..RHD..(A,I);NSP150..RHD..CVT..A

 1
64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64607-0D480

NSP150,152..PKN,TH;NSP151..RHD..(A,I);NSP150..RHD..CVT..A

 1
64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64610-0D080

NSP150..GCC;NSP151..GCC..G;NSP151..(D,R)..C;NSP151..GCC..R..B

 1
64600-0D040

NSP151,152..A,D,E,H,I;NSP150..CVT..GEN..G..A;NSP150..(GEN,PKN)..(D,R)..(A,I);NSP150..(GCC,PH,PKN)..(G,R)..(A,D,I)

 1
64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64610-0D080

NSP150..GCC;NSP151..GCC..G;NSP151..(D,R)..C;NSP151..GCC..R..B

 1
64600-0D040

NSP151,152..A,D,E,H,I;NSP150..CVT..GEN..G..A;NSP150..(GEN,PKN)..(D,R)..(A,I);NSP150..(GCC,PH,PKN)..(G,R)..(A,D,I)

 1
64621B - STRIKER, LUGGAGE COMPARTMENT DOOR LOCK
64621-06080

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

 1
64621-06080

NSP150..D,E,I;NSP150..CVT..A;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A;NSP151,152..A,D,E,G,H,I

 1
75129B - CUSHION, REAR LICENCE PLATE
75129-0D030

NSP150..D,E,I;NSP150..CVT..A;NSP151,152..A,D,E,I;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A

 2
Common parts
82711-0K090
90105-06120
90105-06168
90105-T0145
90109-T0037
90148-80066
90148-T0015
90469-06005
90469-T0001
90469-T0003
90959-T1001
Linked diagrams
7504
7701
