Toyota Yaris/vios/limo NSP151 REAR COMBINATION LAMP

NSP151R-CEXRKD (2018)

Toyota Yaris/Vios/Limo

Production Jan 2018 - Sep 9999

Engine 2NRFE

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

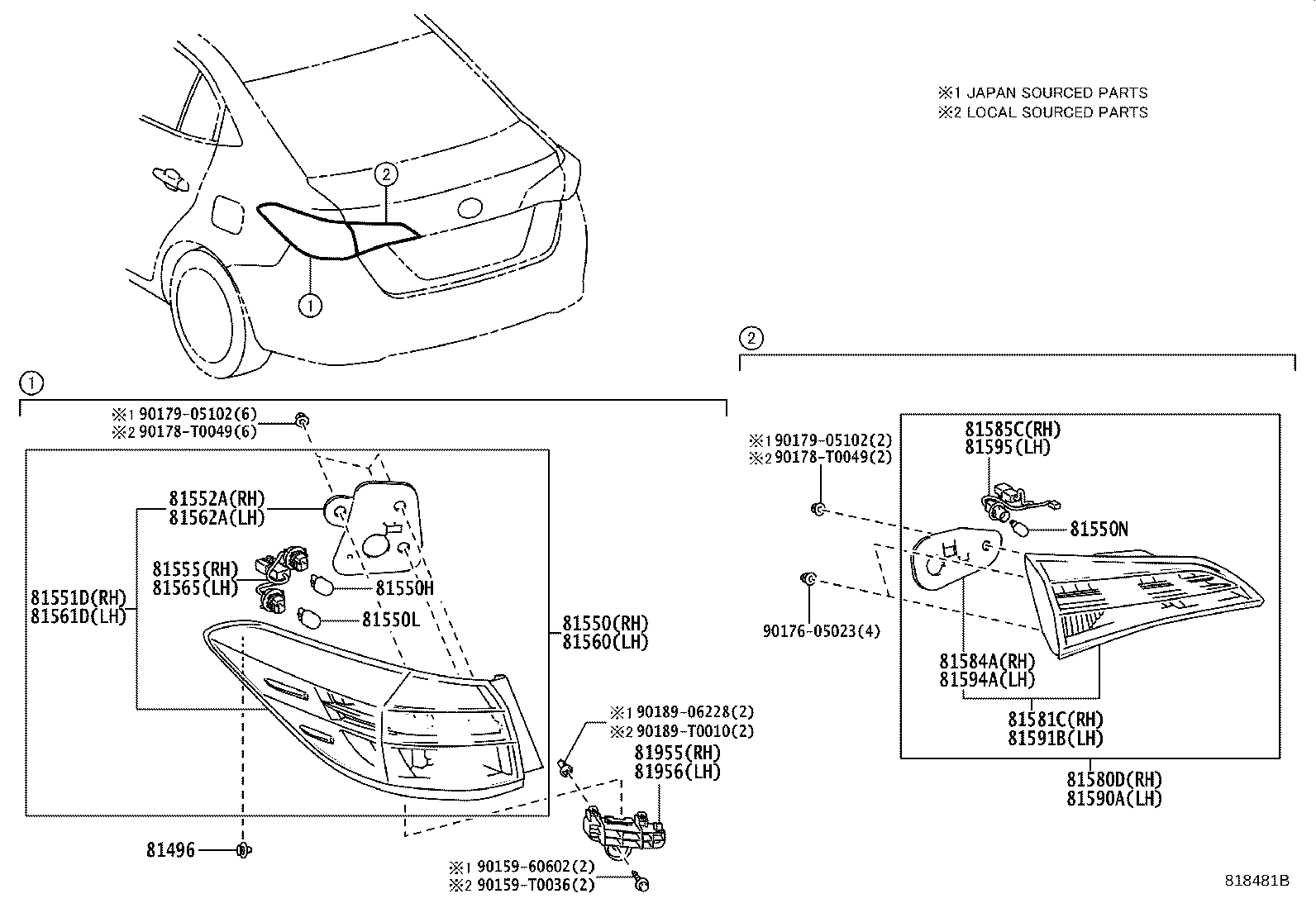

(1801- )NSP150..C ; (1801- )NSP151..D,R..C; (1801- )NSP151..GCC..G..C ; (

Click highlighted areas on diagram

TAIL & STOP LAMP = BULB

Part #	Description	Period	Qty
81496 - GUIDE, REAR COMBINATION LAMP
81496-60010	NSP151..F,H	03/2018 - 01/2021	2
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-0D850	NSP151..CVT..D SPORT PACKAGE	07/2018 - 05/2019	1
81550-0DB30	NSP151..(D,R)..F	03/2018 - 05/2019	1
81550-0DA80	NSP151..CVT..IDN..R BRUNEI SPEC	01/2018 - 07/2019	1
81550-0DA90	NSP150..C;NSP151..(D,R)..C;NSP151..GCC..G..C	01/2018 - 07/2019	1
81550-0DA41	NSP151..V..F	06/2019 - 01/2021	1
81550-0D851	NSP151..CVT..D SPORT PACKAGE	06/2019 - 10/2019	1
81550-0DA91	NSP150..5F..D..C;NSP151..CVT..D..C	08/2019 - 08/2021	1
81550-0DD21	NSP150,151..(D,R)..E	10/2019 - 12/2019	1
81550-0DA81	NSP151..CVT..IDN..R BRUNEI SPEC	08/2019 - 12/2999	1
81550-0DD20	NSP150,151..(D,R)..E	05/2019 - 09/2019	1
81550-0DB91	NSP150,151..I	03/2020 - 12/2999	1
81550-0DB31	NSP151..(D,R)..F	06/2019 - 01/2021	1
81550-0DA91	NSP151..R..C;NSP150..(G,R)..C;NSP151..5F..D..C;NSP150..CVT..D..C;NSP151..GCC..G..C	08/2019 - 12/2999	1
81550H - BULB, TAIL & STOP LAMP
90981-13044	NSP150,151..(D,R)..E 12V 21/5W	05/2019 - 11/2020	2
81550L - BULB, REAR TURN SIGNAL LAMP
90981-15011	NSP150,151..E 12V 21W,AMBER	05/2019 - 12/2019	2
90981-15021	NSP151..(D,R)..F 12V 21W,AMBER	01/2018 - 01/2021	2
90981-15021	NSP150..CVT..D..(C,I);NSP150,151..(G,R)..(C,I);NSP150,151..RHD..5F..D..(C,I) 12V 21W,AMBER	01/2018 - 12/2999	2
90981-15021	NSP150..5F..D..C;NSP151..CVT..D..C 12V 21W,AMBER	01/2018 - 08/2021	2
81550N - BULB, BACK UP LAMP
90981-11059	NSP150,151..E 12V 16W	05/2019 - 11/2020	2
81551D - LENS & BODY, REAR COMBINATION LAMP, RH
81551-0D850	NSP151..CVT..D SPORT PACKAGE	07/2018 - 06/2019	1
81551-0DA90	NSP150..C;NSP151..(D,R)..C;NSP151..GCC..G..C	01/2018 - 08/2019	1
81551-0DB30	NSP151..(D,R)..F	03/2018 - 06/2019	1
81551-0D851	NSP151..CVT..D SPORT PACKAGE	06/2019 - 10/2019	1
81551-0DA41	NSP151..V..F	06/2019 - 01/2021	1
81551-0DD21	NSP150,151..(D,R)..E	10/2019 - 12/2019	1
81551-0DA91	NSP150..5F..D..C;NSP151..CVT..D..C	08/2019 - 08/2021	1
81551-0DA80	NSP151..CVT..IDN..R BRUNEI SPEC	01/2018 - 08/2019	1
81551-0DB00	NSP151..V..H;NSP151..AGT..G	07/2018 - 10/2019	1
81551-0DB31	NSP151..(D,R)..F	06/2019 - 01/2021	1
81551-0DA81	NSP151..CVT..IDN..R BRUNEI SPEC	08/2019 - 12/2999	1
81551-0DA91	NSP151..R..C;NSP150..(G,R)..C;NSP151..5F..D..C;NSP150..CVT..D..C;NSP151..GCC..G..C	08/2019 - 12/2999	1
81552A - GASKET, REAR COMBINATION LAMP, RH
81552-0DB00	NSP151..V..H;NSP151..AGT..G	07/2018 - 10/2019	1
81554-0DD21	NSP150,151..(D,R)..E	10/2019 - 12/2019	1
81552-0DB30	NSP151..(D,R)..F	03/2018 - 01/2021	1
81552-0DA90	NSP150..5F..D..C;NSP151..CVT..D..C	01/2018 - 08/2021	1
81552-0DA90	NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C	01/2018 - 12/2999	1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-0DD21	NSP150,151..(D,R)..E	10/2019 - 12/2019	1
81555-0DA90	NSP150..5F..D..C;NSP151..CVT..D..C	01/2018 - 08/2021	1
81555-0DA80	NSP151..CVT..IDN..R BRUNEI SPEC	01/2018 - 12/2999	1
81555-0DB30	NSP151..(D,R)..F	03/2018 - 01/2021	1
81555-0DA90	NSP151..R..C;NSP150..(G,R)..C;NSP151..5F..D..C;NSP150..CVT..D..C;NSP151..GCC..G..C	01/2018 - 12/2999	1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-0DB30	NSP151..(D,R)..F	03/2018 - 05/2019	1
81560-0D850	NSP151..CVT..D SPORT PACKAGE	07/2018 - 05/2019	1
81560-0DD20	NSP150,151..(D,R)..E	05/2019 - 09/2019	1
81560-0DA80	NSP151..CVT..IDN..R BRUNEI SPEC	01/2018 - 07/2019	1
81560-0DD21	NSP150,151..(D,R)..E	10/2019 - 12/2019	1
81560-0D851	NSP151..CVT..D SPORT PACKAGE	06/2019 - 10/2019	1
81560-0DA90	NSP150..C;NSP151..(D,R)..C;NSP151..GCC..G..C	01/2018 - 07/2019	1
81560-0DA41	NSP151..V..F	06/2019 - 01/2021	1
81560-0DB31	NSP151..(D,R)..F	06/2019 - 01/2021	1
81560-0DA91	NSP150..5F..D..C;NSP151..CVT..D..C	08/2019 - 08/2021	1
81560-0DA91	NSP151..R..C;NSP150..(G,R)..C;NSP151..5F..D..C;NSP150..CVT..D..C;NSP151..GCC..G..C	08/2019 - 12/2999	1
81560-0DB91	NSP150,151..I	03/2020 - 12/2999	1
81560-0DA81	NSP151..CVT..IDN..R BRUNEI SPEC	08/2019 - 12/2999	1
81561D - LENS & BODY, REAR COMBINATION LAMP, LH
81561-0DB30	NSP151..(D,R)..F	03/2018 - 06/2019	1
81561-0D850	NSP151..CVT..D SPORT PACKAGE	07/2018 - 06/2019	1
81561-0DB00	NSP151..V..H;NSP151..AGT..G	07/2018 - 10/2019	1
81561-0DA90	NSP150..C;NSP151..(D,R)..C;NSP151..GCC..G..C	01/2018 - 08/2019	1
81561-0DA80	NSP151..CVT..IDN..R BRUNEI SPEC	01/2018 - 08/2019	1
81561-0DD21	NSP150,151..(D,R)..E	10/2019 - 12/2019	1
81561-0D851	NSP151..CVT..D SPORT PACKAGE	06/2019 - 10/2019	1
81561-0DA41	NSP151..V..F	06/2019 - 01/2021	1
81561-0DB31	NSP151..(D,R)..F	06/2019 - 01/2021	1
81561-0DA91	NSP150..5F..D..C;NSP151..CVT..D..C	08/2019 - 08/2021	1
81561-0DA91	NSP151..R..C;NSP150..(G,R)..C;NSP151..5F..D..C;NSP150..CVT..D..C;NSP151..GCC..G..C	08/2019 - 12/2999	1
81561-0DA81	NSP151..CVT..IDN..R BRUNEI SPEC	08/2019 - 12/2999	1
81562A - GASKET, REAR COMBINATION LAMP, LH
81562-0DB00	NSP151..V..H;NSP151..AGT..G	07/2018 - 10/2019	1
81564-0DD21	NSP150,151..(D,R)..E	10/2019 - 12/2019	1
81562-0DA90	NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C	01/2018 - 12/2999	1
81562-0DB30	NSP151..(D,R)..F	03/2018 - 01/2021	1
81562-0DA90	NSP150..5F..D..C;NSP151..CVT..D..C	01/2018 - 08/2021	1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-0DB30	NSP151..(D,R)..F	03/2018 - 01/2021	1
81555-0DA90	NSP150..5F..D..C;NSP151..CVT..D..C	01/2018 - 08/2021	1
81555-0DD21	NSP150,151..(D,R)..E	10/2019 - 12/2019	1
81555-0DA90	NSP151..R..C;NSP150..(G,R)..C;NSP151..5F..D..C;NSP150..CVT..D..C;NSP151..GCC..G..C	01/2018 - 12/2999	1
81555-0DA80	NSP151..CVT..IDN..R BRUNEI SPEC	01/2018 - 12/2999	1
81580D - LAMP ASSY, REAR, RH
81580-0DB30	NSP150,151..(D,R)..E	10/2019 - 12/2019	1
81580-0D700	NSP151..CVT..D SPORT PACKAGE	07/2018 - 10/2019	1
81580-0D590	NSP151..(D,R)..F	03/2018 - 01/2021	1
81580-0D540	NSP150..5F..D..C;NSP151..CVT..D..C	01/2018 - 08/2021	1
81580-0D530	NSP151..CVT..IDN..R BRUNEI SPEC	01/2018 - 12/2999	1
81580-0D540	NSP151..R..C;NSP150..(G,R)..C;NSP151..5F..D..C;NSP150..CVT..D..C;NSP151..GCC..G..C	01/2018 - 12/2999	1
81580-0D760	NSP150,151..I	03/2020 - 12/2999	1
81581C - LENS AND BODY, REAR LAMP, RH
81581-0D590	NSP151..(D,R)..F	03/2018 - 01/2021	1
81581-0D540	NSP150..5F..D..C;NSP151..CVT..D..C	01/2018 - 08/2021	1
81581-0D550	NSP151..V..H;NSP151..AGT..G	07/2018 - 10/2019	1
81581-0D700	NSP151..CVT..D SPORT PACKAGE	07/2018 - 10/2019	1
81581-0D530	NSP151..CVT..IDN..R BRUNEI SPEC	01/2018 - 12/2999	1
81581-0D540	NSP151..R..C;NSP150..(G,R)..C;NSP151..5F..D..C;NSP150..CVT..D..C;NSP151..GCC..G..C	01/2018 - 12/2999	1
81584A - GASKET, REAR LAMP RH
81582-0D590	NSP151..(D,R)..F	03/2018 - 01/2021	1
81582-0D540	NSP150..5F..D..C;NSP151..CVT..D..C	01/2018 - 08/2021	1
81582-0D550	NSP151..H	07/2018 - 10/2019	1
81582-0D540	NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C	01/2018 - 12/2999	1
81585C - SOCKET & WIRE, REAR LAMP, RH
81585-0D590	NSP151..(D,R)..F	03/2018 - 01/2021	1
81585-0D540	NSP151..R..C;NSP150..(G,R)..C;NSP151..5F..D..C;NSP150..CVT..D..C;NSP151..GCC..G..C	01/2018 - 12/2999	1
81585-0D540	NSP150..5F..D..C;NSP151..CVT..D..C	01/2018 - 08/2021	1
81585-0D530	NSP151..CVT..IDN..R BRUNEI SPEC	01/2018 - 12/2999	1
81590A - LAMP ASSY, REAR, LH
81590-0D700	NSP151..CVT..D SPORT PACKAGE	07/2018 - 10/2019	1
81590-0D540	NSP150..5F..D..C;NSP151..CVT..D..C	01/2018 - 08/2021	1
81590-0DB30	NSP150,151..(D,R)..E	10/2019 - 12/2019	1
81590-0D540	NSP151..R..C;NSP150..(G,R)..C;NSP151..5F..D..C;NSP150..CVT..D..C;NSP151..GCC..G..C	01/2018 - 12/2999	1
81590-0D590	NSP151..(D,R)..F	03/2018 - 01/2021	1
81590-0D760	NSP150,151..I	03/2020 - 12/2999	1
81590-0D530	NSP151..CVT..IDN..R BRUNEI SPEC	01/2018 - 12/2999	1
81591B - LENS AND BODY, REAR LAMP, LH
81591-0D550	NSP151..V..H;NSP151..AGT..G	07/2018 - 10/2019	1
81591-0D700	NSP151..CVT..D SPORT PACKAGE	07/2018 - 10/2019	1
81591-0D590	NSP151..(D,R)..F	03/2018 - 01/2021	1
81591-0D540	NSP150..5F..D..C;NSP151..CVT..D..C	01/2018 - 08/2021	1
81591-0D530	NSP151..CVT..IDN..R BRUNEI SPEC	01/2018 - 12/2999	1
81591-0D540	NSP151..R..C;NSP150..(G,R)..C;NSP151..5F..D..C;NSP150..CVT..D..C;NSP151..GCC..G..C	01/2018 - 12/2999	1
81594A - GASKET, REAR LAMP LH
81592-0D590	NSP151..(D,R)..F	03/2018 - 01/2021	1
81592-0D540	NSP150..5F..D..C;NSP151..CVT..D..C	01/2018 - 08/2021	1
81592-0D550	NSP151..H	07/2018 - 10/2019	1
81592-0D540	NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C	01/2018 - 12/2999	1
81595 - SOCKET & WIRE, REAR LAMP, LH
81585-0D590	NSP151..(D,R)..F	03/2018 - 01/2021	1
81585-0D540	NSP151..R..C;NSP150..(G,R)..C;NSP151..5F..D..C;NSP150..CVT..D..C;NSP151..GCC..G..C	01/2018 - 12/2999	1
81585-0D540	NSP150..5F..D..C;NSP151..CVT..D..C	01/2018 - 08/2021	1
81585-0D530	NSP151..CVT..IDN..R BRUNEI SPEC	01/2018 - 12/2999	1
81955 - RETAINER, REAR COMBINATION LAMP, RH
52562-0D150	NSP150..5F..D..C;NSP151..CVT..D..C	01/2018 - 08/2021	1
52562-0D160	NSP151..H	07/2018 - 10/2019	1
52562-0D210	NSP151..F	03/2018 - 01/2021	1
52562-0D150	NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C	01/2018 - 12/2999	1
81956 - RETAINER, REAR COMBINATION LAMP, LH
52563-0D160	NSP151..H	07/2018 - 10/2019	1
52563-0D150	NSP150..5F..D..C;NSP151..CVT..D..C	01/2018 - 08/2021	1
52563-0D210	NSP151..F	03/2018 - 01/2021	1
52563-0D150	NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C	01/2018 - 12/2999	1
Common parts
90159-60602
90159-T0036
90176-05023
90178-T0049
90179-05102
90189-06228
90189-T0010

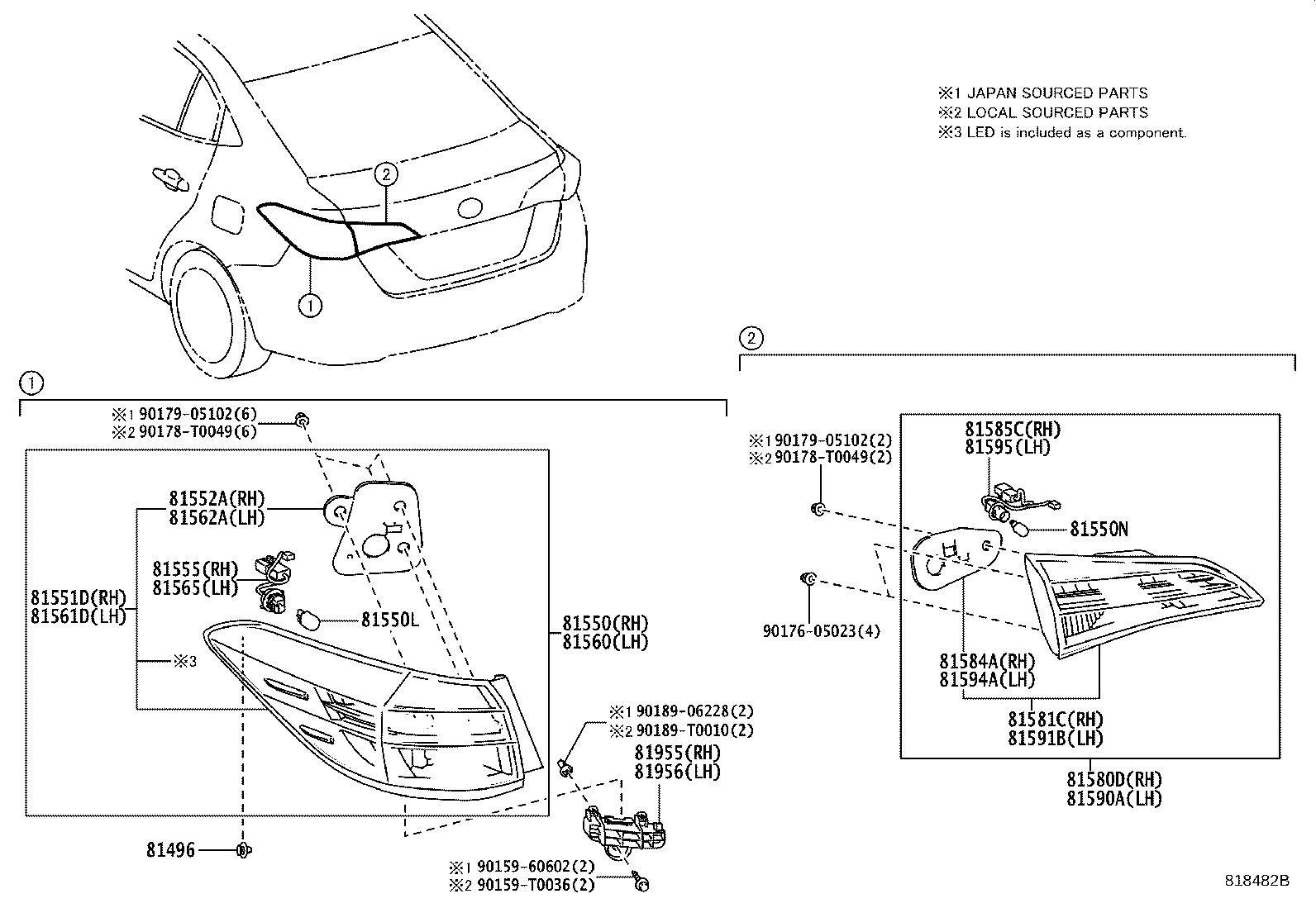

(1801- )5F..G..C ; (1801- )GCC..G..C ; (1801- )CVT..IDN..G,R

Click highlighted areas on diagram

TAIL & STOP LAMP = LED

Part #	Description	Period	Qty
81496 - GUIDE, REAR COMBINATION LAMP
81496-60010	NSP151..F,H	03/2018 - 01/2021	2
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-0DB30	NSP151..(D,R)..F	03/2018 - 05/2019	1
81550-0DA80	NSP151..CVT..IDN..R BRUNEI SPEC	01/2018 - 07/2019	1
81550-0DA90	NSP150..C;NSP151..(D,R)..C;NSP151..GCC..G..C	01/2018 - 07/2019	1
81550-0D850	NSP151..CVT..D SPORT PACKAGE	07/2018 - 05/2019	1
81550-0DA41	NSP151..V..F	06/2019 - 01/2021	1
81550-0D851	NSP151..CVT..D SPORT PACKAGE	06/2019 - 10/2019	1
81550-0DA91	NSP150..5F..D..C;NSP151..CVT..D..C	08/2019 - 08/2021	1
81550-0DD21	NSP150,151..(D,R)..E	10/2019 - 12/2019	1
81550-0DA81	NSP151..CVT..IDN..R BRUNEI SPEC	08/2019 - 12/2999	1
81550-0DD20	NSP150,151..(D,R)..E	05/2019 - 09/2019	1
81550-0DB91	NSP150,151..I	03/2020 - 12/2999	1
81550-0DB31	NSP151..(D,R)..F	06/2019 - 01/2021	1
81550-0DA91	NSP151..R..C;NSP150..(G,R)..C;NSP151..5F..D..C;NSP150..CVT..D..C;NSP151..GCC..G..C	08/2019 - 12/2999	1
81550L - BULB, REAR TURN SIGNAL LAMP
90981-15011	NSP150,151..E 12V 21W,AMBER	05/2019 - 12/2019	2
90981-15021	NSP151..(D,R)..F 12V 21W,AMBER	01/2018 - 01/2021	2
90981-15021	NSP150..CVT..D..(C,I);NSP150,151..(G,R)..(C,I);NSP150,151..RHD..5F..D..(C,I) 12V 21W,AMBER	01/2018 - 12/2999	2
90981-15021	NSP150..5F..D..C;NSP151..CVT..D..C 12V 21W,AMBER	01/2018 - 08/2021	2
81550N - BULB, BACK UP LAMP
90981-11059	NSP150,151..E 12V 16W	05/2019 - 11/2020	2
81551D - LENS & BODY, REAR COMBINATION LAMP, RH
81551-0D850	NSP151..CVT..D SPORT PACKAGE	07/2018 - 06/2019	1
81551-0DA90	NSP150..C;NSP151..(D,R)..C;NSP151..GCC..G..C	01/2018 - 08/2019	1
81551-0DB30	NSP151..(D,R)..F	03/2018 - 06/2019	1
81551-0D851	NSP151..CVT..D SPORT PACKAGE	06/2019 - 10/2019	1
81551-0DA41	NSP151..V..F	06/2019 - 01/2021	1
81551-0DD21	NSP150,151..(D,R)..E	10/2019 - 12/2019	1
81551-0DA91	NSP150..5F..D..C;NSP151..CVT..D..C	08/2019 - 08/2021	1
81551-0DA80	NSP151..CVT..IDN..R BRUNEI SPEC	01/2018 - 08/2019	1
81551-0DB00	NSP151..V..H;NSP151..AGT..G	07/2018 - 10/2019	1
81551-0DB31	NSP151..(D,R)..F	06/2019 - 01/2021	1
81551-0DA81	NSP151..CVT..IDN..R BRUNEI SPEC	08/2019 - 12/2999	1
81551-0DA91	NSP151..R..C;NSP150..(G,R)..C;NSP151..5F..D..C;NSP150..CVT..D..C;NSP151..GCC..G..C	08/2019 - 12/2999	1
81552A - GASKET, REAR COMBINATION LAMP, RH
81552-0DB00	NSP151..V..H;NSP151..AGT..G	07/2018 - 10/2019	1
81554-0DD21	NSP150,151..(D,R)..E	10/2019 - 12/2019	1
81552-0DB30	NSP151..(D,R)..F	03/2018 - 01/2021	1
81552-0DA90	NSP150..5F..D..C;NSP151..CVT..D..C	01/2018 - 08/2021	1
81552-0DA90	NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C	01/2018 - 12/2999	1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-0DA90	NSP151..R..C;NSP150..(G,R)..C;NSP151..5F..D..C;NSP150..CVT..D..C;NSP151..GCC..G..C	01/2018 - 12/2999	1
81555-0DD21	NSP150,151..(D,R)..E	10/2019 - 12/2019	1
81555-0DA90	NSP150..5F..D..C;NSP151..CVT..D..C	01/2018 - 08/2021	1
81555-0DA80	NSP151..CVT..IDN..R BRUNEI SPEC	01/2018 - 12/2999	1
81555-0DB30	NSP151..(D,R)..F	03/2018 - 01/2021	1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-0DB30	NSP151..(D,R)..F	03/2018 - 05/2019	1
81560-0D850	NSP151..CVT..D SPORT PACKAGE	07/2018 - 05/2019	1
81560-0DD20	NSP150,151..(D,R)..E	05/2019 - 09/2019	1
81560-0DA80	NSP151..CVT..IDN..R BRUNEI SPEC	01/2018 - 07/2019	1
81560-0DD21	NSP150,151..(D,R)..E	10/2019 - 12/2019	1
81560-0D851	NSP151..CVT..D SPORT PACKAGE	06/2019 - 10/2019	1
81560-0DA90	NSP150..C;NSP151..(D,R)..C;NSP151..GCC..G..C	01/2018 - 07/2019	1
81560-0DA41	NSP151..V..F	06/2019 - 01/2021	1
81560-0DB31	NSP151..(D,R)..F	06/2019 - 01/2021	1
81560-0DA91	NSP150..5F..D..C;NSP151..CVT..D..C	08/2019 - 08/2021	1
81560-0DA91	NSP151..R..C;NSP150..(G,R)..C;NSP151..5F..D..C;NSP150..CVT..D..C;NSP151..GCC..G..C	08/2019 - 12/2999	1
81560-0DB91	NSP150,151..I	03/2020 - 12/2999	1
81560-0DA81	NSP151..CVT..IDN..R BRUNEI SPEC	08/2019 - 12/2999	1
81561D - LENS & BODY, REAR COMBINATION LAMP, LH
81561-0DB30	NSP151..(D,R)..F	03/2018 - 06/2019	1
81561-0D850	NSP151..CVT..D SPORT PACKAGE	07/2018 - 06/2019	1
81561-0DB00	NSP151..V..H;NSP151..AGT..G	07/2018 - 10/2019	1
81561-0DA90	NSP150..C;NSP151..(D,R)..C;NSP151..GCC..G..C	01/2018 - 08/2019	1
81561-0DA80	NSP151..CVT..IDN..R BRUNEI SPEC	01/2018 - 08/2019	1
81561-0DD21	NSP150,151..(D,R)..E	10/2019 - 12/2019	1
81561-0D851	NSP151..CVT..D SPORT PACKAGE	06/2019 - 10/2019	1
81561-0DA41	NSP151..V..F	06/2019 - 01/2021	1
81561-0DB31	NSP151..(D,R)..F	06/2019 - 01/2021	1
81561-0DA91	NSP150..5F..D..C;NSP151..CVT..D..C	08/2019 - 08/2021	1
81561-0DA91	NSP151..R..C;NSP150..(G,R)..C;NSP151..5F..D..C;NSP150..CVT..D..C;NSP151..GCC..G..C	08/2019 - 12/2999	1
81561-0DA81	NSP151..CVT..IDN..R BRUNEI SPEC	08/2019 - 12/2999	1
81562A - GASKET, REAR COMBINATION LAMP, LH
81562-0DB00	NSP151..V..H;NSP151..AGT..G	07/2018 - 10/2019	1
81564-0DD21	NSP150,151..(D,R)..E	10/2019 - 12/2019	1
81562-0DA90	NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C	01/2018 - 12/2999	1
81562-0DB30	NSP151..(D,R)..F	03/2018 - 01/2021	1
81562-0DA90	NSP150..5F..D..C;NSP151..CVT..D..C	01/2018 - 08/2021	1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-0DB30	NSP151..(D,R)..F	03/2018 - 01/2021	1
81555-0DA90	NSP150..5F..D..C;NSP151..CVT..D..C	01/2018 - 08/2021	1
81555-0DD21	NSP150,151..(D,R)..E	10/2019 - 12/2019	1
81555-0DA90	NSP151..R..C;NSP150..(G,R)..C;NSP151..5F..D..C;NSP150..CVT..D..C;NSP151..GCC..G..C	01/2018 - 12/2999	1
81555-0DA80	NSP151..CVT..IDN..R BRUNEI SPEC	01/2018 - 12/2999	1
81580D - LAMP ASSY, REAR, RH
81580-0DB30	NSP150,151..(D,R)..E	10/2019 - 12/2019	1
81580-0D700	NSP151..CVT..D SPORT PACKAGE	07/2018 - 10/2019	1
81580-0D590	NSP151..(D,R)..F	03/2018 - 01/2021	1
81580-0D540	NSP150..5F..D..C;NSP151..CVT..D..C	01/2018 - 08/2021	1
81580-0D530	NSP151..CVT..IDN..R BRUNEI SPEC	01/2018 - 12/2999	1
81580-0D540	NSP151..R..C;NSP150..(G,R)..C;NSP151..5F..D..C;NSP150..CVT..D..C;NSP151..GCC..G..C	01/2018 - 12/2999	1
81580-0D760	NSP150,151..I	03/2020 - 12/2999	1
81581C - LENS AND BODY, REAR LAMP, RH
81581-0D590	NSP151..(D,R)..F	03/2018 - 01/2021	1
81581-0D540	NSP150..5F..D..C;NSP151..CVT..D..C	01/2018 - 08/2021	1
81581-0D550	NSP151..V..H;NSP151..AGT..G	07/2018 - 10/2019	1
81581-0D700	NSP151..CVT..D SPORT PACKAGE	07/2018 - 10/2019	1
81581-0D530	NSP151..CVT..IDN..R BRUNEI SPEC	01/2018 - 12/2999	1
81581-0D540	NSP151..R..C;NSP150..(G,R)..C;NSP151..5F..D..C;NSP150..CVT..D..C;NSP151..GCC..G..C	01/2018 - 12/2999	1
81584A - GASKET, REAR LAMP RH
81582-0D590	NSP151..(D,R)..F	03/2018 - 01/2021	1
81582-0D540	NSP150..5F..D..C;NSP151..CVT..D..C	01/2018 - 08/2021	1
81582-0D550	NSP151..H	07/2018 - 10/2019	1
81582-0D540	NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C	01/2018 - 12/2999	1
81585C - SOCKET & WIRE, REAR LAMP, RH
81585-0D590	NSP151..(D,R)..F	03/2018 - 01/2021	1
81585-0D540	NSP151..R..C;NSP150..(G,R)..C;NSP151..5F..D..C;NSP150..CVT..D..C;NSP151..GCC..G..C	01/2018 - 12/2999	1
81585-0D540	NSP150..5F..D..C;NSP151..CVT..D..C	01/2018 - 08/2021	1
81585-0D530	NSP151..CVT..IDN..R BRUNEI SPEC	01/2018 - 12/2999	1
81590A - LAMP ASSY, REAR, LH
81590-0D700	NSP151..CVT..D SPORT PACKAGE	07/2018 - 10/2019	1
81590-0D540	NSP150..5F..D..C;NSP151..CVT..D..C	01/2018 - 08/2021	1
81590-0DB30	NSP150,151..(D,R)..E	10/2019 - 12/2019	1
81590-0D540	NSP151..R..C;NSP150..(G,R)..C;NSP151..5F..D..C;NSP150..CVT..D..C;NSP151..GCC..G..C	01/2018 - 12/2999	1
81590-0D590	NSP151..(D,R)..F	03/2018 - 01/2021	1
81590-0D760	NSP150,151..I	03/2020 - 12/2999	1
81590-0D530	NSP151..CVT..IDN..R BRUNEI SPEC	01/2018 - 12/2999	1
81591B - LENS AND BODY, REAR LAMP, LH
81591-0D550	NSP151..V..H;NSP151..AGT..G	07/2018 - 10/2019	1
81591-0D700	NSP151..CVT..D SPORT PACKAGE	07/2018 - 10/2019	1
81591-0D590	NSP151..(D,R)..F	03/2018 - 01/2021	1
81591-0D540	NSP150..5F..D..C;NSP151..CVT..D..C	01/2018 - 08/2021	1
81591-0D530	NSP151..CVT..IDN..R BRUNEI SPEC	01/2018 - 12/2999	1
81591-0D540	NSP151..R..C;NSP150..(G,R)..C;NSP151..5F..D..C;NSP150..CVT..D..C;NSP151..GCC..G..C	01/2018 - 12/2999	1
81594A - GASKET, REAR LAMP LH
81592-0D590	NSP151..(D,R)..F	03/2018 - 01/2021	1
81592-0D540	NSP150..5F..D..C;NSP151..CVT..D..C	01/2018 - 08/2021	1
81592-0D550	NSP151..H	07/2018 - 10/2019	1
81592-0D540	NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C	01/2018 - 12/2999	1
81595 - SOCKET & WIRE, REAR LAMP, LH
81585-0D590	NSP151..(D,R)..F	03/2018 - 01/2021	1
81585-0D540	NSP151..R..C;NSP150..(G,R)..C;NSP151..5F..D..C;NSP150..CVT..D..C;NSP151..GCC..G..C	01/2018 - 12/2999	1
81585-0D540	NSP150..5F..D..C;NSP151..CVT..D..C	01/2018 - 08/2021	1
81585-0D530	NSP151..CVT..IDN..R BRUNEI SPEC	01/2018 - 12/2999	1
81955 - RETAINER, REAR COMBINATION LAMP, RH
52562-0D150	NSP150..5F..D..C;NSP151..CVT..D..C	01/2018 - 08/2021	1
52562-0D160	NSP151..H	07/2018 - 10/2019	1
52562-0D210	NSP151..F	03/2018 - 01/2021	1
52562-0D150	NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C	01/2018 - 12/2999	1
81956 - RETAINER, REAR COMBINATION LAMP, LH
52563-0D160	NSP151..H	07/2018 - 10/2019	1
52563-0D150	NSP150..5F..D..C;NSP151..CVT..D..C	01/2018 - 08/2021	1
52563-0D210	NSP151..F	03/2018 - 01/2021	1
52563-0D150	NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C	01/2018 - 12/2999	1
Common parts
90159-60602
90159-T0036
90176-05023
90178-T0049
90179-05102
90189-06228
90189-T0010

(1807- )V..H ; (1807- )AGT..G

Click highlighted areas on diagram

TAIL & STOP LAMP = LED

Part #	Description	Period	Qty
81496 - GUIDE, REAR COMBINATION LAMP
81496-60010	NSP151..F,H	03/2018 - 01/2021	2
81550L - BULB, REAR TURN SIGNAL LAMP
90981-15011	NSP150,151..E 12V 21W,AMBER	05/2019 - 12/2019	2
90981-15021	NSP151..(D,R)..F 12V 21W,AMBER	01/2018 - 01/2021	2
90981-15021	NSP150..CVT..D..(C,I);NSP150,151..(G,R)..(C,I);NSP150,151..RHD..5F..D..(C,I) 12V 21W,AMBER	01/2018 - 12/2999	2
90981-15021	NSP150..5F..D..C;NSP151..CVT..D..C 12V 21W,AMBER	01/2018 - 08/2021	2
81550N - BULB, BACK UP LAMP
90981-11059	NSP150,151..E 12V 16W	05/2019 - 11/2020	2
81551D - LENS & BODY, REAR COMBINATION LAMP, RH
81551-0D850	NSP151..CVT..D SPORT PACKAGE	07/2018 - 06/2019	1
81551-0DA90	NSP150..C;NSP151..(D,R)..C;NSP151..GCC..G..C	01/2018 - 08/2019	1
81551-0DB30	NSP151..(D,R)..F	03/2018 - 06/2019	1
81551-0D851	NSP151..CVT..D SPORT PACKAGE	06/2019 - 10/2019	1
81551-0DA41	NSP151..V..F	06/2019 - 01/2021	1
81551-0DD21	NSP150,151..(D,R)..E	10/2019 - 12/2019	1
81551-0DA91	NSP150..5F..D..C;NSP151..CVT..D..C	08/2019 - 08/2021	1
81551-0DA80	NSP151..CVT..IDN..R BRUNEI SPEC	01/2018 - 08/2019	1
81551-0DB00	NSP151..V..H;NSP151..AGT..G	07/2018 - 10/2019	1
81551-0DB31	NSP151..(D,R)..F	06/2019 - 01/2021	1
81551-0DA81	NSP151..CVT..IDN..R BRUNEI SPEC	08/2019 - 12/2999	1
81551-0DA91	NSP151..R..C;NSP150..(G,R)..C;NSP151..5F..D..C;NSP150..CVT..D..C;NSP151..GCC..G..C	08/2019 - 12/2999	1
81552A - GASKET, REAR COMBINATION LAMP, RH
81552-0DB00	NSP151..V..H;NSP151..AGT..G	07/2018 - 10/2019	1
81554-0DD21	NSP150,151..(D,R)..E	10/2019 - 12/2019	1
81552-0DB30	NSP151..(D,R)..F	03/2018 - 01/2021	1
81552-0DA90	NSP150..5F..D..C;NSP151..CVT..D..C	01/2018 - 08/2021	1
81552-0DA90	NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C	01/2018 - 12/2999	1
81561D - LENS & BODY, REAR COMBINATION LAMP, LH
81561-0DB30	NSP151..(D,R)..F	03/2018 - 06/2019	1
81561-0D850	NSP151..CVT..D SPORT PACKAGE	07/2018 - 06/2019	1
81561-0DB00	NSP151..V..H;NSP151..AGT..G	07/2018 - 10/2019	1
81561-0DA90	NSP150..C;NSP151..(D,R)..C;NSP151..GCC..G..C	01/2018 - 08/2019	1
81561-0DA80	NSP151..CVT..IDN..R BRUNEI SPEC	01/2018 - 08/2019	1
81561-0DD21	NSP150,151..(D,R)..E	10/2019 - 12/2019	1
81561-0D851	NSP151..CVT..D SPORT PACKAGE	06/2019 - 10/2019	1
81561-0DA41	NSP151..V..F	06/2019 - 01/2021	1
81561-0DB31	NSP151..(D,R)..F	06/2019 - 01/2021	1
81561-0DA91	NSP150..5F..D..C;NSP151..CVT..D..C	08/2019 - 08/2021	1
81561-0DA91	NSP151..R..C;NSP150..(G,R)..C;NSP151..5F..D..C;NSP150..CVT..D..C;NSP151..GCC..G..C	08/2019 - 12/2999	1
81561-0DA81	NSP151..CVT..IDN..R BRUNEI SPEC	08/2019 - 12/2999	1
81562A - GASKET, REAR COMBINATION LAMP, LH
81562-0DB00	NSP151..V..H;NSP151..AGT..G	07/2018 - 10/2019	1
81564-0DD21	NSP150,151..(D,R)..E	10/2019 - 12/2019	1
81562-0DA90	NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C	01/2018 - 12/2999	1
81562-0DB30	NSP151..(D,R)..F	03/2018 - 01/2021	1
81562-0DA90	NSP150..5F..D..C;NSP151..CVT..D..C	01/2018 - 08/2021	1
81581C - LENS AND BODY, REAR LAMP, RH
81581-0D590	NSP151..(D,R)..F	03/2018 - 01/2021	1
81581-0D540	NSP150..5F..D..C;NSP151..CVT..D..C	01/2018 - 08/2021	1
81581-0D550	NSP151..V..H;NSP151..AGT..G	07/2018 - 10/2019	1
81581-0D700	NSP151..CVT..D SPORT PACKAGE	07/2018 - 10/2019	1
81581-0D530	NSP151..CVT..IDN..R BRUNEI SPEC	01/2018 - 12/2999	1
81581-0D540	NSP151..R..C;NSP150..(G,R)..C;NSP151..5F..D..C;NSP150..CVT..D..C;NSP151..GCC..G..C	01/2018 - 12/2999	1
81584A - GASKET, REAR LAMP RH
81582-0D590	NSP151..(D,R)..F	03/2018 - 01/2021	1
81582-0D540	NSP150..5F..D..C;NSP151..CVT..D..C	01/2018 - 08/2021	1
81582-0D550	NSP151..H	07/2018 - 10/2019	1
81582-0D540	NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C	01/2018 - 12/2999	1
81591B - LENS AND BODY, REAR LAMP, LH
81591-0D550	NSP151..V..H;NSP151..AGT..G	07/2018 - 10/2019	1
81591-0D700	NSP151..CVT..D SPORT PACKAGE	07/2018 - 10/2019	1
81591-0D590	NSP151..(D,R)..F	03/2018 - 01/2021	1
81591-0D540	NSP150..5F..D..C;NSP151..CVT..D..C	01/2018 - 08/2021	1
81591-0D530	NSP151..CVT..IDN..R BRUNEI SPEC	01/2018 - 12/2999	1
81591-0D540	NSP151..R..C;NSP150..(G,R)..C;NSP151..5F..D..C;NSP150..CVT..D..C;NSP151..GCC..G..C	01/2018 - 12/2999	1
81594A - GASKET, REAR LAMP LH
81592-0D590	NSP151..(D,R)..F	03/2018 - 01/2021	1
81592-0D540	NSP150..5F..D..C;NSP151..CVT..D..C	01/2018 - 08/2021	1
81592-0D550	NSP151..H	07/2018 - 10/2019	1
81592-0D540	NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C	01/2018 - 12/2999	1
81955 - RETAINER, REAR COMBINATION LAMP, RH
52562-0D150	NSP150..5F..D..C;NSP151..CVT..D..C	01/2018 - 08/2021	1
52562-0D160	NSP151..H	07/2018 - 10/2019	1
52562-0D210	NSP151..F	03/2018 - 01/2021	1
52562-0D150	NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C	01/2018 - 12/2999	1
81956 - RETAINER, REAR COMBINATION LAMP, LH
52563-0D160	NSP151..H	07/2018 - 10/2019	1
52563-0D150	NSP150..5F..D..C;NSP151..CVT..D..C	01/2018 - 08/2021	1
52563-0D210	NSP151..F	03/2018 - 01/2021	1
52563-0D150	NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C	01/2018 - 12/2999	1
Common parts
90159-60602
90159-T0036
90176-05023
90178-T0049
90179-05102
90189-06228

(1912- )I

Click highlighted areas on diagram

Part #	Description	Period	Qty
81496 - GUIDE, REAR COMBINATION LAMP
81496-60010	NSP151..F,H	03/2018 - 01/2021	2
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-0DB30	NSP151..(D,R)..F	03/2018 - 05/2019	1
81550-0DA80	NSP151..CVT..IDN..R BRUNEI SPEC	01/2018 - 07/2019	1
81550-0DA90	NSP150..C;NSP151..(D,R)..C;NSP151..GCC..G..C	01/2018 - 07/2019	1
81550-0D850	NSP151..CVT..D SPORT PACKAGE	07/2018 - 05/2019	1
81550-0DA41	NSP151..V..F	06/2019 - 01/2021	1
81550-0D851	NSP151..CVT..D SPORT PACKAGE	06/2019 - 10/2019	1
81550-0DA91	NSP150..5F..D..C;NSP151..CVT..D..C	08/2019 - 08/2021	1
81550-0DD21	NSP150,151..(D,R)..E	10/2019 - 12/2019	1
81550-0DA81	NSP151..CVT..IDN..R BRUNEI SPEC	08/2019 - 12/2999	1
81550-0DD20	NSP150,151..(D,R)..E	05/2019 - 09/2019	1
81550-0DB91	NSP150,151..I	03/2020 - 12/2999	1
81550-0DB31	NSP151..(D,R)..F	06/2019 - 01/2021	1
81550-0DA91	NSP151..R..C;NSP150..(G,R)..C;NSP151..5F..D..C;NSP150..CVT..D..C;NSP151..GCC..G..C	08/2019 - 12/2999	1
81550L - BULB, REAR TURN SIGNAL LAMP
90981-15011	NSP150,151..E 12V 21W,AMBER	05/2019 - 12/2019	2
90981-15021	NSP151..(D,R)..F 12V 21W,AMBER	01/2018 - 01/2021	2
90981-15021	NSP150..CVT..D..(C,I);NSP150,151..(G,R)..(C,I);NSP150,151..RHD..5F..D..(C,I) 12V 21W,AMBER	01/2018 - 12/2999	2
90981-15021	NSP150..5F..D..C;NSP151..CVT..D..C 12V 21W,AMBER	01/2018 - 08/2021	2
81550N - BULB, BACK UP LAMP
90981-11059	NSP150,151..E 12V 16W	05/2019 - 11/2020	2
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-0DB30	NSP151..(D,R)..F	03/2018 - 05/2019	1
81560-0D850	NSP151..CVT..D SPORT PACKAGE	07/2018 - 05/2019	1
81560-0DD20	NSP150,151..(D,R)..E	05/2019 - 09/2019	1
81560-0DA80	NSP151..CVT..IDN..R BRUNEI SPEC	01/2018 - 07/2019	1
81560-0DD21	NSP150,151..(D,R)..E	10/2019 - 12/2019	1
81560-0D851	NSP151..CVT..D SPORT PACKAGE	06/2019 - 10/2019	1
81560-0DA90	NSP150..C;NSP151..(D,R)..C;NSP151..GCC..G..C	01/2018 - 07/2019	1
81560-0DA41	NSP151..V..F	06/2019 - 01/2021	1
81560-0DB31	NSP151..(D,R)..F	06/2019 - 01/2021	1
81560-0DA91	NSP150..5F..D..C;NSP151..CVT..D..C	08/2019 - 08/2021	1
81560-0DA91	NSP151..R..C;NSP150..(G,R)..C;NSP151..5F..D..C;NSP150..CVT..D..C;NSP151..GCC..G..C	08/2019 - 12/2999	1
81560-0DB91	NSP150,151..I	03/2020 - 12/2999	1
81560-0DA81	NSP151..CVT..IDN..R BRUNEI SPEC	08/2019 - 12/2999	1
81580D - LAMP ASSY, REAR, RH
81580-0DB30	NSP150,151..(D,R)..E	10/2019 - 12/2019	1
81580-0D700	NSP151..CVT..D SPORT PACKAGE	07/2018 - 10/2019	1
81580-0D590	NSP151..(D,R)..F	03/2018 - 01/2021	1
81580-0D540	NSP150..5F..D..C;NSP151..CVT..D..C	01/2018 - 08/2021	1
81580-0D530	NSP151..CVT..IDN..R BRUNEI SPEC	01/2018 - 12/2999	1
81580-0D540	NSP151..R..C;NSP150..(G,R)..C;NSP151..5F..D..C;NSP150..CVT..D..C;NSP151..GCC..G..C	01/2018 - 12/2999	1
81580-0D760	NSP150,151..I	03/2020 - 12/2999	1
81590A - LAMP ASSY, REAR, LH
81590-0D700	NSP151..CVT..D SPORT PACKAGE	07/2018 - 10/2019	1
81590-0D540	NSP150..5F..D..C;NSP151..CVT..D..C	01/2018 - 08/2021	1
81590-0DB30	NSP150,151..(D,R)..E	10/2019 - 12/2019	1
81590-0D540	NSP151..R..C;NSP150..(G,R)..C;NSP151..5F..D..C;NSP150..CVT..D..C;NSP151..GCC..G..C	01/2018 - 12/2999	1
81590-0D590	NSP151..(D,R)..F	03/2018 - 01/2021	1
81590-0D760	NSP150,151..I	03/2020 - 12/2999	1
81590-0D530	NSP151..CVT..IDN..R BRUNEI SPEC	01/2018 - 12/2999	1
81955 - RETAINER, REAR COMBINATION LAMP, RH
52562-0D150	NSP150..5F..D..C;NSP151..CVT..D..C	01/2018 - 08/2021	1
52562-0D160	NSP151..H	07/2018 - 10/2019	1
52562-0D210	NSP151..F	03/2018 - 01/2021	1
52562-0D150	NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C	01/2018 - 12/2999	1
81956 - RETAINER, REAR COMBINATION LAMP, LH
52563-0D160	NSP151..H	07/2018 - 10/2019	1
52563-0D150	NSP150..5F..D..C;NSP151..CVT..D..C	01/2018 - 08/2021	1
52563-0D210	NSP151..F	03/2018 - 01/2021	1
52563-0D150	NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C	01/2018 - 12/2999	1
Common parts
90159-60602
90159-T0036
90176-05023
90178-T0049
90179-05102
90189-06228
90189-T0010

NSP151R-CEXRKD (2018)

(1801- )NSP150..C ; (1801- )NSP151..D,R..C; (1801- )NSP151..GCC..G..C ; (

(1801- )5F..G..C ; (1801- )GCC..G..C ; (1801- )CVT..IDN..G,R

(1807- )V..H ; (1807- )AGT..G

(1912- )I

Part Price Details
