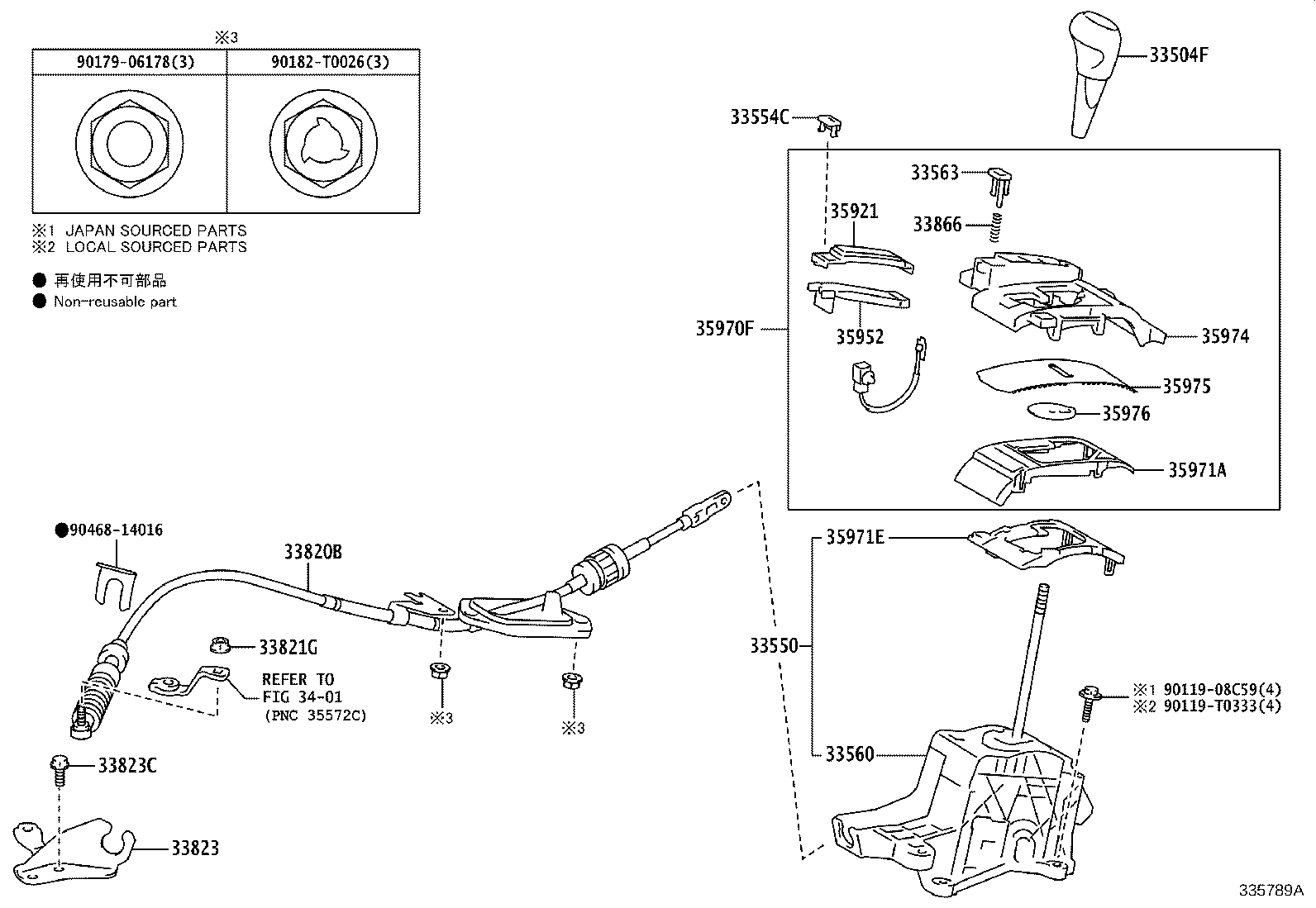

NSP151R-CEXDKD (2018)
Toyota Yaris/Vios/Limo
(1801- )CVT..IDN ; (1803- )CVT..F,H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-0D590C0 |
NSP151..CVT..IDN..R BRUNEI SPEC,BLACK,TRIM0#,2# |
1 | ||
| 33504-0D580C0 |
NSP151..D..F BLACK,TRIM2# |
1 | ||
| 33504-0D690C0 |
NSP151..CVT..GEN..D..H;NSP150,151..CVT..R..(D,H);NSP151..CVT..(GEN,TAIW)..(G,V)..(F,H) BLACK,TRIM2# |
1 | ||
| 33504-0D580C0 |
NSP150,151..CVT..(BZ,IDN,PH)..D BLACK,TRIM2# |
1 | ||
| 33504-0D580C0 |
NSP150,151..CVT..D..(G,I) BLACK,TRIM0# |
1 | ||
| 33504-0D640C0 |
NSP151..CVT..IDN..R BRUNEI SPEC,BLACK,TRIM0#,2# |
1 | ||
| 33504-0D690C0 |
NSP151..CVT..R..E;NSP150,151..CVT..(G,R)..(G,I) BLACK,TRIM0# |
1 | ||
| 33550 - FLOOR SHIFT ASSY, TRANSMISSION | ||||
| 33550-0D640 |
NSP151..CVT..D..C |
1 | ||
| 33550-0D640 |
NSP151..CVT..IDN..(G,R) |
1 | ||
| 33550-0D650 |
NSP151..F |
1 | ||
| 33550-0D620 |
NSP151..CVT..H |
1 | ||
| 33554C - COVER, SHIFT LOCK RELEASE BUTTON | ||||
| 33554-0D260 |
NSP151..CVT..GEN..D..H;NSP151..CVT..(G,R,V)..H |
1 | ||
| 33554-0D280 |
NSP151..CVT..D..C |
1 | ||
| 33554-0D290 |
NSP151..(R,V)..F |
1 | ||
| 33554-0D410 |
NSP151..D..F |
1 | ||
| 33554-0D270 |
NSP151..CVT..IDN..(G,R) |
1 | ||
| 33554-0D240 |
NSP151..CVT..IDN..R BRUNEI SPEC |
1 | ||
| 33560 - UNIT ASSY, SHIFT LOCK CONTROL | ||||
| 33560-0D290 |
NSP151..F |
1 | ||
| 33560-0D250 |
NSP151..CVT..D..C |
1 | ||
| 33560-0D250 |
NSP151..CVT..IDN..(G,R) |
1 | ||
| 33560-0D300 |
NSP151..CVT..H |
1 | ||
| 33563 - BUTTON, SHIFT LOCK RELEASE | ||||
| 33563-0D180 |
NSP151..CVT..H |
1 | ||
| 33563-0D160 |
NSP150..CVT..C;NSP151..CVT..(G,R)..C |
1 | ||
| 33563-0D170 |
NSP151..F |
1 | ||
| 33563-0D160 |
NSP151..CVT..D..C |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-0D750 |
NSP151..CVT..H |
1 | ||
| 33820-0D770 |
NSP151..CVT..D..C |
1 | ||
| 33820-0D770 |
NSP151..CVT..(G,R)..C |
1 | ||
| 33821G - NUT (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90179-08040 |
NSP151..F |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-0D240 |
NSP151..CVT..H |
1 | ||
| 33823-0D200 |
NSP151..F |
1 | ||
| 33823-0D190 |
NSP151..CVT..D..C |
1 | ||
| 33823-0D190 |
NSP151..CVT..(G,R)..C |
1 | ||
| 33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET) | ||||
| 90119-08079 |
NSP151..CVT..H |
2 | ||
| 33866 - SPRING, SHIFT LOCK RELEASE | ||||
| 33866-0D010 |
NSP150..CVT..C;NSP151..CVT..(G,R)..C |
1 | ||
| 33866-33010 |
NSP151..CVT..(F,H) |
1 | ||
| 33866-0D010 |
NSP151..CVT..D..C |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-0D190 |
NSP151..CVT..D..C |
1 | ||
| 35921-0D200 |
NSP151..CVT..(F,H) |
1 | ||
| 35921-0D190 |
NSP151..CVT..IDN..(G,R) |
1 | ||
| 35952 - LENS, POSITION INDICATOR | ||||
| 35952-0D070 |
NSP151..CVT..H |
1 | ||
| 35952-0D050 |
NSP151..CVT..D..C |
1 | ||
| 35952-0D050 |
NSP150..CVT..C;NSP151..CVT..(G,R)..C |
1 | ||
| 35952-0D060 |
NSP151..F |
1 | ||
| 35970F - HOUSING ASSY, POSITION INDICATOR | ||||
| 35970-0D470 |
NSP151..CVT..H |
1 | ||
| 35970-0D540 |
NSP151..CVT..D..C |
1 | ||
| 35970-0D501 |
NSP151..F |
1 | ||
| 35970-0D530 |
NSP151..CVT..IDN..(G,R) |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-0D650 |
NSP151..CVT..H |
1 | ||
| 35971-0D640 |
NSP151..F |
1 | ||
| 35971-0D600 |
NSP151..CVT..IDN..(G,R) |
1 | ||
| 35971-0D600 |
NSP151..CVT..D..C |
1 | ||
| 35971E - HOUSING, POSITION INDICATOR | ||||
| 35971-0D630 |
NSP151..F |
1 | ||
| 35971-0D660 |
NSP151..CVT..H |
1 | ||
| 35971-0D620 |
NSP151..CVT..IDN..(G,R) |
1 | ||
| 35971-0D620 |
NSP151..CVT..D..C |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-0D120 |
NSP151..CVT..D..C |
1 | ||
| 35974-0D120 |
NSP151..CVT..IDN..(G,R) |
1 | ||
| 35974-0D140 |
NSP151..CVT..H |
1 | ||
| 35974-0D131 |
NSP151..F |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-0D160 |
NSP151..CVT..H |
1 | ||
| 35975-0D150 |
NSP151..F |
1 | ||
| 35975-0D140 |
NSP150..CVT..C;NSP151..CVT..(G,R)..C |
1 | ||
| 35975-0D140 |
NSP151..CVT..D..C |
1 | ||
| 35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR) | ||||
| 35976-0D170 |
NSP151..F |
1 | ||
| 35976-0D160 |
NSP151..CVT..D..C |
1 | ||
| 35976-0D180 |
NSP151..CVT..H |
1 | ||
| 35976-0D160 |
NSP150..CVT..C;NSP151..CVT..(G,R)..C |
1 | ||
| Common parts | ||||
| 90119-08C59 | ||||
| 90119-T0333 | ||||
| 90179-06178 | ||||
| 90182-T0026 | ||||
| 90468-14016 | ||||
| Linked diagrams | ||||
| 3401 | ||||

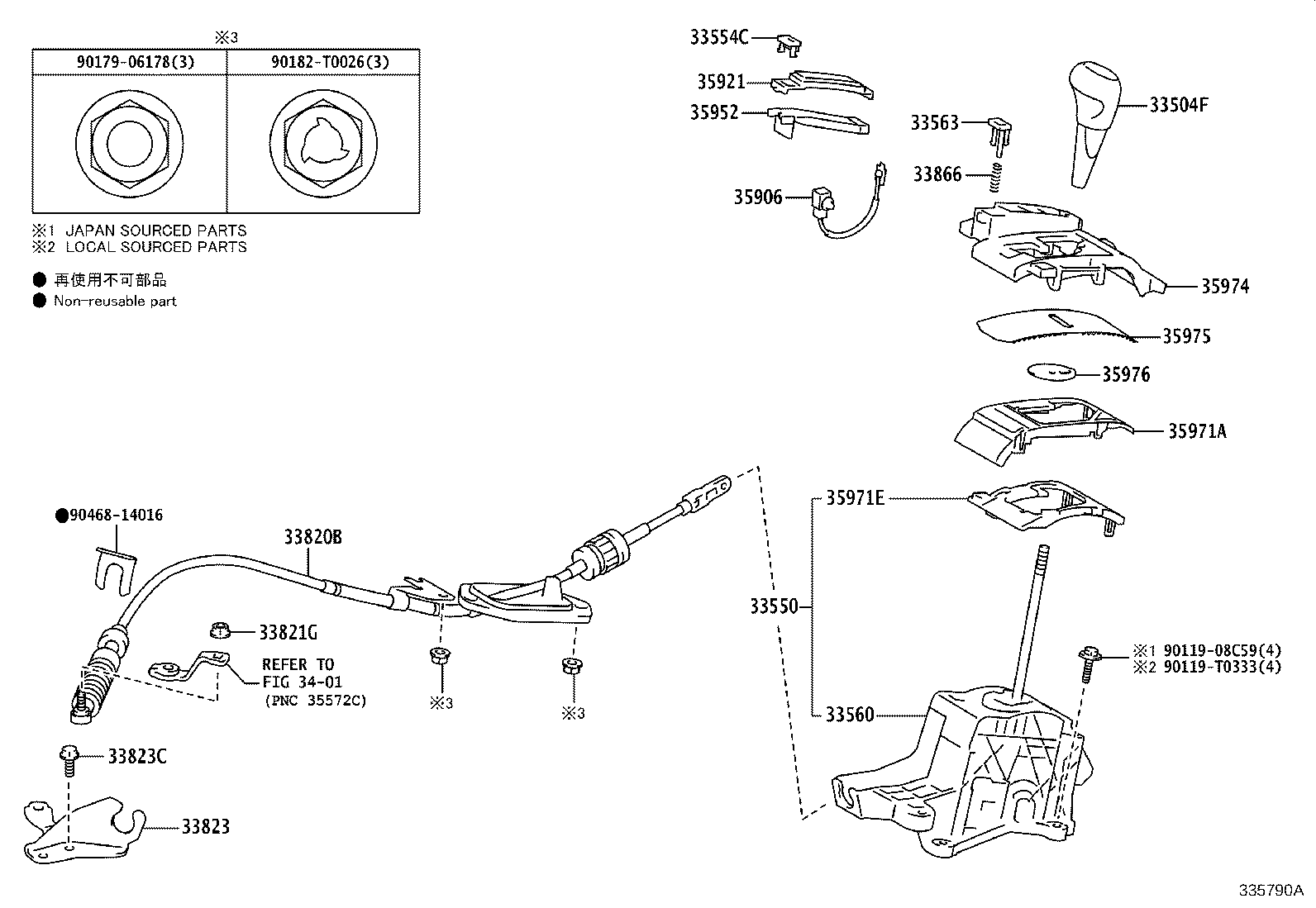

(1801- )CVT..IDN..R
BRUNEI SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-0D590C0 |
NSP151..CVT..IDN..R BRUNEI SPEC,BLACK,TRIM0#,2# |
1 | ||
| 33504-0D580C0 |
NSP151..D..F BLACK,TRIM2# |
1 | ||
| 33504-0D690C0 |
NSP151..CVT..GEN..D..H;NSP150,151..CVT..R..(D,H);NSP151..CVT..(GEN,TAIW)..(G,V)..(F,H) BLACK,TRIM2# |
1 | ||
| 33504-0D580C0 |
NSP150,151..CVT..(BZ,IDN,PH)..D BLACK,TRIM2# |
1 | ||
| 33504-0D580C0 |
NSP150,151..CVT..D..(G,I) BLACK,TRIM0# |
1 | ||
| 33504-0D640C0 |
NSP151..CVT..IDN..R BRUNEI SPEC,BLACK,TRIM0#,2# |
1 | ||
| 33504-0D690C0 |
NSP151..CVT..R..E;NSP150,151..CVT..(G,R)..(G,I) BLACK,TRIM0# |
1 | ||
| 33550 - FLOOR SHIFT ASSY, TRANSMISSION | ||||
| 33550-0D640 |
NSP151..CVT..D..C |
1 | ||
| 33550-0D640 |
NSP151..CVT..IDN..(G,R) |
1 | ||
| 33550-0D650 |
NSP151..F |
1 | ||
| 33550-0D620 |
NSP151..CVT..H |
1 | ||
| 33554C - COVER, SHIFT LOCK RELEASE BUTTON | ||||
| 33554-0D260 |
NSP151..CVT..GEN..D..H;NSP151..CVT..(G,R,V)..H |
1 | ||
| 33554-0D280 |
NSP151..CVT..D..C |
1 | ||
| 33554-0D290 |
NSP151..(R,V)..F |
1 | ||
| 33554-0D410 |
NSP151..D..F |
1 | ||
| 33554-0D270 |
NSP151..CVT..IDN..(G,R) |
1 | ||
| 33554-0D240 |
NSP151..CVT..IDN..R BRUNEI SPEC |
1 | ||
| 33560 - UNIT ASSY, SHIFT LOCK CONTROL | ||||
| 33560-0D290 |
NSP151..F |
1 | ||
| 33560-0D250 |
NSP151..CVT..D..C |
1 | ||
| 33560-0D250 |
NSP151..CVT..IDN..(G,R) |
1 | ||
| 33560-0D300 |
NSP151..CVT..H |
1 | ||
| 33563 - BUTTON, SHIFT LOCK RELEASE | ||||
| 33563-0D180 |
NSP151..CVT..H |
1 | ||
| 33563-0D160 |
NSP150..CVT..C;NSP151..CVT..(G,R)..C |
1 | ||
| 33563-0D170 |
NSP151..F |
1 | ||
| 33563-0D160 |
NSP151..CVT..D..C |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-0D750 |
NSP151..CVT..H |
1 | ||
| 33820-0D770 |
NSP151..CVT..D..C |
1 | ||
| 33820-0D770 |
NSP151..CVT..(G,R)..C |
1 | ||
| 33821G - NUT (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90179-08040 |
NSP151..F |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-0D240 |
NSP151..CVT..H |
1 | ||
| 33823-0D200 |
NSP151..F |
1 | ||
| 33823-0D190 |
NSP151..CVT..D..C |
1 | ||
| 33823-0D190 |
NSP151..CVT..(G,R)..C |
1 | ||
| 33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET) | ||||
| 90119-08079 |
NSP151..CVT..H |
2 | ||
| 33866 - SPRING, SHIFT LOCK RELEASE | ||||
| 33866-0D010 |
NSP150..CVT..C;NSP151..CVT..(G,R)..C |
1 | ||
| 33866-33010 |
NSP151..CVT..(F,H) |
1 | ||
| 33866-0D010 |
NSP151..CVT..D..C |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-0D080 |
NSP151..CVT..IDN..R BRUNEI SPEC |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-0D190 |
NSP151..CVT..D..C |
1 | ||
| 35921-0D200 |
NSP151..CVT..(F,H) |
1 | ||
| 35921-0D190 |
NSP151..CVT..IDN..(G,R) |
1 | ||
| 35952 - LENS, POSITION INDICATOR | ||||
| 35952-0D070 |
NSP151..CVT..H |
1 | ||
| 35952-0D050 |
NSP151..CVT..D..C |
1 | ||
| 35952-0D050 |
NSP150..CVT..C;NSP151..CVT..(G,R)..C |
1 | ||
| 35952-0D060 |
NSP151..F |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-0D650 |
NSP151..CVT..H |
1 | ||
| 35971-0D640 |
NSP151..F |
1 | ||
| 35971-0D600 |
NSP151..CVT..IDN..(G,R) |
1 | ||
| 35971-0D600 |
NSP151..CVT..D..C |
1 | ||
| 35971E - HOUSING, POSITION INDICATOR | ||||
| 35971-0D630 |
NSP151..F |
1 | ||
| 35971-0D660 |
NSP151..CVT..H |
1 | ||
| 35971-0D620 |
NSP151..CVT..IDN..(G,R) |
1 | ||
| 35971-0D620 |
NSP151..CVT..D..C |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-0D120 |
NSP151..CVT..D..C |
1 | ||
| 35974-0D120 |
NSP151..CVT..IDN..(G,R) |
1 | ||
| 35974-0D140 |
NSP151..CVT..H |
1 | ||
| 35974-0D131 |
NSP151..F |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-0D160 |
NSP151..CVT..H |
1 | ||
| 35975-0D150 |
NSP151..F |
1 | ||
| 35975-0D140 |
NSP150..CVT..C;NSP151..CVT..(G,R)..C |
1 | ||
| 35975-0D140 |
NSP151..CVT..D..C |
1 | ||
| 35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR) | ||||
| 35976-0D170 |
NSP151..F |
1 | ||
| 35976-0D160 |
NSP151..CVT..D..C |
1 | ||
| 35976-0D180 |
NSP151..CVT..H |
1 | ||
| 35976-0D160 |
NSP150..CVT..C;NSP151..CVT..(G,R)..C |
1 | ||
| Common parts | ||||
| 90119-08C59 | ||||
| 90119-T0333 | ||||
| 90179-06178 | ||||
| 90182-T0026 | ||||
| 90468-14016 | ||||
| Linked diagrams | ||||
| 3401 | ||||
