NSP151R-BEXGKE (2019)

Toyota Yaris/Vios/Limo

Production Jan 2019 - Sep 9999
Engine 2NRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

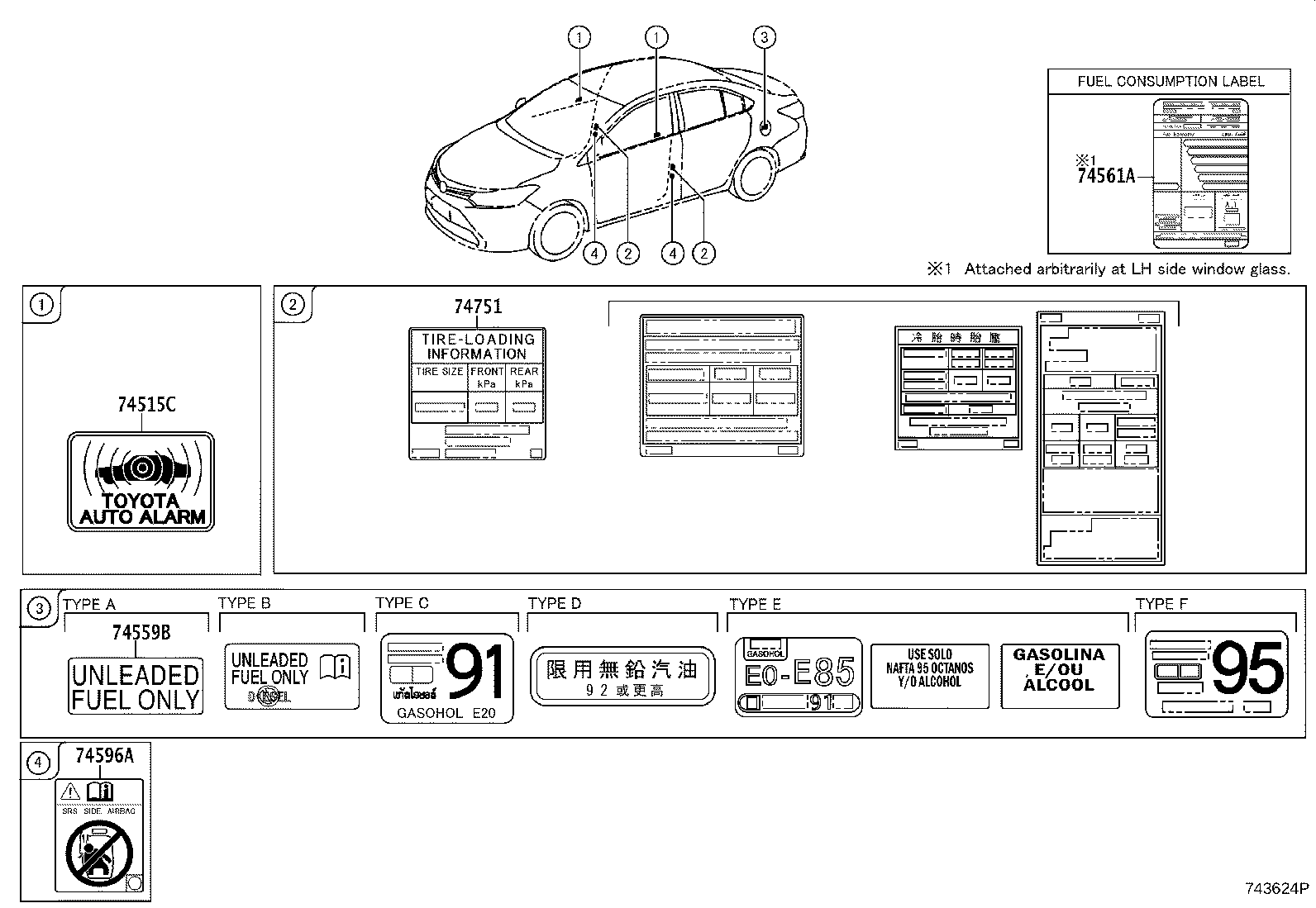

ILLUST NO. 2 OF 3(1304- )

Click highlighted areas on diagram

EXTERIOR

diagram 74515C 74559B 74561A 74596A 74751
Part # Description Qty Price
74751 - LABEL, TIRE PRESSURE INFORMATION
42661-0D291

NSP151..D..A

COSTA RICA SPEC

 1

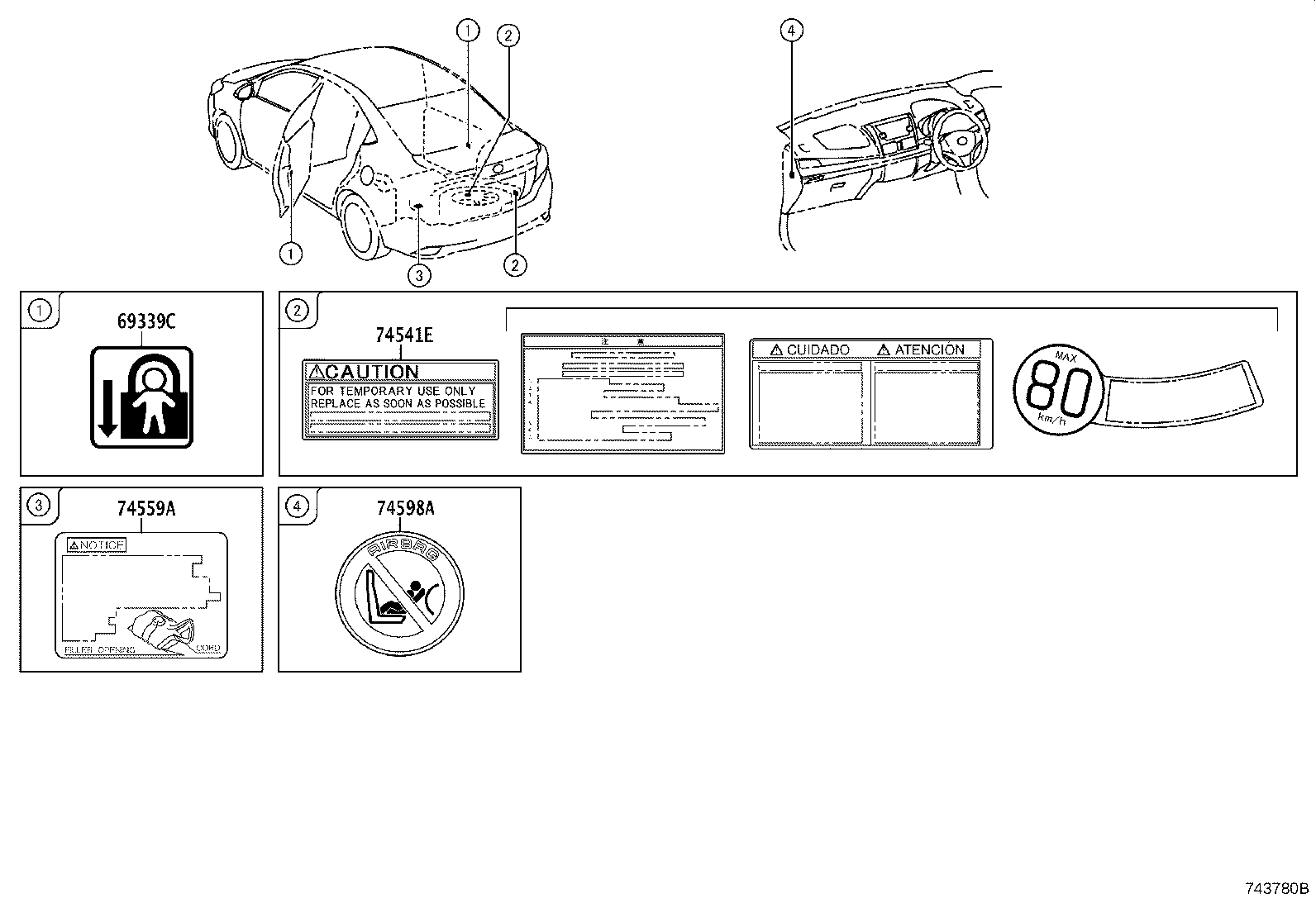

ILLUST NO. 3 OF 3(1304- )

Click highlighted areas on diagram

INTERIOR

diagram 69339C 74541E 74559A 74598A
Part # Description Qty Price
74541E - PLATE, COMPACT SPARE TIRE CAUTION
42668-42050

NSP151..F

MARK 1S

 1
42668-02140

NSP151..F

MARK 7R

 1

ILLUST NO. 1 OF 3(1304- )

Click highlighted areas on diagram

ENGINE ROOM

diagram 11285A 11298B 16793B 16793B 47288 88723J
Part # Description Qty Price
11298B - LABEL, EMISSION CONTROL INFORMATION
11298-0Y053

2NRFE..NSP151..F

 1
11298-0Y052

2NRFE..NSP151..F

 1
88723J - LABEL, COOLER SERVICE CAUTION, NO.2
88723-0D130

NSP151..MA

 1
