NSP151R-BEXGKE (2019)
Toyota Yaris/Vios/Limo

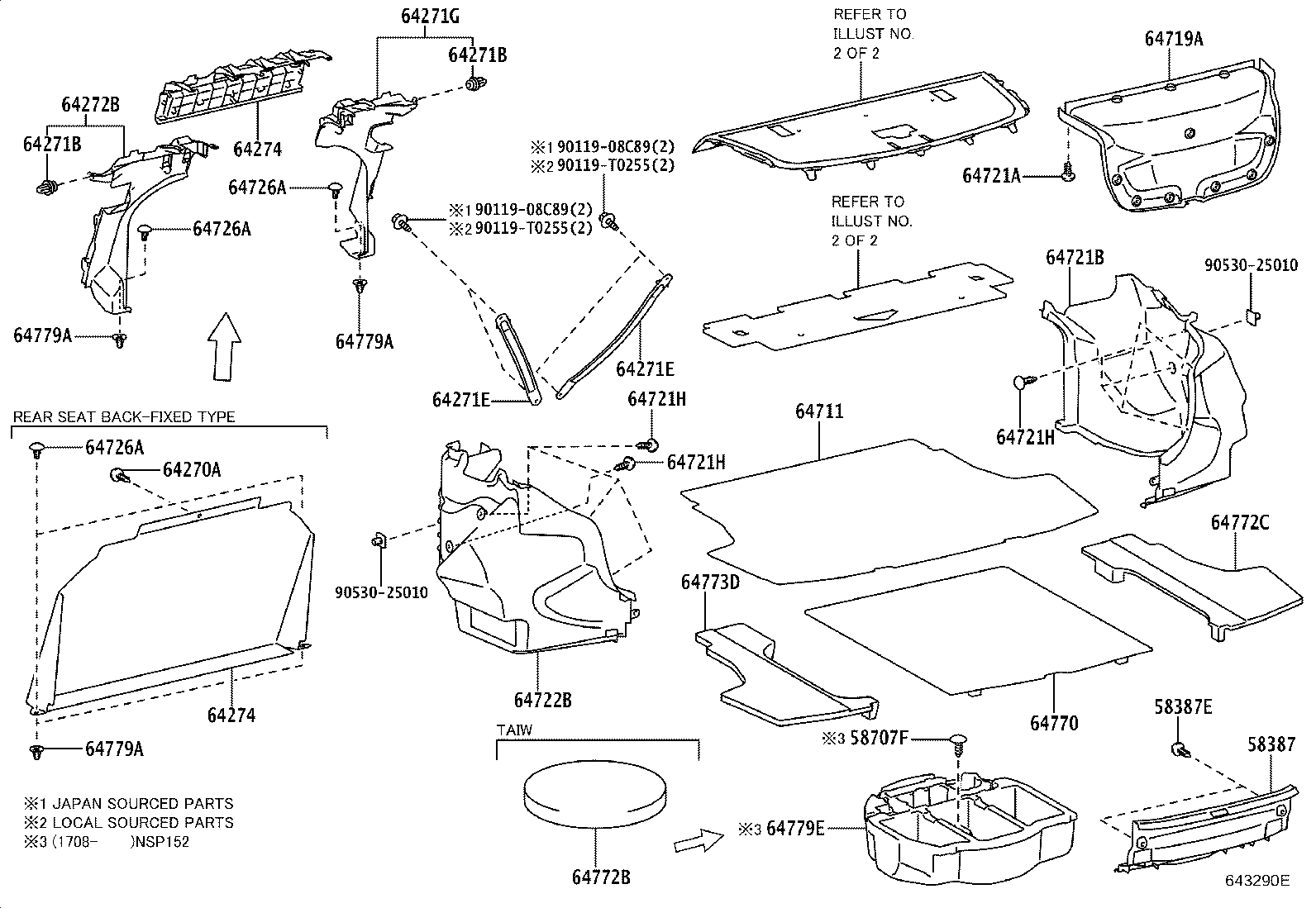

ILLUST NO. 1 OF 2(1304- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58387 - PLATE, REAR FLOOR FINISH | ||||
| 58387-0D270 |
NSP151..MA |
1 | ||
| 58387-0D110 |
NCP15#,NSP150,151..(GCC,GEN,IDN,MA,PH,TH,VN)..B |
1 | ||
| 58387E - CLIP(FOR REAR FLOOR FINISH PLATE) | ||||
| 90467-T0045C0 |
NSP151..CVT..D..C BLACK,TRIM2#,(L) |
2 | ||
| 90467-08186C3 |
NSP151,152..A;NSP150..CVT..A;NSP150..LHD..5F..GEN;NSP150..5F..GCC..R..A BLACK,TRIM0#,2#,(J) |
2 | ||
| 90467-T0045C0 |
NSP151..A;NSP150..CVT..A;NSP150..LHD..5F..GEN;NSP150..5F..GCC..R..A BLACK,TRIM0#,2#,(L) |
2 | ||
| 90467-08186C3 |
NSP151..CVT..D..C BLACK,TRIM2#,(J) |
2 | ||
| 90467-08186C3 |
NSP151..R..C;NSP150..(G,R)..C;NSP150..CVT..D..C;NSP151..GCC..G..C BLACK,TRIM0#,2#,(J) |
2 | ||
| 90467-T0045C0 |
NSP151..R..C;NSP150..(G,R)..C;NSP150..CVT..D..C;NSP151..GCC..G..C BLACK,TRIM0#,2#,(L) |
2 | ||
| 64270A - CLIP(FOR ROOM PARTITION BOARD SETTING) | ||||
| 90467-T0045C0 |
NSP151..CVT..D..C BLACK,TRIM2#,(L) |
1 | ||
| 90467-08186C3 |
NSP151..CVT..D..C BLACK,TRIM2#,(J) |
1 | ||
| 90467-08186C3 |
NSP150,151..R..C;NSP150..CVT..D..C BLACK,TRIM0#,2#,(J) |
1 | ||
| 90467-T0045C0 |
NSP150,151..R..C;NSP150..CVT..D..C BLACK,TRIM0#,2#,(L) |
1 | ||
| 64274 - PAD, ROOM PARTITION TRIM, NO.1 | ||||
| 64275-0D210C1 |
NSP151..MA..D BLACK,TRIM2# |
1 | ||
| 64274 - PAD, ROOM PARTITION TRIM, NO.1 | ||||
| 64275-0D210C1 |
NSP151..MA..D BLACK,TRIM2# |
1 | ||
| 64711 - MAT, LUGGAGE COMPARTMENT FLOOR | ||||
| 64711-0D370C1 |
NSP151..MA..D BLACK,TRIM2# |
1 | ||
| 64711-0D380C1 |
NSP151..MA..(G,R,V) BLACK,TRIM2# |
1 | ||
| 64719A - COVER, LUGGAGE COMPARTMENT DOOR | ||||
| 64719-0D190C1 |
NSP151..MA BLACK,TRIM2# |
1 | ||
| 64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER) | ||||
| 90467-08186C3 |
NSP151,152..A;NSP150..CVT..A;NSP150..LHD..5F..GEN;NSP150..5F..GCC..R..A BLACK,TRIM0#,2#,(J) |
12 | ||
| 90467-08186C3 |
NSP151..CVT..D..C BLACK,TRIM2#,(J) |
12 | ||
| 90467-T0045C0 |
NSP151..A;NSP150..CVT..A;NSP150..LHD..5F..GEN;NSP150..5F..GCC..R..A BLACK,TRIM0#,2#,(L) |
12 | ||
| 90467-T0045C0 |
NSP151..CVT..D..C BLACK,TRIM2#,(L) |
12 | ||
| 90467-T0045C0 |
NSP151..R..C;NSP150..(G,R)..C;NSP150..CVT..D..C;NSP151..GCC..G..C BLACK,TRIM0#,2#,(L) |
12 | ||
| 90467-08186C3 |
NSP151..R..C;NSP150..(G,R)..C;NSP150..CVT..D..C;NSP151..GCC..G..C BLACK,TRIM0#,2#,(J) |
12 | ||
| 64721B - COVER, LUGGAGE COMPARTMENT TRIM, NO.1 | ||||
| 64721-0D290C1 |
NSP151..MA..D BLACK,TRIM2# |
1 | ||
| 64721-0D300C1 |
NSP151..MA..(G,R,V) BLACK,TRIM2# |
1 | ||
| 64721H - CLIP(LUGGAGE COMPARTMENT) | ||||
| 90467-08186C3 |
NSP151..CVT..D..C BLACK,TRIM2#,(J) |
7 | ||
| 90467-T0045C0 |
NSP151..CVT..D..C BLACK,TRIM2#,(L) |
7 | ||
| 90467-08186C3 |
NSP151,152..A;NSP150..CVT..A;NSP150..LHD..5F..GEN;NSP150..5F..GCC..R..A BLACK,TRIM0#,2#,(J) |
7 | ||
| 90467-T0045C0 |
NSP151..A;NSP150..CVT..A;NSP150..LHD..5F..GEN;NSP150..5F..GCC..R..A BLACK,TRIM0#,2#,(L) |
7 | ||
| 90467-T0045C0 |
NSP151..R..C;NSP150..(G,R)..C;NSP150..CVT..D..C;NSP151..GCC..G..C BLACK,TRIM0#,2#,(L) |
7 | ||
| 90467-08186C3 |
NSP151..R..C;NSP150..(G,R)..C;NSP150..CVT..D..C;NSP151..GCC..G..C BLACK,TRIM0#,2#,(J) |
7 | ||
| 64721H - CLIP(LUGGAGE COMPARTMENT) | ||||
| 90467-08186C3 |
NSP151..CVT..D..C BLACK,TRIM2#,(J) |
7 | ||
| 90467-T0045C0 |
NSP151..CVT..D..C BLACK,TRIM2#,(L) |
7 | ||
| 90467-08186C3 |
NSP151,152..A;NSP150..CVT..A;NSP150..LHD..5F..GEN;NSP150..5F..GCC..R..A BLACK,TRIM0#,2#,(J) |
7 | ||
| 90467-T0045C0 |
NSP151..A;NSP150..CVT..A;NSP150..LHD..5F..GEN;NSP150..5F..GCC..R..A BLACK,TRIM0#,2#,(L) |
7 | ||
| 90467-T0045C0 |
NSP151..R..C;NSP150..(G,R)..C;NSP150..CVT..D..C;NSP151..GCC..G..C BLACK,TRIM0#,2#,(L) |
7 | ||
| 90467-08186C3 |
NSP151..R..C;NSP150..(G,R)..C;NSP150..CVT..D..C;NSP151..GCC..G..C BLACK,TRIM0#,2#,(J) |
7 | ||
| 64721H - CLIP(LUGGAGE COMPARTMENT) | ||||
| 90467-08186C3 |
NSP151..CVT..D..C BLACK,TRIM2#,(J) |
7 | ||
| 90467-T0045C0 |
NSP151..CVT..D..C BLACK,TRIM2#,(L) |
7 | ||
| 90467-08186C3 |
NSP151,152..A;NSP150..CVT..A;NSP150..LHD..5F..GEN;NSP150..5F..GCC..R..A BLACK,TRIM0#,2#,(J) |
7 | ||
| 90467-T0045C0 |
NSP151..A;NSP150..CVT..A;NSP150..LHD..5F..GEN;NSP150..5F..GCC..R..A BLACK,TRIM0#,2#,(L) |
7 | ||
| 90467-T0045C0 |
NSP151..R..C;NSP150..(G,R)..C;NSP150..CVT..D..C;NSP151..GCC..G..C BLACK,TRIM0#,2#,(L) |
7 | ||
| 90467-08186C3 |
NSP151..R..C;NSP150..(G,R)..C;NSP150..CVT..D..C;NSP151..GCC..G..C BLACK,TRIM0#,2#,(J) |
7 | ||
| 64722B - COVER, LUGGAGE COMPARTMENT TRIM, NO.2 | ||||
| 64722-0D290C1 |
NSP151..MA..D BLACK,TRIM2# |
1 | ||
| 64722-0D300C1 |
NSP151..MA..(G,R,V) BLACK,TRIM2# |
1 | ||
| 64726A - CLIP, LUGGAGE TRIM, REAR | ||||
| 64726-0D020 |
NCP15#,NSP150,151..(GCC,GEN,IDN,MA,PH,TH,VN)..B |
2 | ||
| 64726A - CLIP, LUGGAGE TRIM, REAR | ||||
| 64726-0D020 |
NCP15#,NSP150,151..(GCC,GEN,IDN,MA,PH,TH,VN)..B |
2 | ||
| 64726A - CLIP, LUGGAGE TRIM, REAR | ||||
| 64726-0D020 |
NCP15#,NSP150,151..(GCC,GEN,IDN,MA,PH,TH,VN)..B |
2 | ||
| 64770 - COVER ASSY, SPARE WHEEL | ||||
| 64770-0D310 |
NSP151..MA..(D,R) |
1 | ||
| 64770-0D320 |
NSP151..MA..(G,V) |
1 | ||
| 64772C - PAD, SPARE WHEEL COVER | ||||
| 64772-0D230 |
NSP151..MA |
1 | ||
| 64773D - COVER, SPARE WHEEL, NO.2 | ||||
| 64773-0D170 |
NSP151..MA |
1 | ||
| 64779A - STOPPER, SPARE WHEEL COVER | ||||
| 64779-0D050 |
NCP15#,NSP150,151..(GCC,GEN,IDN,MA,PH,TH,VN)..B |
2 | ||
| 64779A - STOPPER, SPARE WHEEL COVER | ||||
| 64779-0D050 |
NCP15#,NSP150,151..(GCC,GEN,IDN,MA,PH,TH,VN)..B |
2 | ||
| 64779A - STOPPER, SPARE WHEEL COVER | ||||
| 64779-0D050 |
NCP15#,NSP150,151..(GCC,GEN,IDN,MA,PH,TH,VN)..B |
2 | ||
| Common parts | ||||
| 90119-08C89 | ||||
| 90119-T0255 | ||||
| 90530-25010 | ||||
ILLUST NO. 2 OF 2(1304- )
PACKAGE TRAY TRIM PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64330 - PANEL ASSY, PACKAGE TRAY TRIM | ||||
| 64330-0D590C0 |
NSP151..MA BLACK,TRIM2# |
1 | ||
| 64330 - PANEL ASSY, PACKAGE TRAY TRIM | ||||
| 64330-0D590C0 |
NSP151..MA BLACK,TRIM2# |
1 | ||
| 64330A - CLIP(FOR PACKAGE TRAY TRIM PANEL) | ||||
| 90467-06020C0 |
NCP15#..B;NSP151..IDN..(G,R);NSP150,151..(GEN,MA,PH,TAIW,TH,VN)..B BLACK |
2 | ||
| 64330A - CLIP(FOR PACKAGE TRAY TRIM PANEL) | ||||
| 90467-06020C0 |
NCP15#..B;NSP151..IDN..(G,R);NSP150,151..(GEN,MA,PH,TAIW,TH,VN)..B BLACK |
2 | ||
| 64334 - PAD, PACKAGE TRAY TRIM SILENCER | ||||
| 64334-0D300 |
NSP151..MA..D |
1 | ||
| 64334-0D310 |
NSP151..MA..(G,R,V) |
1 | ||
| 64334 - PAD, PACKAGE TRAY TRIM SILENCER | ||||
| 64334-0D300 |
NSP151..MA..D |
1 | ||
| 64334-0D310 |
NSP151..MA..(G,R,V) |
1 | ||
| 64371A - CLIP(FOR PACKAGE TRAY TRIM) | ||||
| 90467-06020A5 |
NSP151..R..C;NSP151..GCC..R..B;NCP150..TH..(D,R)..C;NCP150..(GCC,IDN,TAIW)..R;NCP150..(PH,TH)..(D,G,R)..B;NSP151..(TAIW,TH)..(G,R)..B;NCP15#,NSP150,151..GEN..D..B;NCP151,NSP150..GCC..(D,R)..(B,C) SHELL,TRIM0# |
3 | ||
| 90467-06020C0 |
NSP151..GCC..R..B;NCP150..TH..(D,R)..C;NCP150..(GCC,IDN)..(D,R);NSP151..(GCC,TH)..(D,R)..C;NCP15#,NSP150..(GEN,MA)..D..B;NCP150,NSP151..(PH,TAIW,TH)..B;NSP151..(GEN,IDN,MA)..D..(B,C);NCP151,NSP150..(GCC,PH,VN)..(D,R)..(B,C) BLACK,TRIM2# |
3 | ||
| 64371A - CLIP(FOR PACKAGE TRAY TRIM) | ||||
| 90467-06020A5 |
NSP151..R..C;NSP151..GCC..R..B;NCP150..TH..(D,R)..C;NCP150..(GCC,IDN,TAIW)..R;NCP150..(PH,TH)..(D,G,R)..B;NSP151..(TAIW,TH)..(G,R)..B;NCP15#,NSP150,151..GEN..D..B;NCP151,NSP150..GCC..(D,R)..(B,C) SHELL,TRIM0# |
3 | ||
| 90467-06020C0 |
NSP151..GCC..R..B;NCP150..TH..(D,R)..C;NCP150..(GCC,IDN)..(D,R);NSP151..(GCC,TH)..(D,R)..C;NCP15#,NSP150..(GEN,MA)..D..B;NCP150,NSP151..(PH,TAIW,TH)..B;NSP151..(GEN,IDN,MA)..D..(B,C);NCP151,NSP150..(GCC,PH,VN)..(D,R)..(B,C) BLACK,TRIM2# |
3 | ||
| 64371A - CLIP(FOR PACKAGE TRAY TRIM) | ||||
| 90467-06020A5 |
NSP151..R..C;NSP151..GCC..R..B;NCP150..TH..(D,R)..C;NCP150..(GCC,IDN,TAIW)..R;NCP150..(PH,TH)..(D,G,R)..B;NSP151..(TAIW,TH)..(G,R)..B;NCP15#,NSP150,151..GEN..D..B;NCP151,NSP150..GCC..(D,R)..(B,C) SHELL,TRIM0# |
3 | ||
| 90467-06020C0 |
NSP151..GCC..R..B;NCP150..TH..(D,R)..C;NCP150..(GCC,IDN)..(D,R);NSP151..(GCC,TH)..(D,R)..C;NCP15#,NSP150..(GEN,MA)..D..B;NCP150,NSP151..(PH,TAIW,TH)..B;NSP151..(GEN,IDN,MA)..D..(B,C);NCP151,NSP150..(GCC,PH,VN)..(D,R)..(B,C) BLACK,TRIM2# |
3 | ||
| 64371A - CLIP(FOR PACKAGE TRAY TRIM) | ||||
| 90467-06020A5 |
NSP151..R..C;NSP151..GCC..R..B;NCP150..TH..(D,R)..C;NCP150..(GCC,IDN,TAIW)..R;NCP150..(PH,TH)..(D,G,R)..B;NSP151..(TAIW,TH)..(G,R)..B;NCP15#,NSP150,151..GEN..D..B;NCP151,NSP150..GCC..(D,R)..(B,C) SHELL,TRIM0# |
3 | ||
| 90467-06020C0 |
NSP151..GCC..R..B;NCP150..TH..(D,R)..C;NCP150..(GCC,IDN)..(D,R);NSP151..(GCC,TH)..(D,R)..C;NCP15#,NSP150..(GEN,MA)..D..B;NCP150,NSP151..(PH,TAIW,TH)..B;NSP151..(GEN,IDN,MA)..D..(B,C);NCP151,NSP150..(GCC,PH,VN)..(D,R)..(B,C) BLACK,TRIM2# |
3 | ||
| 64374A - SUPPORT, PACKAGE TRAY TRIM | ||||
| 64374-0D030 |
NSP150..D..B;NSP150..(GCC,PH)..R..B;NCP150,NSP151..(PH,TH)..B;NCP15#,NSP151..(GEN,MA)..D..B;NCP151..(GCC,PH,VN)..(D,R)..B;NCP150,NSP151..(GCC,IDN)..(D,R)..B |
3 | ||
| Common parts | ||||
| 90467-10167 | ||||
