Toyota Yaris/vios/limo NSP151 HOOD & FRONT FENDER

NSP151R-BEXGKE (2019)

Toyota Yaris/Vios/Limo

Production Jan 2019 - Sep 9999

Engine 2NRFE

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

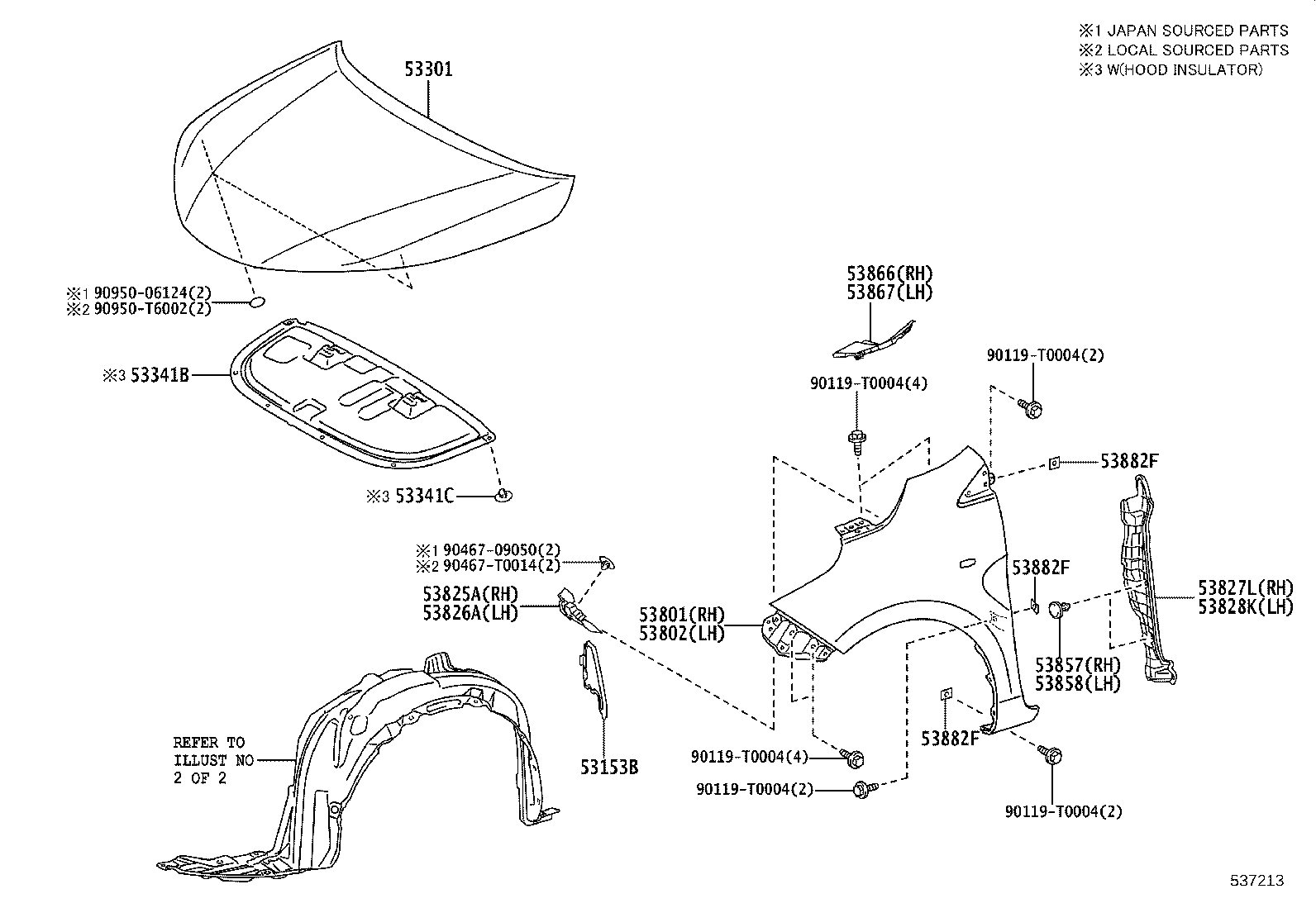

ILLUST NO. 1 OF 2(1901- )MA ; (1901- )CVT..D..D ; (1911-)I ; (1911- )NSP152

Click highlighted areas on diagram

Part #	Description	Period	Qty
53301 - HOOD SUB-ASSY
53301-0D300	NSP151..MA	01/2019 - 11/2020	1
53301-0D300	NSP151..MA	01/2019 - 11/2020	1
53801 - FENDER SUB-ASSY, FRONT RH
53801-0D160	NSP151..MA..(G,R,V)	01/2019 - 11/2020	1
53801-0D160	NSP151..MA..(G,R,V)	01/2019 - 11/2020	1
53801-0D150	NSP151..MA..D	01/2019 - 11/2020	1
53801-0D150	NSP151..MA..D	01/2019 - 11/2020	1
53802 - FENDER SUB-ASSY, FRONT LH
53802-0D160	NSP151..MA..(G,R,V)	01/2019 - 11/2020	1
53802-0D160	NSP151..MA..(G,R,V)	01/2019 - 11/2020	1
53802-0D150	NSP151..MA..D	01/2019 - 11/2020	1
53802-0D150	NSP151..MA..D	01/2019 - 11/2020	1
53825A - PROTECTOR, FRONT FENDER, UPPER RH
53825-0D060	NSP151..MA	01/2019 - 11/2020	1
53825-0D060	NSP151..MA	01/2019 - 11/2020	1
53826A - PROTECTOR, FRONT FENDER, UPPER LH
53826-0D060	NSP151..MA	01/2019 - 11/2020	1
53826-0D060	NSP151..MA	01/2019 - 11/2020	1
53827L - PROTECTOR, FRONT FENDER SIDE PANEL, RH
53827-0D251	NSP151..G	05/2019 - 08/2019	1
53827-0D251	NSP151..G	05/2019 - 08/2019	1
53827-0D241	NSP151..F	05/2019 - 01/2021	1
53827-0D241	NSP151..F	05/2019 - 01/2021	1
53827-0D231	NSP151..MA	01/2020 - 11/2020	1
53827-0D231	NSP151..MA	01/2020 - 11/2020	1
53827-0D230	NSP151..MA	01/2019 - 12/2019	1
53827-0D230	NSP151..MA	01/2019 - 12/2019	1
53827-0D221	NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C	10/2019 - 12/2999	1
53827-0D221	NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C	10/2019 - 12/2999	1
53827-0D211	NSP151,152..A,D,E;NSP150..CVT..G..A;NSP150..5F..GCC..R..A;NSP150..CVT..GCC..(D,R)..A;NSP150..(GEN,PH,VN)..(D,R)	05/2019 - 12/2999	1
53827-0D211	NSP151,152..A,D,E;NSP150..CVT..G..A;NSP150..5F..GCC..R..A;NSP150..CVT..GCC..(D,R)..A;NSP150..(GEN,PH,VN)..(D,R)	05/2019 - 12/2999	1
53827-0D221	NSP150..5F..D..C;NSP151..CVT..D..C	10/2019 - 08/2021	1
53827-0D221	NSP150..5F..D..C;NSP151..CVT..D..C	10/2019 - 08/2021	1
53828K - PROTECTOR, FRONT FENDER SIDE PANEL, LH
53828-0D221	NSP150..5F..D..C;NSP151..CVT..D..C	10/2019 - 08/2021	1
53828-0D221	NSP150..5F..D..C;NSP151..CVT..D..C	10/2019 - 08/2021	1
53828-0D241	NSP151..F	05/2019 - 01/2021	1
53828-0D241	NSP151..F	05/2019 - 01/2021	1
53828-0D211	NSP151,152..A,D,E;NSP150..CVT..G..A;NSP150..5F..GCC..R..A;NSP150..CVT..GCC..(D,R)..A;NSP150..(GEN,PH,VN)..(D,R)	05/2019 - 12/2999	1
53828-0D211	NSP151,152..A,D,E;NSP150..CVT..G..A;NSP150..5F..GCC..R..A;NSP150..CVT..GCC..(D,R)..A;NSP150..(GEN,PH,VN)..(D,R)	05/2019 - 12/2999	1
53828-0D230	NSP151..MA	01/2019 - 12/2019	1
53828-0D230	NSP151..MA	01/2019 - 12/2019	1
53828-0D231	NSP151..MA	01/2020 - 11/2020	1
53828-0D231	NSP151..MA	01/2020 - 11/2020	1
53828-0D221	NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C	10/2019 - 12/2999	1
53828-0D221	NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C	10/2019 - 12/2999	1
53828-0D251	NSP151..G	05/2019 - 08/2019	1
53828-0D251	NSP151..G	05/2019 - 08/2019	1
53857 - RETAINER, FRONT WHEEL OPENING EXTENSION, RH
53857-0K010	NSP151..MA	01/2020 - 11/2020	2
53857-0K010	NSP151..MA	01/2020 - 11/2020	2
53857-0K010	NSP151..F	05/2019 - 01/2021	2
53857-0K010	NSP151..F	05/2019 - 01/2021	2
53857-0K010	NSP150..5F..D..C;NSP151..CVT..D..C	04/2019 - 08/2021	2
53857-0K010	NSP150..5F..D..C;NSP151..CVT..D..C	04/2019 - 08/2021	2
53857-0K010	NSP152..HTWC;NSP151..A,D,E,G;NSP150..CVT..G..A;NSP150..5F..GCC..R..A;NSP150..(GEN,PH,VN)..(D,R);NSP150..CVT..GCC..(D,R)..A	05/2019 - 12/2999	2
53857-0K010	NSP152..HTWC;NSP151..A,D,E,G;NSP150..CVT..G..A;NSP150..5F..GCC..R..A;NSP150..(GEN,PH,VN)..(D,R);NSP150..CVT..GCC..(D,R)..A	05/2019 - 12/2999	2
53857-0K010	NSP152..HTWCB;NSP150..CVT..D..(C,I);NSP150,151..(G,R)..(C,I);NSP150,151..RHD..5F..D..(C,I)	04/2019 - 12/2999	2
53857-0K010	NSP152..HTWCB;NSP150..CVT..D..(C,I);NSP150,151..(G,R)..(C,I);NSP150,151..RHD..5F..D..(C,I)	04/2019 - 12/2999	2
53858 - RETAINER, FRONT WHEEL OPENING EXTENSION, LH
53857-0K010	NSP152..HTWC;NSP151..A,D,E,G;NSP150..CVT..G..A;NSP150..5F..GCC..R..A;NSP150..(GEN,PH,VN)..(D,R);NSP150..CVT..GCC..(D,R)..A	05/2019 - 12/2999	2
53857-0K010	NSP152..HTWC;NSP151..A,D,E,G;NSP150..CVT..G..A;NSP150..5F..GCC..R..A;NSP150..(GEN,PH,VN)..(D,R);NSP150..CVT..GCC..(D,R)..A	05/2019 - 12/2999	2
53857-0K010	NSP152..HTWCB;NSP150..CVT..D..(C,I);NSP150,151..(G,R)..(C,I);NSP150,151..RHD..5F..D..(C,I)	04/2019 - 12/2999	2
53857-0K010	NSP152..HTWCB;NSP150..CVT..D..(C,I);NSP150,151..(G,R)..(C,I);NSP150,151..RHD..5F..D..(C,I)	04/2019 - 12/2999	2
53857-0K010	NSP150..5F..D..C;NSP151..CVT..D..C	04/2019 - 08/2021	2
53857-0K010	NSP150..5F..D..C;NSP151..CVT..D..C	04/2019 - 08/2021	2
53857-0K010	NSP151..F	05/2019 - 01/2021	2
53857-0K010	NSP151..F	05/2019 - 01/2021	2
53857-0K010	NSP151..MA	01/2020 - 11/2020	2
53857-0K010	NSP151..MA	01/2020 - 11/2020	2
Common parts
90119-T0004
90467-09050
90467-T0014
90950-06124
90950-T6002

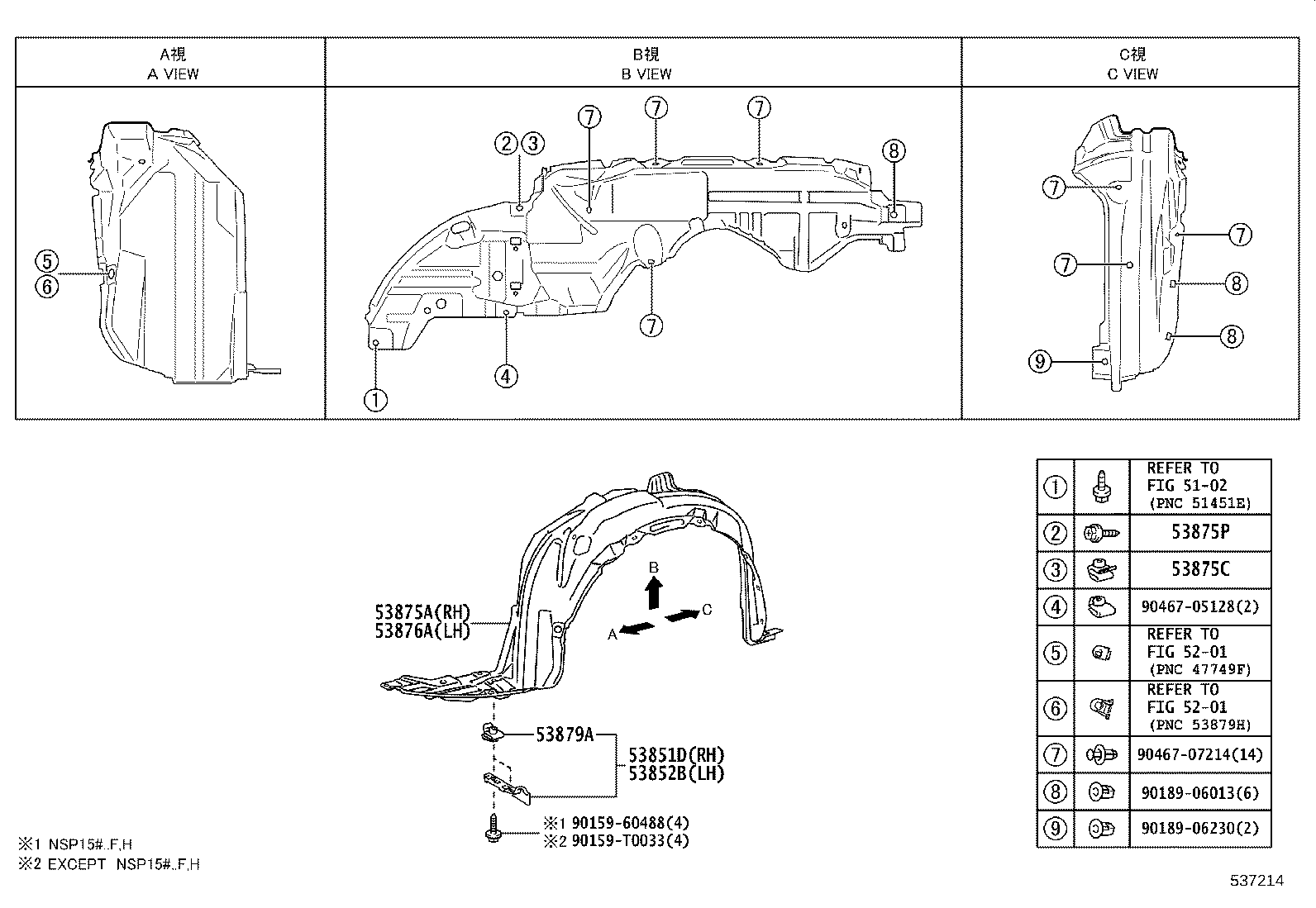

ILLUST NO. 2 OF 2(1901- )MA ; (1901- )CVT..D..D ; (1911-)I ; (1911- )NSP152

Click highlighted areas on diagram

FENDER LINER

Part #	Description	Period	Qty
53875A - LINER, FRONT FENDER, RH
53875-0D601	NSP151..D..F	03/2020 - 01/2021	1
53875-0D601	NSP151..D..F	03/2020 - 01/2021	1
53875-0D531	NSP151..MA..D	10/2019 - 11/2020	1
53875-0D531	NSP151..MA..D	10/2019 - 11/2020	1
53875-0D551	NSP150..5F..D..C;NSP151..CVT..D..C	03/2020 - 08/2021	1
53875-0D551	NSP150..5F..D..C;NSP151..CVT..D..C	03/2020 - 08/2021	1
53875-0D611	NSP151..(R,V)..F	03/2020 - 01/2021	1
53875-0D611	NSP151..(R,V)..F	03/2020 - 01/2021	1
53875-0D661	NSP151..MA..(G,R,V)	10/2019 - 11/2020	1
53875-0D661	NSP151..MA..(G,R,V)	10/2019 - 11/2020	1
53875-0D661	NSP150..5F..R..A;NSP151..(G,R)..(A,E);NSP150,152..CVT..(G,R)..A	10/2019 - 12/2999	1
53875-0D661	NSP150..5F..R..A;NSP151..(G,R)..(A,E);NSP150,152..CVT..(G,R)..A	10/2019 - 12/2999	1
53875-0D561	NSP150,151..(G,R)..C	03/2020 - 12/2999	1
53875-0D561	NSP150,151..(G,R)..C	03/2020 - 12/2999	1
53875C - CLIP, FRONT FENDER LINER
90467-05114	NCP15#,NSP150,151..B,C	04/2013 - 12/2999	2
90467-05114	NCP15#,NSP150,151..B,C	04/2013 - 12/2999	2
53875P - SCREW, NO.1
90159-T0033	NCP15#,NSP150,151..(GCC,GEN,IDN,MA,PH,TH,VN)..(B,C)	04/2013 - 12/2999	2
90159-T0033	NCP15#,NSP150,151..(GCC,GEN,IDN,MA,PH,TH,VN)..(B,C)	04/2013 - 12/2999	2
53876A - LINER, FRONT FENDER, LH
53876-0D611	NSP151..(R,V)..F	03/2020 - 01/2021	1
53876-0D611	NSP151..(R,V)..F	03/2020 - 01/2021	1
53876-0D661	NSP151..MA..(G,R,V)	10/2019 - 11/2020	1
53876-0D661	NSP151..MA..(G,R,V)	10/2019 - 11/2020	1
53876-0D601	NSP151..D..F	03/2020 - 01/2021	1
53876-0D601	NSP151..D..F	03/2020 - 01/2021	1
53876-0D551	NSP150..5F..D..C;NSP151..CVT..D..C	03/2020 - 08/2021	1
53876-0D551	NSP150..5F..D..C;NSP151..CVT..D..C	03/2020 - 08/2021	1
53876-0D531	NSP151..MA..D	10/2019 - 11/2020	1
53876-0D531	NSP151..MA..D	10/2019 - 11/2020	1
53876-0D661	NSP150..5F..R..A;NSP151..(G,R)..(A,E);NSP150,152..CVT..(G,R)..A	10/2019 - 12/2999	1
53876-0D661	NSP150..5F..R..A;NSP151..(G,R)..(A,E);NSP150,152..CVT..(G,R)..A	10/2019 - 12/2999	1
53876-0D561	NSP150,151..(G,R)..C	03/2020 - 12/2999	1
53876-0D561	NSP150,151..(G,R)..C	03/2020 - 12/2999	1
Common parts
90159-60488
90159-T0033
90189-06013
90189-06230
90467-05128
90467-07214
Linked diagrams
5102
5201

NSP151R-BEXGKE (2019)

ILLUST NO. 1 OF 2(1901- )MA ; (1901- )CVT..D..D ; (1911-)I ; (1911- )NSP152

ILLUST NO. 2 OF 2(1901- )MA ; (1901- )CVT..D..D ; (1911-)I ; (1911- )NSP152
