NSP151R-BEXDKE (2019)
Toyota Yaris/Vios/Limo
(1904- )H
AUTO AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

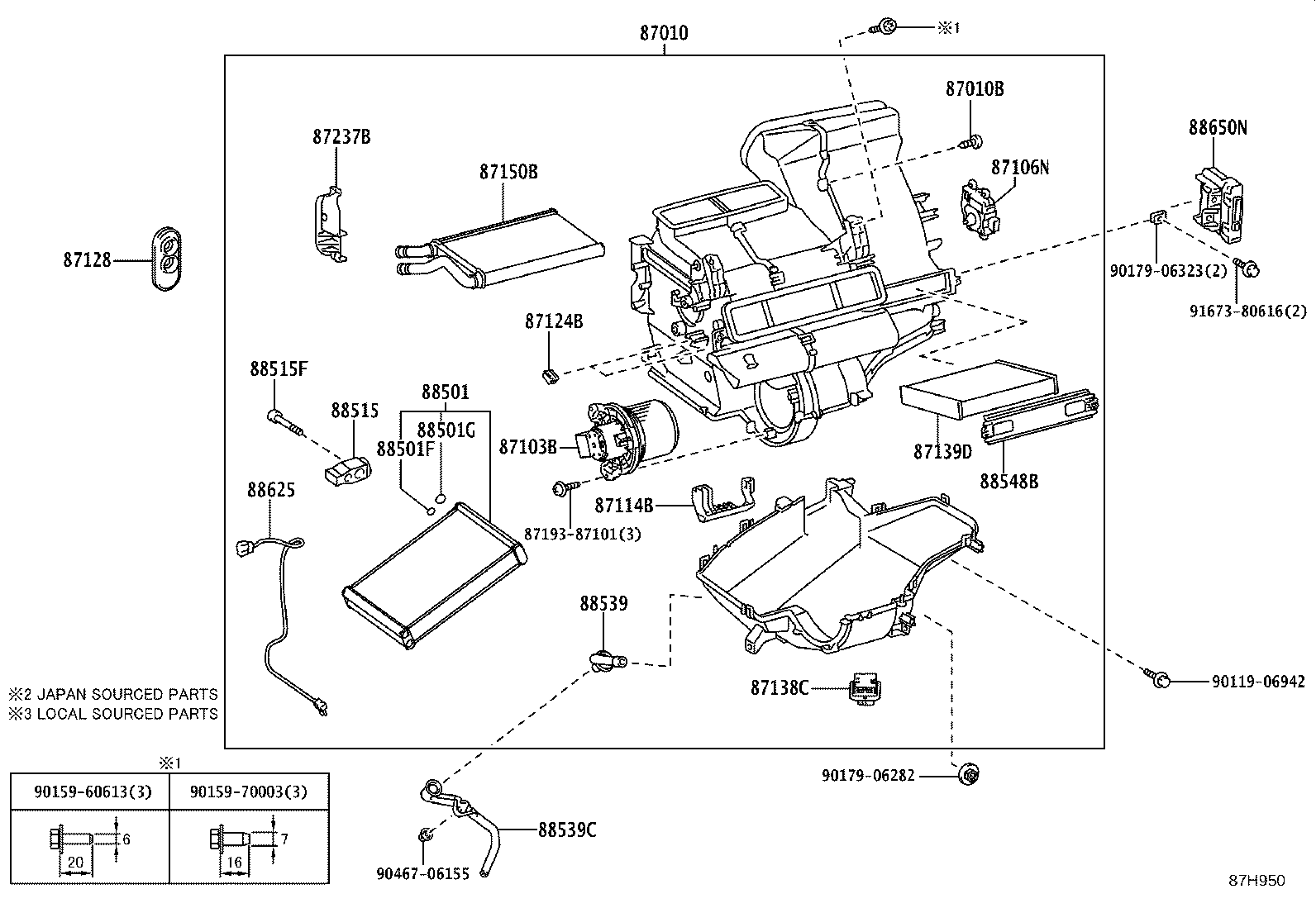

| 87010 - UNIT ASSY, AIR CONDITIONER | ||||
| 87010-0DK50 |
NSP151..MA |
1 | ||
| 87010B - SCREW(FOR AIR CONDITIONER UNIT) | ||||
| 90099-00968 |
NSP151..MA |
20 | ||
| 90094-90426 |
NSP151..(D,R)..H |
19 | ||
| 90094-90426 |
NSP151..(G,V)..H |
26 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-0D310 |
NSP151..MA |
1 | ||
| 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 87106-0D530 |
NSP151..MA |
1 | ||
| 87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION) | ||||
| 87106-0D540 |
NSP151..MA |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-0D110 |
NSP151..MA |
1 | ||
| 87139D - ELEMENT, AIR REFINER | ||||
| 87139-0D050 |
NSP151..MA DUST FILTER |
1 | ||
| 87139-02150 |
NSP151..H OE PART |
1 | ||
| 87165C - CONTROL, BLOWER MOTOR | ||||
| 87165-0D120 |
NSP151..MA |
1 | ||
| 87165-0D180 |
NSP151..MA |
1 | ||
| 87165-0D200 |
NSP151..(G,V)..H |
1 | ||
| 87165-0D170 |
NSP151..D |
1 | ||
| 87165-0D160 |
NSP151..V..F |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-0D530 |
NSP151..MA |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-0D440 |
NSP151..MA |
1 | ||
| 88515-0D610 |
NSP151..MA |
1 | ||
| 88515-0D580 |
NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C |
1 | ||
| 88515-0D570 |
NSP151,152..A,E;NSP150..CVT..G..A;NSP150..5F..GCC..R..A;NSP150..(GEN,VN)..(D,R);NSP150..CVT..GCC..(D,R)..A |
1 | ||
| 88515-0D590 |
NSP151..F |
1 | ||
| 88515-0D580 |
NSP150..5F..D..C;NSP151..CVT..D..C |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-0D310 |
NSP151..MA |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-0D360 |
NSP151..MA |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-0D180 |
NSP151..MA |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-0D140 |
NSP151..MA |
1 | ||
| 88669E - HOSE, AIR | ||||
| 87233-0D200 |
NSP151..MA |
1 | ||
| 88897U - PIPE, ASPIRATOR | ||||
| 88897-0D110 |
NSP151..MA |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 90119-06942 | ||||
| 90159-60613 | ||||
| 90159-70003 | ||||
| 90179-06282 | ||||
| 90179-06323 | ||||
| 90467-06155 | ||||
| 91673-80616 | ||||
(1904- )H
MANUAL AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87010 - UNIT ASSY, AIR CONDITIONER | ||||
| 87010-0DK50 |
NSP151..MA |
1 | ||
| 87010B - SCREW(FOR AIR CONDITIONER UNIT) | ||||
| 90099-00968 |
NSP151..MA |
20 | ||
| 90094-90426 |
NSP151..(D,R)..H |
19 | ||
| 90094-90426 |
NSP151..(G,V)..H |
26 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-0D310 |
NSP151..MA |
1 | ||
| 87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION) | ||||
| 87106-0D540 |
NSP151..MA |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-0D110 |
NSP151..MA |
1 | ||
| 87139D - ELEMENT, AIR REFINER | ||||
| 87139-0D050 |
NSP151..MA DUST FILTER |
1 | ||
| 87139-02150 |
NSP151..H OE PART |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-0D530 |
NSP151..MA |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-0D440 |
NSP151..MA |
1 | ||
| 88515-0D610 |
NSP151..MA |
1 | ||
| 88515-0D580 |
NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C |
1 | ||
| 88515-0D570 |
NSP151,152..A,E;NSP150..CVT..G..A;NSP150..5F..GCC..R..A;NSP150..(GEN,VN)..(D,R);NSP150..CVT..GCC..(D,R)..A |
1 | ||
| 88515-0D590 |
NSP151..F |
1 | ||
| 88515-0D580 |
NSP150..5F..D..C;NSP151..CVT..D..C |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-0D310 |
NSP151..MA |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-0D360 |
NSP151..MA |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-0D180 |
NSP151..MA |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-0D140 |
NSP151..MA |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 90119-06942 | ||||
| 90159-60613 | ||||
| 90159-70003 | ||||
| 90179-06282 | ||||
| 90179-06323 | ||||
| 90467-06155 | ||||
| 91673-80616 | ||||
