NSP151R-BEXDKE (2019)

Toyota Yaris/Vios/Limo

Production Jan 2019 - Sep 9999
Engine 2NRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1304- )RHD

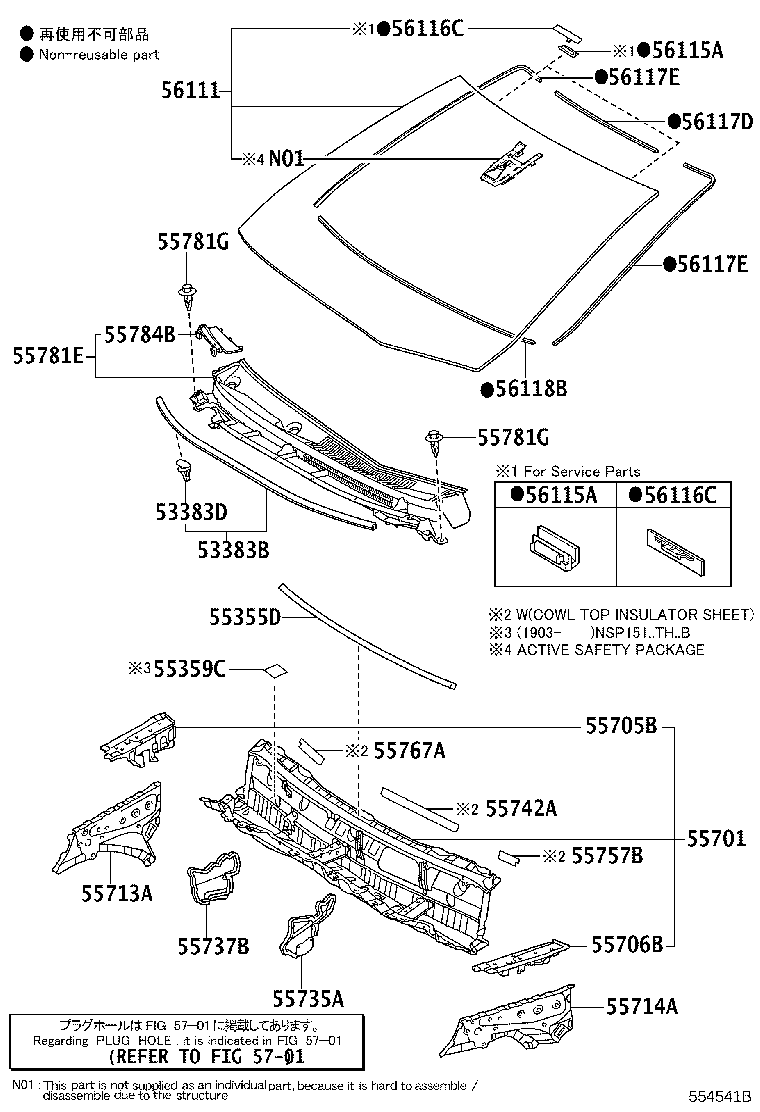

Click highlighted areas on diagram

diagram 53383B 53383D 55355D 55359C 55701 55705B 55706B 55713A 55714A 55735A 55737B 55742A 55757B 55767A 55781E 55781G 55781G 55784B 56111 56115A 56115A 56116C 56116C 56117D 56117E 56117E 56118B 5701
Part # Description Qty Price
53383B - SEAL, HOOD TO COWL TOP
53383-0D180

NSP151..MA

 1
55701 - PANEL SUB-ASSY, COWL
55700-0D450

NSP151..MA

 1
55713A - PANEL, COWL TOP SIDE, RH
55713-0D250

NSP151..MA

 1
55714A - PANEL, COWL TOP SIDE, LH
55714-0D250

NSP151..MA

 1
55737B - SEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
55737-0D200

NSP151..MA

 1
55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR
55708-0D322

NSP151..MA

 1
55784B - LOUVER, COWL TOP VENTILATOR, CENTER NO.2
55784-0D110

NSP151..MA

 1
56111 - GLASS, WINDSHIELD
56101-0D430

NSP151..MA..R

 1
56101-0D710

NSP151..MA..(G,V)

 1
56101-0D420

NSP151..MA..D

 1
Linked diagrams
5701
