NSP151R-BEXDKE (2019)
Toyota Yaris/Vios/Limo
(1901- )MA ; (1901- )CVT..D..D ; (1911-)NSP152 ; (1912- )I
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

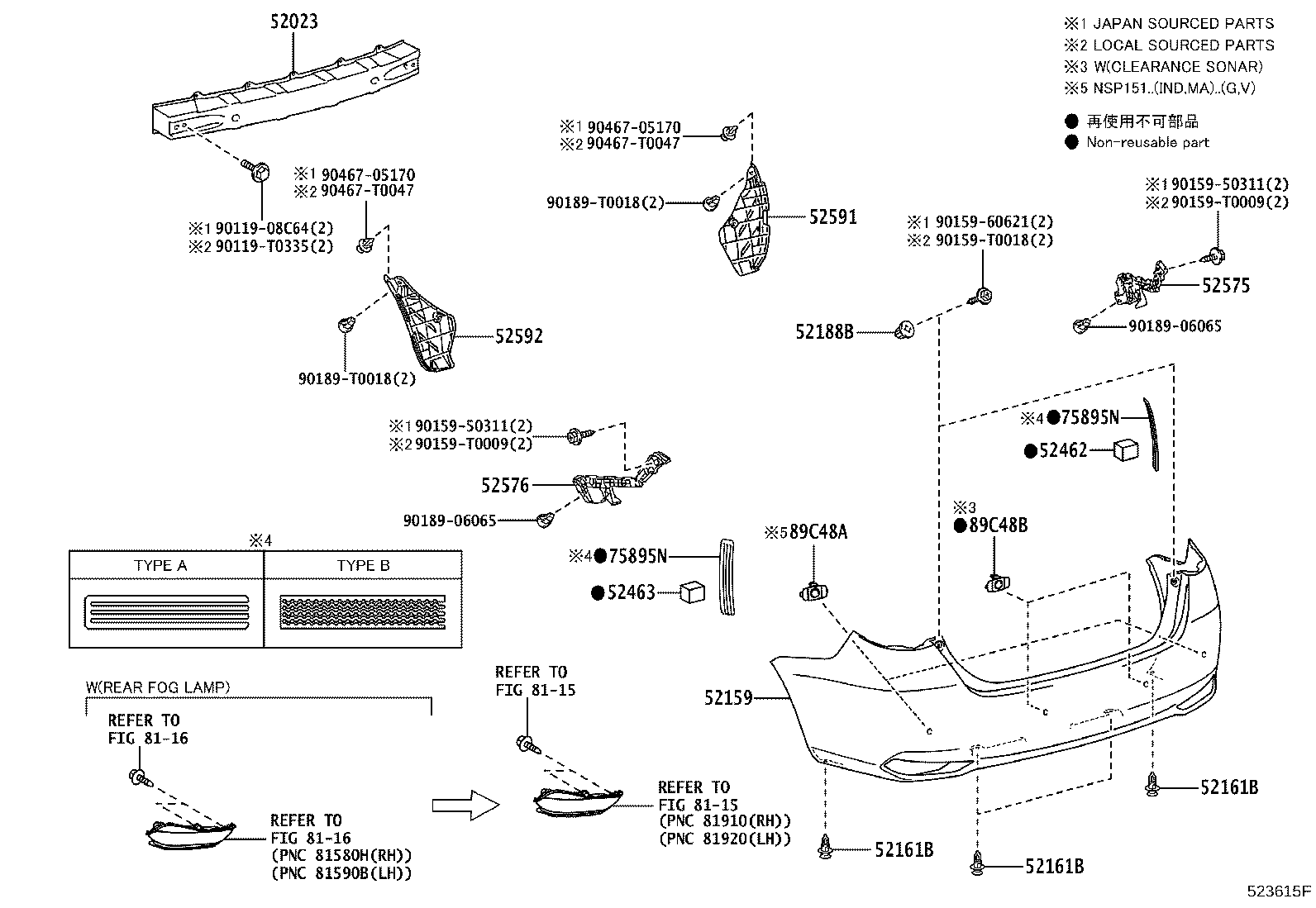

| 52159 - COVER, REAR BUMPER | ||||
| 52159-0U932 |
NSP151..MA..(G,V) PAINT REQ. |
1 | ||
| 52159-0U932 |
NSP151..MA..(G,V) PAINT REQ. |
1 | ||
| 52159-0U963 |
NSP151,152..A;NSP150..CVT..A;NSP150..LHD..5F..GEN;NSP150..5F..GCC..R..A PAINT REQ. |
1 | ||
| 52159-0U963 |
NSP151,152..A;NSP150..CVT..A;NSP150..LHD..5F..GEN;NSP150..5F..GCC..R..A PAINT REQ. |
1 | ||
| 52159-0U954 |
NSP150..5F..D..C;NSP151..CVT..D..C PAINT REQ. |
1 | ||
| 52159-0U954 |
NSP150..5F..D..C;NSP151..CVT..D..C PAINT REQ. |
1 | ||
| 52159-0U964 |
NSP151..MA..(D,R) PAINT REQ. |
1 | ||
| 52159-0U964 |
NSP151..MA..(D,R) PAINT REQ. |
1 | ||
| 52159-0U931 |
NSP151..MA..(D,R) PAINT REQ. |
1 | ||
| 52159-0U931 |
NSP151..MA..(D,R) PAINT REQ. |
1 | ||
| 52159-0U954 |
NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C PAINT REQ. |
1 | ||
| 52159-0U954 |
NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C PAINT REQ. |
1 | ||
| 52159-0U965 |
NSP151..MA..(G,V) PAINT REQ. |
1 | ||
| 52159-0U965 |
NSP151..MA..(G,V) PAINT REQ. |
1 | ||
| 52159-0U966 |
NSP151..D..F PAINT REQ. |
1 | ||
| 52159-0U966 |
NSP151..D..F PAINT REQ. |
1 | ||
| 52159-0U968 |
NSP151..(R,V)..F PAINT REQ. |
1 | ||
| 52159-0U968 |
NSP151..(R,V)..F PAINT REQ. |
1 | ||
| 52188B - SPACER, REAR BUMPER MOUNTING | ||||
| 52188-33040 |
NCP15#,NSP150,151..B,C |
2 | ||
| 52188-33040 |
NCP15#,NSP150,151..B,C |
2 | ||
| 52188-33040 |
NSP150..5F..D..C;NSP151..CVT..D..C (J) |
2 | ||
| 52188-33040 |
NSP150..5F..D..C;NSP151..CVT..D..C (J) |
2 | ||
| 52188-0D010 |
NSP150..5F..D..C;NSP151..CVT..D..C (L) |
2 | ||
| 52188-0D010 |
NSP150..5F..D..C;NSP151..CVT..D..C (L) |
2 | ||
| 52188-0D010 |
NSP151,152..A;NSP150..CVT..A;NSP150..LHD..5F..GEN;NSP150..5F..GCC..R..A (L) |
2 | ||
| 52188-0D010 |
NSP151,152..A;NSP150..CVT..A;NSP150..LHD..5F..GEN;NSP150..5F..GCC..R..A (L) |
2 | ||
| 52188-0D010 |
NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C (L) |
2 | ||
| 52188-0D010 |
NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C (L) |
2 | ||
| 52188-33040 |
NSP151,152..A;NSP150..CVT..A;NSP150..LHD..5F..GEN;NSP150..5F..GCC..R..A (J) |
2 | ||
| 52188-33040 |
NSP151,152..A;NSP150..CVT..A;NSP150..LHD..5F..GEN;NSP150..5F..GCC..R..A (J) |
2 | ||
| 52188-33040 |
NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C (J) |
2 | ||
| 52188-33040 |
NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C (J) |
2 | ||
| 75895N - TAPE, MOULDING, NO.1 | ||||
| 75895-0D350 |
NSP151..(R,V)..F TYPE B:REFER ILLUST. |
2 | ||
| 75895-0D350 |
NSP151..(R,V)..F TYPE B:REFER ILLUST. |
2 | ||
| 75895-0D330 |
NSP150..5F..D..C;NSP151..CVT..D..C TYPE B:REFER ILLUST. |
2 | ||
| 75895-0D330 |
NSP150..5F..D..C;NSP151..CVT..D..C TYPE B:REFER ILLUST. |
2 | ||
| 75895-0D310 |
NSP151,152..A;NSP150..CVT..A;NSP150..LHD..5F..GEN;NSP150..5F..GCC..R..A TYPE B:REFER ILLUST. |
2 | ||
| 75895-0D310 |
NSP151,152..A;NSP150..CVT..A;NSP150..LHD..5F..GEN;NSP150..5F..GCC..R..A TYPE B:REFER ILLUST. |
2 | ||
| 75895-53010 |
NSP151..MA TYPE B:REFER ILLUST. |
2 | ||
| 75895-53010 |
NSP151..MA TYPE B:REFER ILLUST. |
2 | ||
| 75895-0D330 |
NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C TYPE B:REFER ILLUST. |
2 | ||
| 75895-0D330 |
NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C TYPE B:REFER ILLUST. |
2 | ||
| 75895-0D350 |
NSP151..D..F TYPE B:REFER ILLUST. |
2 | ||
| 75895-0D350 |
NSP151..D..F TYPE B:REFER ILLUST. |
2 | ||
| 75895N - TAPE, MOULDING, NO.1 | ||||
| 75895-0D350 |
NSP151..(R,V)..F TYPE B:REFER ILLUST. |
2 | ||
| 75895-0D350 |
NSP151..(R,V)..F TYPE B:REFER ILLUST. |
2 | ||
| 75895-0D330 |
NSP150..5F..D..C;NSP151..CVT..D..C TYPE B:REFER ILLUST. |
2 | ||
| 75895-0D330 |
NSP150..5F..D..C;NSP151..CVT..D..C TYPE B:REFER ILLUST. |
2 | ||
| 75895-0D310 |
NSP151,152..A;NSP150..CVT..A;NSP150..LHD..5F..GEN;NSP150..5F..GCC..R..A TYPE B:REFER ILLUST. |
2 | ||
| 75895-0D310 |
NSP151,152..A;NSP150..CVT..A;NSP150..LHD..5F..GEN;NSP150..5F..GCC..R..A TYPE B:REFER ILLUST. |
2 | ||
| 75895-53010 |
NSP151..MA TYPE B:REFER ILLUST. |
2 | ||
| 75895-53010 |
NSP151..MA TYPE B:REFER ILLUST. |
2 | ||
| 75895-0D330 |
NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C TYPE B:REFER ILLUST. |
2 | ||
| 75895-0D330 |
NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C TYPE B:REFER ILLUST. |
2 | ||
| 75895-0D350 |
NSP151..D..F TYPE B:REFER ILLUST. |
2 | ||
| 75895-0D350 |
NSP151..D..F TYPE B:REFER ILLUST. |
2 | ||
| 89C48B - RETAINER, ULTRASONIC SENSOR, REAR CENTER | ||||
| 89348-0D030 |
NSP151..(R,V)..F |
2 | ||
| 89348-0D030 |
NSP151..(R,V)..F |
2 | ||
| Common parts | ||||
| 90119-08C64 | ||||
| 90119-T0335 | ||||
| 90159-50311 | ||||
| 90159-60621 | ||||
| 90159-T0009 | ||||
| 90159-T0018 | ||||
| 90189-06065 | ||||
| 90189-T0018 | ||||
| 90467-05170 | ||||
| 90467-T0047 | ||||
| Linked diagrams | ||||
| 8115 | ||||
| 8116 | ||||
