NSP151R-AEXRKT (2017)

Toyota Yaris/Vios/Limo

Production Aug 2017 - Sep 9999
Engine 2NRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 5 OF 8(1710- )LHD..GEN..A ; (1801- )GCC,TAIW..A,C,F ; (1807- )D,E,H

Click highlighted areas on diagram

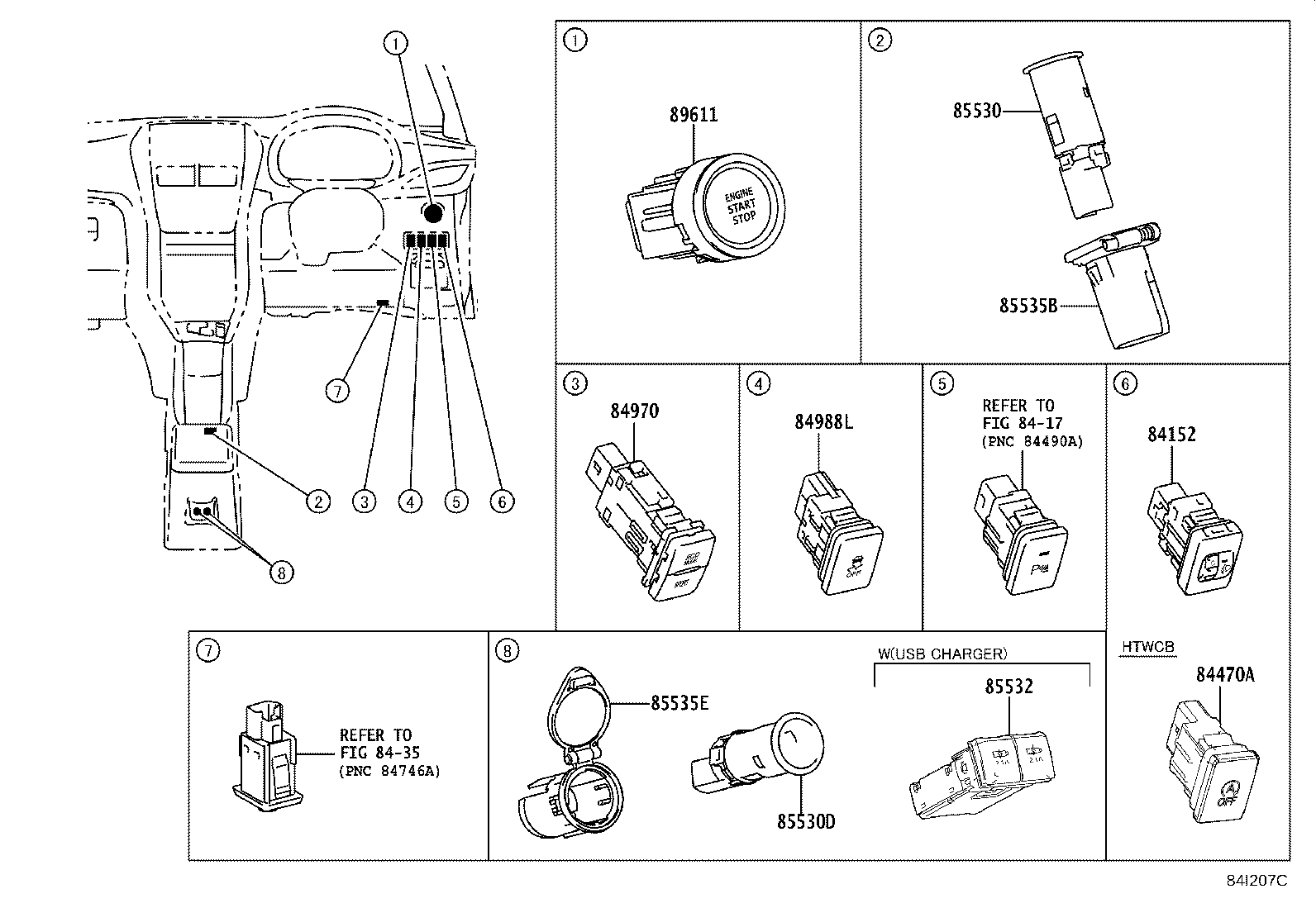

INSTRUMENT PANEL

diagram 84152 8417 8435 84970 84988L 85530 85532 85535B 89611
Part # Description Qty Price
84152 - SWITCH, HEADLAMP LEVELING
84152-0D190

NSP151..TH..A

 1
84152-0D200

NSP151..CVT..D..C

 1
84152-0D300

NSP151..TH..A

 1
84152-0D190

NSP151..D..A;NSP151..5F..R..A

EGYPT SPEC

 1
84970 - SWITCH ASSY, COMBINATION
84970-52130

NSP151..V..F

 1
84988L - SWITCH, VSC OFF
84988-0K010

NSP151..TH..A;NSP152..HTWCB

 1
84988-0K010

NSP151..D..A;NSP150..5F..GEN..D;NSP150..LHD..GEN..G

LATIN AMERICA SPEC

 1
84988-02051

NSP150,151..E,F,H

 1
84988-0K060

NSP150..5F..D..C;NSP151..CVT..D..C

 1
84988-0K010

NSP151..D..A;NSP151..5F..G..A

COSTA RICA SPEC

 1
84988-0K010

NSP151..CVT..D..A

CHILE SPEC

 1
84988-06110

NSP151,152..TH..A

 1
84988-0K060

NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C

 1
85530 - SOCKET ASSY, POWER OUTLET, NO.1
85530-0D040

NSP151..H

 1
85530-0K070

NSP150..5F..D..C;NSP151..CVT..D..C

 1
85530-0K070

NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C

 1
85530-0K040

NSP150..D,E,I;NSP150..CVT..A;NSP151,152..A,D,E,I;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A

 1
85530-0D080

NSP151..F

 1
85532 - SOCKET, USB CHARGER
85532-06020

NSP151..RHD..A;NSP151..LHD..G;NSP150..CVT..G..(A,C)

 1
85535B - COVER, POWER OUTLET SOCKET, NO.1
85535-0D160

NSP151..H

 1
85535-0D150

NSP151..F

 1
85535-0D140

NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C

 1
85535-0D140

NSP150..5F..D..C;NSP151..CVT..D..C

 1
85535-0D060

NSP151,152..A,D,E;NSP150..CVT..G..A;NSP150..5F..GCC..R..A;NSP150..CVT..GCC..(D,R)..A;NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

 1
89611 - SWITCH, PUSH START
89611-0K011

NSP151..V..F

 1
89611-0K011

NSP151..TH..R..A;NSP150..CVT..GEN..G..A;NSP151..(BZ,GEN,PH,PKN,TH,VN)..(G,V)..(A,D,E,H,I)

 1
Linked diagrams
8417
8435

ILLUST NO. 5 OF 8(1708-2009)RHD..A,I ; (1801- )RHD..C,G ; (1901- )MA ; (2009- )NSP150..I ;

Click highlighted areas on diagram

INSTRUMENT PANEL

diagram 84152 8417 8435 84470A 84970 84988L 85530 85530D 85532 85535B 85535E 89611
Part # Description Qty Price
84152 - SWITCH, HEADLAMP LEVELING
84152-0D190

NSP151..TH..A

 1
84152-0D200

NSP151..CVT..D..C

 1
84152-0D300

NSP151..TH..A

 1
84152-0D190

NSP151..D..A;NSP151..5F..R..A

EGYPT SPEC

 1
84970 - SWITCH ASSY, COMBINATION
84970-52130

NSP151..V..F

 1
84988L - SWITCH, VSC OFF
84988-0K010

NSP151..TH..A;NSP152..HTWCB

 1
84988-0K010

NSP151..D..A;NSP150..5F..GEN..D;NSP150..LHD..GEN..G

LATIN AMERICA SPEC

 1
84988-02051

NSP150,151..E,F,H

 1
84988-0K060

NSP150..5F..D..C;NSP151..CVT..D..C

 1
84988-0K010

NSP151..D..A;NSP151..5F..G..A

COSTA RICA SPEC

 1
84988-0K010

NSP151..CVT..D..A

CHILE SPEC

 1
84988-06110

NSP151,152..TH..A

 1
84988-0K060

NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C

 1
85530 - SOCKET ASSY, POWER OUTLET, NO.1
85530-0D040

NSP151..H

 1
85530-0K070

NSP150..5F..D..C;NSP151..CVT..D..C

 1
85530-0K070

NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C

 1
85530-0K040

NSP150..D,E,I;NSP150..CVT..A;NSP151,152..A,D,E,I;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A

 1
85530-0D080

NSP151..F

 1
85532 - SOCKET, USB CHARGER
85532-06020

NSP151..RHD..A;NSP151..LHD..G;NSP150..CVT..G..(A,C)

 1
85535B - COVER, POWER OUTLET SOCKET, NO.1
85535-0D160

NSP151..H

 1
85535-0D150

NSP151..F

 1
85535-0D140

NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C

 1
85535-0D140

NSP150..5F..D..C;NSP151..CVT..D..C

 1
85535-0D060

NSP151,152..A,D,E;NSP150..CVT..G..A;NSP150..5F..GCC..R..A;NSP150..CVT..GCC..(D,R)..A;NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

 1
89611 - SWITCH, PUSH START
89611-0K011

NSP151..V..F

 1
89611-0K011

NSP151..TH..R..A;NSP150..CVT..GEN..G..A;NSP151..(BZ,GEN,PH,PKN,TH,VN)..(G,V)..(A,D,E,H,I)

 1
Linked diagrams
8417
8435

ILLUST NO. 6 OF 8(1708- )GEN,PKN,TH..A,I ; (1801- )GCC,IDN,IND,TAIW..A,C,F,G ; (1807- )D,E,

Click highlighted areas on diagram

STEERING

diagram 4501 6712 84052 84140 84140 84250A 84306 84306 84307 84450 84523 84610F 84610F 84650 84650 85432 89245B 9015950199 90159T0007 9016840113 9016840113 9016840129 90168T0004
Part # Description Qty Price
84052 - SWITCH ASSY, UN-LOCK WARNING
84052-71010

NSP151..D..G;NSP151..AGT..G;NSP151..(D,R)..(F,H)

 1
84052-0K020

NSP150..GCC;NSP151..GCC..G;NSP151..(D,R)..C;NSP151..GCC..R..B

 1
84052-0K020

NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

 1
84052-0K020

NSP151..CVT..D..A;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..GCC..G..(A,C);NSP150..CVT..GCC..(A,C);NSP150..CVT..GEN..(D,R)..A;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I);NSP151..5F..(GEN,IDN,VN)..(D,R)..(A,C,E);NSP151..CVT..(GCC,GEN,IDN,VN)..R..(A,C,E)

 1
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-02780

NSP151..RHD..(D,R)..C

 1
84140-06350

NSP151..TH..V

 1
84140-0DA60

NSP150..R..D;NSP151..CVT..R..E

 1
84140-0DA10

NSP151..5F..E;NSP150,151..D..(D,E,H)

 1
84140-0D660

NSP151..CVT..D..C

 1
84140-0D800

NSP151..F

 1
84140-0D590

NSP151..CVT..D..A

GHANA SPEC

 1
84140-0D600

NSP151..D..A;NSP151..5F..R..A

EGYPT SPEC

 1
84140-0D660

NSP152..HTWC;NSP151..IDN..R;NSP150,151..RHD..(D,R)..(A,I)

 1
84140-0D820

NSP151..D..A;NSP151..5F..R..A

EGYPT SPEC&MLM PACKAGE

 1
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-02780

NSP151..RHD..(D,R)..C

 1
84140-06350

NSP151..TH..V

 1
84140-0DA60

NSP150..R..D;NSP151..CVT..R..E

 1
84140-0DA10

NSP151..5F..E;NSP150,151..D..(D,E,H)

 1
84140-0D660

NSP151..CVT..D..C

 1
84140-0D800

NSP151..F

 1
84140-0D590

NSP151..CVT..D..A

GHANA SPEC

 1
84140-0D600

NSP151..D..A;NSP151..5F..R..A

EGYPT SPEC

 1
84140-0D660

NSP152..HTWC;NSP151..IDN..R;NSP150,151..RHD..(D,R)..(A,I)

 1
84140-0D820

NSP151..D..A;NSP151..5F..R..A

EGYPT SPEC&MLM PACKAGE

 1
84250A - SWITCH ASSY, STEERING PAD
84250-0D090C0

NSP151..TH..V

BLACK,TRIM2#

 1
84250-0D430C0

NSP151..CVT..E

BLACK,TRIM0#

 1
84250-0D430C0

NSP150,151..(G,R)..D

BLACK,TRIM2#

 1
84250-0D450C0

NSP151..(D,R)..H;NSP151..GEN..G..H

BLACK,TRIM2#

 1
84250-0D360C0

NSP151..CVT..D..A

BOLIVIA SPEC&AUDIO-CD & AM/FM & USB & 4SPEAKER & *BT,BLACK,TRIM0#,2#

 1
84250-0D360C0

NSP151..CVT..D..A

CHILE SPEC&AUDIO-CD & AM/FM & USB & 4SPEAKER & *BT,BLACK,TRIM0#,2#

 1
84250-0D360C0

NSP151..CVT..D..A

MEXICO SPEC&AUDIO-CD & AM/FM & USB & 4SPEAKER & *BT,BLACK,TRIM0#,2#

 1
84250-0D360C0

NSP151..CVT..D..A

LATIN AMERICA SPEC&AUDIO-CD & AM/FM & USB & 4SPEAKER & *BT,BLACK,TRIM0#,2#

 1
84250-0D360C0

NSP151..CVT..D..A

PERU SPEC&AUDIO-CD & AM/FM & USB & 4SPEAKER & *BT,BLACK,TRIM0#,2#

 1
84250-0D430C0

NSP151..CVT..D..A

GHANA SPEC,BLACK,TRIM0#,2#

 1
84250-0D430C0

NSP151..CVT..D..A

EGYPT SPEC,BLACK,TRIM0#,2#

 1
84250-0D570C0

NSP151..CVT..D..A

GHANA SPEC,BLACK,TRIM0#,2#

 1
84250-0D580C0

NSP151..CVT..D..A

PERU SPEC&AUDIO-CD & AM/FM & USB & 4SPEAKER & *BT,BLACK,TRIM0#,2#

 1
84250-0D580C0

NSP151..CVT..D..A

BOLIVIA SPEC&AUDIO-CD & AM/FM & USB & 4SPEAKER & *BT,BLACK,TRIM0#,2#

 1
84250-0D580C0

NSP151..CVT..D..A

CHILE SPEC&AUDIO-CD & AM/FM & USB & 4SPEAKER & *BT,BLACK,TRIM0#,2#

 1
84250-0D580C0

NSP151..CVT..D..A

PERU SPEC&AUDIO-RADIOLESS 6SPEAKER & W(AUDIO LESS COVER),BLACK,TRIM0#,2#

 1
84250-0D580C0

NSP151..CVT..D..A

MEXICO SPEC&AUDIO-CD & AM/FM & USB & 4SPEAKER & *BT,BLACK,TRIM0#,2#

 1
84250-0D580C0

NSP151..CVT..D..A

LATIN AMERICA SPEC&AUDIO-CD & AM/FM & USB & 4SPEAKER & *BT,BLACK,TRIM0#,2#

 1
84250-0D580C0

NSP151..CVT..D..A

COSTA RICA SPEC&AUDIO-CD & AM/FM & USB & 4SPEAKER & *BT,BLACK,TRIM0#,2#

 1
84250-0D570C0

NSP151..CVT..D..A

EGYPT SPEC,BLACK,TRIM0#,2#

 1
84250-0D580C0

NSP151..TH..A;NSP151..LHD..CVT..R..A;NSP150,151..5F..GEN..(D,R)

AUDIO-RADIOLESS 4SPEAKER & W(AUDIO LESS COVER),BLACK,TRIM0#,2#

 1
84250-0D580C0

NSP151..CVT..D..A

MEXICO SPEC&AUDIO-RADIOLESS 4SPEAKER & W(AUDIO LESS COVER),BLACK,TRIM0#,2#

 1
84306 - CABLE SUB-ASSY, SPIRAL
84308-0K020

NSP151..F

 1
84308-0K020

NSP151..(GCC,TH)..R..A;NSP151..5F..IDN..(D,R);NSP150..5F..GCC..R..(A,C);NSP151..CVT..(GCC,IDN)..R..C;NSP150..CVT..GCC..(D,R)..(A,C)

 1
84306-0K120

NSP151..CVT..D..A

EGYPT SPEC

 1
84308-0K010

NSP151..D..A

MEXICO SPEC&AUDIO-CD & AM/FM & USB & 4SPEAKER & *BT

 1
84308-0K020

NSP151..D..A

MEXICO SPEC&AUDIO-RADIOLESS 4SPEAKER

 1
84308-0K010

NSP151..(GCC,TH)..R..(A,C)

AUDIO-RADIOLESS 4SPEAKER & W(AUDIO LESS COVER)

 1
84308-0K020

NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

 1
84308-0K010

NSP151..CVT..D..A

CHILE SPEC&AUDIO-CD & AM/FM & USB & 4SPEAKER & *BT

 1
84306-0K120

NSP151..CVT..D..A

GHANA SPEC

 1
84308-0K010

NSP151..D..A;NSP150..RHD..R;NSP150..5F..GEN..D

LATIN AMERICA SPEC&AUDIO-CD & AM/FM & USB & 4SPEAKER & *BT

 1
84308-0K020

NSP151..D..A;NSP150..5F..GEN..D

LATIN AMERICA SPEC&AUDIO-RADIOLESS 4SPEAKER

 1
84308-0K010

NSP151..D..A

BOLIVIA SPEC&AUDIO-CD & AM/FM & USB & 4SPEAKER & *BT

 1
84308-0K020

NSP151..CVT..D..A

CHILE SPEC&AUDIO-RADIOLESS 4SPEAKER

 1
84308-0K020

NSP151..D..A

BOLIVIA SPEC&AUDIO-RADIOLESS 4SPEAKER

 1
84308-0K010

NSP151..D..A

COSTA RICA SPEC&AUDIO-CD & AM/FM & USB & 4SPEAKER & *BT

 1
84308-0K020

NSP151..CVT..D..A

PERU SPEC&AUDIO-RADIOLESS 6SPEAKER

 1
84308-0K020

NSP151..D..A

COSTA RICA SPEC&AUDIO-RADIOLESS 4SPEAKER

 1
84306-0D290

NSP151..CVT..D..A

EGYPT SPEC

 1
84308-0K010

NSP151..V..G;NSP152..HTWC;NSP151..D,H,I;NSP151..CVT..E;NSP150..(G,R)..(D,I)

 1
84308-0D010

NSP151..5F..D..C;NSP150..CVT..GCC..D;NSP150,151..(GCC,IDN,TH)..R..(A,C)

 1
84308-0D010

NSP151..D..A

MEXICO SPEC&AUDIO-RADIOLESS 4SPEAKER

 1
84308-0D020

NSP151..D..A

MEXICO SPEC&AUDIO-CD & AM/FM & USB & 4SPEAKER & *BT

 1
84308-0D020

NSP151..(GCC,TH)..R..(A,C)

AUDIO-RADIOLESS 4SPEAKER & W(AUDIO LESS COVER)

 1
84306 - CABLE SUB-ASSY, SPIRAL
84308-0K020

NSP151..F

 1
84308-0K020

NSP151..(GCC,TH)..R..A;NSP151..5F..IDN..(D,R);NSP150..5F..GCC..R..(A,C);NSP151..CVT..(GCC,IDN)..R..C;NSP150..CVT..GCC..(D,R)..(A,C)

 1
84306-0K120

NSP151..CVT..D..A

EGYPT SPEC

 1
84308-0K010

NSP151..D..A

MEXICO SPEC&AUDIO-CD & AM/FM & USB & 4SPEAKER & *BT

 1
84308-0K020

NSP151..D..A

MEXICO SPEC&AUDIO-RADIOLESS 4SPEAKER

 1
84308-0K010

NSP151..(GCC,TH)..R..(A,C)

AUDIO-RADIOLESS 4SPEAKER & W(AUDIO LESS COVER)

 1
84308-0K020

NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

 1
84308-0K010

NSP151..CVT..D..A

CHILE SPEC&AUDIO-CD & AM/FM & USB & 4SPEAKER & *BT

 1
84306-0K120

NSP151..CVT..D..A

GHANA SPEC

 1
84308-0K010

NSP151..D..A;NSP150..RHD..R;NSP150..5F..GEN..D

LATIN AMERICA SPEC&AUDIO-CD & AM/FM & USB & 4SPEAKER & *BT

 1
84308-0K020

NSP151..D..A;NSP150..5F..GEN..D

LATIN AMERICA SPEC&AUDIO-RADIOLESS 4SPEAKER

 1
84308-0K010

NSP151..D..A

BOLIVIA SPEC&AUDIO-CD & AM/FM & USB & 4SPEAKER & *BT

 1
84308-0K020

NSP151..CVT..D..A

CHILE SPEC&AUDIO-RADIOLESS 4SPEAKER

 1
84308-0K020

NSP151..D..A

BOLIVIA SPEC&AUDIO-RADIOLESS 4SPEAKER

 1
84308-0K010

NSP151..D..A

COSTA RICA SPEC&AUDIO-CD & AM/FM & USB & 4SPEAKER & *BT

 1
84308-0K020

NSP151..CVT..D..A

PERU SPEC&AUDIO-RADIOLESS 6SPEAKER

 1
84308-0K020

NSP151..D..A

COSTA RICA SPEC&AUDIO-RADIOLESS 4SPEAKER

 1
84306-0D290

NSP151..CVT..D..A

EGYPT SPEC

 1
84308-0K010

NSP151..V..G;NSP152..HTWC;NSP151..D,H,I;NSP151..CVT..E;NSP150..(G,R)..(D,I)

 1
84308-0D010

NSP151..5F..D..C;NSP150..CVT..GCC..D;NSP150,151..(GCC,IDN,TH)..R..(A,C)

 1
84308-0D010

NSP151..D..A

MEXICO SPEC&AUDIO-RADIOLESS 4SPEAKER

 1
84308-0D020

NSP151..D..A

MEXICO SPEC&AUDIO-CD & AM/FM & USB & 4SPEAKER & *BT

 1
84308-0D020

NSP151..(GCC,TH)..R..(A,C)

AUDIO-RADIOLESS 4SPEAKER & W(AUDIO LESS COVER)

 1
84307 - CABLE SUB-ASSY, SPIRAL W/SENSOR
84307-0D170

NSP151..(GCC,TH)..R..A;NSP151..5F..IDN..(D,R);NSP150..5F..GCC..R..(A,C);NSP151..CVT..(GCC,IDN)..R..C;NSP150..CVT..GCC..(D,R)..(A,C)

 1
84307-0D170

NSP151..F

 1
84307-0D170

NSP151..D..A

MEXICO SPEC&AUDIO-RADIOLESS 4SPEAKER

 1
84307-0D180

NSP151..D..A

MEXICO SPEC&AUDIO-CD & AM/FM & USB & 4SPEAKER & *BT

 1
84307-0D180

NSP151..(GCC,TH)..R..(A,C)

AUDIO-RADIOLESS 4SPEAKER & W(AUDIO LESS COVER)

 1
84307-0D170

NSP151..CVT..D..A

CHILE SPEC&AUDIO-RADIOLESS 4SPEAKER

 1
84307-0D170

NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

 1
84307-0D170

NSP151..D..A;NSP150..5F..GEN..D

LATIN AMERICA SPEC&AUDIO-RADIOLESS 4SPEAKER

 1
84307-0D180

NSP151..CVT..D..A

CHILE SPEC&AUDIO-CD & AM/FM & USB & 4SPEAKER & *BT

 1
84307-0D170

NSP151..D..A

BOLIVIA SPEC&AUDIO-RADIOLESS 4SPEAKER

 1
84307-0D180

NSP151..D..A;NSP150..RHD..R;NSP150..5F..GEN..D

LATIN AMERICA SPEC&AUDIO-CD & AM/FM & USB & 4SPEAKER & *BT

 1
84307-0D180

NSP151..D..A

BOLIVIA SPEC&AUDIO-CD & AM/FM & USB & 4SPEAKER & *BT

 1
84307-0D170

NSP151..CVT..D..A

PERU SPEC&AUDIO-RADIOLESS 6SPEAKER

 1
84307-0D170

NSP151..D..A

COSTA RICA SPEC&AUDIO-RADIOLESS 4SPEAKER

 1
84307-0D180

NSP152..HTWC;NSP151..D,H,I;NSP151..CVT..E;NSP150..(G,R)..(D,I)

 1
84307-0D180

NSP151..D..A

COSTA RICA SPEC&AUDIO-CD & AM/FM & USB & 4SPEAKER & *BT

 1
84307-0D260

NSP151..5F..D..C;NSP150..CVT..GCC..D;NSP150,151..(GCC,IDN,TH)..R..(A,C)

 1
84307-0D260

NSP151..D..A

MEXICO SPEC&AUDIO-RADIOLESS 4SPEAKER

 1
84307-0D270

NSP151..D..A

MEXICO SPEC&AUDIO-CD & AM/FM & USB & 4SPEAKER & *BT

 1
84307-0D270

NSP151..(GCC,TH)..R..(A,C)

AUDIO-RADIOLESS 4SPEAKER & W(AUDIO LESS COVER)

 1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-06030

NSP150..GCC;NSP151..GCC..G;NSP151..(D,R)..C;NSP151..GCC..R..B

 1
84450-06030

NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

 1
84450-52020

NSP151..(D,R)..F

 1
84450-0D030

NSP151..D..G;NSP151..AGT..G;NSP151..(D,R)..H

 1
84450-06030

NSP151..CVT..D..A;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..GCC..G..(A,C);NSP150..CVT..GCC..(A,C);NSP150..CVT..GEN..(D,R)..A;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I);NSP151..5F..(GEN,IDN,VN)..(D,R)..(A,C,E);NSP151..CVT..(GCC,GEN,IDN,VN)..R..(A,C,E)

 1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-06310

NSP151..V..H

 1
84652-06260

NSP150..R..D;NSP151..(D,G,R)..(D,E,H)

 1
84652-02760

NSP151..F

 1
84652-0D420

NSP151..CVT..D..C

 1
84652-0K240

NSP15#..RHD..(A,I)

 1
84652-0K241

NSP150,152..PKN,TH;NSP151..RHD..(A,I);NSP150..RHD..CVT..A

 1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-06310

NSP151..V..H

 1
84652-06260

NSP150..R..D;NSP151..(D,G,R)..(D,E,H)

 1
84652-02760

NSP151..F

 1
84652-0D420

NSP151..CVT..D..C

 1
84652-0K240

NSP15#..RHD..(A,I)

 1
84652-0K241

NSP150,152..PKN,TH;NSP151..RHD..(A,I);NSP150..RHD..CVT..A

 1
85432 - SOLENOID, KEY INTER LOCK
85432-06030

NSP151..(D,R)..F

 1
85432-0D010

NSP151..CVT..R..H

XL-PLUS PACKAGE

 1
85432-0D010

NSP151..CVT..D..C

 1
89245B - SENSOR, STEERING
8924B-0D010

NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

 1
8924B-0D010

NSP151..F

 1
8924B-0D010

NSP151..CVT..D..A

LATIN AMERICA SPEC

 1
8924B-0D010

NSP151..CVT..D..A

CHILE SPEC

 1
8924B-0D010

NSP151..CVT..GEN..D..H;NSP150..CVT..GCC..(A,C);NSP150..5F..GCC..R..(A,C);NSP151..MTM..(GEN,IDN)..(C,H);NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I);NSP151..CVT..(GCC,GEN,IDN)..(G,R)..(C,H);NSP151..(AGT,BZ,GCC,PH,PKN,TH,VN)..(A,D,E,H,I)

 1
8924B-0D010

NSP151..CVT..D..A

COSTA RICA SPEC

 1
Common parts
90159-50199
90159-T0007
90168-40113
90168-40129
90168-T0004
Linked diagrams
4501
6712

ILLUST NO. 4 OF 8(1708- )RHD..A,I ; (1801- )RHD..C,G ; (1901- )MA

Click highlighted areas on diagram

COWL

diagram 28371 28371C 8202 8202 82210N 82210N 82600D 82600D 82600F 82600F 82610A 82610A 82642B 82660D 82660D 82660D 82660D 82660E 82660E 82660H 82660H 82672A 82673A 82673B 82715W 82730A 84340 84345 84520 84550 84930F 85530A 85912 85912K 85916D 85916L 85916N 85940 87299 88280A 89111 89120A 89221B 89420F 895D0 89650 89730A 90119T0313 9015960613 9015970003 90159T0003 90159T0037 9017010017 9017010017 90178T0007 90178T0007 9017906274 9167380616 9167380616 9167380616 9167380620 9331514012
Part # Description Qty Price
28371 - RELAY, IGNITION, NO.1
90987-T2009

2NRFE..NSP151..TH..V

 1
90987-T2009

2NRFE..NSP151..V..F

 1
90987-T2009

1NRFE..NSP150..CVT..GEN..G..A;2NRFE..NSP151..LHD..GEN..G..A;2NRFE..NSP151..RHD..(G,R,V)..(A,G,I);2NR#..NSP151..(BZ,GEN,IDN,PH,VN)..(G,V)..(C,D,E,H)

 1
28371C - RELAY, IGNITION, NO.2
90987-02027

2NRFE..NSP151..TH..V

(J)

 1
90987-T2001

2NRFE..NSP151..TH..V

(L)

 1
90987-02027

2NRFE..NSP151..V..F

(J)

 1
90987-T2001

2NRFE..NSP151..V..F

(L)

 1
90987-T2001

1NRFE..NSP150..CVT..GEN..G..A;2NRFE..NSP151..LHD..GEN..G..A;2NRFE..NSP151..RHD..(G,R,V)..(A,G,I);2NR#..NSP151..(BZ,GEN,IDN,PH,VN)..(G,V)..(C,D,E,H)

(L)

 1
90987-02027

1NRFE..NSP150..CVT..GEN..G..A;2NRFE..NSP151..LHD..GEN..G..A;2NRFE..NSP151..RHD..(G,R,V)..(A,G,I);2NR#..NSP151..(BZ,GEN,IDN,PH,VN)..(G,V)..(C,D,E,H)

(J)

 1
82210N - INSTRUMENT PANEL FUSIBLE LINK
90982-08294

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

40A,TERM.:FEMALE,GRN

 1
90982-08295

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

30A,TERM.:FEMALE,PNK

 1
90982-08295

NSP151..F

30A,TERM.:FEMALE,PNK

 1
90982-08295

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

30A,TERM.:FEMALE,PNK

 1
90982-08295

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

30A,TERM.:FEMALE,PNK

 1
82210N - INSTRUMENT PANEL FUSIBLE LINK
90982-08294

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

40A,TERM.:FEMALE,GRN

 1
90982-08295

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

30A,TERM.:FEMALE,PNK

 1
90982-08295

NSP151..F

30A,TERM.:FEMALE,PNK

 1
90982-08295

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

30A,TERM.:FEMALE,PNK

 1
90982-08295

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

30A,TERM.:FEMALE,PNK

 1
82600D - INSTRUMENT PANEL FUSE
90982-09022

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

15A,MINI FUSE,BLUE

 1
90982-09020

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

7.5A,MINI FUSE,BROWN

 1
90982-09023

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

20A,MINI FUSE,YELLOW

 1
90982-09019

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

5A,MINI FUSE,TAN

 1
90982-09021

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

10A,MINI FUSE,RED

 1
90982-09024

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

25A,MINI FUSE

 1
90982-09022

NSP151..F

15A,MINI FUSE,BLUE

 1
90982-09020

NSP151..F

7.5A,MINI FUSE,BROWN

 1
90982-09019

NSP151..F

5A,MINI FUSE,TAN

 1
90982-09023

NSP151..F

20A,MINI FUSE,YELLOW

 1
90982-09021

NSP151..F

10A,MINI FUSE,RED

 1
90982-09020

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

7.5A,MINI FUSE,BROWN

 1
90982-09022

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

15A,MINI FUSE,BLUE

 1
90982-09021

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

10A,MINI FUSE,RED

 1
90982-09021

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

10A,MINI FUSE,RED

 1
90982-09024

NSP151..F

25A,MINI FUSE

 1
90982-09024

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

25A,MINI FUSE

 1
90982-09019

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

5A,MINI FUSE,TAN

 1
90982-09024

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

25A,MINI FUSE

 1
90982-09023

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

20A,MINI FUSE,YELLOW

 1
90982-09019

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

5A,MINI FUSE,TAN

 1
90982-09022

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

15A,MINI FUSE,BLUE

 1
90982-09020

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

7.5A,MINI FUSE,BROWN

 1
90982-09023

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

20A,MINI FUSE,YELLOW

 1
82600D - INSTRUMENT PANEL FUSE
90982-09022

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

15A,MINI FUSE,BLUE

 1
90982-09020

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

7.5A,MINI FUSE,BROWN

 1
90982-09023

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

20A,MINI FUSE,YELLOW

 1
90982-09019

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

5A,MINI FUSE,TAN

 1
90982-09021

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

10A,MINI FUSE,RED

 1
90982-09024

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

25A,MINI FUSE

 1
90982-09022

NSP151..F

15A,MINI FUSE,BLUE

 1
90982-09020

NSP151..F

7.5A,MINI FUSE,BROWN

 1
90982-09019

NSP151..F

5A,MINI FUSE,TAN

 1
90982-09023

NSP151..F

20A,MINI FUSE,YELLOW

 1
90982-09021

NSP151..F

10A,MINI FUSE,RED

 1
90982-09020

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

7.5A,MINI FUSE,BROWN

 1
90982-09022

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

15A,MINI FUSE,BLUE

 1
90982-09021

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

10A,MINI FUSE,RED

 1
90982-09021

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

10A,MINI FUSE,RED

 1
90982-09024

NSP151..F

25A,MINI FUSE

 1
90982-09024

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

25A,MINI FUSE

 1
90982-09019

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

5A,MINI FUSE,TAN

 1
90982-09024

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

25A,MINI FUSE

 1
90982-09023

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

20A,MINI FUSE,YELLOW

 1
90982-09019

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

5A,MINI FUSE,TAN

 1
90982-09022

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

15A,MINI FUSE,BLUE

 1
90982-09020

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

7.5A,MINI FUSE,BROWN

 1
90982-09023

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

20A,MINI FUSE,YELLOW

 1
82600F - FUSE, FUSE BLOCK
90982-09020

NSP151..F

7.5A,MINI FUSE,BROWN

 1
90982-09019

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

5A,MINI FUSE,TAN

 1
90982-09019

NSP151..F

5A,MINI FUSE,TAN

 1
90982-09020

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

7.5A,MINI FUSE,BROWN

 1
90982-09019

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

5A,MINI FUSE,TAN

 1
90982-09020

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

7.5A,MINI FUSE,BROWN

 1
82600F - FUSE, FUSE BLOCK
90982-09020

NSP151..F

7.5A,MINI FUSE,BROWN

 1
90982-09019

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

5A,MINI FUSE,TAN

 1
90982-09019

NSP151..F

5A,MINI FUSE,TAN

 1
90982-09020

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

7.5A,MINI FUSE,BROWN

 1
90982-09019

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

5A,MINI FUSE,TAN

 1
90982-09020

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

7.5A,MINI FUSE,BROWN

 1
82610A - BLOCK ASSY, FUSE
82610-52010

NSP151..F

 1
82610-52010

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

 1
82610-52010

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

 1
82610A - BLOCK ASSY, FUSE
82610-52010

NSP151..F

 1
82610-52010

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

 1
82610-52010

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

 1
82642B - RELAY, DAY TIME RUNNING LIGHT, NO.1
90987-T2001

NSP151..V..G;NSP151..AGT,MA;NSP151..(D,R)..F;NSP151..(IDN,PH,TAIW,TH,VN)..(G,V)..(A,C,D,E,F)

 1
90987-02027

NSP151..F

(J)

 1
90987-T2001

NSP151..F

(L)

 1
90987-02027

NSP151..D..A;NSP151..5F..R..A

EGYPT SPEC,(J)

 1
90987-T2001

NSP151..D..A;NSP151..5F..R..A

EGYPT SPEC,(L)

 1
82660D - BLOCK ASSY, RELAY
82660-48020

NSP151..F

 1
82660-48020

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

 1
82660-48020

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

 1
82660-74010

NCP15#,NSP150,151..B,C

 1
82660D - BLOCK ASSY, RELAY
82660-48020

NSP151..F

 1
82660-48020

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

 1
82660-48020

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

 1
82660-74010

NCP15#,NSP150,151..B,C

 1
82660D - BLOCK ASSY, RELAY
82660-48020

NSP151..F

 1
82660-48020

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

 1
82660-48020

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

 1
82660-74010

NCP15#,NSP150,151..B,C

 1
82660D - BLOCK ASSY, RELAY
82660-48020

NSP151..F

 1
82660-48020

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

 1
82660-48020

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

 1
82660-74010

NCP15#,NSP150,151..B,C

 1
82660E - BLOCK ASSY, RELAY
82660-48030

NSP151..F

 1
82660-48030

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

 1
82660-48030

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

 1
82660E - BLOCK ASSY, RELAY
82660-48030

NSP151..F

 1
82660-48030

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

 1
82660-48030

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

 1
82660H - BLOCK ASSY, RELAY
82660-48040

NSP151..F

 1
82660-48040

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

 1
82660-48040

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

 1
82660H - BLOCK ASSY, RELAY
82660-48040

NSP151..F

 1
82660-48040

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

 1
82660-48040

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

 1
82672A - COVER, JUNCTION BLOCK
82672-0D030

NSP151..F

 1
82672-0D030

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

 1
82672-0D030

NSP152..HTWC;NSP150..D,E,I;NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C

 1
82673A - BRACKET, JUNCTION BLOCK
82673-0D050

NSP151..IDN..G;NSP151..RHD..(D,R)..C

 1
82673-0D360

NSP151..F

 1
82673-0D350

NSP150,151..E

 1
82673-0D340

NSP150,151..D

 1
82673-0D380

NSP151..CVT..D..C

 1
82673-0D310

NSP150,152..PKN,TH;NSP151..RHD..(A,I);NSP150..RHD..CVT..A

 1
82673B - BRACKET, JUNCTION BLOCK
82673-0D040

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

 1
82673-0K020

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

 1
82673-0K020

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

 1
82673-0K020

NSP151..F

 1
82715W - BRACKET, WIRING HARNESS CLAMP
82715-0DW90

NSP151..F

 1
82715-0DW50

NSP150..I;NSP152..HTWC;NSP151..RHD..(A,I);NSP150..RHD..CVT..A

 1
82715-0DX40

NSP151..H

 1
82715-0DW60

NSP151..CVT..D..C

 1
82730A - BLOCK ASSY, DRIVER SIDE JUNCTION
82730-0D510

NSP151..IDN..G;NSP151..TH..D..C;NSP151..RHD..R..C

 1
82730-0DA90

NSP151..D..H;NSP151..AGT..R

 1
82730-0DA50

NSP150,151..E

 1
82730-0DA40

NSP150,151..D

 1
82730-0DA10

NSP150..I;NSP151..A,I;NSP152..HTWC;NSP150..CVT..A;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A

 1
82730-0DA30

NSP150..5F..D..C;NSP151..CVT..D..C

 1
82730-0DA10

NSP151..F

 1
82730-0DA30

NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C

 1
84340 - SWITCH ASSY, STOP LAMP
84340-49085

NSP151..V..H;NSP151..AGT..G

 1
84340-09041

NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

 1
84340-09210

NSP151..V..F

 1
84340-09041

NSP151..(D,R)..F

 1
84340-09041

NSP151..GEN..G..H;NSP151..CVT..IDN..R;NSP151..5F..IDN..(D,R);NSP150..CVT..GCC..(A,C);NSP150..5F..GCC..R..(A,C);NSP151..(BZ,GCC)..(D,G,R)..(A,C,H);NSP150,151..(AGT,GEN,IND,PH,TH,VN)..(D,R)..(A,D,E,G,H)

 1
84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING
84345-0K010

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

 1
84345-0K010

NSP151..F

 1
84345-0K010

NSP151..5F..IDN;NSP151..A,D,E,H,I;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

 1
84345-0K010

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

 1
84550 - SWITCH ASSY, PARKING BRAKE
84550-02030

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

 1
84550-0K010

NSP150..5F..D..C;NSP151..CVT..D..C

 1
84550-16060

NSP151..F,G

 1
84550-0K010

NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C

 1
84550-02030

NSP150..D,E,I;NSP150..CVT..A;NSP151,152..A,D,E,H,I;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A

 1
84930F - RELAY, DOOR LOCK CONTOROL
90987-04004

NSP151..D,H;NSP151..V..F

(J)

 3
90080-87009

NSP151..D,H;NSP151..V..F

(L)

 3
85530A - RELAY, POWER OUTLET SOCKET
90987-02027

NSP151..RHD..A;NSP151..LHD..G;NSP150..CVT..G..(A,C)

(J)

 1
90987-T2001

NSP151..RHD..A;NSP151..LHD..G;NSP150..CVT..G..(A,C)

(L)

 1
85912 - RELAY, DEFOGGER
90987-02027

NSP150..GCC;NSP151..GCC..G;NSP151..(D,R)..C;NSP151..GCC..R..B

(J)

 1
90987-T2001

NSP150..GCC;NSP151..GCC..G;NSP151..(D,R)..C;NSP151..GCC..R..B

(L)

 1
90987-02027

NSP151..(D,R)..H

 1
90987-T2001

NSP152;NSP151..R..G;NSP151..5F..D;NSP151..RHD..(G,V)..(A,C,G);NSP150,151..LHD..CVT..(GEN,PH,VN)..G..(A,D,E)

 1
90987-02027

NSP151..F

(J)

 1
90987-T2001

NSP151..F

(L)

 1
90987-02027

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

(J)

 1
90987-02027

NSP150..D,E,I;NSP152..HTWCB;NSP150..RHD..CVT..A;NSP151..(D,R)..(A,E);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..GEN..G..H;NSP151..5F..IDN..(D,R);NSP150..CVT..GCC..(A,C);NSP151..MTM..GEN..G..(A,H);NSP151..CVT..(GCC,IDN)..R..C;NSP150..LHD..CVT..GEN..(D,R)..A;NSP151..(AGT,BZ,GCC,PKN)..(G,V)..(A,C,H,I)

(J)

 1
90987-T2001

NSP151..R..G;NSP152..HTWC;NSP151..5F..D;NSP151..RHD..(G,V)..(A,C,G);NSP150,151..LHD..CVT..(GEN,PH,VN)..G..(A,D,E)

(L)

 1
90987-T2001

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

(L)

 1
90987-02027

NSP151..R..G;NSP152..HTWC;NSP151..5F..D;NSP151..RHD..(G,V)..(A,C,G);NSP150,151..LHD..CVT..(GEN,PH,VN)..G..(A,D,E)

(J)

 1
90987-T2001

NSP150..D,E,I;NSP152..HTWCB;NSP150..RHD..CVT..A;NSP151..(D,R)..(A,E);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..GEN..G..H;NSP151..5F..IDN..(D,R);NSP150..CVT..GCC..(A,C);NSP151..MTM..GEN..G..(A,H);NSP151..CVT..(GCC,IDN)..R..C;NSP150..LHD..CVT..GEN..(D,R)..A;NSP151..(AGT,BZ,GCC,PKN)..(G,V)..(A,C,H,I)

(L)

 1
85916D - RELAY, FOG LAMP
90987-T2001

NSP151..TH..V

 1
90987-T2001

NSP151..CVT..D..A

GHANA SPEC

 1
90987-T2001

NSP151..CVT..R..E;NSP150..(G,R)..(D,I);NSP150..CVT..G..(A,C);NSP151..(GCC,GEN,IDN,PH,PKN,VN)..G..(A,C,D,E,I)

 1
85916L - RELAY, REAR FOG LAMP
90987-T2001

NSP151..D..A;NSP151..5F..R..A

EGYPT SPEC

 1
90987-02027

NSP151..D..F;NSP151..(G,R,V)..(F,H)

 1
85916N - RELAY, TAIL LAMP
90987-T2001

NSP151..IDN..G;NSP151..RHD..(D,R)..C

 1
90987-02027

NSP151..F,H

 1
90987-T2001

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

 1
90987-T2001

NSP151..A,D,E,I;NSP151..5F..IDN;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

 1
85940 - RELAY ASSY, WINDSHIELD WIPER
85940-52040

NSP151..V..H

 1
87299 - RELAY, HEATER
90987-T2002

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

(L)

 1
90987-02025

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

(J)

 1
90987-02025

NSP151..F

(J)

 1
90987-T2002

NSP151..F

(L)

 1
90987-T2002

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

(L)

 1
90987-T2002

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

(L)

 1
90987-02025

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

(J)

 1
90987-02025

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

(J)

 1
89120A - SENSOR, AUTOMATIC LIGHT CONTROL
89121-30020

NSP151..F

 1
89121-30020

NSP151..(G,R,V)..(D,H);NSP151..(IDN,IND,TH,VN)..(G,V)..(A,C,E,G)

 1
89121-30020

NSP151..D..A;NSP151..5F..R..A

EGYPT SPEC&MLM PACKAGE

 1
89221B - COMPUTER, BODY
89221-0D730

NSP151..D

 1
89221-0D830

NSP151..AGT..G;NSP151..(D,R)..H

 1
89221-0D750

NSP151..R..E

 1
89221-0D770

NSP151..V..F

 1
89221-0DA30

NSP151..D..A;NSP150..5F..GEN..D

LATIN AMERICA SPEC

 1
89221-0DA30

NSP151..CVT..D..A

CHILE SPEC

 1
89221-0D780

NSP151..(D,R)..F

 1
89221-0DA30

NSP151..D..A

COSTA RICA SPEC

 1
89221-0D640

NSP151..I;NSP151..TH..R..A

 1
89221-0D880

NSP151..D..A;NSP151..5F..R..A

EGYPT SPEC

 1
89221-0D710

NSP151..D..A;NSP151..5F..R..A

EGYPT SPEC&MLM PACKAGE

 1
89420F - SENSOR ASSY, VACUUM
89420-52100

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

 1
89420-52100

NSP151..F

 1
89421-26030

NSP151..H

 1
89420-52100

NSP150..D,E,I;NSP151..5F..IDN;NSP151..A,D,E,G,I;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C

 1
89650 - COMPUTER ASSY, POWER STEERING
89650-52B20

NSP151..F

JTEKT/DENSO

 1
89650-0D620

NSP151..TH..A;NSP150..RHD..(A,I);NSP151..RHD..(GEN,IDN,MA,PKN)

JTEKT/DENSO

 1
89650-0D650

NSP151..H

JTEKT/DENSO

 1
89650-0D810

NSP150..5F..G..A;NSP151..CVT..D..C

JTEKT/DENSO

 1
89650-0D810

NSP151..5F..D..C;NSP150,152..RHD..CVT..A;NSP151..RHD..(G,R)..(A,C)

JTEKT/DENSO

 1
89730A - RELAY(FOR SECURITY WARNING)
90987-T2001

NSP151..IDN..G;NSP151..RHD..R..C

 1
90987-T2001

NSP151..IDN..(G,R);NSP150,152..(PH,PKN,TH)..(G,R)..(A,D,I);NSP151..(AGT,BZ,PH,PKN,TH,VN)..(A,D,E,H,I)

 1
90987-02027

NSP151..F

 1
Common parts
90119-T0313
90159-60613
90159-70003
90159-T0003
90159-T0037
90170-10017
90178-T0007
90179-06274
91673-80616
91673-80620
93315-14012
Linked diagrams
8202

ILLUST NO. 4 OF 8(1710- )LHD..GEN..A ; (1801- )GCC,TAIW..A,C,F ; (1807- )D,E,H

Click highlighted areas on diagram

COWL

diagram 28371 28371C 8202 8202 82210N 82210N 82600D 82600D 82600F 82610A 82642B 82660D 82660D 82660D 82660D 82660E 82660E 82660H 82660H 82672A 82673A 82673B 82715W 82730A 84270Q 84340 84345 84520 84550 84930F 85530A 85912 85916D 85916L 85916N 85916P 85940 87299 88280A 89120A 89221B 89420F 89420F 89650 89730A 90119T0313 9015970003 90159T0003 90159T0037 9017010017 9017010017 90178T0007 90178T0007 9017906274 9017906274 9167380616 9167380620 9331514012 9412041000 9412041000 9415180600
Part # Description Qty Price
28371 - RELAY, IGNITION, NO.1
90987-T2009

2NRFE..NSP151..TH..V

 1
90987-T2009

2NRFE..NSP151..V..F

 1
90987-T2009

1NRFE..NSP150..CVT..GEN..G..A;2NRFE..NSP151..LHD..GEN..G..A;2NRFE..NSP151..RHD..(G,R,V)..(A,G,I);2NR#..NSP151..(BZ,GEN,IDN,PH,VN)..(G,V)..(C,D,E,H)

 1
28371C - RELAY, IGNITION, NO.2
90987-02027

2NRFE..NSP151..TH..V

(J)

 1
90987-T2001

2NRFE..NSP151..TH..V

(L)

 1
90987-02027

2NRFE..NSP151..V..F

(J)

 1
90987-T2001

2NRFE..NSP151..V..F

(L)

 1
90987-T2001

1NRFE..NSP150..CVT..GEN..G..A;2NRFE..NSP151..LHD..GEN..G..A;2NRFE..NSP151..RHD..(G,R,V)..(A,G,I);2NR#..NSP151..(BZ,GEN,IDN,PH,VN)..(G,V)..(C,D,E,H)

(L)

 1
90987-02027

1NRFE..NSP150..CVT..GEN..G..A;2NRFE..NSP151..LHD..GEN..G..A;2NRFE..NSP151..RHD..(G,R,V)..(A,G,I);2NR#..NSP151..(BZ,GEN,IDN,PH,VN)..(G,V)..(C,D,E,H)

(J)

 1
82210N - INSTRUMENT PANEL FUSIBLE LINK
90982-08294

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

40A,TERM.:FEMALE,GRN

 1
90982-08295

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

30A,TERM.:FEMALE,PNK

 1
90982-08295

NSP151..F

30A,TERM.:FEMALE,PNK

 1
90982-08295

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

30A,TERM.:FEMALE,PNK

 1
90982-08295

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

30A,TERM.:FEMALE,PNK

 1
82210N - INSTRUMENT PANEL FUSIBLE LINK
90982-08294

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

40A,TERM.:FEMALE,GRN

 1
90982-08295

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

30A,TERM.:FEMALE,PNK

 1
90982-08295

NSP151..F

30A,TERM.:FEMALE,PNK

 1
90982-08295

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

30A,TERM.:FEMALE,PNK

 1
90982-08295

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

30A,TERM.:FEMALE,PNK

 1
82600D - INSTRUMENT PANEL FUSE
90982-09022

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

15A,MINI FUSE,BLUE

 1
90982-09020

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

7.5A,MINI FUSE,BROWN

 1
90982-09023

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

20A,MINI FUSE,YELLOW

 1
90982-09019

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

5A,MINI FUSE,TAN

 1
90982-09021

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

10A,MINI FUSE,RED

 1
90982-09024

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

25A,MINI FUSE

 1
90982-09022

NSP151..F

15A,MINI FUSE,BLUE

 1
90982-09020

NSP151..F

7.5A,MINI FUSE,BROWN

 1
90982-09019

NSP151..F

5A,MINI FUSE,TAN

 1
90982-09023

NSP151..F

20A,MINI FUSE,YELLOW

 1
90982-09021

NSP151..F

10A,MINI FUSE,RED

 1
90982-09020

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

7.5A,MINI FUSE,BROWN

 1
90982-09022

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

15A,MINI FUSE,BLUE

 1
90982-09021

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

10A,MINI FUSE,RED

 1
90982-09021

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

10A,MINI FUSE,RED

 1
90982-09024

NSP151..F

25A,MINI FUSE

 1
90982-09024

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

25A,MINI FUSE

 1
90982-09019

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

5A,MINI FUSE,TAN

 1
90982-09024

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

25A,MINI FUSE

 1
90982-09023

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

20A,MINI FUSE,YELLOW

 1
90982-09019

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

5A,MINI FUSE,TAN

 1
90982-09022

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

15A,MINI FUSE,BLUE

 1
90982-09020

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

7.5A,MINI FUSE,BROWN

 1
90982-09023

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

20A,MINI FUSE,YELLOW

 1
82600D - INSTRUMENT PANEL FUSE
90982-09022

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

15A,MINI FUSE,BLUE

 1
90982-09020

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

7.5A,MINI FUSE,BROWN

 1
90982-09023

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

20A,MINI FUSE,YELLOW

 1
90982-09019

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

5A,MINI FUSE,TAN

 1
90982-09021

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

10A,MINI FUSE,RED

 1
90982-09024

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

25A,MINI FUSE

 1
90982-09022

NSP151..F

15A,MINI FUSE,BLUE

 1
90982-09020

NSP151..F

7.5A,MINI FUSE,BROWN

 1
90982-09019

NSP151..F

5A,MINI FUSE,TAN

 1
90982-09023

NSP151..F

20A,MINI FUSE,YELLOW

 1
90982-09021

NSP151..F

10A,MINI FUSE,RED

 1
90982-09020

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

7.5A,MINI FUSE,BROWN

 1
90982-09022

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

15A,MINI FUSE,BLUE

 1
90982-09021

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

10A,MINI FUSE,RED

 1
90982-09021

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

10A,MINI FUSE,RED

 1
90982-09024

NSP151..F

25A,MINI FUSE

 1
90982-09024

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

25A,MINI FUSE

 1
90982-09019

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

5A,MINI FUSE,TAN

 1
90982-09024

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

25A,MINI FUSE

 1
90982-09023

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

20A,MINI FUSE,YELLOW

 1
90982-09019

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

5A,MINI FUSE,TAN

 1
90982-09022

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

15A,MINI FUSE,BLUE

 1
90982-09020

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

7.5A,MINI FUSE,BROWN

 1
90982-09023

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

20A,MINI FUSE,YELLOW

 1
82600F - FUSE, FUSE BLOCK
90982-09020

NSP151..F

7.5A,MINI FUSE,BROWN

 1
90982-09019

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

5A,MINI FUSE,TAN

 1
90982-09019

NSP151..F

5A,MINI FUSE,TAN

 1
90982-09020

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

7.5A,MINI FUSE,BROWN

 1
90982-09019

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

5A,MINI FUSE,TAN

 1
90982-09020

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

7.5A,MINI FUSE,BROWN

 1
82610A - BLOCK ASSY, FUSE
82610-52010

NSP151..F

 1
82610-52010

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

 1
82610-52010

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

 1
82642B - RELAY, DAY TIME RUNNING LIGHT, NO.1
90987-T2001

NSP151..V..G;NSP151..AGT,MA;NSP151..(D,R)..F;NSP151..(IDN,PH,TAIW,TH,VN)..(G,V)..(A,C,D,E,F)

 1
90987-02027

NSP151..F

(J)

 1
90987-T2001

NSP151..F

(L)

 1
90987-02027

NSP151..D..A;NSP151..5F..R..A

EGYPT SPEC,(J)

 1
90987-T2001

NSP151..D..A;NSP151..5F..R..A

EGYPT SPEC,(L)

 1
82660D - BLOCK ASSY, RELAY
82660-48020

NSP151..F

 1
82660-48020

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

 1
82660-48020

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

 1
82660-74010

NCP15#,NSP150,151..B,C

 1
82660D - BLOCK ASSY, RELAY
82660-48020

NSP151..F

 1
82660-48020

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

 1
82660-48020

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

 1
82660-74010

NCP15#,NSP150,151..B,C

 1
82660D - BLOCK ASSY, RELAY
82660-48020

NSP151..F

 1
82660-48020

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

 1
82660-48020

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

 1
82660-74010

NCP15#,NSP150,151..B,C

 1
82660D - BLOCK ASSY, RELAY
82660-48020

NSP151..F

 1
82660-48020

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

 1
82660-48020

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

 1
82660-74010

NCP15#,NSP150,151..B,C

 1
82660E - BLOCK ASSY, RELAY
82660-48030

NSP151..F

 1
82660-48030

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

 1
82660-48030

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

 1
82660E - BLOCK ASSY, RELAY
82660-48030

NSP151..F

 1
82660-48030

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

 1
82660-48030

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

 1
82660H - BLOCK ASSY, RELAY
82660-48040

NSP151..F

 1
82660-48040

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

 1
82660-48040

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

 1
82660H - BLOCK ASSY, RELAY
82660-48040

NSP151..F

 1
82660-48040

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

 1
82660-48040

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

 1
82672A - COVER, JUNCTION BLOCK
82672-0D030

NSP151..F

 1
82672-0D030

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

 1
82672-0D030

NSP152..HTWC;NSP150..D,E,I;NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C

 1
82673A - BRACKET, JUNCTION BLOCK
82673-0D050

NSP151..IDN..G;NSP151..RHD..(D,R)..C

 1
82673-0D360

NSP151..F

 1
82673-0D350

NSP150,151..E

 1
82673-0D340

NSP150,151..D

 1
82673-0D380

NSP151..CVT..D..C

 1
82673-0D310

NSP150,152..PKN,TH;NSP151..RHD..(A,I);NSP150..RHD..CVT..A

 1
82673B - BRACKET, JUNCTION BLOCK
82673-0D040

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

 1
82673-0K020

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

 1
82673-0K020

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

 1
82673-0K020

NSP151..F

 1
82715W - BRACKET, WIRING HARNESS CLAMP
82715-0DW90

NSP151..F

 1
82715-0DW50

NSP150..I;NSP152..HTWC;NSP151..RHD..(A,I);NSP150..RHD..CVT..A

 1
82715-0DX40

NSP151..H

 1
82715-0DW60

NSP151..CVT..D..C

 1
82730A - BLOCK ASSY, DRIVER SIDE JUNCTION
82730-0D510

NSP151..IDN..G;NSP151..TH..D..C;NSP151..RHD..R..C

 1
82730-0DA90

NSP151..D..H;NSP151..AGT..R

 1
82730-0DA50

NSP150,151..E

 1
82730-0DA40

NSP150,151..D

 1
82730-0DA10

NSP150..I;NSP151..A,I;NSP152..HTWC;NSP150..CVT..A;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A

 1
82730-0DA30

NSP150..5F..D..C;NSP151..CVT..D..C

 1
82730-0DA10

NSP151..F

 1
82730-0DA30

NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C

 1
84270Q - RELAY, LAMP CUT
90987-02027

NSP151..H

 1
84340 - SWITCH ASSY, STOP LAMP
84340-49085

NSP151..V..H;NSP151..AGT..G

 1
84340-09041

NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

 1
84340-09210

NSP151..V..F

 1
84340-09041

NSP151..(D,R)..F

 1
84340-09041

NSP151..GEN..G..H;NSP151..CVT..IDN..R;NSP151..5F..IDN..(D,R);NSP150..CVT..GCC..(A,C);NSP150..5F..GCC..R..(A,C);NSP151..(BZ,GCC)..(D,G,R)..(A,C,H);NSP150,151..(AGT,GEN,IND,PH,TH,VN)..(D,R)..(A,D,E,G,H)

 1
84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING
84345-0K010

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

 1
84345-0K010

NSP151..F

 1
84345-0K010

NSP151..5F..IDN;NSP151..A,D,E,H,I;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

 1
84345-0K010

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

 1
84550 - SWITCH ASSY, PARKING BRAKE
84550-02030

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

 1
84550-0K010

NSP150..5F..D..C;NSP151..CVT..D..C

 1
84550-16060

NSP151..F,G

 1
84550-0K010

NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C

 1
84550-02030

NSP150..D,E,I;NSP150..CVT..A;NSP151,152..A,D,E,H,I;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A

 1
84930F - RELAY, DOOR LOCK CONTOROL
90987-04004

NSP151..D,H;NSP151..V..F

(J)

 3
90080-87009

NSP151..D,H;NSP151..V..F

(L)

 3
85530A - RELAY, POWER OUTLET SOCKET
90987-02027

NSP151..RHD..A;NSP151..LHD..G;NSP150..CVT..G..(A,C)

(J)

 1
90987-T2001

NSP151..RHD..A;NSP151..LHD..G;NSP150..CVT..G..(A,C)

(L)

 1
85912 - RELAY, DEFOGGER
90987-02027

NSP150..GCC;NSP151..GCC..G;NSP151..(D,R)..C;NSP151..GCC..R..B

(J)

 1
90987-T2001

NSP150..GCC;NSP151..GCC..G;NSP151..(D,R)..C;NSP151..GCC..R..B

(L)

 1
90987-02027

NSP151..(D,R)..H

 1
90987-T2001

NSP152;NSP151..R..G;NSP151..5F..D;NSP151..RHD..(G,V)..(A,C,G);NSP150,151..LHD..CVT..(GEN,PH,VN)..G..(A,D,E)

 1
90987-02027

NSP151..F

(J)

 1
90987-T2001

NSP151..F

(L)

 1
90987-02027

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

(J)

 1
90987-02027

NSP150..D,E,I;NSP152..HTWCB;NSP150..RHD..CVT..A;NSP151..(D,R)..(A,E);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..GEN..G..H;NSP151..5F..IDN..(D,R);NSP150..CVT..GCC..(A,C);NSP151..MTM..GEN..G..(A,H);NSP151..CVT..(GCC,IDN)..R..C;NSP150..LHD..CVT..GEN..(D,R)..A;NSP151..(AGT,BZ,GCC,PKN)..(G,V)..(A,C,H,I)

(J)

 1
90987-T2001

NSP151..R..G;NSP152..HTWC;NSP151..5F..D;NSP151..RHD..(G,V)..(A,C,G);NSP150,151..LHD..CVT..(GEN,PH,VN)..G..(A,D,E)

(L)

 1
90987-T2001

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

(L)

 1
90987-02027

NSP151..R..G;NSP152..HTWC;NSP151..5F..D;NSP151..RHD..(G,V)..(A,C,G);NSP150,151..LHD..CVT..(GEN,PH,VN)..G..(A,D,E)

(J)

 1
90987-T2001

NSP150..D,E,I;NSP152..HTWCB;NSP150..RHD..CVT..A;NSP151..(D,R)..(A,E);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..GEN..G..H;NSP151..5F..IDN..(D,R);NSP150..CVT..GCC..(A,C);NSP151..MTM..GEN..G..(A,H);NSP151..CVT..(GCC,IDN)..R..C;NSP150..LHD..CVT..GEN..(D,R)..A;NSP151..(AGT,BZ,GCC,PKN)..(G,V)..(A,C,H,I)

(L)

 1
85916D - RELAY, FOG LAMP
90987-T2001

NSP151..TH..V

 1
90987-T2001

NSP151..CVT..D..A

GHANA SPEC

 1
90987-T2001

NSP151..CVT..R..E;NSP150..(G,R)..(D,I);NSP150..CVT..G..(A,C);NSP151..(GCC,GEN,IDN,PH,PKN,VN)..G..(A,C,D,E,I)

 1
85916L - RELAY, REAR FOG LAMP
90987-T2001

NSP151..D..A;NSP151..5F..R..A

EGYPT SPEC

 1
90987-02027

NSP151..D..F;NSP151..(G,R,V)..(F,H)

 1
85916N - RELAY, TAIL LAMP
90987-T2001

NSP151..IDN..G;NSP151..RHD..(D,R)..C

 1
90987-02027

NSP151..F,H

 1
90987-T2001

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

 1
90987-T2001

NSP151..A,D,E,I;NSP151..5F..IDN;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

 1
85916P - RELAY, HEADLAMP
90987-02025

NSP151..F,G,H

 1
90987-T2002

NSP151..IDN..G;NSP151..RHD..(D,R)..C

 1
90987-T2002

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

 1
90987-T2002

NSP151..A,D,E,I;NSP151..5F..IDN;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

 1
85940 - RELAY ASSY, WINDSHIELD WIPER
85940-52040

NSP151..V..H

 1
87299 - RELAY, HEATER
90987-T2002

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

(L)

 1
90987-02025

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

(J)

 1
90987-02025

NSP151..F

(J)

 1
90987-T2002

NSP151..F

(L)

 1
90987-T2002

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

(L)

 1
90987-T2002

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

(L)

 1
90987-02025

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

(J)

 1
90987-02025

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

(J)

 1
89120A - SENSOR, AUTOMATIC LIGHT CONTROL
89121-30020

NSP151..F

 1
89121-30020

NSP151..(G,R,V)..(D,H);NSP151..(IDN,IND,TH,VN)..(G,V)..(A,C,E,G)

 1
89121-30020

NSP151..D..A;NSP151..5F..R..A

EGYPT SPEC&MLM PACKAGE

 1
89221B - COMPUTER, BODY
89221-0D730

NSP151..D

 1
89221-0D830

NSP151..AGT..G;NSP151..(D,R)..H

 1
89221-0D750

NSP151..R..E

 1
89221-0D770

NSP151..V..F

 1
89221-0DA30

NSP151..D..A;NSP150..5F..GEN..D

LATIN AMERICA SPEC

 1
89221-0DA30

NSP151..CVT..D..A

CHILE SPEC

 1
89221-0D780

NSP151..(D,R)..F

 1
89221-0DA30

NSP151..D..A

COSTA RICA SPEC

 1
89221-0D640

NSP151..I;NSP151..TH..R..A

 1
89221-0D880

NSP151..D..A;NSP151..5F..R..A

EGYPT SPEC

 1
89221-0D710

NSP151..D..A;NSP151..5F..R..A

EGYPT SPEC&MLM PACKAGE

 1
89420F - SENSOR ASSY, VACUUM
89420-52100

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

 1
89420-52100

NSP151..F

 1
89421-26030

NSP151..H

 1
89420-52100

NSP150..D,E,I;NSP151..5F..IDN;NSP151..A,D,E,G,I;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C

 1
89420F - SENSOR ASSY, VACUUM
89420-52100

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

 1
89420-52100

NSP151..F

 1
89421-26030

NSP151..H

 1
89420-52100

NSP150..D,E,I;NSP151..5F..IDN;NSP151..A,D,E,G,I;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C

 1
89650 - COMPUTER ASSY, POWER STEERING
89650-52B20

NSP151..F

JTEKT/DENSO

 1
89650-0D620

NSP151..TH..A;NSP150..RHD..(A,I);NSP151..RHD..(GEN,IDN,MA,PKN)

JTEKT/DENSO

 1
89650-0D650

NSP151..H

JTEKT/DENSO

 1
89650-0D810

NSP150..5F..G..A;NSP151..CVT..D..C

JTEKT/DENSO

 1
89650-0D810

NSP151..5F..D..C;NSP150,152..RHD..CVT..A;NSP151..RHD..(G,R)..(A,C)

JTEKT/DENSO

 1
89730A - RELAY(FOR SECURITY WARNING)
90987-T2001

NSP151..IDN..G;NSP151..RHD..R..C

 1
90987-T2001

NSP151..IDN..(G,R);NSP150,152..(PH,PKN,TH)..(G,R)..(A,D,I);NSP151..(AGT,BZ,PH,PKN,TH,VN)..(A,D,E,H,I)

 1
90987-02027

NSP151..F

 1
Common parts
90119-T0313
90159-70003
90159-T0003
90159-T0037
90170-10017
90178-T0007
90179-06274
91673-80616
91673-80620
93315-14012
94120-41000
94151-80600
Linked diagrams
8202

ILLUST NO. 2 OF 8(1708- )GEN,PKN,TH..A,I ; (1801- )GCC,IDN,IND,TAIW..A,C,F,G ; (1807- )D,E,

Click highlighted areas on diagram

ENGINE ROOM

diagram 28551 28559 28850 28850 28859A 8201 82620A 8404 85928B 85928B 9015350010 90178T0056 9167380616 9167380616 9167380616 9415180801
Part # Description Qty Price
85928B - RESISTOR, COOLING FAN
85928-0D020

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

 1
85928-52032

NSP151..F

 1
85928-0D020

NSP151..TH..R..A

FRONT AIR CONDITIONER-MANUAL COOLER(DOP)

 1
85928B - RESISTOR, COOLING FAN
85928-0D020

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

 1
85928-52032

NSP151..F

 1
85928-0D020

NSP151..TH..R..A

FRONT AIR CONDITIONER-MANUAL COOLER(DOP)

 1
Common parts
90153-50010
90178-T0056
91673-80616
94151-80801
Linked diagrams
8201
8404

ILLUST NO. 8 OF 8(1708- )GEN,PKN,TH..A,I ; (1801- )GCC,IDN,IND,TAIW..A,C,F,G ; (1807- )D,E,

Click highlighted areas on diagram

DOOR,ROOF,FLOOR & LUGGAGE

diagram 83320 83320 84010D 84233 84233 84234 84234 84810 84810 84810D 84810D 84820 84820 84870A 84870A 84945A 8598A 90119T0279 9015960498 90159T0034 9016440103 9016440103 90164T0005 90164T0005 9016670001 9016670001 9016670001 9016670001 90167T0012 9018906197 9356855014
Part # Description Qty Price
83320 - GAGE ASSY, FUEL SENDER
83320-0D150

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

 1
83320-0D150

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I);NSP151..(AGT,GCC,GEN,IND,PH,PKN,TH,VN)..(A,D,E,G,H,I)

 1
83320-0D150

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

 1
83320-0D150

NSP151..F

EXCEPT TAIWAN

 1
83320-0D140

NSP151..F

FOR TAIWAN

 1
83320 - GAGE ASSY, FUEL SENDER
83320-0D150

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

 1
83320-0D150

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I);NSP151..(AGT,GCC,GEN,IND,PH,PKN,TH,VN)..(A,D,E,G,H,I)

 1
83320-0D150

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

 1
83320-0D150

NSP151..F

EXCEPT TAIWAN

 1
83320-0D140

NSP151..F

FOR TAIWAN

 1
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-02040

NSP151..F

 2
84231-60070

NSP151..H

 2
84231-0D080

NSP150..5F..D..C;NSP151..CVT..D..C

 2
84231-02070

NSP150..D,E,I;NSP150..CVT..A;NSP151,152..A,D,E,I;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A

 2
84231-0D080

NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C

 2
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-02040

NSP151..F

 2
84231-60070

NSP151..H

 2
84231-0D080

NSP150..5F..D..C;NSP151..CVT..D..C

 2
84231-02070

NSP150..D,E,I;NSP150..CVT..A;NSP151,152..A,D,E,I;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A

 2
84231-0D080

NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C

 2
84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84231-02040

NSP151..F

 2
84231-60070

NSP151..H

 2
84231-0D080

NSP150..5F..D..C;NSP151..CVT..D..C

 2
84231-02070

NSP150..D,E,I;NSP150..CVT..A;NSP151,152..A,D,E,I;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A

 2
84231-0D080

NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C

 2
84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84231-02040

NSP151..F

 2
84231-60070

NSP151..H

 2
84231-0D080

NSP150..5F..D..C;NSP151..CVT..D..C

 2
84231-02070

NSP150..D,E,I;NSP150..CVT..A;NSP151,152..A,D,E,I;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A

 2
84231-0D080

NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C

 2
84810 - SWITCH ASSY, POWER WINDOW REGULATOR
84810-0D300

NSP150..CVT..A;NSP151..D..(A,H);NSP150..LHD..5F..GEN..A;NSP151..(G,R)..(A,D,E,I);NSP150,151..MTM..(AGT,GCC)..R..(A,H);NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

 1
84810-0D310

NSP150..5F..D..C;NSP151..CVT..D..C

 1
84810-0D310

NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C

 1
84810-0D320

NSP151..F

 1
84810 - SWITCH ASSY, POWER WINDOW REGULATOR
84810-0D300

NSP150..CVT..A;NSP151..D..(A,H);NSP150..LHD..5F..GEN..A;NSP151..(G,R)..(A,D,E,I);NSP150,151..MTM..(AGT,GCC)..R..(A,H);NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

 1
84810-0D310

NSP150..5F..D..C;NSP151..CVT..D..C

 1
84810-0D310

NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C

 1
84810-0D320

NSP151..F

 1
84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR
84810-0D310

NSP150,151..(G,R)..C

 2
84810-0D300

NSP151..AGT..R;NSP151..D..(A,H);NSP150..CVT..GEN..A;NSP150..GCC..(G,R)..A;NSP150..LHD..5F..GEN..A;NSP151..(G,R)..(A,D,E,I);NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

 2
84810-0D320

NSP151..F

 2
84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR
84810-0D310

NSP150,151..(G,R)..C

 2
84810-0D300

NSP151..AGT..R;NSP151..D..(A,H);NSP150..CVT..GEN..A;NSP150..GCC..(G,R)..A;NSP150..LHD..5F..GEN..A;NSP151..(G,R)..(A,D,E,I);NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

 2
84810-0D320

NSP151..F

 2
84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR
84820-0D680

NSP151..F

 1
84820-0D660

NSP151..CVT..D..C

 1
84820-0D590

NSP150,152..PKN,TH;NSP151..RHD..(A,I);NSP150..RHD..CVT..A

 1
84820-0D600

NSP151..AGT..R;NSP151..D..(A,H);NSP150..GCC..(G,R)..A;NSP151..LHD..(G,R)..(A,D,E);NSP150..LHD..(GEN,PH,VN)..(A,D,E)

 1
84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR
84820-0D680

NSP151..F

 1
84820-0D660

NSP151..CVT..D..C

 1
84820-0D590

NSP150,152..PKN,TH;NSP151..RHD..(A,I);NSP150..RHD..CVT..A

 1
84820-0D600

NSP151..AGT..R;NSP151..D..(A,H);NSP150..GCC..(G,R)..A;NSP151..LHD..(G,R)..(A,D,E);NSP150..LHD..(GEN,PH,VN)..(A,D,E)

 1
84870A - SWITCH ASSY, OUTER MIRROR
84872-0K040

NSP151..(R,V)..F

 1
84872-0K030

NSP150..RHD..G..A;NSP151,152..RHD..A

 1
84872-0K020

NSP151..D..F

 1
84872-0K040

NSP151..CVT..R..E;NSP150,151..LHD..(G,V)..(A,D,E,H)

 1
84872-02610

NSP151,152..RHD..A;NSP150..RHD..CVT..G..A

 1
84870A - SWITCH ASSY, OUTER MIRROR
84872-0K040

NSP151..(R,V)..F

 1
84872-0K030

NSP150..RHD..G..A;NSP151,152..RHD..A

 1
84872-0K020

NSP151..D..F

 1
84872-0K040

NSP151..CVT..R..E;NSP150,151..LHD..(G,V)..(A,D,E,H)

 1
84872-02610

NSP151,152..RHD..A;NSP150..RHD..CVT..G..A

 1
84945A - SWITCH, LUGGAGE ELECTRICAL KEY
84945-53020

NSP151..V..F

 1
84945-53020

NSP151..RHD..R..(A,G);NSP150..CVT..GEN..G..A;NSP151..(BZ,GEN,IDN,IND,PH,PKN,TH,VN)..(G,V)..(A,C,D,E,G,H,I)

 1
8598A - BATTERY, DOOR CONTROL
8598A-0D010

NSP151..D,H;NSP151..V..F

 1
Common parts
90119-T0279
90159-60498
90159-T0034
90164-40103
90164-T0005
90166-70001
90167-T0012
90189-06197
93568-55014

ILLUST NO. 3 OF 8(1708- )GEN,PKN,TH..A,I ; (1801- )GCC,IDN,IND,TAIW..A,C,F,G ; (1807- )D,E,

Click highlighted areas on diagram

ENGINE ROOM RELAY BLOCK

diagram 28300 28610 82210P 82600E 82616 82660 82660B 82660C 82660F 82660F 82661 82662A 82663 82741 85916P 85926 85927 85927A 85934 86530 895D0A 90119T0283 90178T0018 9017906178 9167180620 9415180600
Part # Description Qty Price
28300 - RELAY ASSY, STARTER
28300-0L011

1NRFE..NSP150..5F..G..A;2NRFE..NSP151..CVT..D..C;1NRFE..NSP150..5F..GCC..D..(A,C)

 1
28300-21020

1NRFE,2NR#..NSP150,151..H,I

 1
28300-0L011

2NRFE..NSP151..A,D,E,G;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE,3NR#..NSP150,152..(GEN,PH,TH,VN)..(D,R)..(A,D,E)

 1
28300-0L011

2NRFE..NSP151..F

 1
82210P - ENGINE ROOM FUSIBLE LINK
90982-08295

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

30A,TERM.:FEMALE,PNK

 1
90982-08274

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

120A,TERM.:MALE,WHT

 1
90982-08296

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

50A,TERM.:FEMALE,RED

 1
90982-08302

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

50A-30A-50A,FEMALE

 1
90982-08296

NSP151..F

50A,TERM.:FEMALE,RED

 1
90982-08274

NSP151..F

120A,TERM.:MALE,WHT

 1
90982-08274

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

120A,TERM.:MALE,WHT

 1
90982-08300

NSP151..F

50A-30A-30A,FEMALE

 1
90982-08302

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

50A-30A-50A,FEMALE

 1
90982-08274

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

120A,TERM.:MALE,WHT

 1
90982-08302

NSP151..F

50A-30A-50A,FEMALE

 1
90982-08296

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

50A,TERM.:FEMALE,RED

 1
90982-08296

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

50A,TERM.:FEMALE,RED

 1
90982-08302

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

50A-30A-50A,FEMALE

 1
90982-08295

NSP151..F

30A,TERM.:FEMALE,PNK

 1
90982-08300

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

50A-30A-30A,FEMALE

 1
90982-08295

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

30A,TERM.:FEMALE,PNK

 1
90982-08300

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

50A-30A-30A,FEMALE

 1
90982-08295

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

30A,TERM.:FEMALE,PNK

 1
82600E - ENGINE ROOM FUSE
90982-09024

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

25A,MINI FUSE

 1
90982-09022

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

15A,MINI FUSE,BLUE

 1
90982-09021

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

10A,MINI FUSE,RED

 1
90982-09023

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

20A,MINI FUSE,YELLOW

 1
90982-09020

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

7.5A,MINI FUSE,BROWN

 1
90982-09025

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

30A,MINI FUSE,GRN

 1
90982-09022

NSP151..F

15A,MINI FUSE,BLUE

 1
90982-09021

NSP151..F

10A,MINI FUSE,RED

 1
90982-09023

NSP151..F

20A,MINI FUSE,YELLOW

 1
90982-09024

NSP151..F

25A,MINI FUSE

 1
90982-09025

NSP151..F

30A,MINI FUSE,GRN

 1
90982-09020

NSP151..F

7.5A,MINI FUSE,BROWN

 1
90982-09020

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

7.5A,MINI FUSE,BROWN

 1
90982-09023

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

20A,MINI FUSE,YELLOW

 1
90982-09022

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

15A,MINI FUSE,BLUE

 1
90982-09022

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

15A,MINI FUSE,BLUE

 1
90982-09021

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

10A,MINI FUSE,RED

 1
90982-09021

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

10A,MINI FUSE,RED

 1
90982-09024

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

25A,MINI FUSE

 1
90982-09024

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

25A,MINI FUSE

 1
90982-09025

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

30A,MINI FUSE,GRN

 1
90982-09025

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

30A,MINI FUSE,GRN

 1
90982-09023

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

20A,MINI FUSE,YELLOW

 1
90982-09020

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

7.5A,MINI FUSE,BROWN

 1
82616 - PULLER, FUSE
82616-58010

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

 1
82616-58010

NSP151..F

 1
82616-58010

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

 1
82660 - BLOCK ASSY, RELAY, ENGINE ROOM
82660-0D040

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

 1
82660-0D040

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

 1
82660-0D040

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

 1
82660-0D040

NSP151..F

 1
82660B - BLOCK ASSY, RELAY
82660-0D050

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

 1
82660-0D050

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

 1
82660-0D050

NSP151..F

 1
82660-0D050

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

 1
82660C - BLOCK ASSY, RELAY
82660-0D060

NSP151..IDN..G;NSP151..RHD..(D,R)..C

 1
82660-0D060

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

 1
82660-0D060

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

 1
82660-0D060

NSP151..F

 1
82660F - BLOCK ASSY, RELAY
82660-0H070

NSP151..IDN..G;NSP151..RHD..(D,R)..C

 1
82660-0H070

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

 2
82660-0H070

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

 2
82660-0H070

NSP151..F

 2
82660F - BLOCK ASSY, RELAY
82660-0H070

NSP151..IDN..G;NSP151..RHD..(D,R)..C

 1
82660-0H070

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

 2
82660-0H070

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

 2
82660-0H070

NSP151..F

 2
82661 - COVER, RELAY BLOCK, NO.1
82661-52050

NSP151..F

 1
82661-52050

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

 1
82661-52050

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

 1
82661-52050

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

 1
82662A - COVER, RELAY BLOCK, UPPER, NO.1
82662-0D520

NSP15#..A

MARK 82662-0D520

 1
82662-0D550

NSP150,151..D

MARK 82662-0D550

 1
82662-0D560

NSP150,151..E

MARK 82662-0D560

 1
82662-0D640

NSP150,151..D

MARK 82662-0D640

 1
82662-0D630

NSP150..5F..D..C;NSP151..CVT..D..C

MARK 82662-0D630

 1
82662-0D660

NSP150,151..E

MARK 82662-0D660

 1
82662-0D521

NSP151..A;NSP152..HTWC;NSP150..CVT..A;NSP150..LHD..5F..GEN;NSP150..5F..GCC..R..A

MARK 82662-0D521

 1
82662-0D540

NSP150,151..C

MARK 82662-0D540

 1
82662-0D670

NSP151..F

MARK 82662-0D670

 1
82662-0D630

NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C

MARK 82662-0D630

 1
82662-0D400

NSP151..F

MARK 82662-0D400

 1
82663 - COVER, RELAY BLOCK, LOWER
82663-0D090

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

 1
82663-0D090

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

 1
82663-0D090

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

 1
82663-0D090

NSP151..F

 1
82741 - BLOCK, ENGINE ROOM RELAY
82741-0D100

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

 1
82741-0D100

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

 1
82741-0D100

NSP151..F

 1
82741-0D100

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

 1
85916P - RELAY, HEADLAMP
90987-02025

NSP151..F,G,H

 1
90987-T2002

NSP151..IDN..G;NSP151..RHD..(D,R)..C

 1
90987-T2002

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

 1
90987-T2002

NSP151..A,D,E,I;NSP151..5F..IDN;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

 1
85926 - RELAY, HEADLAMP DIMMER
90987-T2003

NSP151..RHD..(D,R)..C

 1
90987-02025

NSP151..F,G,H

 1
90987-T2002

NSP151..A,D,E,I;NSP151..5F..IDN;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

 1
90987-T2002

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

 1
85927 - RELAY, COOLING FAN
90987-02027

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

(J)

 1
90987-T2001

NSP151..F

(L)

 1
90987-02027

NSP151..F

(J)

 1
90987-T2001

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

(L)

 1
90987-02027

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

(J)

 1
90987-T2001

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

(L)

 1
90987-T2001

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

(L)

 1
90987-02027

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

(J)

 1
85927A - RELAY, COOLING FAN, NO.2
90080-87009

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

(L)

 1
90987-04004

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

(J)

 1
90080-87009

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

(L)

 1
90987-04004

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

(J)

 1
90987-04004

NSP151..F

(J)

 1
90080-87009

NSP151..F

(L)

 1
90080-87009

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

(L)

 1
90987-04004

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

(J)

 1
85934 - RELAY, MAGNET-CLUTCH
90987-02028

NSP151..D..A

BOLIVIA SPEC

 1
90987-02028

NSP151..D..A;NSP150..5F..GEN..D

LATIN AMERICA SPEC

 1
90987-02028

NSP151..CVT..D..A;NSP150..LHD..GEN..D

FRONT AIR CONDITIONER-MANUAL AIR CONDITIONER(DOP)

 1
90987-02028

NSP151..D..A

CHILE SPEC

 1
90987-02028

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

 1
90987-02028

NSP151..F

 1
90987-02028

NSP151..TH..R..A

FRONT AIR CONDITIONER-MANUAL COOLER(DOP)

 1
86530 - RELAY ASSY, HORN
90987-02027

NSP151..F

 1
90987-T2001

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

 1
90987-02027

NSP151..G,H

(J)

 1
90987-T2001

NSP150..5F..G..A;NSP151..CVT..D..C;NSP150..5F..GCC..D..(A,C)

 1
90987-T2001

NSP151..A,D,E,I;NSP151..5F..IDN;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

 1
90987-T2001

NSP151..G,H

(L)

 1
Common parts
90119-T0283
90178-T0018
90179-06178
91671-80620
94151-80600

ILLUST NO. 5 OF 8(2009- )RHD..A

Click highlighted areas on diagram

INSTRUMENT PANEL

diagram 84152 84720J 84770A 84978B 84988L 85530 85532 85535B 87290F 89611
Part # Description Qty Price
84152 - SWITCH, HEADLAMP LEVELING
84152-0D190

NSP151..TH..A

 1
84152-0D200

NSP151..CVT..D..C

 1
84152-0D300

NSP151..TH..A

 1
84152-0D190

NSP151..D..A;NSP151..5F..R..A

EGYPT SPEC

 1
84988L - SWITCH, VSC OFF
84988-0K010

NSP151..TH..A;NSP152..HTWCB

 1
84988-0K010

NSP151..D..A;NSP150..5F..GEN..D;NSP150..LHD..GEN..G

LATIN AMERICA SPEC

 1
84988-02051

NSP150,151..E,F,H

 1
84988-0K060

NSP150..5F..D..C;NSP151..CVT..D..C

 1
84988-0K010

NSP151..D..A;NSP151..5F..G..A

COSTA RICA SPEC

 1
84988-0K010

NSP151..CVT..D..A

CHILE SPEC

 1
84988-06110

NSP151,152..TH..A

 1
84988-0K060

NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C

 1
85530 - SOCKET ASSY, POWER OUTLET, NO.1
85530-0D040

NSP151..H

 1
85530-0K070

NSP150..5F..D..C;NSP151..CVT..D..C

 1
85530-0K070

NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C

 1
85530-0K040

NSP150..D,E,I;NSP150..CVT..A;NSP151,152..A,D,E,I;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A

 1
85530-0D080

NSP151..F

 1
85532 - SOCKET, USB CHARGER
85532-06020

NSP151..RHD..A;NSP151..LHD..G;NSP150..CVT..G..(A,C)

 1
85535B - COVER, POWER OUTLET SOCKET, NO.1
85535-0D160

NSP151..H

 1
85535-0D150

NSP151..F

 1
85535-0D140

NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..(G,R)..C

 1
85535-0D140

NSP150..5F..D..C;NSP151..CVT..D..C

 1
85535-0D060

NSP151,152..A,D,E;NSP150..CVT..G..A;NSP150..5F..GCC..R..A;NSP150..CVT..GCC..(D,R)..A;NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

 1
89611 - SWITCH, PUSH START
89611-0K011

NSP151..V..F

 1
89611-0K011

NSP151..TH..R..A;NSP150..CVT..GEN..G..A;NSP151..(BZ,GEN,PH,PKN,TH,VN)..(G,V)..(A,D,E,H,I)

 1
