NSP151L-FEXDKR (2018)
Toyota Yaris/Vios/Limo
Production
Mar 2018
-
Sep 9999
Engine
2NRFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

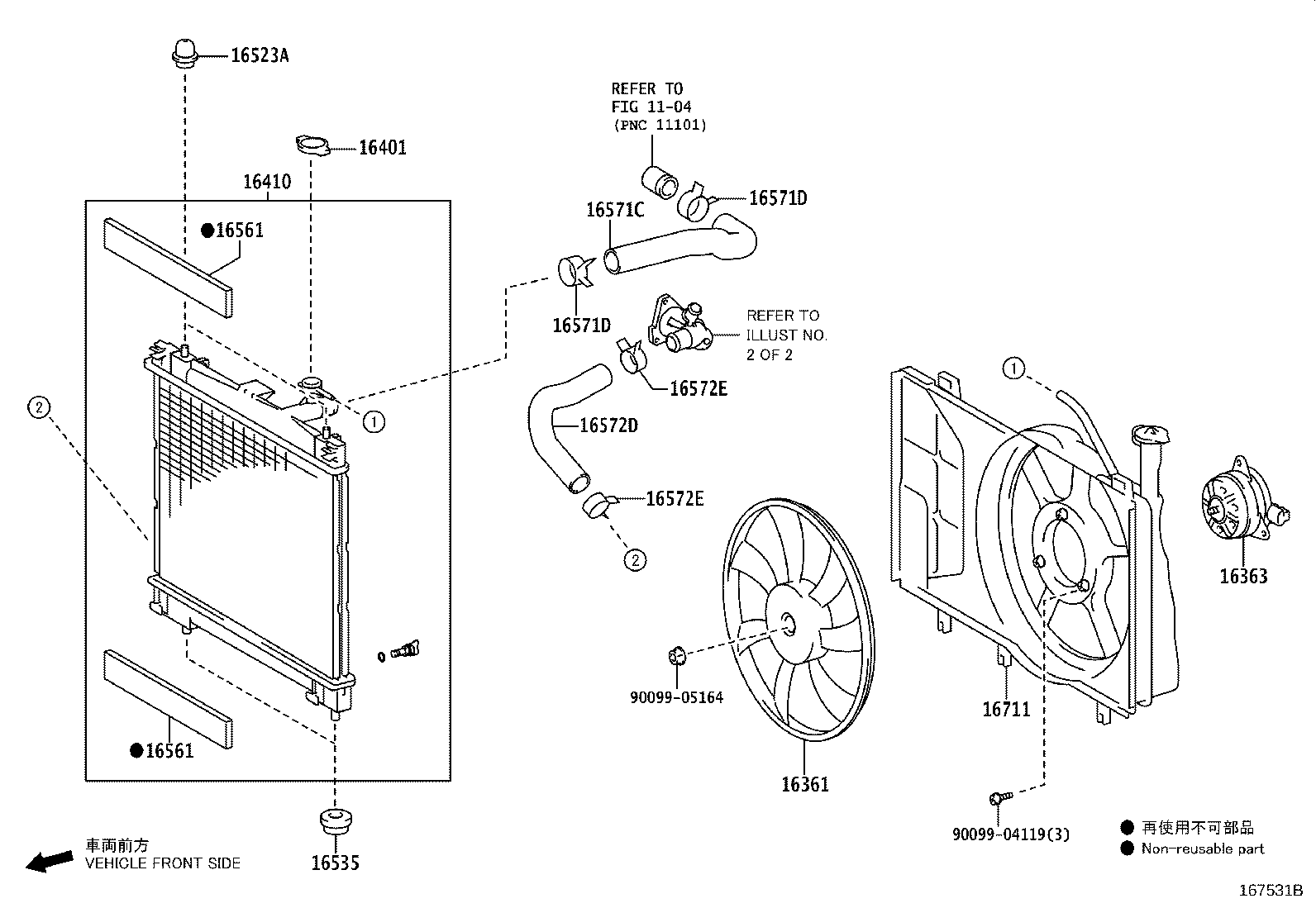

ILLUST NO. 1 OF 2(1912- )1NRFE,2NRFE..I
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-0Y220 |
2NR#..NSP151..H |
1 | ||
| 16361-0M130 |
2NRFE..NSP151..F |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-0Y140 |
3NR#..NSP152;1NRFE,2NRFE..NSP150,151..D |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-36020 |
1NRFE,2NR#..NSP150,151..H,I |
1 | ||
| 16401-36020 |
2NRFE..NSP151..F |
1 | ||
| 16410 - RADIATOR ASSY, W/O CAP | ||||
| 16410-0Y140 |
1NRFE,2NRFE..NSP150,151..I |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-0Y010 |
2NR#..NSP151..G,H |
2 | ||
| 16523-0M040 |
2NRFE..NSP151..F (L) |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90480-T0008 |
2NRFE..NSP151..F (L) |
2 | ||
| 90480-T0001 |
2NR#..NSP151..G,H |
2 | ||
| 90480-22025 |
2NRFE..NSP151..F (J) |
2 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-0M040 |
1NRFE,2NRFE..NSP150,151..D |
2 | ||
| 16561-0M080 |
2NRFE..NSP151..F |
2 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-0M040 |
1NRFE,2NRFE..NSP150,151..D |
2 | ||
| 16561-0M080 |
2NRFE..NSP151..F |
2 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-0Y181 |
2NRFE..NSP151..F |
1 | ||
| 16571-0Y210 |
2NR#..NSP151..G,H |
1 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-0Y151 |
2NRFE..NSP151..F |
1 | ||
| 16572-0Y170 |
2NR#..NSP151..G,H |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-0Y350 |
1NRFE,2NRFE..NSP150,151..D |
1 | ||
| 16711-0Y180 |
1NRFE,2NRFE..NSP150,151..D |
1 | ||
| 16711-0Y190 |
2NRFE..NSP151..F |
1 | ||
| 16711-0Y320 |
1NRFE,2NRFE..NSP150,151..I |
1 | ||
| 16711-0Y210 |
2NR#..NSP151..H |
1 | ||
| Common parts | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| Linked diagrams | ||||
| 1104 | ||||
