Toyota Yaris/vios/limo NSP151 BRAKE TUBE & CLAMP

NSP151L-BEXGK (2016)

Toyota Yaris/Vios/Limo

Production Apr 2016 - Sep 2017

Engine 2NRFE

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

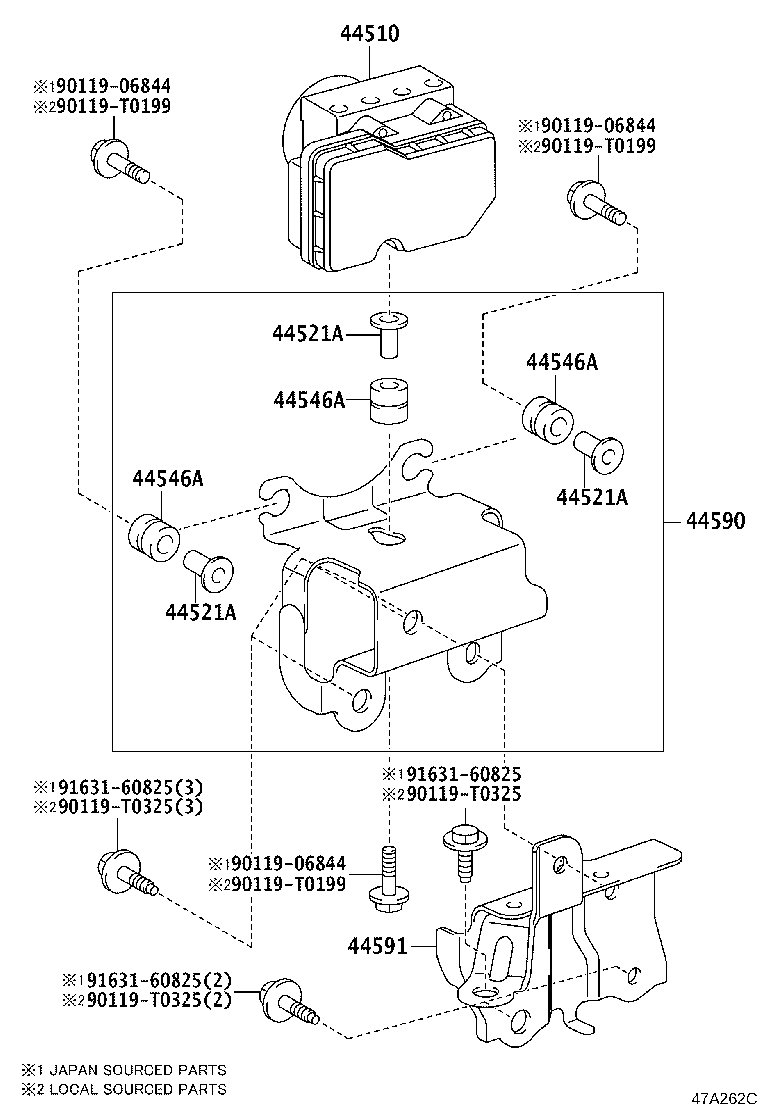

ILLUST NO. 2 OF 2(1604- )LHD..CVT

Click highlighted areas on diagram

BRAKE ACTUATOR

Part #	Description	Period	Qty
44510 - ACTUATOR ASSY, BRAKE
44050-0D230	NSP151..GEN;NSP150..RHD..CVT;NSP150..LHD..GEN..(D,R)	04/2013 - 09/2017	1
44050-52P40	NSP151..CVT..GEN..R LATIN AMERICA SPEC&ECUADOR SPEC	04/2016 - 09/2017	1
44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1
44521-0D010	NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)	08/2017 - 12/2999	3
44521-0D010	NSP150..GCC;NSP151..R..C;NSP151..TH..D..C;NSP151..CVT..D..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G	04/2013 - 12/2017	3
44521-0D010	NSP150,151..GEN	04/2013 - 09/2017	3
44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1
44521-0D010	NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)	08/2017 - 12/2999	3
44521-0D010	NSP150..GCC;NSP151..R..C;NSP151..TH..D..C;NSP151..CVT..D..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G	04/2013 - 12/2017	3
44521-0D010	NSP150,151..GEN	04/2013 - 09/2017	3
44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1
44521-0D010	NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)	08/2017 - 12/2999	3
44521-0D010	NSP150..GCC;NSP151..R..C;NSP151..TH..D..C;NSP151..CVT..D..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G	04/2013 - 12/2017	3
44521-0D010	NSP150,151..GEN	04/2013 - 09/2017	3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44547-02050	NSP150,151..GEN	04/2013 - 09/2017	3
44547-02050	NSP150..GCC;NSP151..R..C;NSP151..TH..D..C;NSP151..CVT..D..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G	04/2013 - 12/2017	3
44547-02050	NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)	08/2017 - 12/2999	3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44547-02050	NSP150,151..GEN	04/2013 - 09/2017	3
44547-02050	NSP150..GCC;NSP151..R..C;NSP151..TH..D..C;NSP151..CVT..D..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G	04/2013 - 12/2017	3
44547-02050	NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)	08/2017 - 12/2999	3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44547-02050	NSP150,151..GEN	04/2013 - 09/2017	3
44547-02050	NSP150..GCC;NSP151..R..C;NSP151..TH..D..C;NSP151..CVT..D..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G	04/2013 - 12/2017	3
44547-02050	NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)	08/2017 - 12/2999	3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-0D410	NSP150,151..LHD..CVT..GEN	04/2016 - 09/2017	1
44590-0D450	NSP151..CVT..GEN..R ECUADOR SPEC	04/2016 - 09/2017	1
44591 - BRACKET, BRAKE ACTUATOR, NO.1
44591-0D270	NSP150,151..LHD..CVT..GEN	04/2016 - 09/2017	1
Common parts
90119-06844
90119-T0199
90119-T0325
91631-60825

ILLUST NO. 2 OF 2(1604- )5F..GCC..B ; (1604- )NSP151..5F..GEN..D..B ; (1604- )NSP150,151..L

Click highlighted areas on diagram

BRAKE ACTUATOR, W(VSC)

Part #	Description	Period	Qty
44510 - ACTUATOR ASSY, BRAKE
44050-0D230	NSP151..GEN;NSP150..RHD..CVT;NSP150..LHD..GEN..(D,R)	04/2013 - 09/2017	1
44050-52P40	NSP151..CVT..GEN..R LATIN AMERICA SPEC&ECUADOR SPEC	04/2016 - 09/2017	1
44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1
44521-0D010	NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)	08/2017 - 12/2999	3
44521-0D010	NSP150..GCC;NSP151..R..C;NSP151..TH..D..C;NSP151..CVT..D..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G	04/2013 - 12/2017	3
44521-0D010	NSP150,151..GEN	04/2013 - 09/2017	3
44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1
44521-0D010	NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)	08/2017 - 12/2999	3
44521-0D010	NSP150..GCC;NSP151..R..C;NSP151..TH..D..C;NSP151..CVT..D..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G	04/2013 - 12/2017	3
44521-0D010	NSP150,151..GEN	04/2013 - 09/2017	3
44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1
44521-0D010	NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)	08/2017 - 12/2999	3
44521-0D010	NSP150..GCC;NSP151..R..C;NSP151..TH..D..C;NSP151..CVT..D..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G	04/2013 - 12/2017	3
44521-0D010	NSP150,151..GEN	04/2013 - 09/2017	3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44547-02050	NSP150,151..GEN	04/2013 - 09/2017	3
44547-02050	NSP150..GCC;NSP151..R..C;NSP151..TH..D..C;NSP151..CVT..D..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G	04/2013 - 12/2017	3
44547-02050	NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)	08/2017 - 12/2999	3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44547-02050	NSP150,151..GEN	04/2013 - 09/2017	3
44547-02050	NSP150..GCC;NSP151..R..C;NSP151..TH..D..C;NSP151..CVT..D..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G	04/2013 - 12/2017	3
44547-02050	NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)	08/2017 - 12/2999	3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44547-02050	NSP150,151..GEN	04/2013 - 09/2017	3
44547-02050	NSP150..GCC;NSP151..R..C;NSP151..TH..D..C;NSP151..CVT..D..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G	04/2013 - 12/2017	3
44547-02050	NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)	08/2017 - 12/2999	3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-0D410	NSP150,151..LHD..CVT..GEN	04/2016 - 09/2017	1
44590-0D450	NSP151..CVT..GEN..R ECUADOR SPEC	04/2016 - 09/2017	1
Common parts
90119-T0199
90119-T0325

NSP151L-BEXGK (2016)

ILLUST NO. 2 OF 2(1604- )LHD..CVT

ILLUST NO. 2 OF 2(1604- )5F..GCC..B ; (1604- )NSP151..5F..GEN..D..B ; (1604- )NSP150,151..L
