NSP151L-BEMRK (2016)

Toyota Yaris/Vios/Limo

Production Apr 2016 - Sep 2017
Engine 2NRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1604- )NSP150..5F..B,C ; (1604- )NSP151..5F..A,B,C ; (1604- )NSP150..5F..

Click highlighted areas on diagram

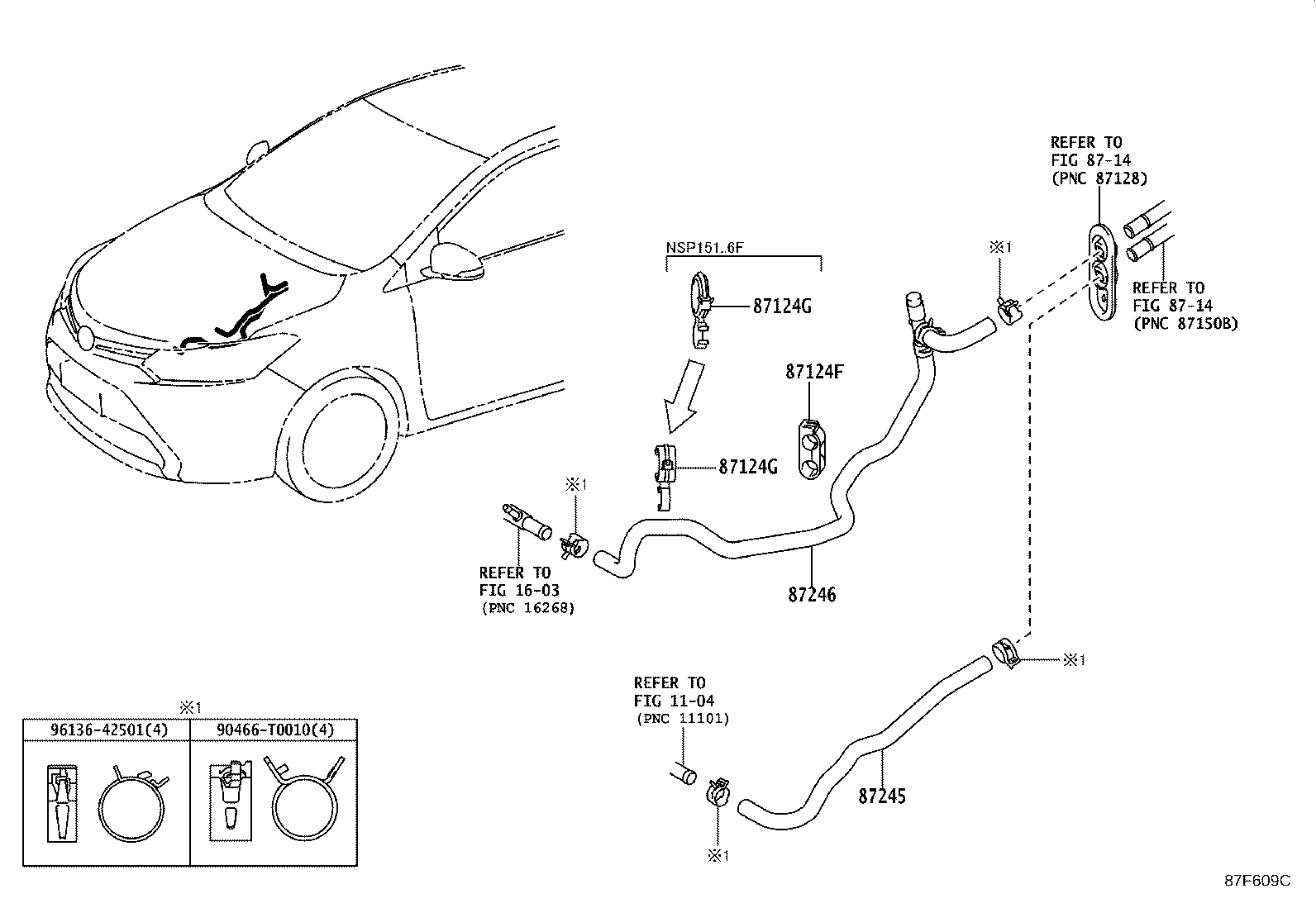

diagram 1104 1603 87124F 87124G 87124G 8714 8714 87245 87246 90466T0010 9613642501
Part # Description Qty Price
87124F - CLAMP, HEATER HOSE, NO.1
87124-0D360

NSP150,151..5F..GEN

 1
87124G - CLAMP, HEATER HOSE, NO.2
87124-0D350

NSP150,151..5F..GEN

 1
87124G - CLAMP, HEATER HOSE, NO.2
87124-0D350

NSP150,151..5F..GEN

 1
87246 - HOSE, HEATER WATER, OUTLET
87209-0D350

NSP150,151..5F..GEN

 1
Common parts
90466-T0010
96136-42501
Linked diagrams
1104
1603
8714
