NSP151L-BEMRK (2016)
Toyota Yaris/Vios/Limo
(1304- )NSP151..TH..B,C ; (1304- )NCP15#,NSP150..RHD..B,C ; (1608-1812)MA ; (

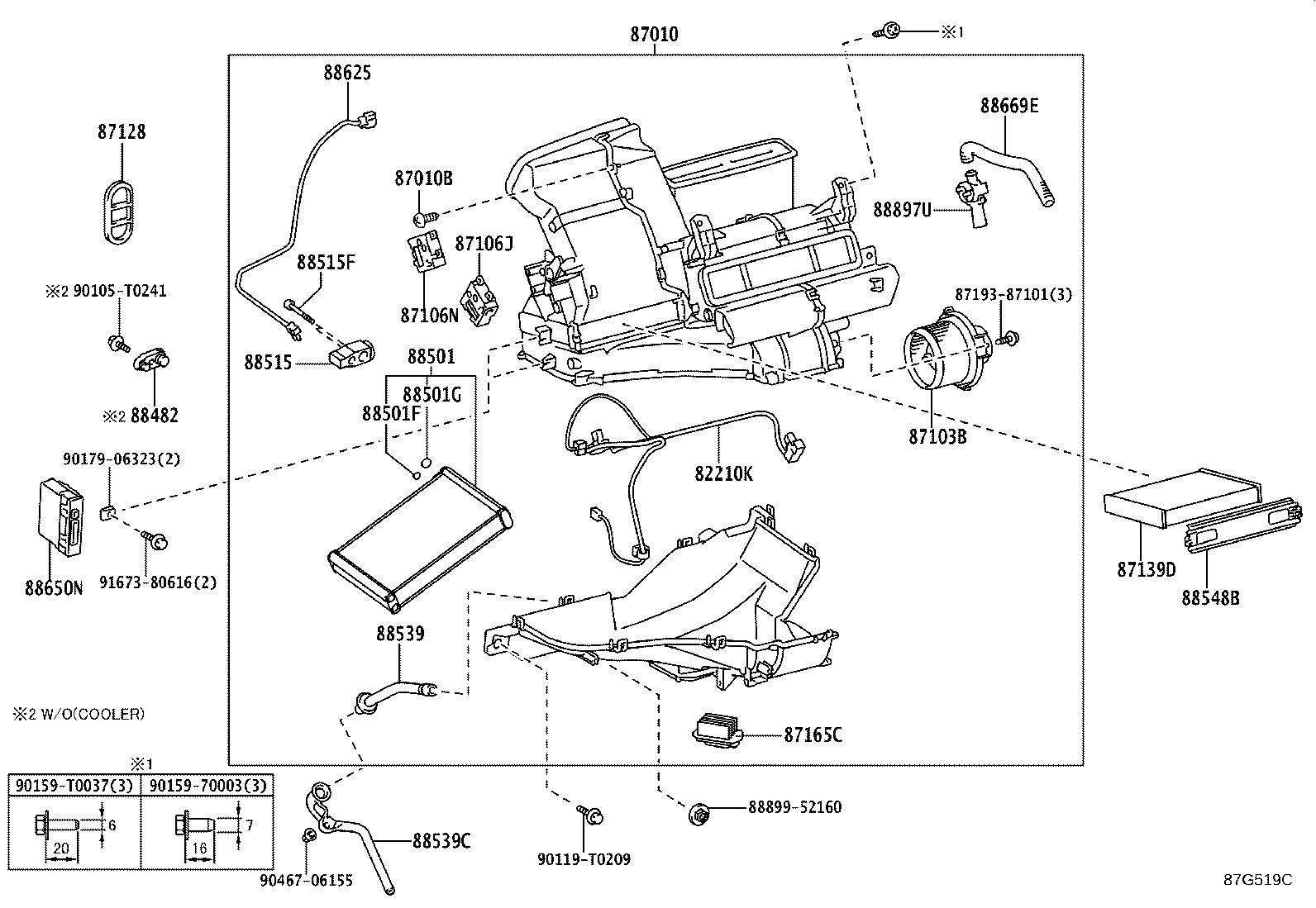

MANUAL AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87010 - UNIT ASSY, AIR CONDITIONER | ||||
| 87010-0DE80 |
NSP151..GEN;NSP150..LHD..GEN..(D,R) |
1 | ||
| 87010B - SCREW(FOR AIR CONDITIONER UNIT) | ||||
| 90099-00968 |
NSP151..GEN;NSP150..LHD..GEN..(D,R) |
15 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-0D091 |
NSP150,151..GEN |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-0D091 |
NSP150,151..GEN |
1 | ||
| 87139D - ELEMENT, AIR REFINER | ||||
| 87139-50100 |
NSP150,151..GEN *DPF |
1 | ||
| 87139-06080 |
NSP150,151..GEN DUST FILTER |
1 | ||
| 87139-06080 |
NSP150..CVT..GEN..G..A;NSP151..(GEN,TH,VN)..(A,E);NSP150,152..(GEN,TH,VN)..(D,R)..(A,E) DUST FILTER |
1 | ||
| 87139-50100 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) *DPF |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-0D370 |
NSP150,151..GEN |
1 | ||
| 88501F - O-RING, COOLER EVAPORATOR NO.1(DISCHARGE) | ||||
| 90099-14120 |
NSP150,151..GEN ID=10.8,OD=15.6 |
1 | ||
| 90099-14120 |
NSP150..E;NSP150..CVT..C;NSP151..5F..IDN;NSP150..5F..R..C;NSP151..CVT..IDN..(G,R);NSP151..(AGT,BZ,GCC,GEN,IND,VN)..(C,E,G,H) ID=10.8,OD=15.6 |
1 | ||
| 88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION) | ||||
| 90099-14121 |
NSP150,151..GEN ID=13.4,OD=18.2 |
1 | ||
| 90099-14121 |
NSP150..E;NSP150..CVT..C;NSP151..5F..IDN;NSP150..5F..R..C;NSP151..CVT..IDN..(G,R);NSP151..(AGT,BZ,GCC,GEN,IND,VN)..(C,E,G,H) ID=13.4,OD=18.2 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-0K100 |
NSP150,151..GEN |
1 | ||
| 88515F - BOLT(FOR COOLER EXPANSION VALVE) | ||||
| 90068-04057 |
NSP150,151..GEN |
2 | ||
| 90068-04057 |
NSP151,152..A,E;NSP150..CVT..G..A;NSP150..5F..GCC..R..A;NSP150..CVT..GCC..(D,R)..A;NSP150..(GEN,VN)..(D,R)..(A,E) |
2 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-0D160 |
NSP150,151..GEN |
1 | ||
| 88548-0D160 |
NSP151,152..A,E;NSP150..CVT..G..A;NSP150..5F..GCC..R..A;NSP150..CVT..GCC..(D,R)..A;NSP150..(GEN,VN)..(D,R)..(A,E) |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-0D050 |
NSP151..GEN;NSP150..LHD..GEN..(D,R) |
1 | ||
| 88620-0D050 |
NSP151..5F..G..A;NSP151..GCC..G..A;NSP150..CVT..GCC..A;NSP151..(D,R)..(A,E);NSP150..5F..GCC..R..A;NSP150..LHD..(GEN,VN)..(D,R)..(A,E) |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-0D670 |
NSP151..GEN;NSP150..RHD;NSP150..LHD..GEN..(D,R) |
1 | ||
| 88650-0D670 |
NSP150,151..LHD..GEN..D LATIN AMERICA SPEC |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-0D670 |
NSP151..GEN;NSP150..RHD;NSP150..LHD..GEN..(D,R) |
1 | ||
| 88650-0D670 |
NSP150,151..LHD..GEN..D LATIN AMERICA SPEC |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 88899-52160 | ||||
| 90105-T0241 | ||||
| 90119-T0209 | ||||
| 90159-70003 | ||||
| 90159-T0037 | ||||
| 90179-06323 | ||||
| 90467-06155 | ||||
| 91673-80616 | ||||
(1304- )NSP151..TH..B,C ; (1304- )NCP15#,NSP150..RHD..B,C ; (1608-1812)MA ; (
AUTO BOOST VENTILATOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87010 - UNIT ASSY, AIR CONDITIONER | ||||
| 87010-0DE80 |
NSP151..GEN;NSP150..LHD..GEN..(D,R) |
1 | ||
| 87010B - SCREW(FOR AIR CONDITIONER UNIT) | ||||
| 90099-00968 |
NSP151..GEN;NSP150..LHD..GEN..(D,R) |
15 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-0D091 |
NSP150,151..GEN |
1 | ||
| 87139D - ELEMENT, AIR REFINER | ||||
| 87139-50100 |
NSP150,151..GEN *DPF |
1 | ||
| 87139-06080 |
NSP150,151..GEN DUST FILTER |
1 | ||
| 87139-06080 |
NSP150..CVT..GEN..G..A;NSP151..(GEN,TH,VN)..(A,E);NSP150,152..(GEN,TH,VN)..(D,R)..(A,E) DUST FILTER |
1 | ||
| 87139-50100 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) *DPF |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-0D370 |
NSP150,151..GEN |
1 | ||
| 88501F - O-RING, COOLER EVAPORATOR NO.1(DISCHARGE) | ||||
| 90099-14120 |
NSP150,151..GEN ID=10.8,OD=15.6 |
1 | ||
| 90099-14120 |
NSP150..E;NSP150..CVT..C;NSP151..5F..IDN;NSP150..5F..R..C;NSP151..CVT..IDN..(G,R);NSP151..(AGT,BZ,GCC,GEN,IND,VN)..(C,E,G,H) ID=10.8,OD=15.6 |
1 | ||
| 88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION) | ||||
| 90099-14121 |
NSP150,151..GEN ID=13.4,OD=18.2 |
1 | ||
| 90099-14121 |
NSP150..E;NSP150..CVT..C;NSP151..5F..IDN;NSP150..5F..R..C;NSP151..CVT..IDN..(G,R);NSP151..(AGT,BZ,GCC,GEN,IND,VN)..(C,E,G,H) ID=13.4,OD=18.2 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-0K100 |
NSP150,151..GEN |
1 | ||
| 88515F - BOLT(FOR COOLER EXPANSION VALVE) | ||||
| 90068-04057 |
NSP150,151..GEN |
2 | ||
| 90068-04057 |
NSP151,152..A,E;NSP150..CVT..G..A;NSP150..5F..GCC..R..A;NSP150..CVT..GCC..(D,R)..A;NSP150..(GEN,VN)..(D,R)..(A,E) |
2 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-0D160 |
NSP150,151..GEN |
1 | ||
| 88548-0D160 |
NSP151,152..A,E;NSP150..CVT..G..A;NSP150..5F..GCC..R..A;NSP150..CVT..GCC..(D,R)..A;NSP150..(GEN,VN)..(D,R)..(A,E) |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-0D050 |
NSP151..GEN;NSP150..LHD..GEN..(D,R) |
1 | ||
| 88620-0D050 |
NSP151..5F..G..A;NSP151..GCC..G..A;NSP150..CVT..GCC..A;NSP151..(D,R)..(A,E);NSP150..5F..GCC..R..A;NSP150..LHD..(GEN,VN)..(D,R)..(A,E) |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-0D670 |
NSP151..GEN;NSP150..RHD;NSP150..LHD..GEN..(D,R) |
1 | ||
| 88650-0D670 |
NSP150,151..LHD..GEN..D LATIN AMERICA SPEC |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 88899-52160 | ||||
| 90119-T0209 | ||||
| 90159-70003 | ||||
| 90159-T0037 | ||||
| 90179-06323 | ||||
| 90467-06155 | ||||
| 91673-80616 | ||||
(1304- )NSP151..TH..B,C ; (1304- )NCP15#,NSP150..RHD..B,C ; (1608-1812)MA ; (

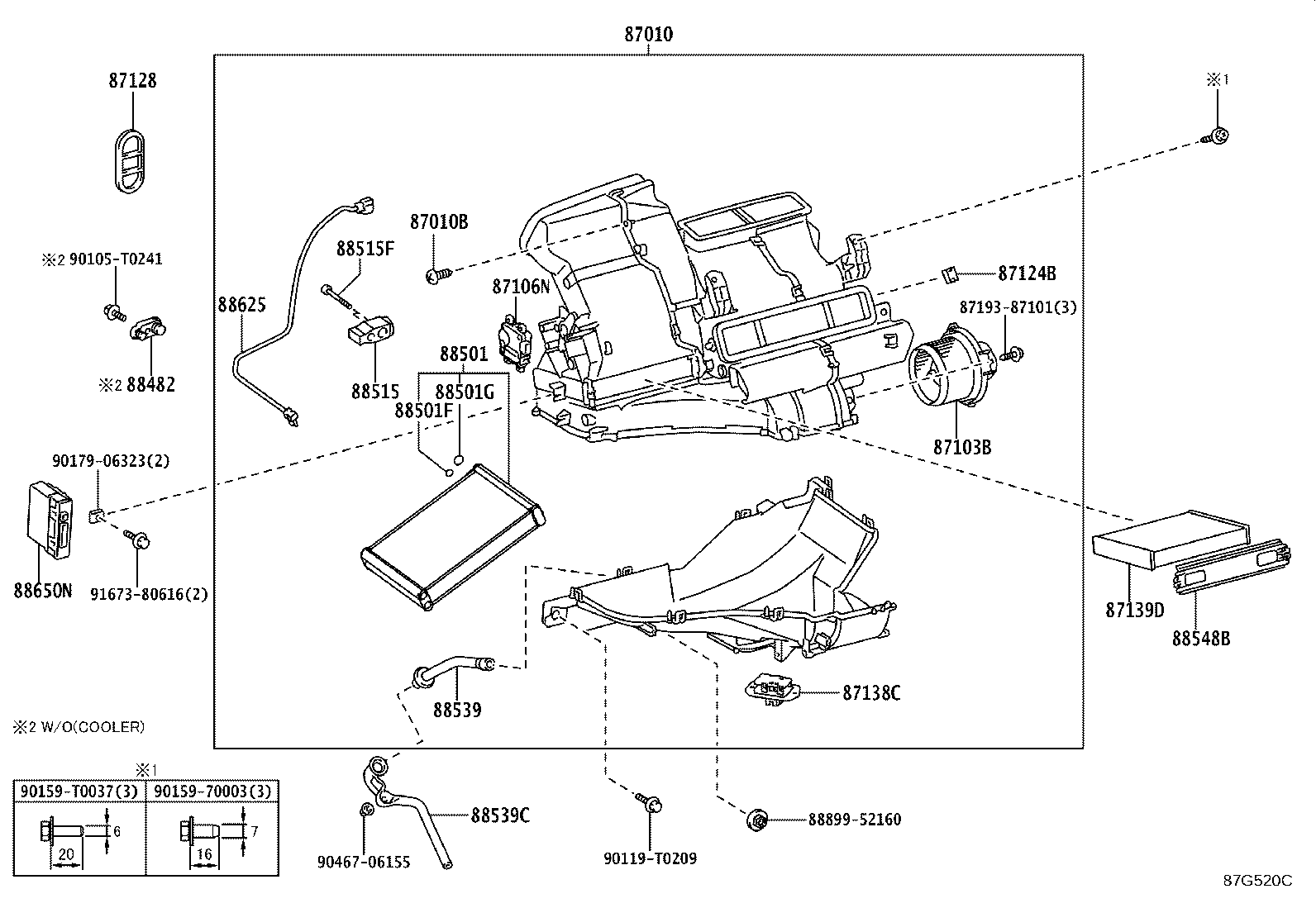

MANUAL BOOST VENTILATOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87010 - UNIT ASSY, AIR CONDITIONER | ||||
| 87010-0DE80 |
NSP151..GEN;NSP150..LHD..GEN..(D,R) |
1 | ||
| 87010B - SCREW(FOR AIR CONDITIONER UNIT) | ||||
| 90099-00968 |
NSP151..GEN;NSP150..LHD..GEN..(D,R) |
15 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-0D091 |
NSP150,151..GEN |
1 | ||
| 87139D - ELEMENT, AIR REFINER | ||||
| 87139-50100 |
NSP150,151..GEN *DPF |
1 | ||
| 87139-06080 |
NSP150,151..GEN DUST FILTER |
1 | ||
| 87139-06080 |
NSP150..CVT..GEN..G..A;NSP151..(GEN,TH,VN)..(A,E);NSP150,152..(GEN,TH,VN)..(D,R)..(A,E) DUST FILTER |
1 | ||
| 87139-50100 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) *DPF |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-0D370 |
NSP150,151..GEN |
1 | ||
| 88501F - O-RING, COOLER EVAPORATOR NO.1(DISCHARGE) | ||||
| 90099-14120 |
NSP150,151..GEN ID=10.8,OD=15.6 |
1 | ||
| 90099-14120 |
NSP150..E;NSP150..CVT..C;NSP151..5F..IDN;NSP150..5F..R..C;NSP151..CVT..IDN..(G,R);NSP151..(AGT,BZ,GCC,GEN,IND,VN)..(C,E,G,H) ID=10.8,OD=15.6 |
1 | ||
| 88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION) | ||||
| 90099-14121 |
NSP150,151..GEN ID=13.4,OD=18.2 |
1 | ||
| 90099-14121 |
NSP150..E;NSP150..CVT..C;NSP151..5F..IDN;NSP150..5F..R..C;NSP151..CVT..IDN..(G,R);NSP151..(AGT,BZ,GCC,GEN,IND,VN)..(C,E,G,H) ID=13.4,OD=18.2 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-0K100 |
NSP150,151..GEN |
1 | ||
| 88515F - BOLT(FOR COOLER EXPANSION VALVE) | ||||
| 90068-04057 |
NSP150,151..GEN |
2 | ||
| 90068-04057 |
NSP151,152..A,E;NSP150..CVT..G..A;NSP150..5F..GCC..R..A;NSP150..CVT..GCC..(D,R)..A;NSP150..(GEN,VN)..(D,R)..(A,E) |
2 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-0D160 |
NSP150,151..GEN |
1 | ||
| 88548-0D160 |
NSP151,152..A,E;NSP150..CVT..G..A;NSP150..5F..GCC..R..A;NSP150..CVT..GCC..(D,R)..A;NSP150..(GEN,VN)..(D,R)..(A,E) |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-0D050 |
NSP151..GEN;NSP150..LHD..GEN..(D,R) |
1 | ||
| 88620-0D050 |
NSP151..5F..G..A;NSP151..GCC..G..A;NSP150..CVT..GCC..A;NSP151..(D,R)..(A,E);NSP150..5F..GCC..R..A;NSP150..LHD..(GEN,VN)..(D,R)..(A,E) |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-0D670 |
NSP151..GEN;NSP150..RHD;NSP150..LHD..GEN..(D,R) |
1 | ||
| 88650-0D670 |
NSP150,151..LHD..GEN..D LATIN AMERICA SPEC |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-0D670 |
NSP151..GEN;NSP150..RHD;NSP150..LHD..GEN..(D,R) |
1 | ||
| 88650-0D670 |
NSP150,151..LHD..GEN..D LATIN AMERICA SPEC |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 88899-52160 | ||||
| 90119-T0209 | ||||
| 90159-70003 | ||||
| 90159-T0037 | ||||
| 90179-06323 | ||||
| 90467-06155 | ||||
| 91673-80616 | ||||

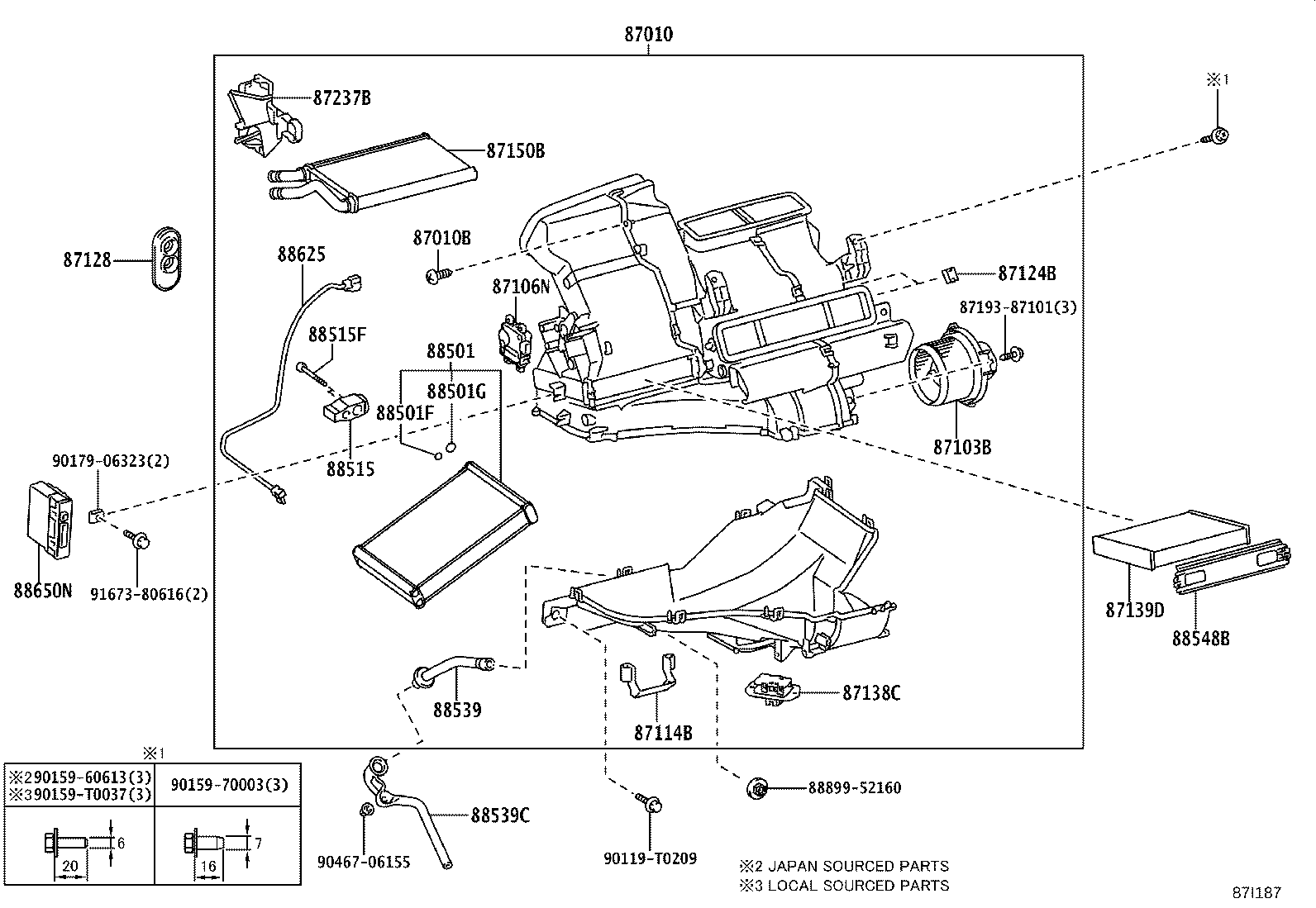

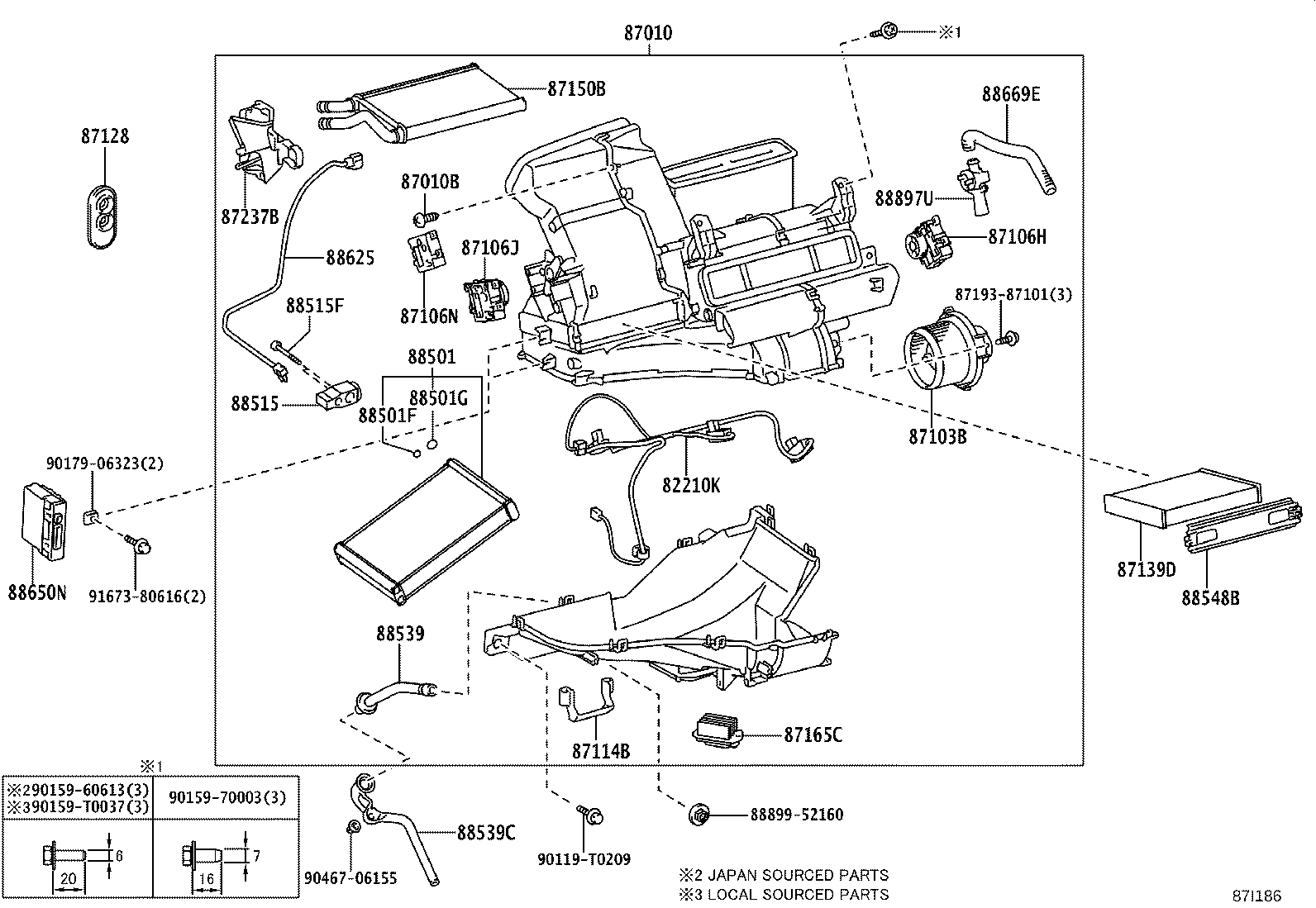

ILLUST NO. 1 OF 2(1708- )RHD..A,I ; (1801- )IDN ; (1804-)G ; (1901- )MA
AUTO COOLER OR AUTO *BV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87010 - UNIT ASSY, AIR CONDITIONER | ||||
| 87010-0DE80 |
NSP151..GEN;NSP150..LHD..GEN..(D,R) |
1 | ||
| 87010B - SCREW(FOR AIR CONDITIONER UNIT) | ||||
| 90099-00968 |
NSP151..GEN;NSP150..LHD..GEN..(D,R) |
15 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-0D091 |
NSP150,151..GEN |
1 | ||
| 87139D - ELEMENT, AIR REFINER | ||||
| 87139-50100 |
NSP150,151..GEN *DPF |
1 | ||
| 87139-06080 |
NSP150,151..GEN DUST FILTER |
1 | ||
| 87139-06080 |
NSP150..CVT..GEN..G..A;NSP151..(GEN,TH,VN)..(A,E);NSP150,152..(GEN,TH,VN)..(D,R)..(A,E) DUST FILTER |
1 | ||
| 87139-50100 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) *DPF |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-0D370 |
NSP150,151..GEN |
1 | ||
| 88501F - O-RING, COOLER EVAPORATOR NO.1(DISCHARGE) | ||||
| 90099-14120 |
NSP150,151..GEN ID=10.8,OD=15.6 |
1 | ||
| 90099-14120 |
NSP150..E;NSP150..CVT..C;NSP151..5F..IDN;NSP150..5F..R..C;NSP151..CVT..IDN..(G,R);NSP151..(AGT,BZ,GCC,GEN,IND,VN)..(C,E,G,H) ID=10.8,OD=15.6 |
1 | ||
| 88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION) | ||||
| 90099-14121 |
NSP150,151..GEN ID=13.4,OD=18.2 |
1 | ||
| 90099-14121 |
NSP150..E;NSP150..CVT..C;NSP151..5F..IDN;NSP150..5F..R..C;NSP151..CVT..IDN..(G,R);NSP151..(AGT,BZ,GCC,GEN,IND,VN)..(C,E,G,H) ID=13.4,OD=18.2 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-0K100 |
NSP150,151..GEN |
1 | ||
| 88515F - BOLT(FOR COOLER EXPANSION VALVE) | ||||
| 90068-04057 |
NSP150,151..GEN |
2 | ||
| 90068-04057 |
NSP151,152..A,E;NSP150..CVT..G..A;NSP150..5F..GCC..R..A;NSP150..CVT..GCC..(D,R)..A;NSP150..(GEN,VN)..(D,R)..(A,E) |
2 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-0D160 |
NSP150,151..GEN |
1 | ||
| 88548-0D160 |
NSP151,152..A,E;NSP150..CVT..G..A;NSP150..5F..GCC..R..A;NSP150..CVT..GCC..(D,R)..A;NSP150..(GEN,VN)..(D,R)..(A,E) |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-0D050 |
NSP151..GEN;NSP150..LHD..GEN..(D,R) |
1 | ||
| 88620-0D050 |
NSP151..5F..G..A;NSP151..GCC..G..A;NSP150..CVT..GCC..A;NSP151..(D,R)..(A,E);NSP150..5F..GCC..R..A;NSP150..LHD..(GEN,VN)..(D,R)..(A,E) |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-0D670 |
NSP151..GEN;NSP150..RHD;NSP150..LHD..GEN..(D,R) |
1 | ||
| 88650-0D670 |
NSP150,151..LHD..GEN..D LATIN AMERICA SPEC |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 88899-52160 | ||||
| 90105-T0241 | ||||
| 90119-T0209 | ||||
| 90159-70003 | ||||
| 90159-T0037 | ||||
| 90179-06323 | ||||
| 90467-06155 | ||||
| 91673-80616 | ||||
ILLUST NO. 1 OF 2(1708- )RHD..A,I ; (1801- )IDN ; (1804-)G ; (1901- )MA
MANUAL COOLER OR MANUAL *BV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87010 - UNIT ASSY, AIR CONDITIONER | ||||
| 87010-0DE80 |
NSP151..GEN;NSP150..LHD..GEN..(D,R) |
1 | ||
| 87010B - SCREW(FOR AIR CONDITIONER UNIT) | ||||
| 90099-00968 |
NSP151..GEN;NSP150..LHD..GEN..(D,R) |
15 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-0D091 |
NSP150,151..GEN |
1 | ||
| 87139D - ELEMENT, AIR REFINER | ||||
| 87139-50100 |
NSP150,151..GEN *DPF |
1 | ||
| 87139-06080 |
NSP150,151..GEN DUST FILTER |
1 | ||
| 87139-06080 |
NSP150..CVT..GEN..G..A;NSP151..(GEN,TH,VN)..(A,E);NSP150,152..(GEN,TH,VN)..(D,R)..(A,E) DUST FILTER |
1 | ||
| 87139-50100 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) *DPF |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-0D370 |
NSP150,151..GEN |
1 | ||
| 88501F - O-RING, COOLER EVAPORATOR NO.1(DISCHARGE) | ||||
| 90099-14120 |
NSP150,151..GEN ID=10.8,OD=15.6 |
1 | ||
| 90099-14120 |
NSP150..E;NSP150..CVT..C;NSP151..5F..IDN;NSP150..5F..R..C;NSP151..CVT..IDN..(G,R);NSP151..(AGT,BZ,GCC,GEN,IND,VN)..(C,E,G,H) ID=10.8,OD=15.6 |
1 | ||
| 88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION) | ||||
| 90099-14121 |
NSP150,151..GEN ID=13.4,OD=18.2 |
1 | ||
| 90099-14121 |
NSP150..E;NSP150..CVT..C;NSP151..5F..IDN;NSP150..5F..R..C;NSP151..CVT..IDN..(G,R);NSP151..(AGT,BZ,GCC,GEN,IND,VN)..(C,E,G,H) ID=13.4,OD=18.2 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-0K100 |
NSP150,151..GEN |
1 | ||
| 88515F - BOLT(FOR COOLER EXPANSION VALVE) | ||||
| 90068-04057 |
NSP150,151..GEN |
2 | ||
| 90068-04057 |
NSP151,152..A,E;NSP150..CVT..G..A;NSP150..5F..GCC..R..A;NSP150..CVT..GCC..(D,R)..A;NSP150..(GEN,VN)..(D,R)..(A,E) |
2 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-0D160 |
NSP150,151..GEN |
1 | ||
| 88548-0D160 |
NSP151,152..A,E;NSP150..CVT..G..A;NSP150..5F..GCC..R..A;NSP150..CVT..GCC..(D,R)..A;NSP150..(GEN,VN)..(D,R)..(A,E) |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-0D050 |
NSP151..GEN;NSP150..LHD..GEN..(D,R) |
1 | ||
| 88620-0D050 |
NSP151..5F..G..A;NSP151..GCC..G..A;NSP150..CVT..GCC..A;NSP151..(D,R)..(A,E);NSP150..5F..GCC..R..A;NSP150..LHD..(GEN,VN)..(D,R)..(A,E) |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-0D670 |
NSP151..GEN;NSP150..RHD;NSP150..LHD..GEN..(D,R) |
1 | ||
| 88650-0D670 |
NSP150,151..LHD..GEN..D LATIN AMERICA SPEC |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 88899-52160 | ||||
| 90105-T0241 | ||||
| 90119-T0209 | ||||
| 90159-70003 | ||||
| 90159-T0037 | ||||
| 90179-06323 | ||||
| 90467-06155 | ||||
| 91673-80616 | ||||
ILLUST NO. 2 OF 2(1708- )RHD..A,I ; (1801- )IDN ; (1804-)G ; (1901- )MA

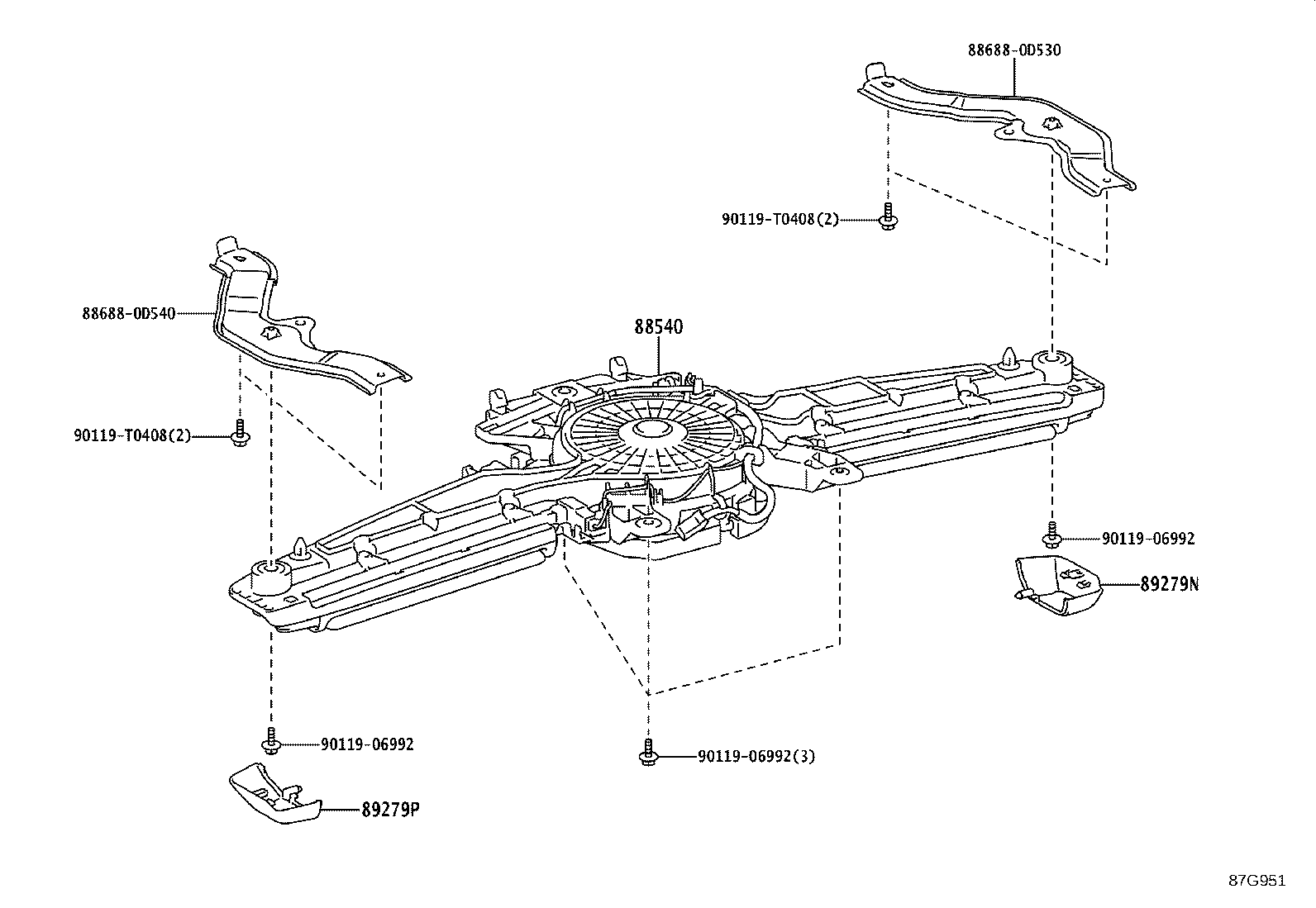

ROOF FAN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88688-0D530 | ||||
| 88688-0D540 | ||||
| 90119-06992 | ||||
| 90119-T0408 | ||||
ILLUST NO. 1 OF 2(1708- )RHD..A,I ; (1801- )IDN ; (1804-)G ; (1901- )MA
AUTO AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87010 - UNIT ASSY, AIR CONDITIONER | ||||
| 87010-0DE80 |
NSP151..GEN;NSP150..LHD..GEN..(D,R) |
1 | ||
| 87010B - SCREW(FOR AIR CONDITIONER UNIT) | ||||
| 90099-00968 |
NSP151..GEN;NSP150..LHD..GEN..(D,R) |
15 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-0D091 |
NSP150,151..GEN |
1 | ||
| 87139D - ELEMENT, AIR REFINER | ||||
| 87139-50100 |
NSP150,151..GEN *DPF |
1 | ||
| 87139-06080 |
NSP150,151..GEN DUST FILTER |
1 | ||
| 87139-06080 |
NSP150..CVT..GEN..G..A;NSP151..(GEN,TH,VN)..(A,E);NSP150,152..(GEN,TH,VN)..(D,R)..(A,E) DUST FILTER |
1 | ||
| 87139-50100 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) *DPF |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-0D370 |
NSP150,151..GEN |
1 | ||
| 88501F - O-RING, COOLER EVAPORATOR NO.1(DISCHARGE) | ||||
| 90099-14120 |
NSP150,151..GEN ID=10.8,OD=15.6 |
1 | ||
| 90099-14120 |
NSP150..E;NSP150..CVT..C;NSP151..5F..IDN;NSP150..5F..R..C;NSP151..CVT..IDN..(G,R);NSP151..(AGT,BZ,GCC,GEN,IND,VN)..(C,E,G,H) ID=10.8,OD=15.6 |
1 | ||
| 88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION) | ||||
| 90099-14121 |
NSP150,151..GEN ID=13.4,OD=18.2 |
1 | ||
| 90099-14121 |
NSP150..E;NSP150..CVT..C;NSP151..5F..IDN;NSP150..5F..R..C;NSP151..CVT..IDN..(G,R);NSP151..(AGT,BZ,GCC,GEN,IND,VN)..(C,E,G,H) ID=13.4,OD=18.2 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-0K100 |
NSP150,151..GEN |
1 | ||
| 88515F - BOLT(FOR COOLER EXPANSION VALVE) | ||||
| 90068-04057 |
NSP150,151..GEN |
2 | ||
| 90068-04057 |
NSP151,152..A,E;NSP150..CVT..G..A;NSP150..5F..GCC..R..A;NSP150..CVT..GCC..(D,R)..A;NSP150..(GEN,VN)..(D,R)..(A,E) |
2 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-0D160 |
NSP150,151..GEN |
1 | ||
| 88548-0D160 |
NSP151,152..A,E;NSP150..CVT..G..A;NSP150..5F..GCC..R..A;NSP150..CVT..GCC..(D,R)..A;NSP150..(GEN,VN)..(D,R)..(A,E) |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-0D050 |
NSP151..GEN;NSP150..LHD..GEN..(D,R) |
1 | ||
| 88620-0D050 |
NSP151..5F..G..A;NSP151..GCC..G..A;NSP150..CVT..GCC..A;NSP151..(D,R)..(A,E);NSP150..5F..GCC..R..A;NSP150..LHD..(GEN,VN)..(D,R)..(A,E) |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-0D670 |
NSP151..GEN;NSP150..RHD;NSP150..LHD..GEN..(D,R) |
1 | ||
| 88650-0D670 |
NSP150,151..LHD..GEN..D LATIN AMERICA SPEC |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 88899-52160 | ||||
| 90119-T0209 | ||||
| 90159-60613 | ||||
| 90159-70003 | ||||
| 90159-T0037 | ||||
| 90179-06323 | ||||
| 90467-06155 | ||||
| 91673-80616 | ||||
ILLUST NO. 1 OF 2(1708- )RHD..A,I ; (1801- )IDN ; (1804-)G ; (1901- )MA
MANUAL AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87010 - UNIT ASSY, AIR CONDITIONER | ||||
| 87010-0DE80 |
NSP151..GEN;NSP150..LHD..GEN..(D,R) |
1 | ||
| 87010B - SCREW(FOR AIR CONDITIONER UNIT) | ||||
| 90099-00968 |
NSP151..GEN;NSP150..LHD..GEN..(D,R) |
15 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-0D091 |
NSP150,151..GEN |
1 | ||
| 87139D - ELEMENT, AIR REFINER | ||||
| 87139-50100 |
NSP150,151..GEN *DPF |
1 | ||
| 87139-06080 |
NSP150,151..GEN DUST FILTER |
1 | ||
| 87139-06080 |
NSP150..CVT..GEN..G..A;NSP151..(GEN,TH,VN)..(A,E);NSP150,152..(GEN,TH,VN)..(D,R)..(A,E) DUST FILTER |
1 | ||
| 87139-50100 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) *DPF |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-0D370 |
NSP150,151..GEN |
1 | ||
| 88501F - O-RING, COOLER EVAPORATOR NO.1(DISCHARGE) | ||||
| 90099-14120 |
NSP150,151..GEN ID=10.8,OD=15.6 |
1 | ||
| 90099-14120 |
NSP150..E;NSP150..CVT..C;NSP151..5F..IDN;NSP150..5F..R..C;NSP151..CVT..IDN..(G,R);NSP151..(AGT,BZ,GCC,GEN,IND,VN)..(C,E,G,H) ID=10.8,OD=15.6 |
1 | ||
| 88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION) | ||||
| 90099-14121 |
NSP150,151..GEN ID=13.4,OD=18.2 |
1 | ||
| 90099-14121 |
NSP150..E;NSP150..CVT..C;NSP151..5F..IDN;NSP150..5F..R..C;NSP151..CVT..IDN..(G,R);NSP151..(AGT,BZ,GCC,GEN,IND,VN)..(C,E,G,H) ID=13.4,OD=18.2 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-0K100 |
NSP150,151..GEN |
1 | ||
| 88515F - BOLT(FOR COOLER EXPANSION VALVE) | ||||
| 90068-04057 |
NSP150,151..GEN |
2 | ||
| 90068-04057 |
NSP151,152..A,E;NSP150..CVT..G..A;NSP150..5F..GCC..R..A;NSP150..CVT..GCC..(D,R)..A;NSP150..(GEN,VN)..(D,R)..(A,E) |
2 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-0D160 |
NSP150,151..GEN |
1 | ||
| 88548-0D160 |
NSP151,152..A,E;NSP150..CVT..G..A;NSP150..5F..GCC..R..A;NSP150..CVT..GCC..(D,R)..A;NSP150..(GEN,VN)..(D,R)..(A,E) |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-0D050 |
NSP151..GEN;NSP150..LHD..GEN..(D,R) |
1 | ||
| 88620-0D050 |
NSP151..5F..G..A;NSP151..GCC..G..A;NSP150..CVT..GCC..A;NSP151..(D,R)..(A,E);NSP150..5F..GCC..R..A;NSP150..LHD..(GEN,VN)..(D,R)..(A,E) |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-0D670 |
NSP151..GEN;NSP150..RHD;NSP150..LHD..GEN..(D,R) |
1 | ||
| 88650-0D670 |
NSP150,151..LHD..GEN..D LATIN AMERICA SPEC |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 88899-52160 | ||||
| 90119-T0209 | ||||
| 90159-60613 | ||||
| 90159-70003 | ||||
| 90159-T0037 | ||||
| 90179-06323 | ||||
| 90467-06155 | ||||
| 91673-80616 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
