NSP151L-BEMRK (2016)
Toyota Yaris/Vios/Limo
ILLUST NO. 2 OF 8(1304-1609)NCP15# ; (1304-1712)NSP151..GCC..B ;(1304- )NSP150..B ; (1304- )N
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85928B - RESISTOR, COOLING FAN | ||||
| 85928-0D020 |
NSP150,151..GEN |
1 | ||
| 85928-0D020 |
NSP150,151..GEN |
1 | ||
| 85928-0D020 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..IDN..(G,R);NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I);NSP151..(AGT,BZ,GCC,GEN,IND,PH,PKN,VN)..(A,C,D,E,G,H,I) |
1 | ||
| 85928-0D020 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..IDN..(G,R);NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I);NSP151..(AGT,BZ,GCC,GEN,IND,PH,PKN,VN)..(A,C,D,E,G,H,I) |
1 | ||
| 85928B - RESISTOR, COOLING FAN | ||||
| 85928-0D020 |
NSP150,151..GEN |
1 | ||
| 85928-0D020 |
NSP150,151..GEN |
1 | ||
| 85928-0D020 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..IDN..(G,R);NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I);NSP151..(AGT,BZ,GCC,GEN,IND,PH,PKN,VN)..(A,C,D,E,G,H,I) |
1 | ||
| 85928-0D020 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..IDN..(G,R);NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I);NSP151..(AGT,BZ,GCC,GEN,IND,PH,PKN,VN)..(A,C,D,E,G,H,I) |
1 | ||
| Common parts | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8404 | ||||
ILLUST NO. 6 OF 8(1708- )GEN,PKN,TH..A,I ; (1801- )GCC,IDN,IND,TAIW..A,C,F,G ; (1807- )D,E,
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-0K020 |
NSP150,151..GEN..(D,R) |
1 | ||
| 84052-0K020 |
NSP151..CVT..D..A;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..GCC..G..(A,C);NSP150..CVT..GCC..(A,C);NSP150..CVT..GEN..(D,R)..A;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I);NSP151..5F..(GEN,IDN,VN)..(D,R)..(A,C,E);NSP151..CVT..(GCC,GEN,IDN,VN)..R..(A,C,E) |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-53081 |
NSP151..5F..GEN..(D,R) ALGERIA SPEC |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-53081 |
NSP151..5F..GEN..(D,R) ALGERIA SPEC |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-0D090C0 |
NSP150,151..GEN..(G,R) BLACK,TRIM0#,2# |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-0K051 |
NSP150,151..GEN..(G,R) |
1 | ||
| 84306-06080 |
NSP150,151..GEN..D |
1 | ||
| 84306-0K051 |
NSP151..GEN..(G,R);NSP150..LHD..GEN..R ECUADOR SPEC |
1 | ||
| 84306-0D260 |
NSP151..5F..GEN..D ALGERIA SPEC |
1 | ||
| 84307-0D120 |
NSP151..5F..GEN..D LATIN AMERICA SPEC&ECUADOR SPEC,W(STEERING SENSOR) |
1 | ||
| 84306-0D150 |
NSP151..5F..GEN..D LATIN AMERICA SPEC&J-LO PACKAGE(FOR LATIN AMERICA)&SRS AIR BAG-WITHOUT |
1 | ||
| 84306-06080 |
NSP151..5F..GEN..D;NSP150..LHD..GEN..D ECUADOR SPEC |
1 | ||
| 84308-0K020 |
NSP151..5F..E;NSP150..D..(D,E,I) |
1 | ||
| 84308-0K010 |
NSP151..V..G;NSP152..HTWC;NSP151..D,H,I;NSP151..CVT..E;NSP150..(G,R)..(D,I) |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-0K051 |
NSP150,151..GEN..(G,R) |
1 | ||
| 84306-06080 |
NSP150,151..GEN..D |
1 | ||
| 84306-0K051 |
NSP151..GEN..(G,R);NSP150..LHD..GEN..R ECUADOR SPEC |
1 | ||
| 84306-0D260 |
NSP151..5F..GEN..D ALGERIA SPEC |
1 | ||
| 84307-0D120 |
NSP151..5F..GEN..D LATIN AMERICA SPEC&ECUADOR SPEC,W(STEERING SENSOR) |
1 | ||
| 84306-0D150 |
NSP151..5F..GEN..D LATIN AMERICA SPEC&J-LO PACKAGE(FOR LATIN AMERICA)&SRS AIR BAG-WITHOUT |
1 | ||
| 84306-06080 |
NSP151..5F..GEN..D;NSP150..LHD..GEN..D ECUADOR SPEC |
1 | ||
| 84308-0K020 |
NSP151..5F..E;NSP150..D..(D,E,I) |
1 | ||
| 84308-0K010 |
NSP151..V..G;NSP152..HTWC;NSP151..D,H,I;NSP151..CVT..E;NSP150..(G,R)..(D,I) |
1 | ||
| 84307 - CABLE SUB-ASSY, SPIRAL W/SENSOR | ||||
| 84307-0D180 |
NSP152..HTWC;NSP151..D,H,I;NSP151..CVT..E;NSP150..(G,R)..(D,I) |
1 | ||
| 84307-0D170 |
NSP151..5F..E;NSP150..D..(D,E,I) |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-06030 |
NSP150,151..GEN..(D,R) |
1 | ||
| 84450-06030 |
NSP151..CVT..D..A;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..GCC..G..(A,C);NSP150..CVT..GCC..(A,C);NSP150..CVT..GEN..(D,R)..A;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I);NSP151..5F..(GEN,IDN,VN)..(D,R)..(A,C,E);NSP151..CVT..(GCC,GEN,IDN,VN)..R..(A,C,E) |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 8924B-0D010 |
NSP151..CVT..GEN..D..H;NSP150..CVT..GCC..(A,C);NSP150..5F..GCC..R..(A,C);NSP151..MTM..(GEN,IDN)..(C,H);NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I);NSP151..CVT..(GCC,GEN,IDN)..(G,R)..(C,H);NSP151..(AGT,BZ,GCC,PH,PKN,TH,VN)..(A,D,E,H,I) |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90159-T0007 | ||||
| 90168-40113 | ||||
| 90168-40129 | ||||
| 90168-T0004 | ||||
| Linked diagrams | ||||
| 4501 | ||||
| 6712 | ||||
ILLUST NO. 2 OF 8(1708- )GEN,PKN,TH..A,I ; (1801- )GCC,IDN,IND,TAIW..A,C,F,G ; (1807- )D,E,
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85928B - RESISTOR, COOLING FAN | ||||
| 85928-0D020 |
NSP150,151..GEN |
1 | ||
| 85928-0D020 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..IDN..(G,R);NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I);NSP151..(AGT,BZ,GCC,GEN,IND,PH,PKN,VN)..(A,C,D,E,G,H,I) |
1 | ||
| 85928B - RESISTOR, COOLING FAN | ||||
| 85928-0D020 |
NSP150,151..GEN |
1 | ||
| 85928-0D020 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..IDN..(G,R);NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I);NSP151..(AGT,BZ,GCC,GEN,IND,PH,PKN,VN)..(A,C,D,E,G,H,I) |
1 | ||
| Common parts | ||||
| 90153-50010 | ||||
| 90178-T0056 | ||||
| 91673-80616 | ||||
| 94151-80801 | ||||
| Linked diagrams | ||||
| 8201 | ||||
| 8404 | ||||
ILLUST NO. 8 OF 8(1708- )GEN,PKN,TH..A,I ; (1801- )GCC,IDN,IND,TAIW..A,C,F,G ; (1807- )D,E,
DOOR,ROOF,FLOOR & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-0D150 |
NSP150,151..GEN |
1 | ||
| 83320-0D150 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I);NSP151..(AGT,GCC,GEN,IND,PH,PKN,TH,VN)..(A,D,E,G,H,I) |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-0D150 |
NSP150,151..GEN |
1 | ||
| 83320-0D150 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I);NSP151..(AGT,GCC,GEN,IND,PH,PKN,TH,VN)..(A,D,E,G,H,I) |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-02070 |
NSP150,151..GEN |
2 | ||
| 84231-02070 |
NSP150..D,E,I;NSP150..CVT..A;NSP151,152..A,D,E,I;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-02070 |
NSP150,151..GEN |
2 | ||
| 84231-02070 |
NSP150..D,E,I;NSP150..CVT..A;NSP151,152..A,D,E,I;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-02070 |
NSP150,151..GEN |
2 | ||
| 84231-02070 |
NSP150..D,E,I;NSP150..CVT..A;NSP151,152..A,D,E,I;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-02070 |
NSP150,151..GEN |
2 | ||
| 84231-02070 |
NSP150..D,E,I;NSP150..CVT..A;NSP151,152..A,D,E,I;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-06050 |
NSP150,151..GEN |
1 | ||
| 84810-0D300 |
NSP150..CVT..A;NSP151..D..(A,H);NSP150..LHD..5F..GEN..A;NSP151..(G,R)..(A,D,E,I);NSP150,151..MTM..(AGT,GCC)..R..(A,H);NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-06050 |
NSP150,151..GEN |
1 | ||
| 84810-0D300 |
NSP150..CVT..A;NSP151..D..(A,H);NSP150..LHD..5F..GEN..A;NSP151..(G,R)..(A,D,E,I);NSP150,151..MTM..(AGT,GCC)..R..(A,H);NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-06050 |
NSP150,151..GEN |
2 | ||
| 84810-0D300 |
NSP151..AGT..R;NSP151..D..(A,H);NSP150..CVT..GEN..A;NSP150..GCC..(G,R)..A;NSP150..LHD..5F..GEN..A;NSP151..(G,R)..(A,D,E,I);NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-06050 |
NSP150,151..GEN |
2 | ||
| 84810-0D300 |
NSP151..AGT..R;NSP151..D..(A,H);NSP150..CVT..GEN..A;NSP150..GCC..(G,R)..A;NSP150..LHD..5F..GEN..A;NSP151..(G,R)..(A,D,E,I);NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
2 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-0K010 |
NSP150,151..GEN..(D,R) |
1 | ||
| 84870-0D030 |
NSP151..GEN..R LATIN AMERICA SPEC&E-SPORT PACKAGE(FOR LATIN AMERICA) |
1 | ||
| 84870-0D030 |
NSP151..5F..GEN..R ALGERIA SPEC |
1 | ||
| 84870-0D030 |
NSP150,151..GEN..G |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-0K010 |
NSP150,151..GEN..(D,R) |
1 | ||
| 84870-0D030 |
NSP151..GEN..R LATIN AMERICA SPEC&E-SPORT PACKAGE(FOR LATIN AMERICA) |
1 | ||
| 84870-0D030 |
NSP151..5F..GEN..R ALGERIA SPEC |
1 | ||
| 84870-0D030 |
NSP150,151..GEN..G |
1 | ||
| 84945A - SWITCH, LUGGAGE ELECTRICAL KEY | ||||
| 84945-53020 |
NSP151..RHD..R..(A,G);NSP150..CVT..GEN..G..A;NSP151..(BZ,GEN,IDN,IND,PH,PKN,TH,VN)..(G,V)..(A,C,D,E,G,H,I) |
1 | ||
| Common parts | ||||
| 90119-T0279 | ||||
| 90159-60498 | ||||
| 90159-T0034 | ||||
| 90164-40103 | ||||
| 90164-T0005 | ||||
| 90166-70001 | ||||
| 90167-T0012 | ||||
| 90189-06197 | ||||
| 93568-55014 | ||||

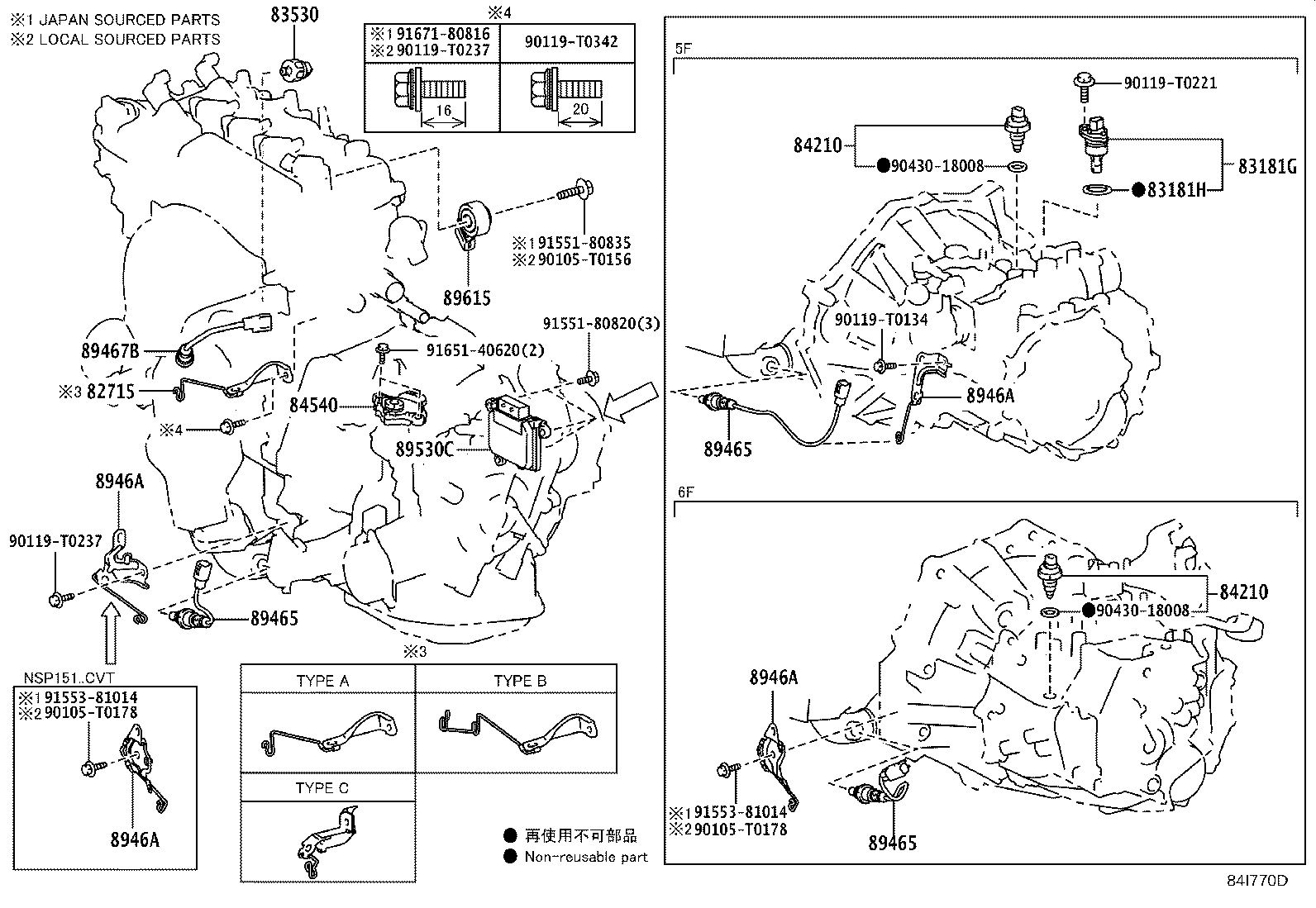

ILLUST NO. 1 OF 8(1604- )NSP15#
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82715 - BRACKET,WIRING HARNESS CLAMP | ||||
| 82715-5C360 |
NSP150,151..GEN TYPE B:REFER ILLUST. |
1 | ||
| 82715-5C360 |
NSP150..D,E,I;NSP151..5F..IDN;NSP151..A,D,E,G,I;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C TYPE B:REFER ILLUST. |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
NSP150,151..GEN DENSO |
1 | ||
| 83530-60020 |
NSP150,151..GEN YAZAKI |
1 | ||
| 83530-28020 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) DENSO |
1 | ||
| 83530-60020 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) YAZAKI |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-52050 |
NSP150,151..5F..GEN |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-52050 |
NSP150,151..5F..GEN |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-52830 |
NSP150,151..5F..GEN |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-52830 |
NSP150,151..5F..GEN |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-52830 |
NSP150,151..5F..GEN |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-30050 |
NSP150,151..GEN |
1 | ||
| 89467-30050 |
NSP150..D,E,I;NSP151..5F..IDN;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP151..(AGT,GCC,GEN,IND,PH,PKN,TH,VN)..(A,D,E,G,H,I) |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
NSP150,151..GEN |
1 | ||
| 89615-20090 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| Common parts | ||||
| 90105-T0156 | ||||
| 90105-T0178 | ||||
| 90119-T0134 | ||||
| 90119-T0221 | ||||
| 90119-T0237 | ||||
| 90119-T0342 | ||||
| 90430-18008 | ||||
| 91551-80820 | ||||
| 91551-80835 | ||||
| 91553-81014 | ||||
| 91651-40620 | ||||
| 91671-80816 | ||||
ILLUST NO. 3 OF 8(1304-1609)NCP15# ; (1304-1712)NSP151..GCC..B ;(1304- )NSP150..B ; (1304- )N
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-0L010 |
1NRFE,2NRFE..NSP15# |
1 | ||
| 28300-0L010 |
1NRFE,2NRFE..NSP15# |
1 | ||
| 28300-0L011 |
1NRFE,2NRFE..NSP150,151..GEN |
1 | ||
| 28300-0L011 |
1NRFE,2NRFE..NSP150,151..GEN |
1 | ||
| 28300-0L011 |
2NRFE..NSP151..A,D,E,G;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE,3NR#..NSP150,152..(GEN,PH,TH,VN)..(D,R)..(A,D,E) |
1 | ||
| 28300-0L011 |
2NRFE..NSP151..A,D,E,G;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE,3NR#..NSP150,152..(GEN,PH,TH,VN)..(D,R)..(A,D,E) |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08296 |
NSP150,151..GEN 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08296 |
NSP150,151..GEN 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08295 |
NSP150,151..GEN 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08295 |
NSP150,151..GEN 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08274 |
NSP150,151..GEN 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08274 |
NSP150,151..GEN 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08302 |
NSP150,151..GEN 50A-30A-50A,FEMALE |
1 | ||
| 90982-08302 |
NSP150,151..GEN 50A-30A-50A,FEMALE |
1 | ||
| 90982-08274 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08274 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08296 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08296 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08302 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 50A-30A-50A,FEMALE |
1 | ||
| 90982-08302 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 50A-30A-50A,FEMALE |
1 | ||
| 90982-08300 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 50A-30A-30A,FEMALE |
1 | ||
| 90982-08300 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 50A-30A-30A,FEMALE |
1 | ||
| 90982-08295 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08295 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09022 |
NSP150,151..GEN 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09022 |
NSP150,151..GEN 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09024 |
NSP150,151..GEN 25A,MINI FUSE |
1 | ||
| 90982-09024 |
NSP150,151..GEN 25A,MINI FUSE |
1 | ||
| 90982-09020 |
NSP150,151..GEN 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09020 |
NSP150,151..GEN 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09021 |
NSP150,151..GEN 10A,MINI FUSE,RED |
1 | ||
| 90982-09021 |
NSP150,151..GEN 10A,MINI FUSE,RED |
1 | ||
| 90982-09023 |
NSP150,151..GEN 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09023 |
NSP150,151..GEN 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09025 |
NSP150,151..GEN 30A,MINI FUSE,GRN |
1 | ||
| 90982-09025 |
NSP150,151..GEN 30A,MINI FUSE,GRN |
1 | ||
| 90982-09022 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09022 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 10A,MINI FUSE,RED |
1 | ||
| 90982-09021 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 10A,MINI FUSE,RED |
1 | ||
| 90982-09024 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 25A,MINI FUSE |
1 | ||
| 90982-09024 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 25A,MINI FUSE |
1 | ||
| 90982-09025 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 30A,MINI FUSE,GRN |
1 | ||
| 90982-09025 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 30A,MINI FUSE,GRN |
1 | ||
| 90982-09023 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09023 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09020 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09020 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 7.5A,MINI FUSE,BROWN |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 82616-58010 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-0D040 |
NSP150,151..GEN |
1 | ||
| 82660-0D040 |
NSP150,151..GEN |
1 | ||
| 82660-0D040 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 82660-0D040 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-0D050 |
NSP150,151..GEN |
1 | ||
| 82660-0D050 |
NSP150,151..GEN |
1 | ||
| 82660-0D050 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 82660-0D050 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-0D060 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 82660-0D060 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 82660F - BLOCK ASSY, RELAY | ||||
| 82660-0H070 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
2 | ||
| 82660-0H070 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
2 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-52050 |
NSP150,151..GEN |
1 | ||
| 82661-52050 |
NSP150,151..GEN |
1 | ||
| 82661-52050 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 82661-52050 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-0D650 |
NSP151..5F..GEN..(D,R) ALGERIA SPEC |
1 | ||
| 82662-0D650 |
NSP151..5F..GEN..(D,R) ALGERIA SPEC |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-0D090 |
NSP150,151..GEN |
1 | ||
| 82663-0D090 |
NSP150,151..GEN |
1 | ||
| 82663-0D090 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 82663-0D090 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-0D100 |
NSP150,151..GEN |
1 | ||
| 82741-0D100 |
NSP150,151..GEN |
1 | ||
| 82741-0D100 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 82741-0D100 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-T2002 |
NSP151..5F..GEN..(D,R) ALGERIA SPEC |
1 | ||
| 90987-T2002 |
NSP151..5F..GEN..(D,R) ALGERIA SPEC |
1 | ||
| 90987-T2002 |
NSP151..A,D,E,I;NSP151..5F..IDN;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 90987-T2002 |
NSP151..A,D,E,I;NSP151..5F..IDN;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90987-T2003 |
NSP151..5F..GEN..(D,R) ALGERIA SPEC |
1 | ||
| 90987-T2003 |
NSP151..5F..GEN..(D,R) ALGERIA SPEC |
1 | ||
| 90987-T2002 |
NSP151..A,D,E,I;NSP151..5F..IDN;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 90987-T2002 |
NSP151..A,D,E,I;NSP151..5F..IDN;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-T2001 |
NSP150,151..GEN (L) |
1 | ||
| 90987-T2001 |
NSP150,151..GEN (L) |
1 | ||
| 90987-02027 |
NSP150,151..GEN (J) |
1 | ||
| 90987-02027 |
NSP150,151..GEN (J) |
1 | ||
| 90987-T2001 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) (L) |
1 | ||
| 90987-T2001 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) (L) |
1 | ||
| 90987-02027 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) (J) |
1 | ||
| 90987-02027 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) (J) |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90080-87009 |
NSP150,151..GEN (L) |
1 | ||
| 90080-87009 |
NSP150,151..GEN (L) |
1 | ||
| 90987-04004 |
NSP150,151..GEN (J) |
1 | ||
| 90987-04004 |
NSP150,151..GEN (J) |
1 | ||
| 90080-87009 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) (L) |
1 | ||
| 90080-87009 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) (L) |
1 | ||
| 90987-04004 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) (J) |
1 | ||
| 90987-04004 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) (J) |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02028 |
NSP150,151..GEN |
1 | ||
| 90987-02028 |
NSP150,151..GEN |
1 | ||
| 90987-02028 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..IDN..(G,R);NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I);NSP151..(AGT,BZ,GCC,GEN,IND,PH,PKN,VN)..(A,C,D,E,G,H,I) |
1 | ||
| 90987-02028 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..IDN..(G,R);NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I);NSP151..(AGT,BZ,GCC,GEN,IND,PH,PKN,VN)..(A,C,D,E,G,H,I) |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-T2001 |
NSP150,151..GEN |
1 | ||
| 90987-T2001 |
NSP150,151..GEN |
1 | ||
| 90987-T2001 |
NSP151..A,D,E,I;NSP151..5F..IDN;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 90987-T2001 |
NSP151..A,D,E,I;NSP151..5F..IDN;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| Common parts | ||||
| 90119-T0283 | ||||
| 90178-T0018 | ||||
| 91671-80620 | ||||
ILLUST NO. 3 OF 8(1708- )GEN,PKN,TH..A,I ; (1801- )GCC,IDN,IND,TAIW..A,C,F,G ; (1807- )D,E,
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-0L010 |
1NRFE,2NRFE..NSP15# |
1 | ||
| 28300-0L011 |
1NRFE,2NRFE..NSP150,151..GEN |
1 | ||
| 28300-0L011 |
2NRFE..NSP151..A,D,E,G;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE,3NR#..NSP150,152..(GEN,PH,TH,VN)..(D,R)..(A,D,E) |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08296 |
NSP150,151..GEN 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08295 |
NSP150,151..GEN 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08274 |
NSP150,151..GEN 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08302 |
NSP150,151..GEN 50A-30A-50A,FEMALE |
1 | ||
| 90982-08274 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08296 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08302 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 50A-30A-50A,FEMALE |
1 | ||
| 90982-08300 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 50A-30A-30A,FEMALE |
1 | ||
| 90982-08295 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09022 |
NSP150,151..GEN 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09024 |
NSP150,151..GEN 25A,MINI FUSE |
1 | ||
| 90982-09020 |
NSP150,151..GEN 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09021 |
NSP150,151..GEN 10A,MINI FUSE,RED |
1 | ||
| 90982-09023 |
NSP150,151..GEN 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09025 |
NSP150,151..GEN 30A,MINI FUSE,GRN |
1 | ||
| 90982-09022 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 10A,MINI FUSE,RED |
1 | ||
| 90982-09024 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 25A,MINI FUSE |
1 | ||
| 90982-09025 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 30A,MINI FUSE,GRN |
1 | ||
| 90982-09023 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09020 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) 7.5A,MINI FUSE,BROWN |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-0D040 |
NSP150,151..GEN |
1 | ||
| 82660-0D040 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-0D050 |
NSP150,151..GEN |
1 | ||
| 82660-0D050 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-0D060 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 82660F - BLOCK ASSY, RELAY | ||||
| 82660-0H070 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
2 | ||
| 82660F - BLOCK ASSY, RELAY | ||||
| 82660-0H070 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
2 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-52050 |
NSP150,151..GEN |
1 | ||
| 82661-52050 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-0D650 |
NSP151..5F..GEN..(D,R) ALGERIA SPEC |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-0D090 |
NSP150,151..GEN |
1 | ||
| 82663-0D090 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-0D100 |
NSP150,151..GEN |
1 | ||
| 82741-0D100 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-T2002 |
NSP151..5F..GEN..(D,R) ALGERIA SPEC |
1 | ||
| 90987-T2002 |
NSP151..A,D,E,I;NSP151..5F..IDN;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90987-T2003 |
NSP151..5F..GEN..(D,R) ALGERIA SPEC |
1 | ||
| 90987-T2002 |
NSP151..A,D,E,I;NSP151..5F..IDN;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-T2001 |
NSP150,151..GEN (L) |
1 | ||
| 90987-02027 |
NSP150,151..GEN (J) |
1 | ||
| 90987-T2001 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) (L) |
1 | ||
| 90987-02027 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) (J) |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90080-87009 |
NSP150,151..GEN (L) |
1 | ||
| 90987-04004 |
NSP150,151..GEN (J) |
1 | ||
| 90080-87009 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) (L) |
1 | ||
| 90987-04004 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) (J) |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02028 |
NSP150,151..GEN |
1 | ||
| 90987-02028 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..IDN..(G,R);NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I);NSP151..(AGT,BZ,GCC,GEN,IND,PH,PKN,VN)..(A,C,D,E,G,H,I) |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-T2001 |
NSP150,151..GEN |
1 | ||
| 90987-T2001 |
NSP151..A,D,E,I;NSP151..5F..IDN;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| Common parts | ||||
| 90119-T0283 | ||||
| 90178-T0018 | ||||
| 90179-06178 | ||||
| 91671-80620 | ||||
| 94151-80600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
