NSP151L-BEMRK (2016)

Toyota Yaris/Vios/Limo

Production Apr 2016 - Sep 2017
Engine 2NRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1604- )NSP150,151..LHD..5F

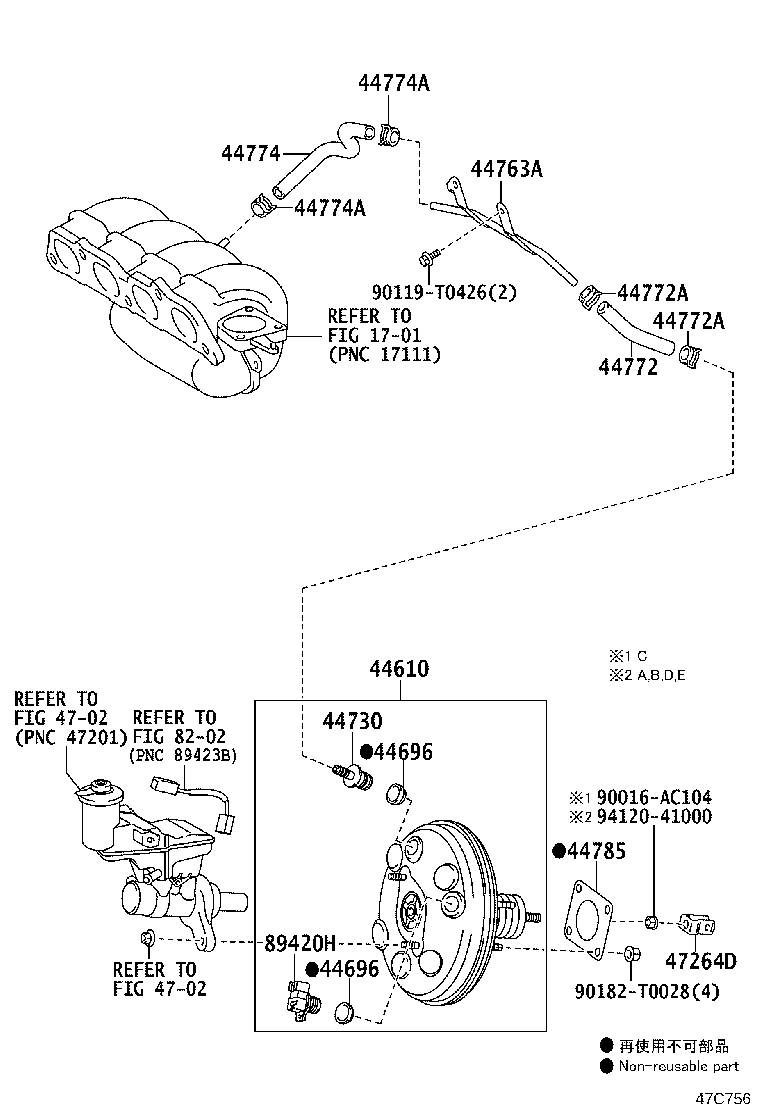

Click highlighted areas on diagram

diagram 1701 44610 44696 44696 44730 44763A 44772 44772A 44772A 44774 44774A 44774A 44785 4702 4702 47264D 8202 89420H 90016AC104 90119T0426 90182T0028 9412041000
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-0D790

NSP150,151..LHD..5F..GEN

 1
44610-0D800

NSP151..5F..GEN..D;NSP150..LHD..5F..GEN

LATIN AMERICA SPEC&ABS-WITHOUT

 1
44610-0D760

NSP151..5F..GEN..D

LATIN AMERICA SPEC&ECUADOR SPEC&VSC-WITH

 1
44696 - GROMMET, CHECK VALVE
90016-AT003

NSP150,151..5F..GEN

 2
44696 - GROMMET, CHECK VALVE
90016-AT003

NSP150,151..5F..GEN

 2
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-60070

NSP151..5F..B;NCP15#,NSP150..5F..(B,C)

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-0D290

NSP150,151..LHD..5F..GEN

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-0D450

NSP150,151..LHD..5F..GEN

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-0D200

NSP150,151..LHD..5F..GEN

 1
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90467-16014

NSP152..HTWC;NSP150..5F..GCC..R..(A,C);NSP150,151..LHD..MTM..(AGT,BZ,GEN,PH,VN)..(A,D,E,H)

 2
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90467-16014

NSP152..HTWC;NSP150..5F..GCC..R..(A,C);NSP150,151..LHD..MTM..(AGT,BZ,GEN,PH,VN)..(A,D,E,H)

 2
44785 - GASKET, BRAKE BOOSTER
44785-0D020

NSP150,151..GEN

 1
44785-0D020

NSP151..A,D,E,I;NSP151..5F..IDN;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-0D040

NSP151..A,D,E,I;NSP151..5F..IDN;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

 1
47264-0D040

NSP150,151..GEN

 1
89420H - SENSOR ASSY, VACUUM
89421-52020

NSP150,151..GEN

 1
89421-52020

NSP151..5F..IDN;NSP150..CVT..D..(A,C);NSP150..5F..GCC..R..(A,C);NSP150..CVT..(G,R)..(A,C,D);NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150..LHD..5F..(GEN,PH,VN)..(A,D,E);NSP151..(AGT,GCC,GEN,PH,TH,VN)..(A,D,E,H)

 1
Common parts
90016-AC104
90119-T0426
90182-T0028
94120-41000
Linked diagrams
1701
4702
8202
