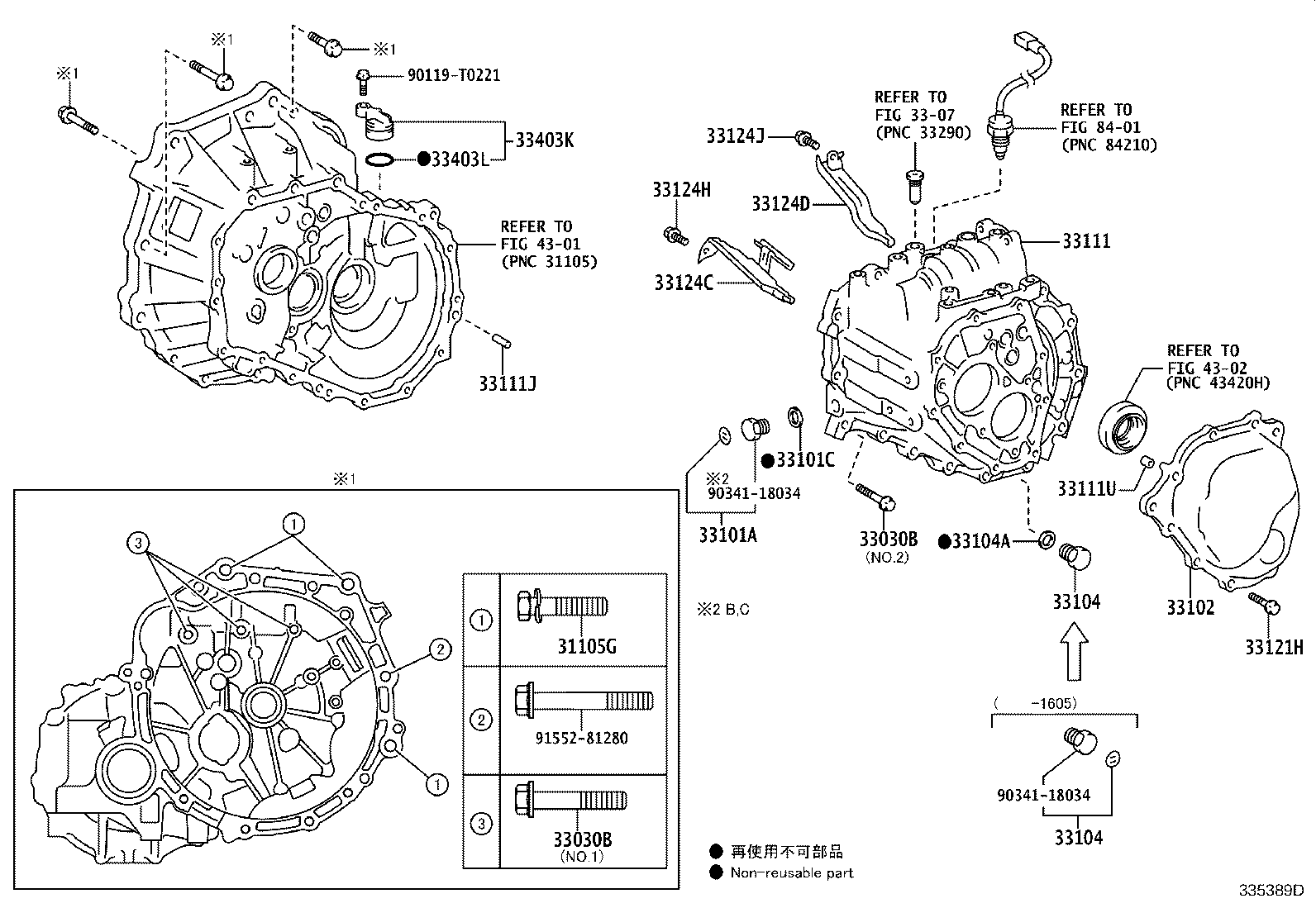

Toyota Yaris/vios/limo NSP151 CLUTCH HOUSING & TRANSMISSION CASE (MTM)

Part #	Description	Period	Qty
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
90119-T0310	NSP150,151..5F..GEN *12-1.25PX45-30,(L)	04/2016 - 09/2017	3
91619-61245	NSP150,151..5F..GEN *12-1.25PX45-30,(J)	04/2016 - 09/2017	3
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18033	NSP150,151..5F..GEN	04/2013 - 09/2017	1
33102 - COVER SUB-ASSY, MANUAL TRANSMISSION CASE
33102-52021	NSP150,151..5F..GEN	04/2016 - 09/2017	1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18033	NSP15#..5F;NCP15#..5F..C;NCP15#..5F..(MA,PH,VN)	04/2013 - 05/2016	1
90341-18006	NSP150,151..5F..GEN	05/2016 - 09/2017	1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18033	NSP15#..5F;NCP15#..5F..C;NCP15#..5F..(MA,PH,VN)	04/2013 - 05/2016	1
90341-18006	NSP150,151..5F..GEN	05/2016 - 09/2017	1
33111 - CASE, MANUAL TRANSMISSION
33111-0D120	NSP150,151..5F..GEN	04/2016 - 09/2017	1
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-08054	NSP150,151..5F..GEN L=23,OD=8	04/2013 - 09/2017	4
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-11001	NSP150,151..5F..GEN L=11,OD=11	04/2013 - 09/2017	2
33124C - PIPE, OIL RECEIVER, NO.1(MTM)
33124-20050	NSP150,151..5F..GEN	04/2013 - 09/2017	1
33124D - PIPE, OIL RECEIVER, NO.2(MTM)
33124-12021	NSP150,151..5F..GEN	04/2013 - 09/2017	1
33403K - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE
33403-0D020	NSP150,151..5F..GEN	04/2013 - 09/2017	1
33403L - RING, O
96711-24030	NSP150,151..5F..GEN	04/2013 - 09/2017	1
Common parts
90119-T0221
90341-18034
91552-81280
Linked diagrams
3307
4301
4302
8401

NSP151L-BEMRK (2016)
