NSP151L-BEMRK (2016)

Toyota Yaris/Vios/Limo

Production Apr 2016 - Sep 2017
Engine 2NRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

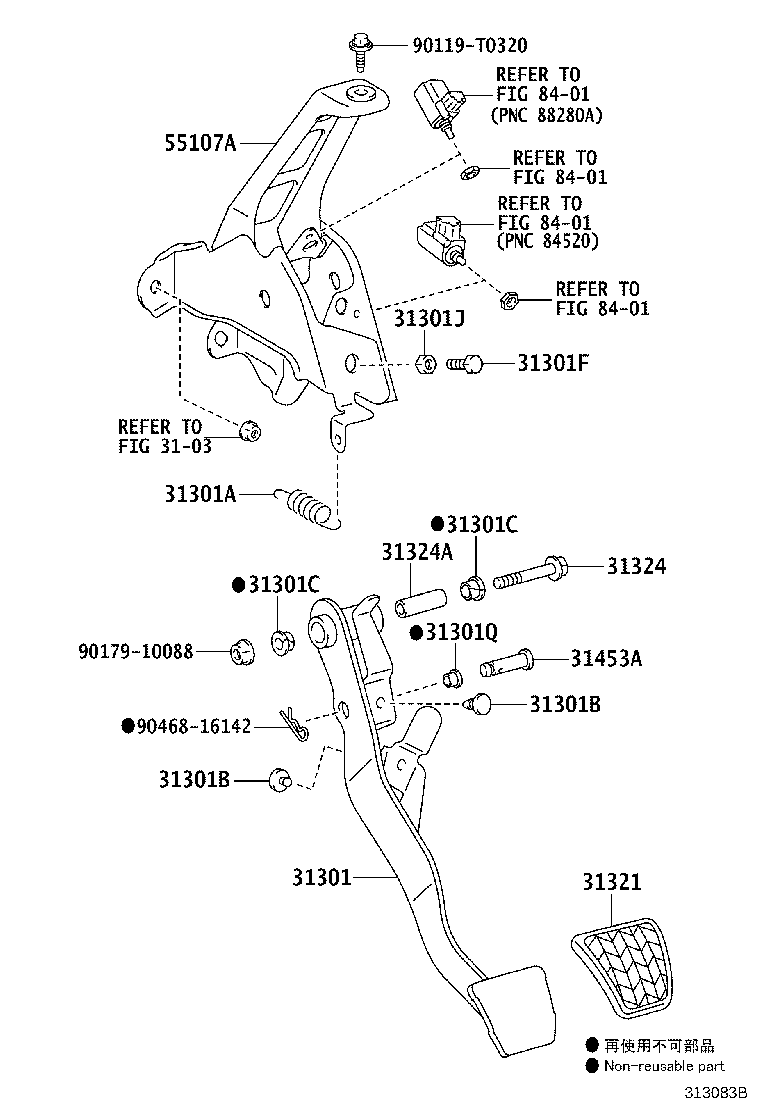

ILLUST NO. 1 OF 2(1604- )NSP151..5F..GEN..D,R

Click highlighted areas on diagram

ALGERIA SPEC

diagram 3103 31301 31301A 31301B 31301B 31301C 31301C 31301F 31301J 31301Q 31321 31324 31324A 31453A 55107A 8401 8401 8401 8401 90119T0320 9017910088 9046816142
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-0D370

NSP151..5F..GEN..(D,R)

ALGERIA SPEC

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

NSP150,151..5F..GEN

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

NSP150,151..5F..GEN

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369

NSP150,151..LHD..5F..GEN

 1
31301J - NUT(FOR CLUTCH PEDAL STOPPER)
90170-10017

NSP151..5F..GEN..(D,R)

ALGERIA SPEC

 3
31301Q - BUSH(FOR CLUTCH PEDAL SPRING)
90386-08002

NSP150,151..5F..GEN

 1
31321 - PAD, CLUTCH PEDAL
31321-52010

NSP150,151..5F..GEN

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90249-08051

NSP150,151..5F..GEN

L=31.5

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-0D410

NSP151..5F..GEN..(D,R)

ALGERIA SPEC

 1
Common parts
90119-T0320
90179-10088
90468-16142
Linked diagrams
3103
8401
