NSP151L-BEMRK (2016)
Toyota Yaris/Vios/Limo
(1604- )2NRFE..TH..A,C ; (1604- )1NRFE,2NRFE..AGT,GCC,GEN,IDN,IND,MA,PH,PKN,T

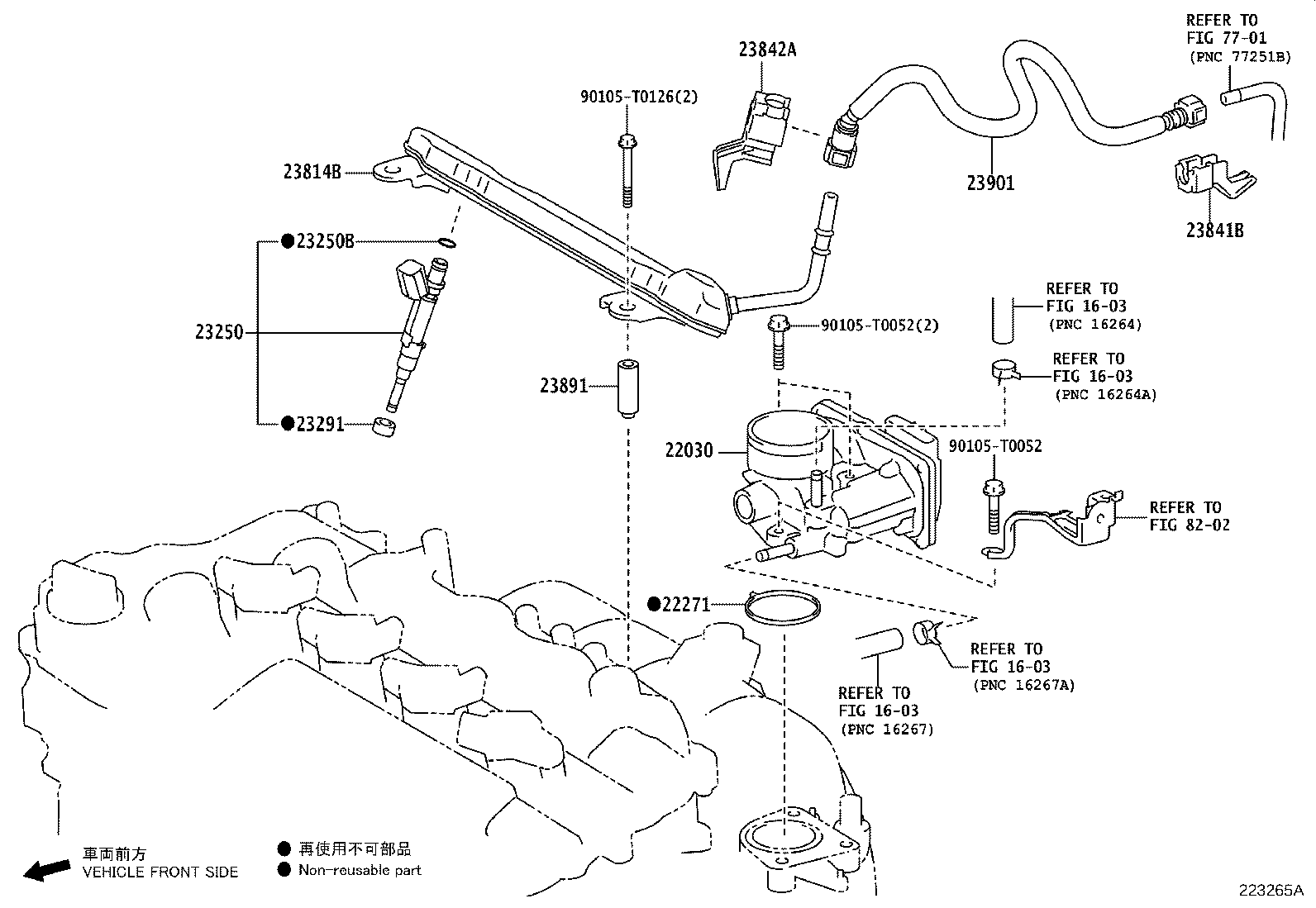

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR | ||||
| 22030-0Y020 |
2NRFE..NSP151..GCC..C;2NRFE..NSP151..A,D,E,G;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E) *264,TYPE A:REF ILL. |
1 | ||
| 22030-0Y020 |
2NRFE..NSP151..A,D,E,G;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E) |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-0Y030 |
1NRFE,2NRFE..NSP150,151..B,C *264 |
1 | ||
| 22271-0Y030 |
1NRFE,2NRFE..NSP150,151..B,C *230 OR *432 |
1 | ||
| 22271-0Y030 |
2NRFE..NSP151..A,D,E,G;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E) *264 |
1 | ||
| 22271-0Y030 |
2NRFE..NSP151..A,D,E,G;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE,3NRFKE..NSP150,152..(GEN,PH,TH,VN)..(D,R)..(A,D,E) *230 OR *432 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-09340 |
2NRFE..NSP151..A,D,E,G;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E) *264 |
4 | ||
| 23209-09390 |
2NRFE..NSP151..A,D,E,G;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E) *230 OR *432 |
4 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07042 |
1NRFE,2NRFE..NSP150,151..B,C *264 |
4 | ||
| 90301-07042 |
2NRFE..NSP151..A,D,E,G;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E) *230 OR *432,*264 |
4 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-0Y020 |
1NRFE,2NRFE..NSP150,151..GEN *264 |
4 | ||
| 23291-0Y050 |
1NRFE,2NRFE..NSP150,151..GEN *230 OR *432 |
4 | ||
| 23291-0Y020 |
2NRFE..NSP151..A,D,E,G;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E) *264 |
4 | ||
| 23291-0Y050 |
2NRFE..NSP151..A,D,E,G;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E) *230 OR *432 |
4 | ||
| 23814B - PIPE, FUEL DELIVERY | ||||
| 23814-0Y010 |
1NRFE,2NRFE..NSP150,151..GEN *264 |
1 | ||
| 23814-0Y010 |
1NRFE,2NRFE..NSP150,151..GEN *230 OR *432 |
1 | ||
| 23814-0Y010 |
2NRFE..NSP151..A,D,E,G;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE,3NR#..NSP150,152..(GEN,PH,TH,VN)..(D,R)..(A,D,E) *230 OR *432 |
1 | ||
| 23814-0Y010 |
2NRFE..NSP151..A,D,E,G;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E) *264 |
1 | ||
| 23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI) | ||||
| 23841-0Y050 |
1N#,2NZFE,2NRFE..NCP15#,NSP150,151..(GCC,GEN,IDN,MA,PH,TH,VN)..B |
1 | ||
| 23841-0Y050 |
1NRFE..NSP150..D,E,I;1NRFE..NSP150..CVT..A;1NRFE..NSP150..5F..GCC..R..A;1NRFE..NSP150..LHD..5F..GEN..A;2NRFE,3NRFE..NSP151,152..A,D,E,G,I |
1 | ||
| 23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI) | ||||
| 23841-0Y040 |
1NRFE,2NRFE..NSP150,151..GEN |
1 | ||
| 23841-0Y040 |
1NRFE..NSP150..D,E,I;1NRFE..NSP150..CVT..A;1NRFE..NSP150..5F..GCC..R..A;1NRFE..NSP150..LHD..5F..GEN..A;2NRFE,3NR#..NSP151,152..A,D,E,G,I |
1 | ||
| 23891 - SPACER, FUEL DELIVERY | ||||
| 23891-47040 |
1NRFE,2NRFE..NSP150,151..GEN *230 OR *432 |
2 | ||
| 23891-47040 |
1NRFE,2NRFE..NSP150,151..GEN *264 |
2 | ||
| 23891-47040 |
2NRFE..NSP151..A,D,E,G;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E) *264 |
2 | ||
| 23891-47040 |
2NRFE..NSP151..A,D,E,G;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE,3NR#..NSP150,152..(GEN,PH,TH,VN)..(D,R)..(A,D,E) *230 OR *432 |
2 | ||
| 23901 - TUBE SUB-ASSY, FUEL | ||||
| 23901-0Y150 |
1NRFE,2NRFE..NSP150,151..GEN |
1 | ||
| 23901-0Y150 |
1NRFE..NSP150..D,I;2NRFE..NSP151..A,D,I;1NRFE..NSP150..CVT..A;1NRFE..NSP150..5F..GCC..R..A;1NRFE..NSP150..LHD..5F..GEN..A |
1 | ||
| Common parts | ||||
| 90105-T0052 | ||||
| 90105-T0126 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 7701 | ||||
| 8202 | ||||
