NSP151L-BEMRK (2016)

Toyota Yaris/Vios/Limo

Production Apr 2016 - Sep 2017
Engine 2NRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

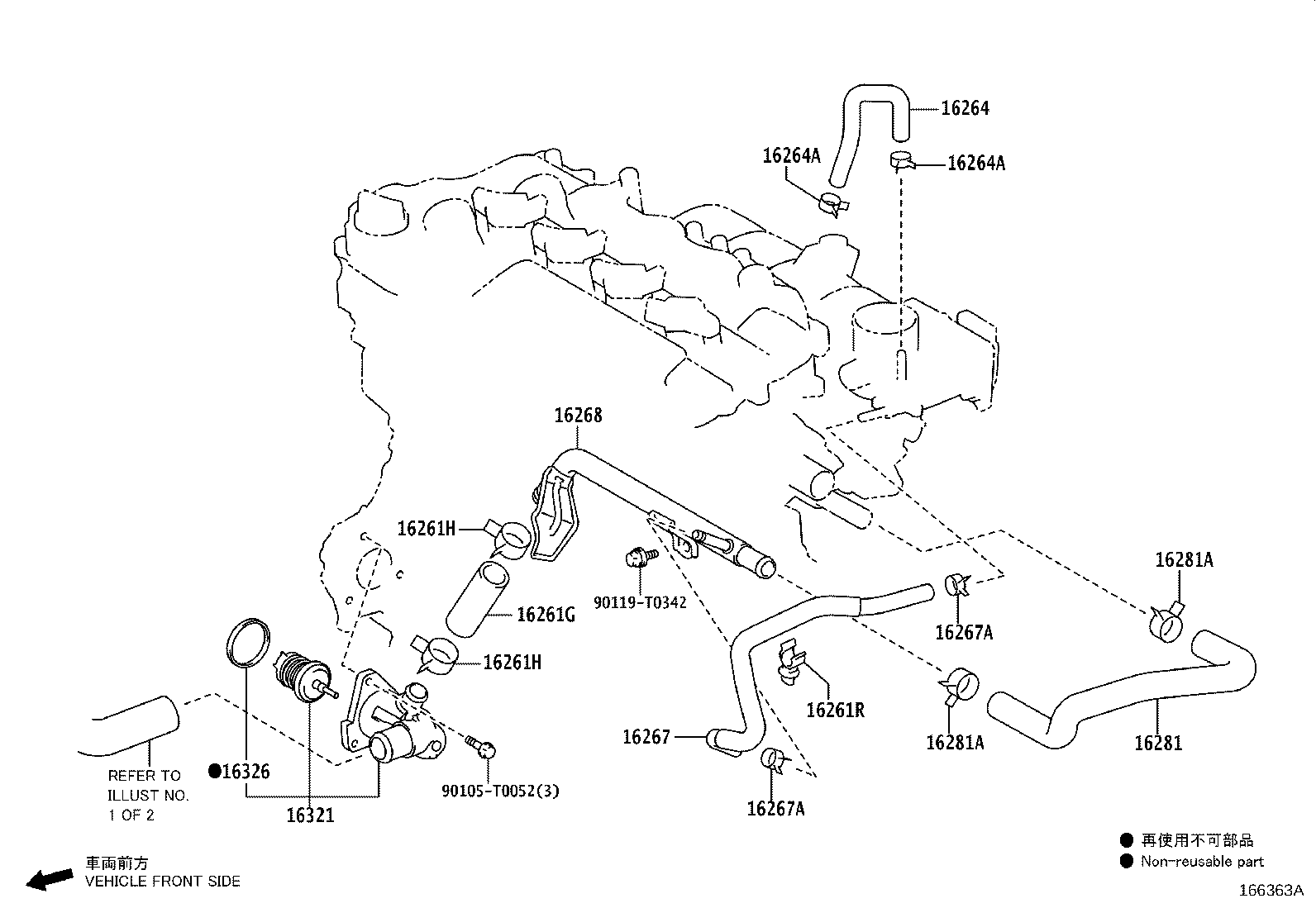

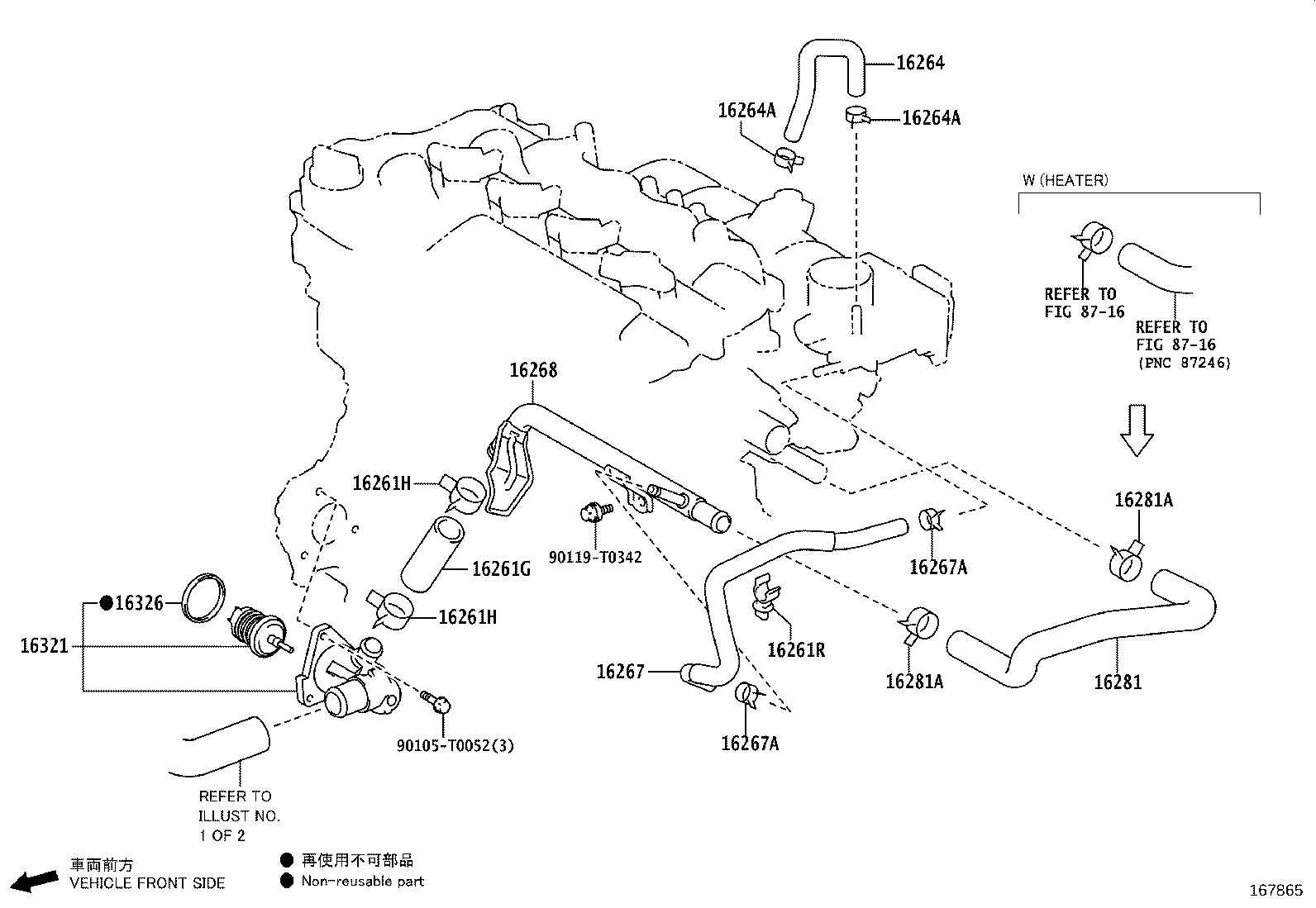

ILLUST NO. 2 OF 2(1607- )1NRFE,2NRFE..5F..PH,TH..B,C ; (1808-)1NRFE,2NRFE..5F..D

Click highlighted areas on diagram

diagram 16261G 16261H 16261H 16261R 16264 16264A 16264A 16267 16267A 16267A 16268 16281 16281A 16281A 16321 16326 90105T0052 90119T0342
Part # Description Qty Price
16261G - HOSE, WATER BY-PASS, NO.1
16261-0Y100

3NR#..NSP152;2NR#..NSP151..H

 1
16261-0Y100

1NRFE,2NRFE..NSP150,151..B,C

*230 OR *432

 1
16261-0Y030

2NRFE..NSP151..A,D,E,G;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

*264

 1
16261-0Y100

2NRFE..NSP151..A,D,E,G;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

*230 OR *432

 1
16261H - CLIP(FOR WATER BY-PASS HOSE NO.1)
90466-T0050

1NRFE,2NRFE..NSP150,151..B,C

*264

 2
90466-T0050

3NR#..NSP152;1NRFE,2NR#..NSP150,151..H,I

 2
90466-T0050

1NRFE,2NRFE..NSP150,151..B,C

*230 OR *432

 2
90466-T0050

2NRFE..NSP151..A,D,E,G;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

*230 OR *432,*264

 2
16261H - CLIP(FOR WATER BY-PASS HOSE NO.1)
90466-T0050

1NRFE,2NRFE..NSP150,151..B,C

*264

 2
90466-T0050

3NR#..NSP152;1NRFE,2NR#..NSP150,151..H,I

 2
90466-T0050

1NRFE,2NRFE..NSP150,151..B,C

*230 OR *432

 2
90466-T0050

2NRFE..NSP151..A,D,E,G;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

*230 OR *432,*264

 2
16261R - CLAMP OR CLIP(FOR WATER BY-PASS HOSE)
90469-T0015

2NRFE..NSP151..A,D,E,G;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

*230 OR *432

 1
90469-T0014

2NRFE..NSP151..GCC..C;2NRFE..NSP151..A,D,E,G;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

*264

 1
16264 - HOSE, WATER BY-PASS, NO.2
16264-0Y080

2NRFE..NSP151..GCC..C;2NRFE..NSP151..A,D,E,G;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

*264

 1
16264-0Y110

2NRFE..NSP151..A,D,E,G;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

*230 OR *432

 1
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90466-T0015

2NRFE..NSP151..GCC..C;2NRFE..NSP151..A,D,E,G;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

*264

 2
90466-T0015

3NR#..NSP152;1NRFE,2NR#..NSP150,151..H,I

 2
90466-T0015

2NRFE..NSP151..A,D,E,G;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

*230 OR *432

 2
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90466-T0015

2NRFE..NSP151..GCC..C;2NRFE..NSP151..A,D,E,G;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

*264

 2
90466-T0015

3NR#..NSP152;1NRFE,2NR#..NSP150,151..H,I

 2
90466-T0015

2NRFE..NSP151..A,D,E,G;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

*230 OR *432

 2
16267 - HOSE, WATER BY-PASS, NO.3
16267-0Y090

2NRFE..NSP151..A,D,E,G;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

*230 OR *432

 1
16267-0Y030

2NRFE..NSP151..GCC..C;2NRFE..NSP151..A,D,E,G;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

*264

 1
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
90466-T0015

2NRFE..NSP151..GCC..C;2NRFE..NSP151..A,D,E,G;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

*264

 2
90466-T0015

2NRFE..NSP151..A,D,E,G;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

*230 OR *432

 2
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
90466-T0015

2NRFE..NSP151..GCC..C;2NRFE..NSP151..A,D,E,G;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

*264

 2
90466-T0015

2NRFE..NSP151..A,D,E,G;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

*230 OR *432

 2
16268 - PIPE, WATER BY-PASS, NO.1
16268-0Y040

2NRFE..NSP151..A,D,E,G;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

*230 OR *432

 1
16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
90466-T0020

2NRFE..NSP151..5F;1NRFE..NSP150..5F..(G,R)

 2
16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
90466-T0020

2NRFE..NSP151..5F;1NRFE..NSP150..5F..(G,R)

 2
16321 - INLET, WATER
16031-0Y010

1NRFE,2NRFE..NSP150,151..GEN

*264

 1
16031-0Y010

1NRFE,2NRFE..NSP150,151..GEN

*230 OR *432

 1
16031-0Y010

2NRFE..NSP151..A,D,E,G;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE,3NRFE..NSP150,152..(GEN,PH,TH,VN)..(D,R)..(A,D,E)

*230 OR *432

 1
16031-0Y010

2NRFE..NSP151..A,D,E,G;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

*264

 1
16326 - GASKET, WATER INLET HOUSING, NO.2
16326-0Y010

1NRFE,2NRFE..NSP150,151..GEN

*230 OR *432

 1
16326-0Y010

1NRFE,2NRFE..NSP150,151..GEN

*264

 1
16326-0Y010

2NRFE..NSP151..A,D,E,G;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

*264

 1
16326-0Y010

2NRFE..NSP151..A,D,E,G;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE,3NRFE..NSP150,152..(GEN,PH,TH,VN)..(D,R)..(A,D,E)

*230 OR *432

 1
Common parts
90105-T0052
90119-T0342

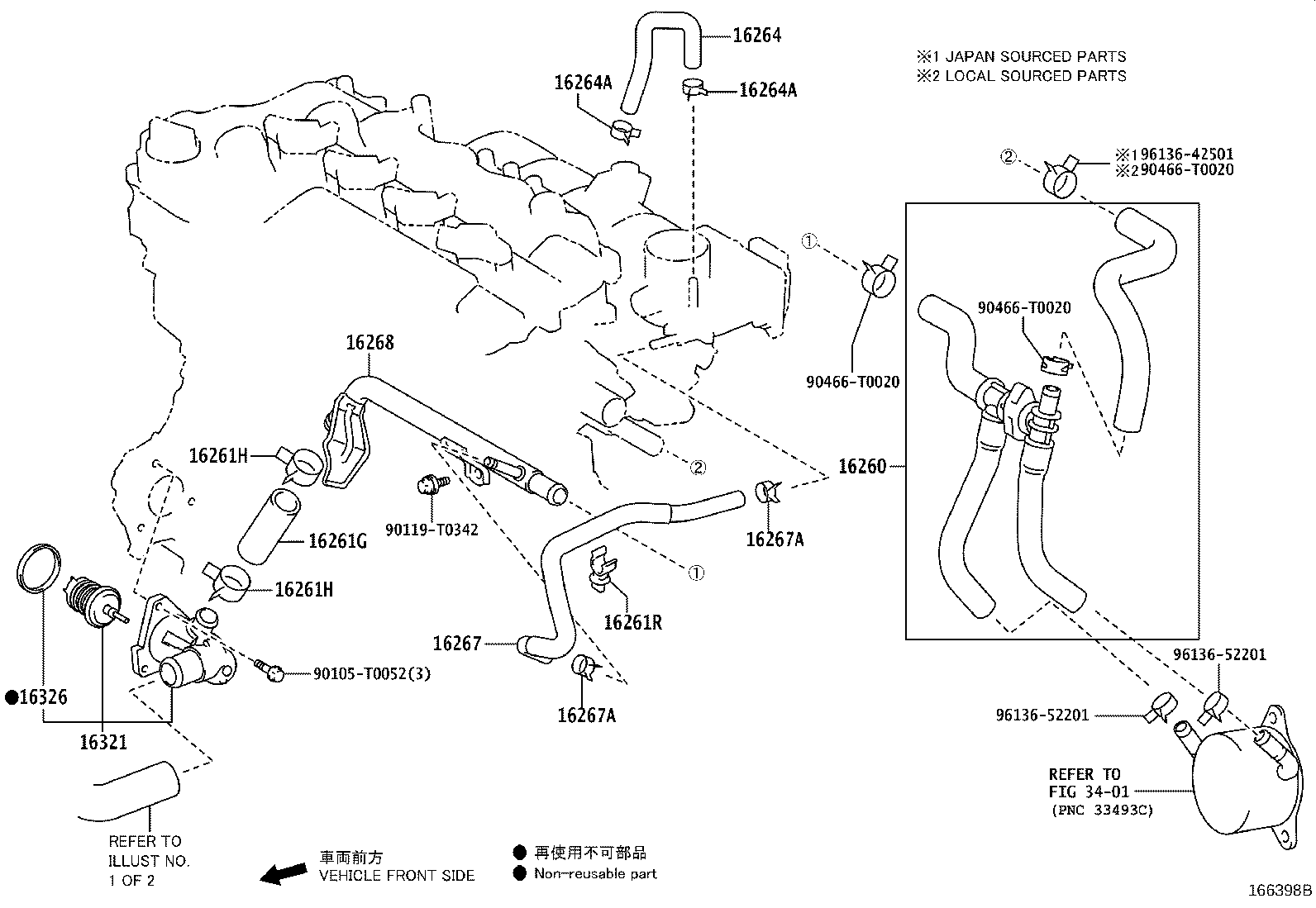

ILLUST NO. 2 OF 2(1604- )2NRFE..TH..A ; (1604- )1NRFE,2NRFE..CVT..PH..B ; (1807- )1NRFE,2NR

Click highlighted areas on diagram

diagram 16260 16261G 16261H 16261H 16261R 16264 16264A 16264A 16267 16267A 16267A 16268 16321 16326 3401 90105T0052 90119T0342 90466T0020 90466T0020 90466T0020 9613642501 9613652201 9613652201
Part # Description Qty Price
16261G - HOSE, WATER BY-PASS, NO.1
16261-0Y100

3NR#..NSP152;2NR#..NSP151..H

 1
16261-0Y100

1NRFE,2NRFE..NSP150,151..B,C

*230 OR *432

 1
16261-0Y030

2NRFE..NSP151..A,D,E,G;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

*264

 1
16261-0Y100

2NRFE..NSP151..A,D,E,G;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

*230 OR *432

 1
16261H - CLIP(FOR WATER BY-PASS HOSE NO.1)
90466-T0050

1NRFE,2NRFE..NSP150,151..B,C

*264

 2
90466-T0050

3NR#..NSP152;1NRFE,2NR#..NSP150,151..H,I

 2
90466-T0050

1NRFE,2NRFE..NSP150,151..B,C

*230 OR *432

 2
90466-T0050

2NRFE..NSP151..A,D,E,G;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

*230 OR *432,*264

 2
16261H - CLIP(FOR WATER BY-PASS HOSE NO.1)
90466-T0050

1NRFE,2NRFE..NSP150,151..B,C

*264

 2
90466-T0050

3NR#..NSP152;1NRFE,2NR#..NSP150,151..H,I

 2
90466-T0050

1NRFE,2NRFE..NSP150,151..B,C

*230 OR *432

 2
90466-T0050

2NRFE..NSP151..A,D,E,G;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

*230 OR *432,*264

 2
16261R - CLAMP OR CLIP(FOR WATER BY-PASS HOSE)
90469-T0015

2NRFE..NSP151..A,D,E,G;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

*230 OR *432

 1
90469-T0014

2NRFE..NSP151..GCC..C;2NRFE..NSP151..A,D,E,G;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

*264

 1
16264 - HOSE, WATER BY-PASS, NO.2
16264-0Y080

2NRFE..NSP151..GCC..C;2NRFE..NSP151..A,D,E,G;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

*264

 1
16264-0Y110

2NRFE..NSP151..A,D,E,G;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

*230 OR *432

 1
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90466-T0015

2NRFE..NSP151..GCC..C;2NRFE..NSP151..A,D,E,G;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

*264

 2
90466-T0015

3NR#..NSP152;1NRFE,2NR#..NSP150,151..H,I

 2
90466-T0015

2NRFE..NSP151..A,D,E,G;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

*230 OR *432

 2
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90466-T0015

2NRFE..NSP151..GCC..C;2NRFE..NSP151..A,D,E,G;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

*264

 2
90466-T0015

3NR#..NSP152;1NRFE,2NR#..NSP150,151..H,I

 2
90466-T0015

2NRFE..NSP151..A,D,E,G;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

*230 OR *432

 2
16267 - HOSE, WATER BY-PASS, NO.3
16267-0Y090

2NRFE..NSP151..A,D,E,G;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

*230 OR *432

 1
16267-0Y030

2NRFE..NSP151..GCC..C;2NRFE..NSP151..A,D,E,G;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

*264

 1
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
90466-T0015

2NRFE..NSP151..GCC..C;2NRFE..NSP151..A,D,E,G;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

*264

 2
90466-T0015

2NRFE..NSP151..A,D,E,G;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

*230 OR *432

 2
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
90466-T0015

2NRFE..NSP151..GCC..C;2NRFE..NSP151..A,D,E,G;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

*264

 2
90466-T0015

2NRFE..NSP151..A,D,E,G;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

*230 OR *432

 2
16268 - PIPE, WATER BY-PASS, NO.1
16268-0Y040

2NRFE..NSP151..A,D,E,G;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

*230 OR *432

 1
16321 - INLET, WATER
16031-0Y010

1NRFE,2NRFE..NSP150,151..GEN

*264

 1
16031-0Y010

1NRFE,2NRFE..NSP150,151..GEN

*230 OR *432

 1
16031-0Y010

2NRFE..NSP151..A,D,E,G;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE,3NRFE..NSP150,152..(GEN,PH,TH,VN)..(D,R)..(A,D,E)

*230 OR *432

 1
16031-0Y010

2NRFE..NSP151..A,D,E,G;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

*264

 1
16326 - GASKET, WATER INLET HOUSING, NO.2
16326-0Y010

1NRFE,2NRFE..NSP150,151..GEN

*230 OR *432

 1
16326-0Y010

1NRFE,2NRFE..NSP150,151..GEN

*264

 1
16326-0Y010

2NRFE..NSP151..A,D,E,G;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

*264

 1
16326-0Y010

2NRFE..NSP151..A,D,E,G;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE,3NRFE..NSP150,152..(GEN,PH,TH,VN)..(D,R)..(A,D,E)

*230 OR *432

 1
Common parts
90105-T0052
90119-T0342
90466-T0020
96136-42501
96136-52201
Linked diagrams
3401

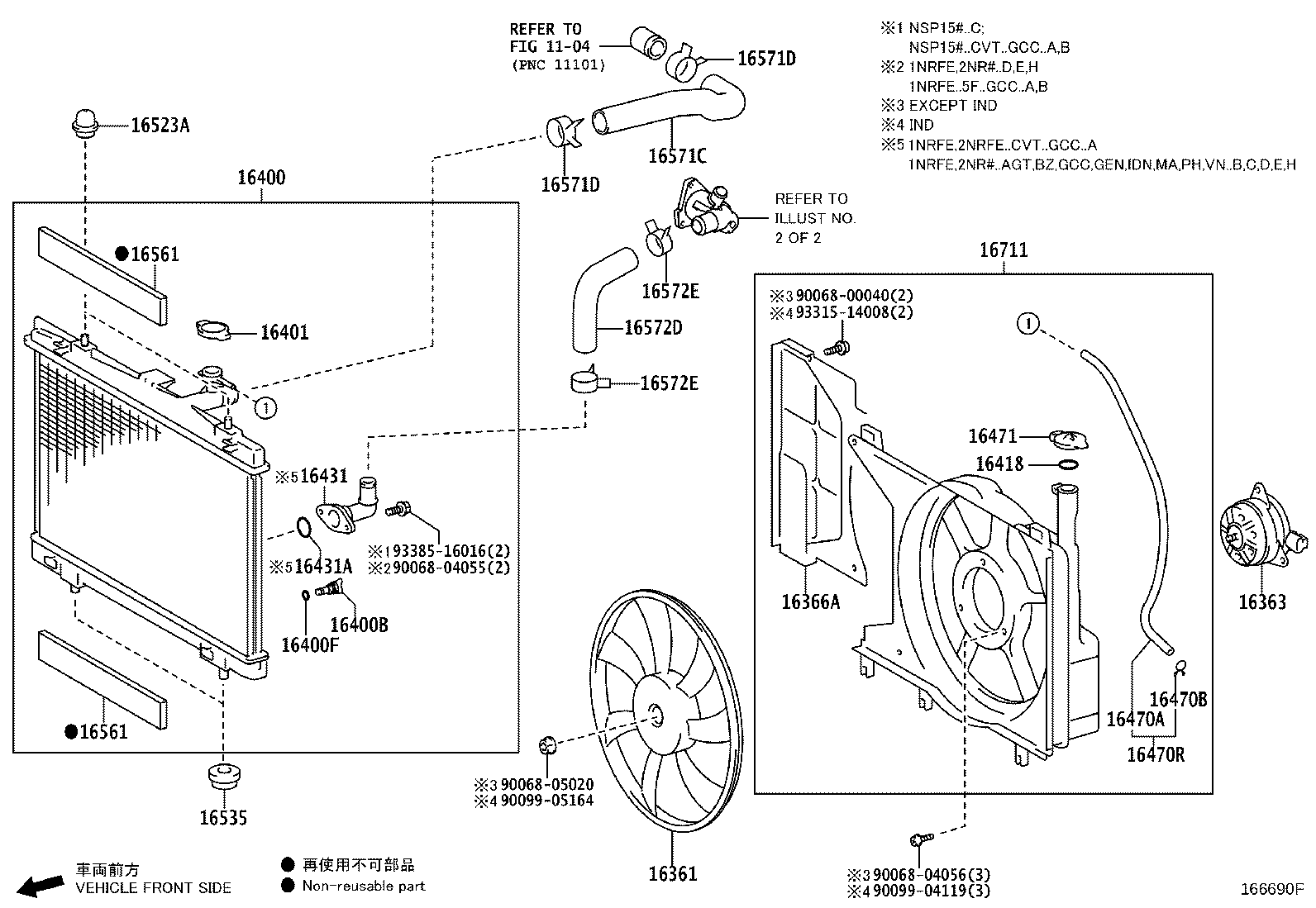

ILLUST NO. 1 OF 2(1604- )1NRFE,2NRFE..GCC,GEN,IDN,IND,TH,VN..A,B,C,G ; (1807- )1NRFE,2NR#..D,E

Click highlighted areas on diagram

diagram 1104 16361 16363 16366A 16400 16400B 16400F 16401 16418 16431 16431A 16470A 16470B 16470R 16471 16523A 16535 16561 16561 16571C 16571D 16571D 16572D 16572E 16572E 16711 9006800040 9006804055 9006804056 9006805020 9009904119 9009905164 9331514008 9338516016
Part # Description Qty Price
16361 - FAN
16361-0M110

1NRFE,2NRFE..NSP150,151..GEN

 1
16361-0M110

1NRFE..NSP150..D,E,I;1NRFE..NSP150..CVT..A;1NRFE..NSP150..5F..GCC..R..A;1NRFE..NSP150..LHD..5F..GEN..A;2NRFE,3NR#..NSP151,152..A,D,E,I

 1
16363 - MOTOR, COOLING FAN
16363-0Y050

2NRFE..NSP151..5F..IDN;2NR#..NSP151..A,E,G,H,I;1NRFE..NSP150..CVT..(A,C,I);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE..NSP150..5F..(GCC,PKN)..(G,R)..(A,C,I);1NRFE..NSP150..5F..(GEN,PKN,VN)..(D,R)..(A,E,I)

 1
16366A - INSULATOR, COOLING FAN MOTOR
16366-0Y240

2NRFE..NSP151..A,D,E;1NRFE..NSP150..CVT..G..A;1NRFE..NSP150..5F..GCC..R..A;1NRFE..NSP150..CVT..GCC..(D,R)..A;1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

 1
16366-0Y240

1NRFE,2NRFE..NSP150,151..GEN

 1
16400 - RADIATOR ASSY
16400-0Y190

1NRFE..NSP150..5F..GCC;1NRFE,2NRFE..NSP15#..GEN,TH

 1
16400-0Y191

1NRFE..NSP150..5F..GCC..B;1NRFE,2NRFE..NSP150,151..(GEN,TH,VN)..B

 1
16400-0Y191

1NRFE..NSP150..5F..GCC..R..A;1NRFE..NSP150..CVT..GEN..G..A;2NRFE..NSP151..(GEN,TH,VN)..(A,E);1NRFE..NSP150..(GEN,VN)..(D,R)..(A,E)

 1
16400B - PLUG, RADIATOR DRAIN COCK
16417-0C180

1NRFE,2NRFE..NSP150,151..GEN

 1
16417-0C180

2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);2NR#,3NR#..NSP151,152..A,D,E,G,H;1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16492-0L060

1NRFE,2NRFE..NSP150,151..GEN

 1
16492-21050

1NRFE..NSP150..5F..R..C;2NRFE..NSP151..CVT..D..(G,H);2NRFE..NSP151..CVT..GEN..G..H;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE,2NRFBE,3NR#..NSP15#..(BZ,PH,TH)..(A,D,H);2NRFE..NSP151..MTM..(AGT,GEN,IDN,IND,PH)..(C,D,G,H);2NRFE..NSP151..CVT..(AGT,GCC,IDN,IND,PH)..(G,R,V)..(A,C,D,G,H)

 1
16492-0L060

1NRFE..NSP150..5F..GCC..R..A;1NRFE..NSP150..CVT..GEN..G..A;2NRFE..NSP151..(GEN,TH,VN)..(A,E);1NRFE..NSP150..(GEN,VN)..(D,R)..(A,E)

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-0H060

1NRFE..NSP150..5F..GCC;1NRFE,2NRFE..NSP15#..GEN,TH

 1
16401-0M010

1NRFE,2NRFE..NSP150,151..GEN

 1
16401-0M010

2NRFE..NSP151..A,D,E,G;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE,3NR#..NSP150,152..(GEN,PH,TH,VN)..(D,R)..(A,D,E)

 1
16418 - PACKING
16476-0H060

1NRFE,2NRFE..NSP150,151..GEN

 1
16476-0H060

1NRFE..NSP150..CVT..G..A;1NRFE..NSP150..5F..GCC..R..A;2NR#,3NR#..NSP151,152..A,D,E,H;1NRFE..NSP150..CVT..GCC..(D,R)..A;1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

 1
16431 - INLET, RADIATOR WATER
16431-0Y190

1NRFE,2NRFE..NSP150,151..GEN

 1
16431-0Y190

2NRFE..NSP151..A,D,E;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

 1
16431A - RING, O(FOR RADIATOR WATER INLET)
16492-0Y100

1NRFE,2NRFE..NSP150,151..GEN

 1
16492-0Y100

1NRFE..NSP150..5F..GCC..R..A;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E);2NRFE..NSP151..(GEN,IND,PH,TH,VN)..(A,D,E,G)

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16377-0Y240

2NRFE..NSP151..A,D,E;1NRFE..NSP150..CVT..G..A;1NRFE..NSP150..5F..GCC..R..A;1NRFE..NSP150..CVT..GCC..(D,R)..A;1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

 1
16377-0Y240

1NRFE,2NRFE..NSP150,151..GEN

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

1NRFE,2NRFE..NSP150,151..GEN

 1
90467-11085

2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);2NR#,3NR#..NSP151,152..A,D,E,G,H;1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16376-0Y050

1NRFE,2NRFE..NSP150,151..GEN

 1
16376-0Y050

1NRFE..NSP150..CVT..G..A;1NRFE..NSP150..5F..GCC..R..A;2NR#,3NR#..NSP151,152..A,D,E,H;1NRFE..NSP150..CVT..GCC..(D,R)..A;1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

 1
16523A - CUSHION, RADIATOR SUPPORT
16523-0M050

1NRFE,2NRFE..NSP150,151..GEN

(L)

 2
16523-21030

1NRFE,2NRFE..NSP150,151..GEN

(J)

 2
16523-21030

2NRFE..NSP151..A,D,E,I;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..(A,C);1NRFE..NSP150..5F..R..(A,C);1NRFE..NSP150..5F..GEN..D..A;2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE,3NR#..NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

(J)

 2
16523-0M050

1NRFE..NSP150..D,E,I;1NRFE..NSP150..CVT..A;1NRFE..NSP150..5F..GCC..R..A;1NRFE..NSP150..LHD..5F..GEN..A;2NRFE,3NR#..NSP151,152..A,D,E,I

(L)

 2
16535 - SUPPORT, RADIATOR, LOWER
90480-22025

1NRFE,2NRFE..NSP150,151..GEN

 2
90480-22025

2NRFE..NSP151..A,D,E,I;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..(A,C);1NRFE..NSP150..5F..R..(A,C);1NRFE..NSP150..5F..GEN..D..A;2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE,3NR#..NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

 2
16561 - SEAL, RADIATOR TO SUPPORT, NO.1
16561-0Y010

1NRFE..NSP150..CVT..GEN..A;1NRFE..NSP150..5F..GCC..R..A;1NRFE..NSP150..LHD..5F..GEN..A;2NRFE..NSP151..(AGT,GEN,IND,PKN,TH,VN)..(A,E,G,H,I);1NRFE,2NRFBE,3NR#..NSP15#..(BZ,PKN,TH,VN)..(A,E,H,I)

 2
16561 - SEAL, RADIATOR TO SUPPORT, NO.1
16561-0Y010

1NRFE..NSP150..CVT..GEN..A;1NRFE..NSP150..5F..GCC..R..A;1NRFE..NSP150..LHD..5F..GEN..A;2NRFE..NSP151..(AGT,GEN,IND,PKN,TH,VN)..(A,E,G,H,I);1NRFE,2NRFBE,3NR#..NSP15#..(BZ,PKN,TH,VN)..(A,E,H,I)

 2
16571C - HOSE, RADIATOR, NO.1
16571-0Y100

1NRFE,2NRFE..NSP150,151..5F..GEN

 1
16571D - CLIP, RADIATOR HOSE, NO.1
96136-43901

1NRFE,2NRFE..NSP150,151..GEN

 2
96136-43901

2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..(A,C);2NRFE..NSP151..A,D,E,G,H,I;1NRFE..NSP150..5F..R..(A,C);1NRFE..NSP150..5F..GEN..D..A;2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE,2NRFBE,3NR#..NSP15#..(BZ,PH,PKN,TH,VN)..(A,D,E,H,I)

 2
16571D - CLIP, RADIATOR HOSE, NO.1
96136-43901

1NRFE,2NRFE..NSP150,151..GEN

 2
96136-43901

2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..(A,C);2NRFE..NSP151..A,D,E,G,H,I;1NRFE..NSP150..5F..R..(A,C);1NRFE..NSP150..5F..GEN..D..A;2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE,2NRFBE,3NR#..NSP15#..(BZ,PH,PKN,TH,VN)..(A,D,E,H,I)

 2
16572D - HOSE, RADIATOR, NO.2
16572-0Y160

1NRFE,2NRFE..NSP15#..GCC,GEN,IDN,MA,PH,TH,VN

 1
16572-0Y161

1NRFE,2NRFE..NSP150,151..GEN

 1
16572-0Y161

1NRFE..NSP150..D,E,I;2NRFE..NSP151..A,D,E,I;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..(A,C);1NRFE..NSP150..5F..R..(A,C);1NRFE..NSP150..5F..GEN..D..A;2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C

 1
16572E - CLIP, RADIATOR HOSE, NO.2
96136-43901

1NRFE,2NRFE..NSP150,151..GEN

 2
96136-43901

2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..(A,C);2NRFE..NSP151..A,D,E,G,H,I;1NRFE..NSP150..5F..R..(A,C);1NRFE..NSP150..5F..GEN..D..A;2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE,2NRFBE,3NR#..NSP15#..(BZ,PH,PKN,TH,VN)..(A,D,E,H,I)

 2
16572E - CLIP, RADIATOR HOSE, NO.2
96136-43901

1NRFE,2NRFE..NSP150,151..GEN

 2
96136-43901

2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..(A,C);2NRFE..NSP151..A,D,E,G,H,I;1NRFE..NSP150..5F..R..(A,C);1NRFE..NSP150..5F..GEN..D..A;2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE,2NRFBE,3NR#..NSP15#..(BZ,PH,PKN,TH,VN)..(A,D,E,H,I)

 2
16711 - SHROUD, FAN
16711-0Y160

1NRFE,2NRFE..NSP150,151..GEN

 1
16711-0Y160

2NRFE..NSP151..A,E;1NRFE..NSP150..CVT..G..A;1NRFE..NSP150..5F..GCC..R..A;1NRFE..NSP150..CVT..GCC..(D,R)..A;1NRFE..NSP150..(GEN,VN)..(D,R)..(A,E)

 1
Common parts
90068-00040
90068-04055
90068-04056
90068-05020
90099-04119
90099-05164
93315-14008
93385-16016
Linked diagrams
1104

ILLUST NO. 2 OF 2(1604- )1NRFE,2NRFE..MTM..GCC,GEN,IND,VN..A,B,C,G ; (1807- )1NRFE,2NR#..MTM..

Click highlighted areas on diagram

diagram 16261G 16261H 16261H 16261R 16264 16264A 16264A 16267 16267A 16267A 16268 16281 16281A 16281A 16321 16326 8716 8716 90105T0052 90119T0342
Part # Description Qty Price
16261G - HOSE, WATER BY-PASS, NO.1
16261-0Y100

3NR#..NSP152;2NR#..NSP151..H

 1
16261-0Y100

1NRFE,2NRFE..NSP150,151..B,C

*230 OR *432

 1
16261-0Y030

2NRFE..NSP151..A,D,E,G;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

*264

 1
16261-0Y100

2NRFE..NSP151..A,D,E,G;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

*230 OR *432

 1
16261H - CLIP(FOR WATER BY-PASS HOSE NO.1)
90466-T0050

1NRFE,2NRFE..NSP150,151..B,C

*264

 2
90466-T0050

3NR#..NSP152;1NRFE,2NR#..NSP150,151..H,I

 2
90466-T0050

1NRFE,2NRFE..NSP150,151..B,C

*230 OR *432

 2
90466-T0050

2NRFE..NSP151..A,D,E,G;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

*230 OR *432,*264

 2
16261H - CLIP(FOR WATER BY-PASS HOSE NO.1)
90466-T0050

1NRFE,2NRFE..NSP150,151..B,C

*264

 2
90466-T0050

3NR#..NSP152;1NRFE,2NR#..NSP150,151..H,I

 2
90466-T0050

1NRFE,2NRFE..NSP150,151..B,C

*230 OR *432

 2
90466-T0050

2NRFE..NSP151..A,D,E,G;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

*230 OR *432,*264

 2
16261R - CLAMP OR CLIP(FOR WATER BY-PASS HOSE)
90469-T0015

2NRFE..NSP151..A,D,E,G;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

*230 OR *432

 1
90469-T0014

2NRFE..NSP151..GCC..C;2NRFE..NSP151..A,D,E,G;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

*264

 1
16264 - HOSE, WATER BY-PASS, NO.2
16264-0Y080

2NRFE..NSP151..GCC..C;2NRFE..NSP151..A,D,E,G;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

*264

 1
16264-0Y110

2NRFE..NSP151..A,D,E,G;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

*230 OR *432

 1
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90466-T0015

2NRFE..NSP151..GCC..C;2NRFE..NSP151..A,D,E,G;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

*264

 2
90466-T0015

3NR#..NSP152;1NRFE,2NR#..NSP150,151..H,I

 2
90466-T0015

2NRFE..NSP151..A,D,E,G;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

*230 OR *432

 2
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90466-T0015

2NRFE..NSP151..GCC..C;2NRFE..NSP151..A,D,E,G;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

*264

 2
90466-T0015

3NR#..NSP152;1NRFE,2NR#..NSP150,151..H,I

 2
90466-T0015

2NRFE..NSP151..A,D,E,G;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

*230 OR *432

 2
16267 - HOSE, WATER BY-PASS, NO.3
16267-0Y090

2NRFE..NSP151..A,D,E,G;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

*230 OR *432

 1
16267-0Y030

2NRFE..NSP151..GCC..C;2NRFE..NSP151..A,D,E,G;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

*264

 1
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
90466-T0015

2NRFE..NSP151..GCC..C;2NRFE..NSP151..A,D,E,G;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

*264

 2
90466-T0015

2NRFE..NSP151..A,D,E,G;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

*230 OR *432

 2
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
90466-T0015

2NRFE..NSP151..GCC..C;2NRFE..NSP151..A,D,E,G;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

*264

 2
90466-T0015

2NRFE..NSP151..A,D,E,G;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

*230 OR *432

 2
16268 - PIPE, WATER BY-PASS, NO.1
16268-0Y040

2NRFE..NSP151..A,D,E,G;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

*230 OR *432

 1
16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
90466-T0020

2NRFE..NSP151..5F;1NRFE..NSP150..5F..(G,R)

 2
16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
90466-T0020

2NRFE..NSP151..5F;1NRFE..NSP150..5F..(G,R)

 2
16321 - INLET, WATER
16031-0Y010

1NRFE,2NRFE..NSP150,151..GEN

*264

 1
16031-0Y010

1NRFE,2NRFE..NSP150,151..GEN

*230 OR *432

 1
16031-0Y010

2NRFE..NSP151..A,D,E,G;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE,3NRFE..NSP150,152..(GEN,PH,TH,VN)..(D,R)..(A,D,E)

*230 OR *432

 1
16031-0Y010

2NRFE..NSP151..A,D,E,G;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

*264

 1
16326 - GASKET, WATER INLET HOUSING, NO.2
16326-0Y010

1NRFE,2NRFE..NSP150,151..GEN

*230 OR *432

 1
16326-0Y010

1NRFE,2NRFE..NSP150,151..GEN

*264

 1
16326-0Y010

2NRFE..NSP151..A,D,E,G;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

*264

 1
16326-0Y010

2NRFE..NSP151..A,D,E,G;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE,3NRFE..NSP150,152..(GEN,PH,TH,VN)..(D,R)..(A,D,E)

*230 OR *432

 1
Common parts
90105-T0052
90119-T0342
Linked diagrams
8716
