NSP151L-BEMRK (2016)

Toyota Yaris/Vios/Limo

Production Apr 2016 - Sep 2017
Engine 2NRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1604- )1NRFE,2NRFE..5F

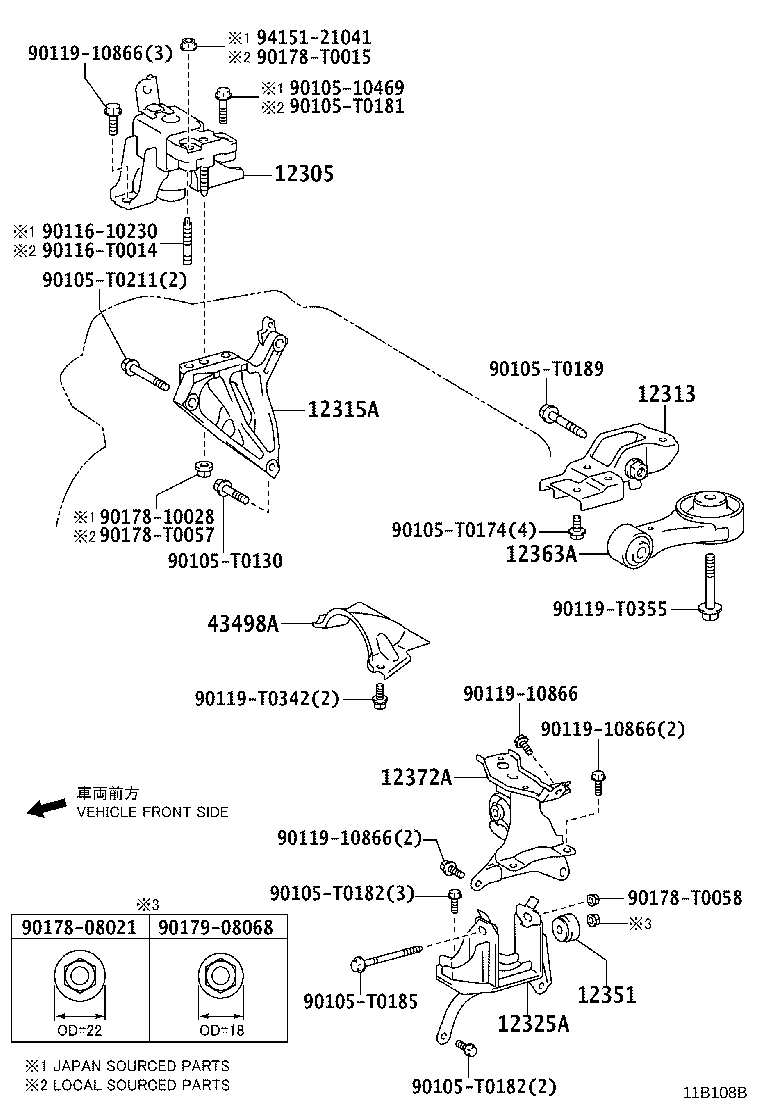

Click highlighted areas on diagram

diagram 12305 12313 12315A 12325A 12351 12363A 12372A 43498A 9010510469 90105T0130 90105T0174 90105T0181 90105T0182 90105T0182 90105T0185 90105T0189 90105T0211 9011610230 90116T0014 9011910866 9011910866 9011910866 9011910866 90119T0342 90119T0355 9017808021 9017810028 90178T0015 90178T0057 90178T0058 9017908068 9415121041
Part # Description Qty Price
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-0Y110

1NRFE,2NRFE..NSP150,151..GEN

 1
12305-0Y110

1NRFE..NSP150..D,E,I;1NRFE..NSP150..CVT..A;1NRFE..NSP150..5F..GCC..R..A;1NRFE..NSP150..LHD..5F..GEN..A;2NRFE,3NRFE..NSP151,152..A,D,E,I

 1
12313 - BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE)
12313-0M010

1NRFE,2NRFE..NSP150,151..5F..GEN

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-0Y070

1NRFE,2NRFE..NSP150,151..GEN

*230 OR *432

 1
12315-0Y010

1NRFE,2NRFE..NSP150,151..GEN

*264

 1
12315-0Y010

2NRFE..NSP151..A,D,E,G;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

*264

 1
12315-0Y070

2NRFE..NSP151..A,D,E,G;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE,3NRFE..NSP150,152..(GEN,PH,TH,VN)..(D,R)..(A,D,E)

*230 OR *432

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-0Y310

1NRFE,2NRFE..NSP150,151..5F..GEN

 1
12351 - DAMPER, ENGINE MOUNTING
12351-0Y080

1NRFE,2NRFE..NSP150,151..5F..GEN

 1
12363A - ROD, ENGINE MOVING CONTROL
12363-0M080

1NRFE,2NRFE..NSP150,151..5F..GEN

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-0Y250

1NRFE,2NRFE..NSP150,151..5F..GEN

 1
43498A - INSULATOR, DRIVE SHAFT HEAT, NO.1
43498-52130

NSP151..GEN;NSP150..5F..GEN

 1
43498-52130

NSP151..A,D,E,G,I;NSP150..5F..(A,D,E,I)

 1
Common parts
90105-10469
90105-T0130
90105-T0174
90105-T0181
90105-T0182
90105-T0185
90105-T0189
90105-T0211
90116-10230
90116-T0014
90119-10866
90119-T0342
90119-T0355
90178-08021
90178-10028
90178-T0015
90178-T0057
90178-T0058
90179-08068
94151-21041
