NSP151L-AEXGKV (2018)
Toyota Yaris/Vios/Limo

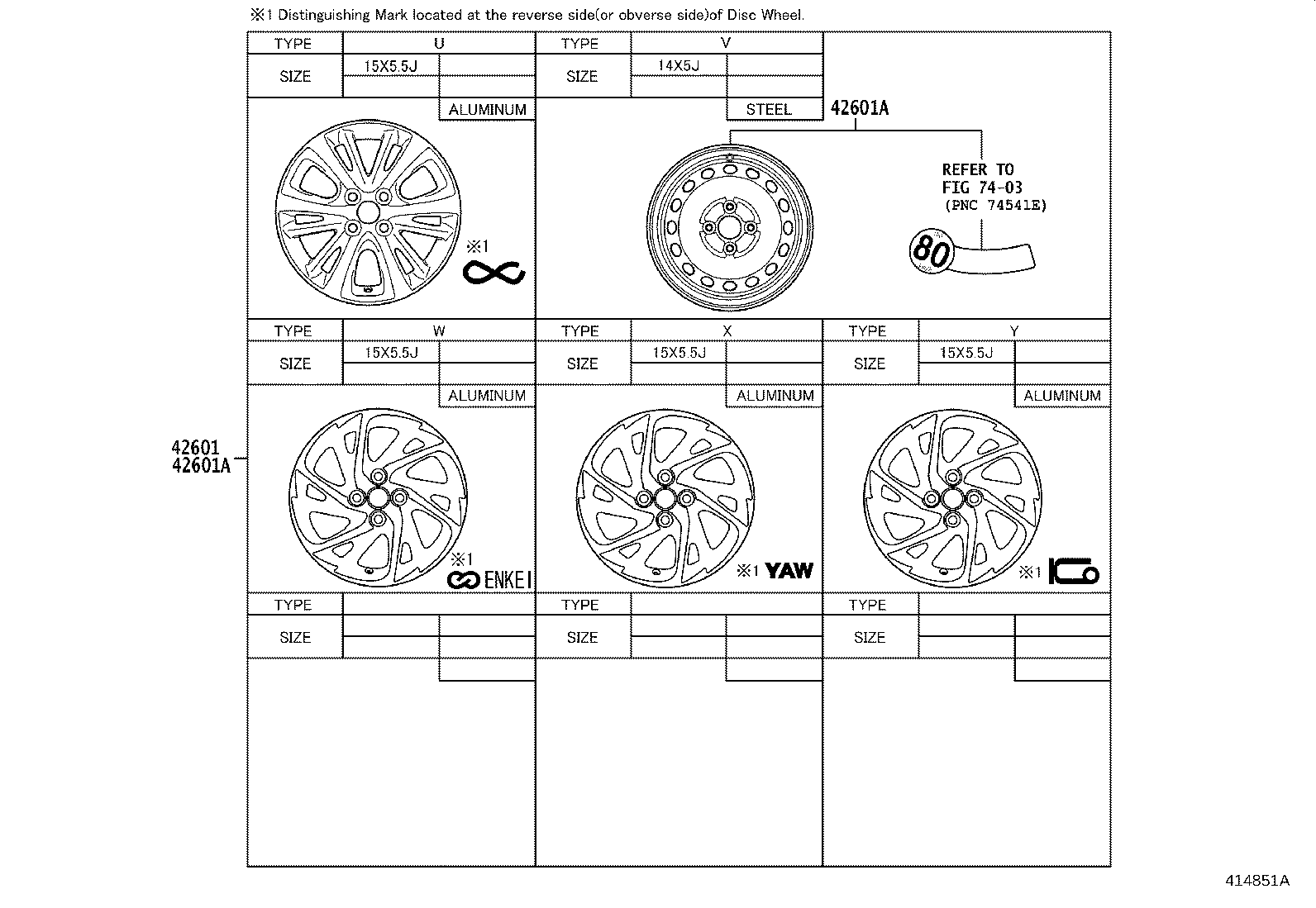

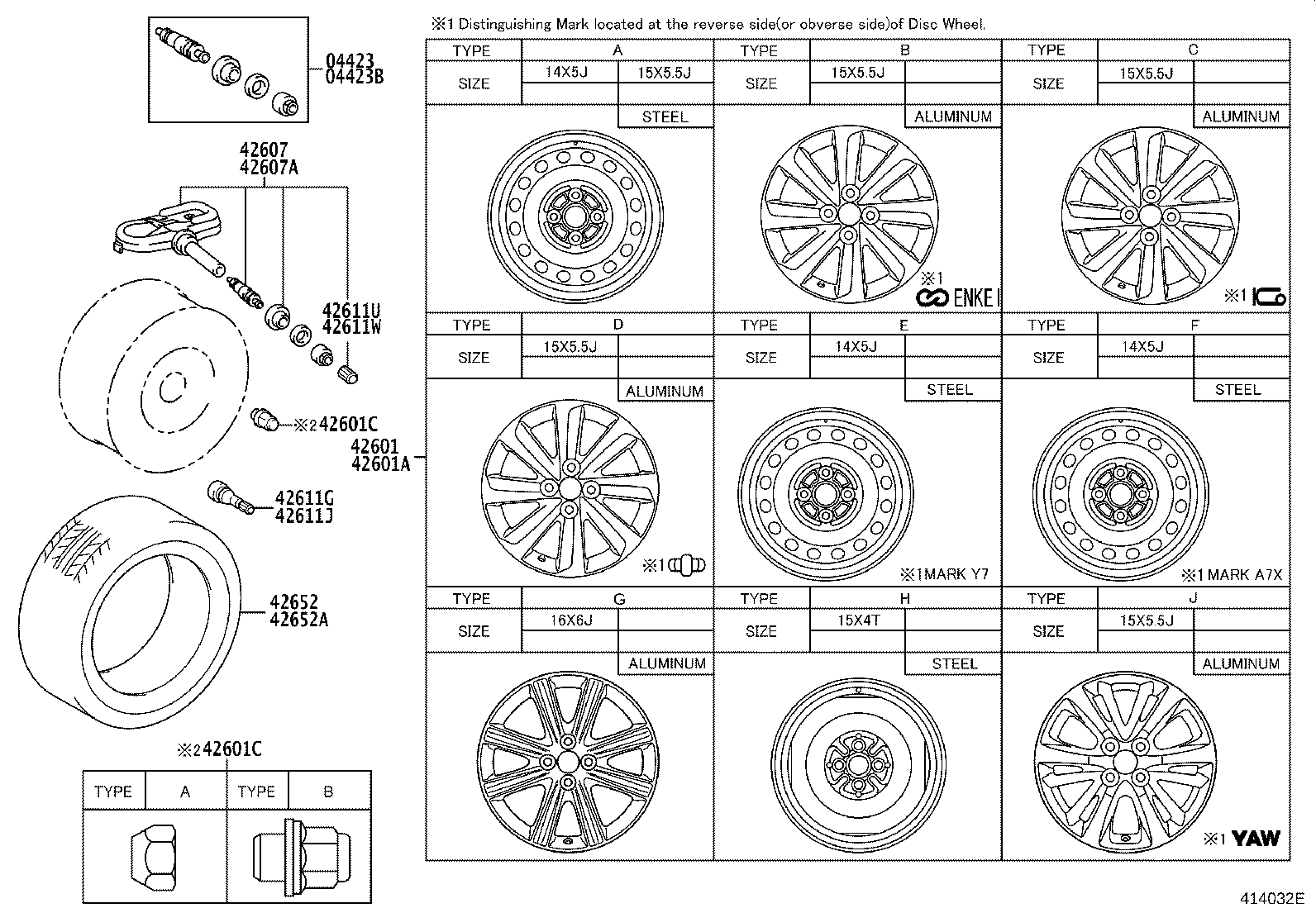

ILLUST NO. 1 OF 6(1304- )
DISC WHEEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04423 - FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE | ||||
| 04423-33060 |
NSP151..F |
4 | ||
| 04423-33060 |
NSP151..V..G;NSP150..CVT..GCC..D;NSP150,151..GCC..(G,R) |
4 | ||
| 04423B - FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE(SP | ||||
| 04423-33060 |
NSP151..GCC..R..C E-SPORT PACKAGE(GRADE MARK(S)) |
1 | ||
| 04423-33060 |
NSP150,151..GCC..G..C |
1 | ||
| 42601 - WHEEL, DISC | ||||
| 42611-0DG00 |
NSP151..(D,R)..G 15X5.5J, #,TYPE A:REFER ILLUST. |
4 | ||
| 42611-0DF80 |
NSP151..D 16X6J, #,TYPE Q:REFER ILLUST. |
4 | ||
| 42611-0DG50 |
NSP151..(G,V)..G 15X5.5J, #,TYPE R:REFER ILLUST. |
4 | ||
| 42611-0DG20 |
NSP151..D..H;NSP151..AGT..R 15X5.5J, #,TYPE S:REFER ILLUST. |
4 | ||
| 42611-0DG10 |
NSP151..(G,V)..G 15X5.5J, #,TYPE N:REFER ILLUST. |
4 | ||
| 42611-0DF20 |
NSP151..E 15X5.5J, #,TYPE N:REFER ILLUST. |
4 | ||
| 42611-0DE80 |
NSP151..GCC..R..A 15X5.5J, #,E-SPORT PACKAGE(GRADE MARK(S)),TYPE J:REFER ILLUST. |
2 | ||
| 42611-0DF40 |
NSP151..GCC..R..C 15X5.5J, #,E-SPORT PACKAGE(GRADE MARK(S)),TYPE M:REFER ILLUST. |
4 | ||
| 42611-0DF40 |
NSP150,151..GCC..G..C 15X5.5J, #,TYPE M:REFER ILLUST. |
4 | ||
| 42611-0DE90 |
NSP151..GCC..R..A 15X5.5J, #,E-SPORT PACKAGE(GRADE MARK(S)),TYPE K:REFER ILLUST. |
2 | ||
| 42611-0DE70 |
NSP151..CVT..D..C 14X5J, #,TYPE A:REFER ILLUST. |
4 | ||
| 42611-0DF30 |
NSP151..(R,V)..F 15X5.5J, #,TYPE M:REFER ILLUST. |
4 | ||
| 42611-0DG90 |
NSP150,151..GCC..G..C 15X5.5J, #,TYPE N:REFER ILLUST. |
4 | ||
| 42611-0D701 |
NSP151..D..F 14X5J, #,TYPE A:REFER ILLUST. |
4 | ||
| 42611-0DG90 |
NSP151..GCC..R..C 15X5.5J, #,E-SPORT PACKAGE(GRADE MARK(S)),TYPE N:REFER ILLUST. |
4 | ||
| 42611-0DL70 |
NSP151..CVT..D..A 15X5.5J, #,GHANA SPEC,TYPE X:REFER ILLUST. |
2 | ||
| 42611-0D691 |
NSP151..D..A 14X5J, #,COSTA RICA SPEC,TYPE E:REFER ILLUST. |
2 | ||
| 42611-0DL80 |
NSP151..CVT..D..A 15X5.5J, #,GHANA SPEC,TYPE Y:REFER ILLUST. |
2 | ||
| 42611-0D691 |
NSP150..5F..GCC..R..A;NSP150,151..CVT..GCC..(D,R)..A 14X5J, #,TYPE E:REFER ILLUST. |
2 | ||
| 42611-0DC11 |
NSP150..CVT..D..C;NSP150,151..GCC..R..C 14X5J, #,TYPE F:REFER ILLUST. |
4 | ||
| 42611-0D751 |
NSP150,151..CVT..GCC..R..C 15X5.5J, #,E-HI PACKAGE(WHEEL CAP(FOR 15INCH)),TYPE A:REFER ILLUST. |
4 | ||
| 42611-0D751 |
NSP150,151..CVT..GCC..R..A 15X5.5J, #,E-HI PACKAGE(WHEEL CAP(FOR 15INCH)),TYPE A:REFER ILLUST. |
2 | ||
| 42611-0DL70 |
NSP151..GEN..(G,R);NSP150..LHD..GEN..R;NSP150,151..GCC..G..A;NSP150..RHD..CVT..G..A 15X5.5J, #,TYPE X:REFER ILLUST. |
2 | ||
| 42611-0DL70 |
NSP151..CVT..D..A 15X5.5J, #,MEXICO SPEC,TYPE X:REFER ILLUST. |
2 | ||
| 42611-0DL80 |
NSP151..GEN..(G,R);NSP150..LHD..GEN..R;NSP150,151..GCC..G..A;NSP150..RHD..CVT..G..A 15X5.5J, #,TYPE Y:REFER ILLUST. |
2 | ||
| 42611-0DM00 |
NSP151..GCC..R..C 15X5.5J,#,E-SPORT PACKAGE(GRADE MARK(S)),TYPE W:REFER ILLUST. |
4 | ||
| 42611-0DL80 |
NSP151..CVT..D..A 15X5.5J, #,MEXICO SPEC,TYPE Y:REFER ILLUST. |
2 | ||
| 42611-0DL80 |
NSP151..GCC..R..A 15X5.5J, #,E-SPORT PACKAGE(GRADE MARK(S)),TYPE Y:REFER ILLUST. |
2 | ||
| 42611-0DL70 |
NSP151..GCC..R..A 15X5.5J, #,E-SPORT PACKAGE(GRADE MARK(S)),TYPE X:REFER ILLUST. |
2 | ||
| 42611-0DM00 |
NSP150,151..GCC..G..C 15X5.5J,#,TYPE W:REFER ILLUST. |
4 | ||
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42611-0DG00 |
NSP151..G 15X5.5J, #,TYPE A:REFER ILLUST. |
1 | ||
| 42611-0DF80 |
NSP151..D 16X6J, #,TYPE Q:REFER ILLUST. |
1 | ||
| 42611-0DF20 |
NSP151..E 15X5.5J, #,TYPE N:REFER ILLUST. |
1 | ||
| 42611-0DE80 |
NSP151..GCC..R..A 15X5.5J, #,E-SPORT PACKAGE(GRADE MARK(S)),TYPE J:REFER ILLUST. |
1 | ||
| 42611-0DE90 |
NSP151..GCC..R..A 15X5.5J, #,E-SPORT PACKAGE(GRADE MARK(S)),TYPE K:REFER ILLUST. |
1 | ||
| 42611-0DF40 |
NSP150,151..GCC..G..C 15X5.5J, #,TYPE M:REFER ILLUST. |
1 | ||
| 42611-0DG90 |
NSP151..GCC..R..C 15X5.5J, #,E-SPORT PACKAGE(GRADE MARK(S)),TYPE N:REFER ILLUST. |
1 | ||
| 42611-0DG90 |
NSP150,151..GCC..G..C 15X5.5J, #,TYPE N:REFER ILLUST. |
1 | ||
| 42611-0DF40 |
NSP151..GCC..R..C 15X5.5J, #,E-SPORT PACKAGE(GRADE MARK(S)),TYPE M:REFER ILLUST. |
1 | ||
| 42611-02280 |
NSP151..F 15X4T,TYPE H:REFER ILLUST. |
1 | ||
| 42611-0D691 |
NSP151..D..A 14X5J, #,COSTA RICA SPEC,TYPE E:REFER ILLUST. |
1 | ||
| 42611-0D751 |
NSP150,151..CVT..GCC..R 15X5.5J, #,E-HI PACKAGE(WHEEL CAP(FOR 15INCH)),TYPE A:REFER ILLUST. |
1 | ||
| 42611-0DE70 |
NSP151..CVT..D..C 14X5J, #,TYPE A:REFER ILLUST. |
1 | ||
| 42611-0DL70 |
NSP151..CVT..D..A 15X5.5J, #,GHANA SPEC,TYPE X:REFER ILLUST. |
1 | ||
| 42611-0DL80 |
NSP151..CVT..D..A 15X5.5J, #,GHANA SPEC,TYPE Y:REFER ILLUST. |
1 | ||
| 42611-0D691 |
NSP150..D..(D,E);NSP150..5F..GCC..R..A;NSP150,151..CVT..GCC..(D,R)..A 14X5J, #,TYPE E:REFER ILLUST. |
1 | ||
| 42611-0DL70 |
NSP151..CVT..D..A 15X5.5J, #,MEXICO SPEC,TYPE X:REFER ILLUST. |
1 | ||
| 42611-0DC11 |
NSP150..CVT..D..C;NSP150,151..GCC..R..C 14X5J, #,TYPE F:REFER ILLUST. |
1 | ||
| 42611-0DL70 |
NSP150..CVT..G..A;NSP151..GCC..G..A;NSP151..GEN..(G,R);NSP150..LHD..GEN..R 15X5.5J, #,TYPE X:REFER ILLUST. |
1 | ||
| 42611-0DL80 |
NSP150..CVT..G..A;NSP151..GCC..G..A;NSP151..GEN..(G,R);NSP150..LHD..GEN..R 15X5.5J, #,TYPE Y:REFER ILLUST. |
1 | ||
| 42611-0DL80 |
NSP151..GCC..R..A 15X5.5J, #,E-SPORT PACKAGE(GRADE MARK(S)),TYPE Y:REFER ILLUST. |
1 | ||
| 42611-0DM00 |
NSP151..GCC..R..C 15X5.5J,#,E-SPORT PACKAGE(GRADE MARK(S)),TYPE W:REFER ILLUST. |
1 | ||
| 42611-0DL80 |
NSP151..CVT..D..A 15X5.5J, #,MEXICO SPEC,TYPE Y:REFER ILLUST. |
1 | ||
| 42611-0DL70 |
NSP151..GCC..R..A 15X5.5J, #,E-SPORT PACKAGE(GRADE MARK(S)),TYPE X:REFER ILLUST. |
1 | ||
| 42611-0DM00 |
NSP150,151..GCC..G..C 15X5.5J,#,TYPE W:REFER ILLUST. |
1 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01007 |
NSP150..5F..D..C;NSP151..CVT..D..C (J),T/P A:REFER ILL. |
16 | ||
| 90942-T1009 |
NSP150..5F..D..C;NSP151..CVT..D..C (L),T/P A:REFER ILL. |
16 | ||
| 90942-01033 |
NSP151..GCC..R E-SPORT PACKAGE(GRADE MARK(S)),TYPE B:REFER ILLUST. |
16 | ||
| 90942-01007 |
NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..GCC..R..C (J),T/P A:REFER ILL. |
16 | ||
| 90942-T1009 |
NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..GCC..R..C (L),T/P A:REFER ILL. |
16 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01007 |
NSP150..5F..D..C;NSP151..CVT..D..C (J),T/P A:REFER ILL. |
16 | ||
| 90942-T1009 |
NSP150..5F..D..C;NSP151..CVT..D..C (L),T/P A:REFER ILL. |
16 | ||
| 90942-01033 |
NSP151..GCC..R E-SPORT PACKAGE(GRADE MARK(S)),TYPE B:REFER ILLUST. |
16 | ||
| 90942-01007 |
NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..GCC..R..C (J),T/P A:REFER ILL. |
16 | ||
| 90942-T1009 |
NSP151..5F..D..C;NSP150..CVT..D..C;NSP150,151..GCC..R..C (L),T/P A:REFER ILL. |
16 | ||
| 42607 - VALVE SUB-ASSY, TIRE PRESSURE MONITOR | ||||
| 42607-42021 |
NSP150..5F..GCC..R..A;NSP150,151..CVT..GCC..A |
2 | ||
| 42607-42021 |
NSP151..V..G;NSP150..CVT..D..C;NSP150,151..GCC..(G,R)..C |
4 | ||
| 42607-52020 |
NSP151..F |
4 | ||
| 42607A - VALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE) | ||||
| 42607-42021 |
NSP151..V..G;NSP150..CVT..GCC..D;NSP150,151..GCC..(G,R) |
1 | ||
| 42611G - VALVE (FOR TUBELESS TIRE) | ||||
| 90942-05009 |
NSP151..H |
4 | ||
| 90942-05009 |
NSP151..H (J) |
4 | ||
| 90942-T5001 |
NSP151..(D,G,R)..G |
4 | ||
| 90942-C5004 |
NSP151..H (L) |
4 | ||
| 90942-05009 |
NSP151..CVT..D..C |
4 | ||
| 42611J - VALVE (FOR TUBELESS TIRE SPARE) | ||||
| 90942-05009 |
NSP151..H (J) |
1 | ||
| 90942-T5001 |
NSP151..(D,G,R)..G |
1 | ||
| 90942-C5004 |
NSP151..H (L) |
1 | ||
| 90942-05009 |
NSP151..H |
1 | ||
| 90083-45001 |
NSP151..F |
1 | ||
| 90942-05009 |
NSP151..CVT..D..C |
1 | ||
| 42611U - CAP, TIRE VALVE | ||||
| 90942-05039 |
NSP151..F |
4 | ||
| 90942-05039 |
NSP150..5F..GCC..R..A;NSP150,151..CVT..GCC..A |
2 | ||
| 90942-05039 |
NSP151..V..G;NSP150..CVT..D..C;NSP150,151..GCC..(G,R)..C |
4 | ||
| 42611W - CAP, TIRE VALVE (FOR SPARE) | ||||
| 90942-05039 |
NSP151..V..G;NSP150..CVT..GCC..D;NSP150,151..GCC..(G,R) |
1 | ||
| 42652 - TIRE | ||||
| 42652-0DG60 |
NSP151..H 185/60R15,*D/L |
4 | ||
| 42652-0DG50 |
NSP151..H 185/60R15,*B/S |
4 | ||
| 42652-0D620 |
NSP151..(R,V)..F 185/60R15,*B/S |
4 | ||
| 42652-0DE80 |
NSP151..(R,V)..F 185/60R15 |
4 | ||
| 42652-0DE70 |
NSP151..D..F 175/65R14 |
4 | ||
| 42652-0D660 |
NSP151..D..F 175/65R14,*B/S |
4 | ||
| 42652A - TIRE (FOR SPARE) | ||||
| 4265A-0D050 |
NSP151..F T125/70D15 |
1 | ||

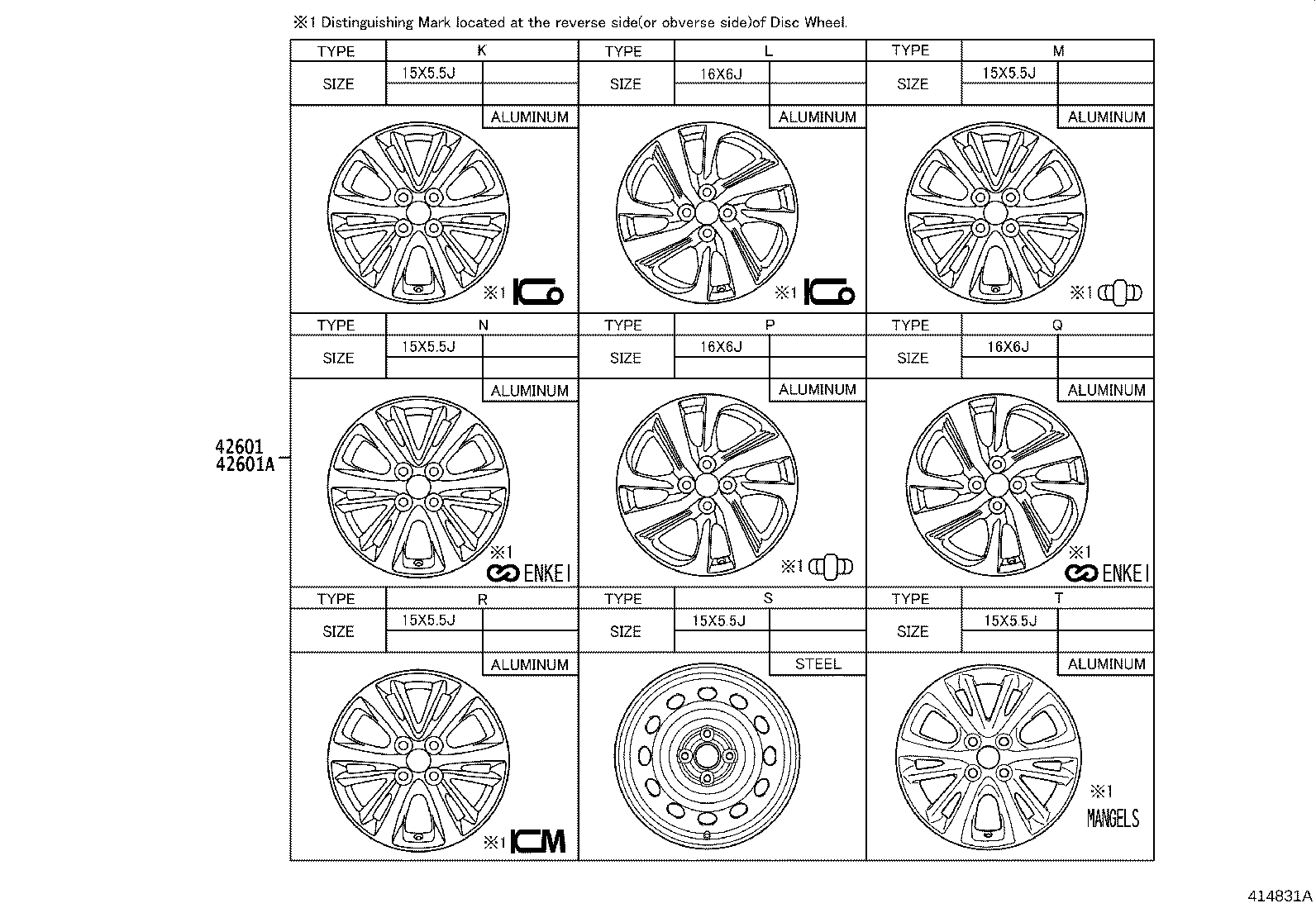

ILLUST NO. 2 OF 6(1304- )
DISC WHEEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42601 - WHEEL, DISC | ||||
| 42611-0DG00 |
NSP151..(D,R)..G 15X5.5J, #,TYPE A:REFER ILLUST. |
4 | ||
| 42611-0DF80 |
NSP151..D 16X6J, #,TYPE Q:REFER ILLUST. |
4 | ||
| 42611-0DG50 |
NSP151..(G,V)..G 15X5.5J, #,TYPE R:REFER ILLUST. |
4 | ||
| 42611-0DG20 |
NSP151..D..H;NSP151..AGT..R 15X5.5J, #,TYPE S:REFER ILLUST. |
4 | ||
| 42611-0DG10 |
NSP151..(G,V)..G 15X5.5J, #,TYPE N:REFER ILLUST. |
4 | ||
| 42611-0DF20 |
NSP151..E 15X5.5J, #,TYPE N:REFER ILLUST. |
4 | ||
| 42611-0DE80 |
NSP151..GCC..R..A 15X5.5J, #,E-SPORT PACKAGE(GRADE MARK(S)),TYPE J:REFER ILLUST. |
2 | ||
| 42611-0DF40 |
NSP151..GCC..R..C 15X5.5J, #,E-SPORT PACKAGE(GRADE MARK(S)),TYPE M:REFER ILLUST. |
4 | ||
| 42611-0DF40 |
NSP150,151..GCC..G..C 15X5.5J, #,TYPE M:REFER ILLUST. |
4 | ||
| 42611-0DE90 |
NSP151..GCC..R..A 15X5.5J, #,E-SPORT PACKAGE(GRADE MARK(S)),TYPE K:REFER ILLUST. |
2 | ||
| 42611-0DE70 |
NSP151..CVT..D..C 14X5J, #,TYPE A:REFER ILLUST. |
4 | ||
| 42611-0DF30 |
NSP151..(R,V)..F 15X5.5J, #,TYPE M:REFER ILLUST. |
4 | ||
| 42611-0DG90 |
NSP150,151..GCC..G..C 15X5.5J, #,TYPE N:REFER ILLUST. |
4 | ||
| 42611-0D701 |
NSP151..D..F 14X5J, #,TYPE A:REFER ILLUST. |
4 | ||
| 42611-0DG90 |
NSP151..GCC..R..C 15X5.5J, #,E-SPORT PACKAGE(GRADE MARK(S)),TYPE N:REFER ILLUST. |
4 | ||
| 42611-0DL70 |
NSP151..CVT..D..A 15X5.5J, #,GHANA SPEC,TYPE X:REFER ILLUST. |
2 | ||
| 42611-0D691 |
NSP151..D..A 14X5J, #,COSTA RICA SPEC,TYPE E:REFER ILLUST. |
2 | ||
| 42611-0DL80 |
NSP151..CVT..D..A 15X5.5J, #,GHANA SPEC,TYPE Y:REFER ILLUST. |
2 | ||
| 42611-0D691 |
NSP150..5F..GCC..R..A;NSP150,151..CVT..GCC..(D,R)..A 14X5J, #,TYPE E:REFER ILLUST. |
2 | ||
| 42611-0DC11 |
NSP150..CVT..D..C;NSP150,151..GCC..R..C 14X5J, #,TYPE F:REFER ILLUST. |
4 | ||
| 42611-0D751 |
NSP150,151..CVT..GCC..R..C 15X5.5J, #,E-HI PACKAGE(WHEEL CAP(FOR 15INCH)),TYPE A:REFER ILLUST. |
4 | ||
| 42611-0D751 |
NSP150,151..CVT..GCC..R..A 15X5.5J, #,E-HI PACKAGE(WHEEL CAP(FOR 15INCH)),TYPE A:REFER ILLUST. |
2 | ||
| 42611-0DL70 |
NSP151..GEN..(G,R);NSP150..LHD..GEN..R;NSP150,151..GCC..G..A;NSP150..RHD..CVT..G..A 15X5.5J, #,TYPE X:REFER ILLUST. |
2 | ||
| 42611-0DL70 |
NSP151..CVT..D..A 15X5.5J, #,MEXICO SPEC,TYPE X:REFER ILLUST. |
2 | ||
| 42611-0DL80 |
NSP151..GEN..(G,R);NSP150..LHD..GEN..R;NSP150,151..GCC..G..A;NSP150..RHD..CVT..G..A 15X5.5J, #,TYPE Y:REFER ILLUST. |
2 | ||
| 42611-0DM00 |
NSP151..GCC..R..C 15X5.5J,#,E-SPORT PACKAGE(GRADE MARK(S)),TYPE W:REFER ILLUST. |
4 | ||
| 42611-0DL80 |
NSP151..CVT..D..A 15X5.5J, #,MEXICO SPEC,TYPE Y:REFER ILLUST. |
2 | ||
| 42611-0DL80 |
NSP151..GCC..R..A 15X5.5J, #,E-SPORT PACKAGE(GRADE MARK(S)),TYPE Y:REFER ILLUST. |
2 | ||
| 42611-0DL70 |
NSP151..GCC..R..A 15X5.5J, #,E-SPORT PACKAGE(GRADE MARK(S)),TYPE X:REFER ILLUST. |
2 | ||
| 42611-0DM00 |
NSP150,151..GCC..G..C 15X5.5J,#,TYPE W:REFER ILLUST. |
4 | ||
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42611-0DG00 |
NSP151..G 15X5.5J, #,TYPE A:REFER ILLUST. |
1 | ||
| 42611-0DF80 |
NSP151..D 16X6J, #,TYPE Q:REFER ILLUST. |
1 | ||
| 42611-0DF20 |
NSP151..E 15X5.5J, #,TYPE N:REFER ILLUST. |
1 | ||
| 42611-0DE80 |
NSP151..GCC..R..A 15X5.5J, #,E-SPORT PACKAGE(GRADE MARK(S)),TYPE J:REFER ILLUST. |
1 | ||
| 42611-0DE90 |
NSP151..GCC..R..A 15X5.5J, #,E-SPORT PACKAGE(GRADE MARK(S)),TYPE K:REFER ILLUST. |
1 | ||
| 42611-0DF40 |
NSP150,151..GCC..G..C 15X5.5J, #,TYPE M:REFER ILLUST. |
1 | ||
| 42611-0DG90 |
NSP151..GCC..R..C 15X5.5J, #,E-SPORT PACKAGE(GRADE MARK(S)),TYPE N:REFER ILLUST. |
1 | ||
| 42611-0DG90 |
NSP150,151..GCC..G..C 15X5.5J, #,TYPE N:REFER ILLUST. |
1 | ||
| 42611-0DF40 |
NSP151..GCC..R..C 15X5.5J, #,E-SPORT PACKAGE(GRADE MARK(S)),TYPE M:REFER ILLUST. |
1 | ||
| 42611-02280 |
NSP151..F 15X4T,TYPE H:REFER ILLUST. |
1 | ||
| 42611-0D691 |
NSP151..D..A 14X5J, #,COSTA RICA SPEC,TYPE E:REFER ILLUST. |
1 | ||
| 42611-0D751 |
NSP150,151..CVT..GCC..R 15X5.5J, #,E-HI PACKAGE(WHEEL CAP(FOR 15INCH)),TYPE A:REFER ILLUST. |
1 | ||
| 42611-0DE70 |
NSP151..CVT..D..C 14X5J, #,TYPE A:REFER ILLUST. |
1 | ||
| 42611-0DL70 |
NSP151..CVT..D..A 15X5.5J, #,GHANA SPEC,TYPE X:REFER ILLUST. |
1 | ||
| 42611-0DL80 |
NSP151..CVT..D..A 15X5.5J, #,GHANA SPEC,TYPE Y:REFER ILLUST. |
1 | ||
| 42611-0D691 |
NSP150..D..(D,E);NSP150..5F..GCC..R..A;NSP150,151..CVT..GCC..(D,R)..A 14X5J, #,TYPE E:REFER ILLUST. |
1 | ||
| 42611-0DL70 |
NSP151..CVT..D..A 15X5.5J, #,MEXICO SPEC,TYPE X:REFER ILLUST. |
1 | ||
| 42611-0DC11 |
NSP150..CVT..D..C;NSP150,151..GCC..R..C 14X5J, #,TYPE F:REFER ILLUST. |
1 | ||
| 42611-0DL70 |
NSP150..CVT..G..A;NSP151..GCC..G..A;NSP151..GEN..(G,R);NSP150..LHD..GEN..R 15X5.5J, #,TYPE X:REFER ILLUST. |
1 | ||
| 42611-0DL80 |
NSP150..CVT..G..A;NSP151..GCC..G..A;NSP151..GEN..(G,R);NSP150..LHD..GEN..R 15X5.5J, #,TYPE Y:REFER ILLUST. |
1 | ||
| 42611-0DL80 |
NSP151..GCC..R..A 15X5.5J, #,E-SPORT PACKAGE(GRADE MARK(S)),TYPE Y:REFER ILLUST. |
1 | ||
| 42611-0DM00 |
NSP151..GCC..R..C 15X5.5J,#,E-SPORT PACKAGE(GRADE MARK(S)),TYPE W:REFER ILLUST. |
1 | ||
| 42611-0DL80 |
NSP151..CVT..D..A 15X5.5J, #,MEXICO SPEC,TYPE Y:REFER ILLUST. |
1 | ||
| 42611-0DL70 |
NSP151..GCC..R..A 15X5.5J, #,E-SPORT PACKAGE(GRADE MARK(S)),TYPE X:REFER ILLUST. |
1 | ||
| 42611-0DM00 |
NSP150,151..GCC..G..C 15X5.5J,#,TYPE W:REFER ILLUST. |
1 | ||
ILLUST NO. 4 OF 6(1304- )

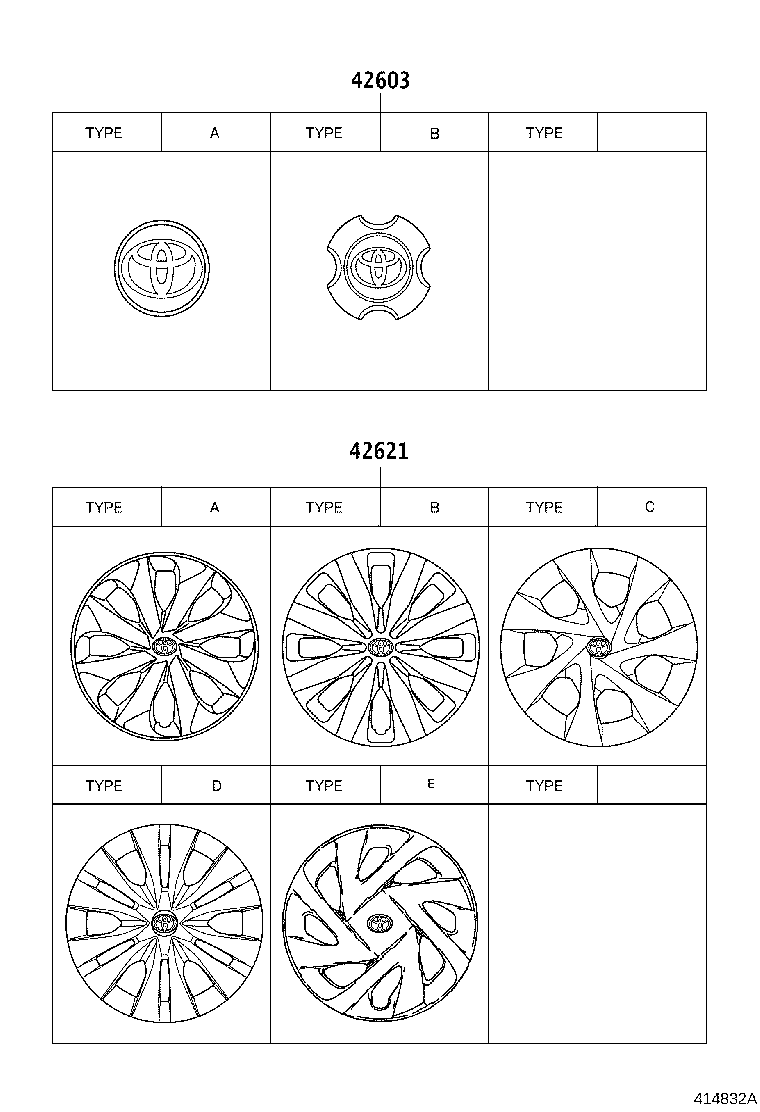

WHEEL HUB ORNAMENT & WHEEL CAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42603 - ORNAMENT SUB-ASSY, WHEEL HUB | ||||
| 42638-52020 |
NSP151..CVT..D..C *STE,TYPE B:REFER ILLUST. |
4 | ||
| 42603-0D200 |
NSP151..GCC..R *ALU,E-SPORT PACKAGE(GRADE MARK(S)),TYPE A:REFER ILLUST. |
4 | ||
| 42603-52170 |
NSP151..(R,V)..F *ALU,TYPE A:REFER ILLUST. |
4 | ||
| 42621 - CAP, WHEEL | ||||
| 42602-0D360 |
NSP151..(D,R)..G TYPE D:REFER ILLUST. |
4 | ||
| 42602-0D370 |
NSP151..D..H;NSP151..AGT..R TYPE D:REFER ILLUST. |
4 | ||
| 42602-0D390 |
NSP151..D..F TYPE C:REFER ILLUST. |
4 | ||
| 42602-0D380 |
NSP151..D..A COSTA RICA SPEC,TYPE C:REFER ILLUST. |
4 | ||
| 42602-0D380 |
NSP150..D..D;NSP150,151..GCC..R;NSP150..CVT..GCC..D TYPE C:REFER ILLUST. |
4 | ||
| 42602-0D400 |
NSP150,151..CVT..GCC..R E-HI PACKAGE(WHEEL CAP(FOR 15INCH)),TYPE D:REFER ILLUST. |
4 | ||
ILLUST NO. 6 OF 6(1807- )H

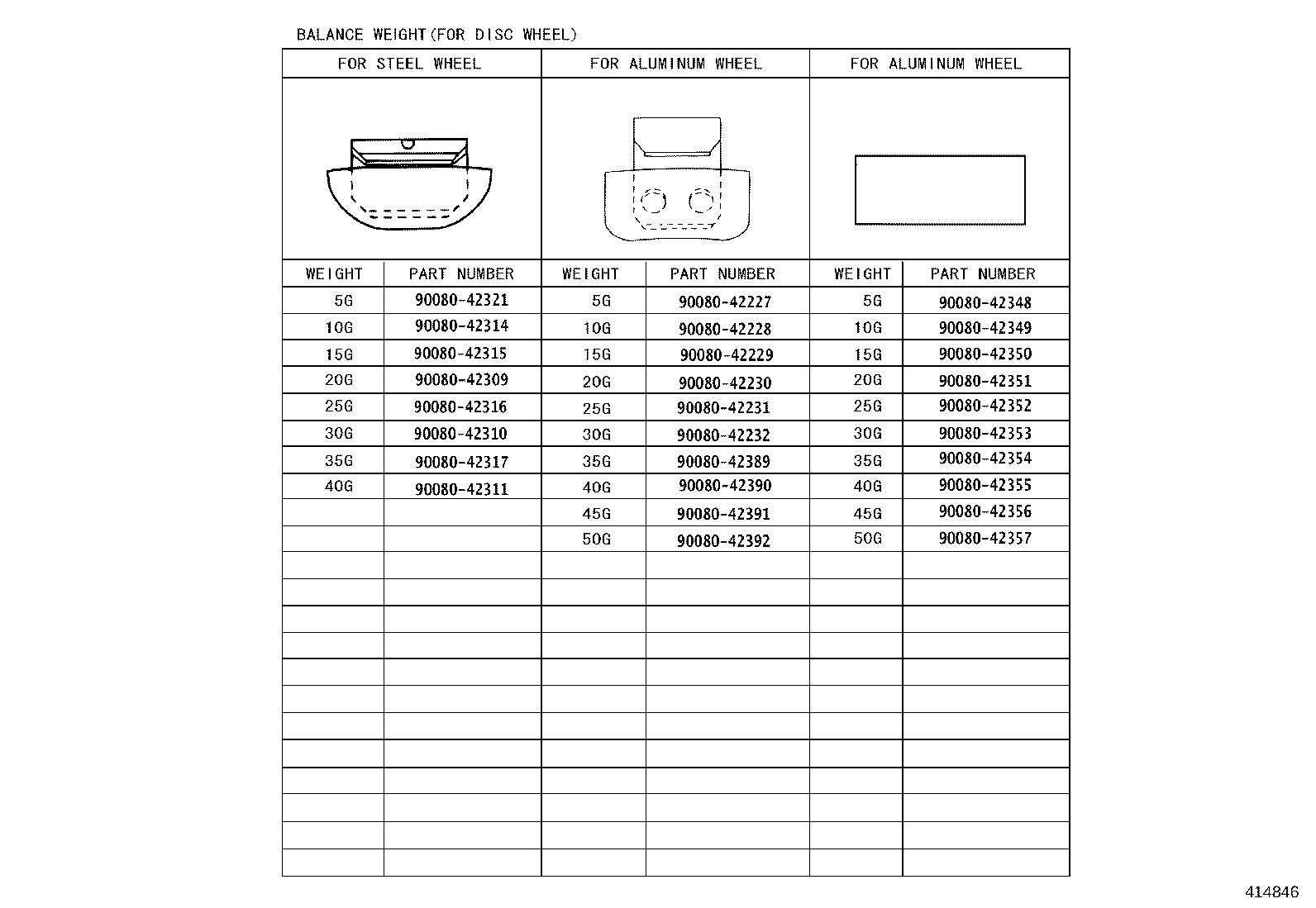

BALANCE WEIGHT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90080-42227 | ||||
| 90080-42228 | ||||
| 90080-42229 | ||||
| 90080-42230 | ||||
| 90080-42231 | ||||
| 90080-42232 | ||||
| 90080-42309 | ||||
| 90080-42310 | ||||
| 90080-42311 | ||||
| 90080-42314 | ||||
| 90080-42315 | ||||
| 90080-42316 | ||||
| 90080-42317 | ||||
| 90080-42321 | ||||
| 90080-42348 | ||||
| 90080-42349 | ||||
| 90080-42350 | ||||
| 90080-42351 | ||||
| 90080-42352 | ||||
| 90080-42353 | ||||
| 90080-42354 | ||||
| 90080-42355 | ||||
| 90080-42356 | ||||
| 90080-42357 | ||||
| 90080-42389 | ||||
| 90080-42390 | ||||
| 90080-42391 | ||||
| 90080-42392 | ||||
ILLUST NO. 3 OF 6(1304- )
DISC WHEEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42601 - WHEEL, DISC | ||||
| 42611-0DG00 |
NSP151..(D,R)..G 15X5.5J, #,TYPE A:REFER ILLUST. |
4 | ||
| 42611-0DF80 |
NSP151..D 16X6J, #,TYPE Q:REFER ILLUST. |
4 | ||
| 42611-0DG50 |
NSP151..(G,V)..G 15X5.5J, #,TYPE R:REFER ILLUST. |
4 | ||
| 42611-0DG20 |
NSP151..D..H;NSP151..AGT..R 15X5.5J, #,TYPE S:REFER ILLUST. |
4 | ||
| 42611-0DG10 |
NSP151..(G,V)..G 15X5.5J, #,TYPE N:REFER ILLUST. |
4 | ||
| 42611-0DF20 |
NSP151..E 15X5.5J, #,TYPE N:REFER ILLUST. |
4 | ||
| 42611-0DE80 |
NSP151..GCC..R..A 15X5.5J, #,E-SPORT PACKAGE(GRADE MARK(S)),TYPE J:REFER ILLUST. |
2 | ||
| 42611-0DF40 |
NSP151..GCC..R..C 15X5.5J, #,E-SPORT PACKAGE(GRADE MARK(S)),TYPE M:REFER ILLUST. |
4 | ||
| 42611-0DF40 |
NSP150,151..GCC..G..C 15X5.5J, #,TYPE M:REFER ILLUST. |
4 | ||
| 42611-0DE90 |
NSP151..GCC..R..A 15X5.5J, #,E-SPORT PACKAGE(GRADE MARK(S)),TYPE K:REFER ILLUST. |
2 | ||
| 42611-0DE70 |
NSP151..CVT..D..C 14X5J, #,TYPE A:REFER ILLUST. |
4 | ||
| 42611-0DF30 |
NSP151..(R,V)..F 15X5.5J, #,TYPE M:REFER ILLUST. |
4 | ||
| 42611-0DG90 |
NSP150,151..GCC..G..C 15X5.5J, #,TYPE N:REFER ILLUST. |
4 | ||
| 42611-0D701 |
NSP151..D..F 14X5J, #,TYPE A:REFER ILLUST. |
4 | ||
| 42611-0DG90 |
NSP151..GCC..R..C 15X5.5J, #,E-SPORT PACKAGE(GRADE MARK(S)),TYPE N:REFER ILLUST. |
4 | ||
| 42611-0DL70 |
NSP151..CVT..D..A 15X5.5J, #,GHANA SPEC,TYPE X:REFER ILLUST. |
2 | ||
| 42611-0D691 |
NSP151..D..A 14X5J, #,COSTA RICA SPEC,TYPE E:REFER ILLUST. |
2 | ||
| 42611-0DL80 |
NSP151..CVT..D..A 15X5.5J, #,GHANA SPEC,TYPE Y:REFER ILLUST. |
2 | ||
| 42611-0D691 |
NSP150..5F..GCC..R..A;NSP150,151..CVT..GCC..(D,R)..A 14X5J, #,TYPE E:REFER ILLUST. |
2 | ||
| 42611-0DC11 |
NSP150..CVT..D..C;NSP150,151..GCC..R..C 14X5J, #,TYPE F:REFER ILLUST. |
4 | ||
| 42611-0D751 |
NSP150,151..CVT..GCC..R..C 15X5.5J, #,E-HI PACKAGE(WHEEL CAP(FOR 15INCH)),TYPE A:REFER ILLUST. |
4 | ||
| 42611-0D751 |
NSP150,151..CVT..GCC..R..A 15X5.5J, #,E-HI PACKAGE(WHEEL CAP(FOR 15INCH)),TYPE A:REFER ILLUST. |
2 | ||
| 42611-0DL70 |
NSP151..GEN..(G,R);NSP150..LHD..GEN..R;NSP150,151..GCC..G..A;NSP150..RHD..CVT..G..A 15X5.5J, #,TYPE X:REFER ILLUST. |
2 | ||
| 42611-0DL70 |
NSP151..CVT..D..A 15X5.5J, #,MEXICO SPEC,TYPE X:REFER ILLUST. |
2 | ||
| 42611-0DL80 |
NSP151..GEN..(G,R);NSP150..LHD..GEN..R;NSP150,151..GCC..G..A;NSP150..RHD..CVT..G..A 15X5.5J, #,TYPE Y:REFER ILLUST. |
2 | ||
| 42611-0DM00 |
NSP151..GCC..R..C 15X5.5J,#,E-SPORT PACKAGE(GRADE MARK(S)),TYPE W:REFER ILLUST. |
4 | ||
| 42611-0DL80 |
NSP151..CVT..D..A 15X5.5J, #,MEXICO SPEC,TYPE Y:REFER ILLUST. |
2 | ||
| 42611-0DL80 |
NSP151..GCC..R..A 15X5.5J, #,E-SPORT PACKAGE(GRADE MARK(S)),TYPE Y:REFER ILLUST. |
2 | ||
| 42611-0DL70 |
NSP151..GCC..R..A 15X5.5J, #,E-SPORT PACKAGE(GRADE MARK(S)),TYPE X:REFER ILLUST. |
2 | ||
| 42611-0DM00 |
NSP150,151..GCC..G..C 15X5.5J,#,TYPE W:REFER ILLUST. |
4 | ||
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42611-0DG00 |
NSP151..G 15X5.5J, #,TYPE A:REFER ILLUST. |
1 | ||
| 42611-0DF80 |
NSP151..D 16X6J, #,TYPE Q:REFER ILLUST. |
1 | ||
| 42611-0DF20 |
NSP151..E 15X5.5J, #,TYPE N:REFER ILLUST. |
1 | ||
| 42611-0DE80 |
NSP151..GCC..R..A 15X5.5J, #,E-SPORT PACKAGE(GRADE MARK(S)),TYPE J:REFER ILLUST. |
1 | ||
| 42611-0DE90 |
NSP151..GCC..R..A 15X5.5J, #,E-SPORT PACKAGE(GRADE MARK(S)),TYPE K:REFER ILLUST. |
1 | ||
| 42611-0DF40 |
NSP150,151..GCC..G..C 15X5.5J, #,TYPE M:REFER ILLUST. |
1 | ||
| 42611-0DG90 |
NSP151..GCC..R..C 15X5.5J, #,E-SPORT PACKAGE(GRADE MARK(S)),TYPE N:REFER ILLUST. |
1 | ||
| 42611-0DG90 |
NSP150,151..GCC..G..C 15X5.5J, #,TYPE N:REFER ILLUST. |
1 | ||
| 42611-0DF40 |
NSP151..GCC..R..C 15X5.5J, #,E-SPORT PACKAGE(GRADE MARK(S)),TYPE M:REFER ILLUST. |
1 | ||
| 42611-02280 |
NSP151..F 15X4T,TYPE H:REFER ILLUST. |
1 | ||
| 42611-0D691 |
NSP151..D..A 14X5J, #,COSTA RICA SPEC,TYPE E:REFER ILLUST. |
1 | ||
| 42611-0D751 |
NSP150,151..CVT..GCC..R 15X5.5J, #,E-HI PACKAGE(WHEEL CAP(FOR 15INCH)),TYPE A:REFER ILLUST. |
1 | ||
| 42611-0DE70 |
NSP151..CVT..D..C 14X5J, #,TYPE A:REFER ILLUST. |
1 | ||
| 42611-0DL70 |
NSP151..CVT..D..A 15X5.5J, #,GHANA SPEC,TYPE X:REFER ILLUST. |
1 | ||
| 42611-0DL80 |
NSP151..CVT..D..A 15X5.5J, #,GHANA SPEC,TYPE Y:REFER ILLUST. |
1 | ||
| 42611-0D691 |
NSP150..D..(D,E);NSP150..5F..GCC..R..A;NSP150,151..CVT..GCC..(D,R)..A 14X5J, #,TYPE E:REFER ILLUST. |
1 | ||
| 42611-0DL70 |
NSP151..CVT..D..A 15X5.5J, #,MEXICO SPEC,TYPE X:REFER ILLUST. |
1 | ||
| 42611-0DC11 |
NSP150..CVT..D..C;NSP150,151..GCC..R..C 14X5J, #,TYPE F:REFER ILLUST. |
1 | ||
| 42611-0DL70 |
NSP150..CVT..G..A;NSP151..GCC..G..A;NSP151..GEN..(G,R);NSP150..LHD..GEN..R 15X5.5J, #,TYPE X:REFER ILLUST. |
1 | ||
| 42611-0DL80 |
NSP150..CVT..G..A;NSP151..GCC..G..A;NSP151..GEN..(G,R);NSP150..LHD..GEN..R 15X5.5J, #,TYPE Y:REFER ILLUST. |
1 | ||
| 42611-0DL80 |
NSP151..GCC..R..A 15X5.5J, #,E-SPORT PACKAGE(GRADE MARK(S)),TYPE Y:REFER ILLUST. |
1 | ||
| 42611-0DM00 |
NSP151..GCC..R..C 15X5.5J,#,E-SPORT PACKAGE(GRADE MARK(S)),TYPE W:REFER ILLUST. |
1 | ||
| 42611-0DL80 |
NSP151..CVT..D..A 15X5.5J, #,MEXICO SPEC,TYPE Y:REFER ILLUST. |
1 | ||
| 42611-0DL70 |
NSP151..GCC..R..A 15X5.5J, #,E-SPORT PACKAGE(GRADE MARK(S)),TYPE X:REFER ILLUST. |
1 | ||
| 42611-0DM00 |
NSP150,151..GCC..G..C 15X5.5J,#,TYPE W:REFER ILLUST. |
1 | ||
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42611-0DG00 |
NSP151..G 15X5.5J, #,TYPE A:REFER ILLUST. |
1 | ||
| 42611-0DF80 |
NSP151..D 16X6J, #,TYPE Q:REFER ILLUST. |
1 | ||
| 42611-0DF20 |
NSP151..E 15X5.5J, #,TYPE N:REFER ILLUST. |
1 | ||
| 42611-0DE80 |
NSP151..GCC..R..A 15X5.5J, #,E-SPORT PACKAGE(GRADE MARK(S)),TYPE J:REFER ILLUST. |
1 | ||
| 42611-0DE90 |
NSP151..GCC..R..A 15X5.5J, #,E-SPORT PACKAGE(GRADE MARK(S)),TYPE K:REFER ILLUST. |
1 | ||
| 42611-0DF40 |
NSP150,151..GCC..G..C 15X5.5J, #,TYPE M:REFER ILLUST. |
1 | ||
| 42611-0DG90 |
NSP151..GCC..R..C 15X5.5J, #,E-SPORT PACKAGE(GRADE MARK(S)),TYPE N:REFER ILLUST. |
1 | ||
| 42611-0DG90 |
NSP150,151..GCC..G..C 15X5.5J, #,TYPE N:REFER ILLUST. |
1 | ||
| 42611-0DF40 |
NSP151..GCC..R..C 15X5.5J, #,E-SPORT PACKAGE(GRADE MARK(S)),TYPE M:REFER ILLUST. |
1 | ||
| 42611-02280 |
NSP151..F 15X4T,TYPE H:REFER ILLUST. |
1 | ||
| 42611-0D691 |
NSP151..D..A 14X5J, #,COSTA RICA SPEC,TYPE E:REFER ILLUST. |
1 | ||
| 42611-0D751 |
NSP150,151..CVT..GCC..R 15X5.5J, #,E-HI PACKAGE(WHEEL CAP(FOR 15INCH)),TYPE A:REFER ILLUST. |
1 | ||
| 42611-0DE70 |
NSP151..CVT..D..C 14X5J, #,TYPE A:REFER ILLUST. |
1 | ||
| 42611-0DL70 |
NSP151..CVT..D..A 15X5.5J, #,GHANA SPEC,TYPE X:REFER ILLUST. |
1 | ||
| 42611-0DL80 |
NSP151..CVT..D..A 15X5.5J, #,GHANA SPEC,TYPE Y:REFER ILLUST. |
1 | ||
| 42611-0D691 |
NSP150..D..(D,E);NSP150..5F..GCC..R..A;NSP150,151..CVT..GCC..(D,R)..A 14X5J, #,TYPE E:REFER ILLUST. |
1 | ||
| 42611-0DL70 |
NSP151..CVT..D..A 15X5.5J, #,MEXICO SPEC,TYPE X:REFER ILLUST. |
1 | ||
| 42611-0DC11 |
NSP150..CVT..D..C;NSP150,151..GCC..R..C 14X5J, #,TYPE F:REFER ILLUST. |
1 | ||
| 42611-0DL70 |
NSP150..CVT..G..A;NSP151..GCC..G..A;NSP151..GEN..(G,R);NSP150..LHD..GEN..R 15X5.5J, #,TYPE X:REFER ILLUST. |
1 | ||
| 42611-0DL80 |
NSP150..CVT..G..A;NSP151..GCC..G..A;NSP151..GEN..(G,R);NSP150..LHD..GEN..R 15X5.5J, #,TYPE Y:REFER ILLUST. |
1 | ||
| 42611-0DL80 |
NSP151..GCC..R..A 15X5.5J, #,E-SPORT PACKAGE(GRADE MARK(S)),TYPE Y:REFER ILLUST. |
1 | ||
| 42611-0DM00 |
NSP151..GCC..R..C 15X5.5J,#,E-SPORT PACKAGE(GRADE MARK(S)),TYPE W:REFER ILLUST. |
1 | ||
| 42611-0DL80 |
NSP151..CVT..D..A 15X5.5J, #,MEXICO SPEC,TYPE Y:REFER ILLUST. |
1 | ||
| 42611-0DL70 |
NSP151..GCC..R..A 15X5.5J, #,E-SPORT PACKAGE(GRADE MARK(S)),TYPE X:REFER ILLUST. |
1 | ||
| 42611-0DM00 |
NSP150,151..GCC..G..C 15X5.5J,#,TYPE W:REFER ILLUST. |
1 | ||
| Linked diagrams | ||||
| 7403 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
