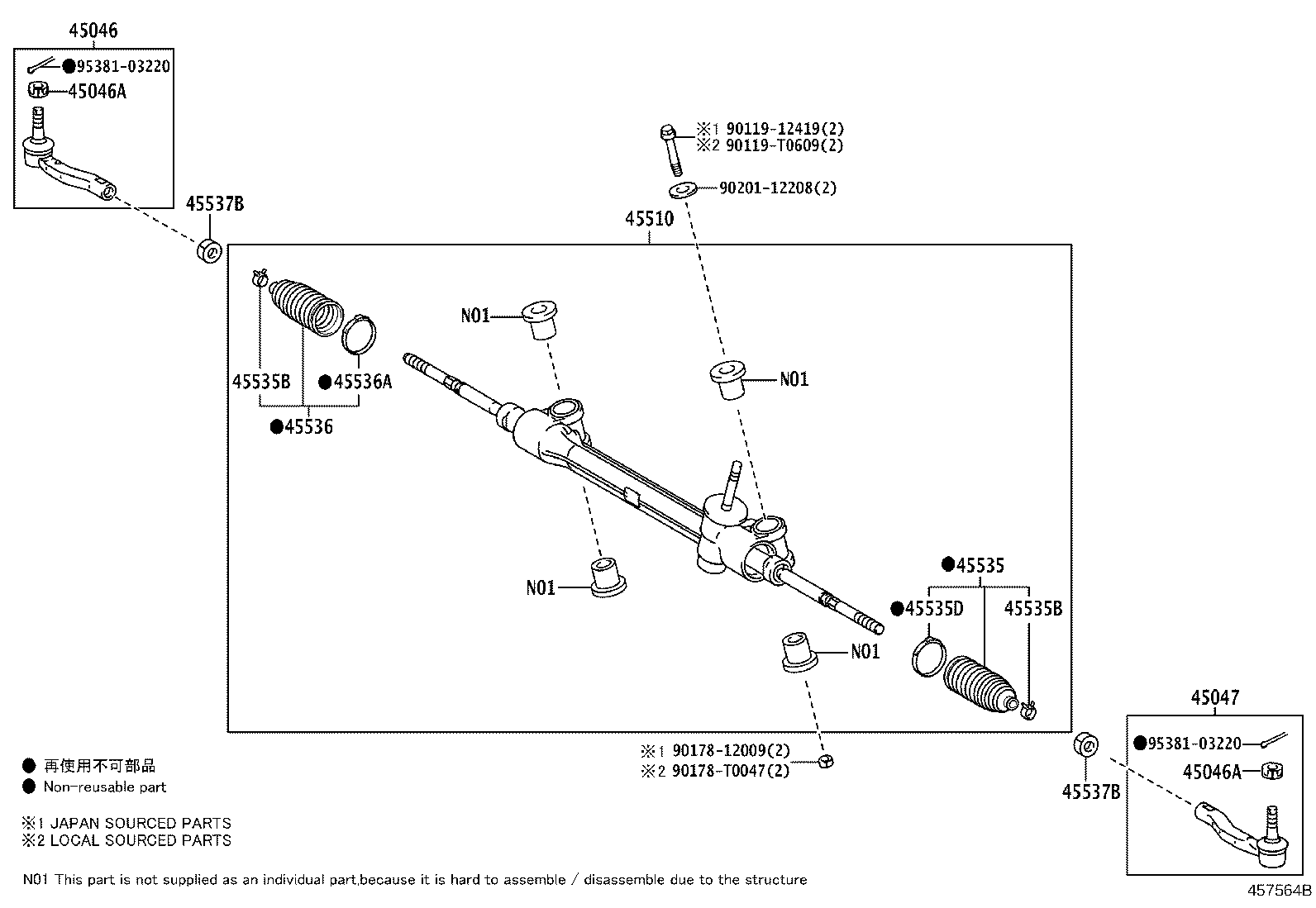

Toyota Yaris/vios/limo NSP151 FRONT STEERING GEAR & LINK

Part #	Description	Period	Qty
45046 - END SUB-ASSY, TIE ROD, RH
45046-09870	NSP151..H	07/2018 - 10/2019	1
45046-09880	NSP151..G	04/2018 - 08/2019	1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028	NSP151..H	07/2018 - 10/2019	2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028	NSP151..H	07/2018 - 10/2019	2
45047 - END SUB-ASSY, TIE ROD, LH
45047-09400	NSP151..H	07/2018 - 10/2019	1
45047-09410	NSP151..G	04/2018 - 08/2019	1
45510 - GEAR ASSY, STEERING
45510-0D450	NSP151..G	04/2018 - 08/2019	1
45510-0D490	NSP151..LHD..(A,E);NSP150..LHD..(A,D,E)	10/2017 - 02/2020	1
45510-0D570	NSP151..H	07/2018 - 10/2019	1
45510-0D520	NSP151..D	07/2018 - 10/2019	1
45510-0D470	NSP151..F	03/2018 - 01/2021	1
45510-0D491	NSP151..LHD..A;NSP150..LHD..GEN..D;NSP150..LHD..(G,R)..A;NSP150..CVT..GCC..D..A	03/2020 - 12/2999	1
45535 - BOOT, STEERING RACK, NO.1
45535-09530	NSP151..G	04/2018 - 08/2019	1
45535-09510	NSP151..H	07/2018 - 10/2019	1
45535-09360	NSP151..F	03/2018 - 01/2021	1
45535B - CLIP(FOR STEERING RACK BOOT)
45537-0D100	NSP151..F	03/2018 - 01/2021	2
45537-0D040	NSP151..H	07/2018 - 10/2019	2
90080-46334	NSP151..G	04/2018 - 08/2019	2
45535B - CLIP(FOR STEERING RACK BOOT)
45537-0D100	NSP151..F	03/2018 - 01/2021	2
45537-0D040	NSP151..H	07/2018 - 10/2019	2
90080-46334	NSP151..G	04/2018 - 08/2019	2
45535D - CLAMP(FOR STEERING RACK BOOT NO.1)
45538-0D050	NSP151..G	04/2018 - 08/2019	1
45538-0D060	NSP151..H	07/2018 - 10/2019	1
45538-0D110	NSP151..F	03/2018 - 01/2021	1
45536 - BOOT, STEERING RACK, NO.2
45535-09530	NSP151..G	04/2018 - 08/2019	1
45535-09360	NSP151..F	03/2018 - 01/2021	1
45535-09510	NSP151..H	07/2018 - 10/2019	1
45536A - CLAMP(FOR STEERING RACK BOOT NO.2)
45538-0D060	NSP151..H	07/2018 - 10/2019	1
45538-0D050	NSP151..G	04/2018 - 08/2019	1
45538-0D110	NSP151..F	03/2018 - 01/2021	1
Common parts
90119-12419
90119-T0609
90178-12009
90178-T0047
90201-12208
95381-03220

NSP151L-AEMGK (2017)

(1304- )LHD
