NSP151L-AEMGK (2017)
Toyota Yaris/Vios/Limo

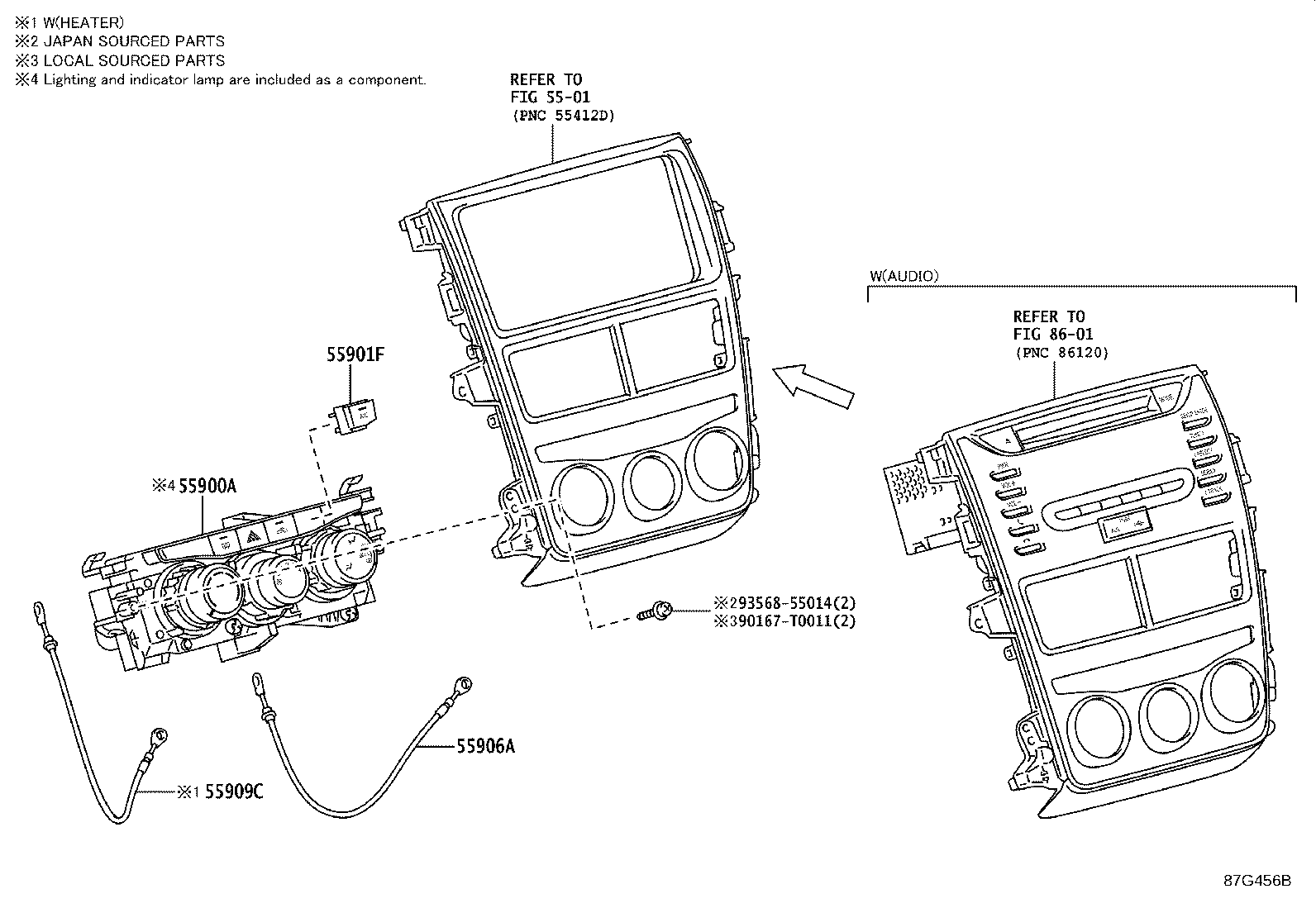

ILLUST NO. 1 OF 3(1710- )LHD..GEN..A
MANUAL HEATER CONTROL-DEALER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900A - CONTROL & ACCESSORY ASSY, HEATER | ||||
| 55900-0DG60 |
NSP150,151..LHD..GEN..D..A PERU SPEC |
1 | ||
| 55900-0DE30 |
NSP151..D..H |
1 | ||
| 55900-0DC40 |
NSP151..D..G |
1 | ||
| 55900-0DG60 |
NSP151..5F..D..A ECUADOR SPEC |
1 | ||
| 55900-0DG60 |
NSP151..D..A CHILE SPEC |
1 | ||
| 55900-0DG60 |
NSP150,151..LHD..GEN..D..A LATIN AMERICA SPEC |
1 | ||
| 55900-0DG80 |
NSP151..R..H |
1 | ||
| 55900-0DG60 |
NSP151..D..A BOLIVIA SPEC |
1 | ||
| 55900-0DC30 |
NSP151..R..F |
1 | ||
| 55900-0DG60 |
NSP151..D..A BOLIVIA SPEC&HEATER CONTROL PANEL-HEATER & WITHOUT(*AIC SWITCH) |
1 | ||
| 55900-0DB00 |
NSP150,151..LHD..(GEN,VN)..D..(A,E) |
1 | ||
| 55900-0DG60 |
NSP151..D..A COSTA RICA SPEC&HEATER CONTROL PANEL-HEATER & WITHOUT(*AIC SWITCH) |
1 | ||
| 55900-0DG60 |
NSP150,151..LHD..GEN..D LATIN AMERICA SPEC&HEATER CONTROL PANEL-HEATER & WITHOUT(*AIC SWITCH) |
1 | ||
| 55900-0DC20 |
NSP151..D..F |
1 | ||
| 55900-0DB20 |
NSP150..LHD..GEN..R;NSP151..5F..(G,R)..(A,E);NSP151..CVT..(GEN,VN)..R..(A,E) |
1 | ||
| 55900-0DJ50 |
NSP151..D..A EGYPT SPEC |
1 | ||
| 55900-0DG60 |
NSP151..5F..D..A CHILE SPEC&HEATER CONTROL PANEL-HEATER & WITHOUT(*AIC SWITCH) |
1 | ||
| 55900-0DG60 |
NSP150,151..5F..GEN..D PERU SPEC&HEATER CONTROL PANEL-HEATER & WITHOUT(*AIC SWITCH) |
1 | ||
| 55900-0DJ50 |
NSP151..5F..D..A ECUADOR SPEC |
1 | ||
| 55900-0DJ60 |
NSP151..5F..R..A EGYPT SPEC |
1 | ||
| 55901F - KNOB, AIR CONDITIONER SWITCH | ||||
| 55901-0D410 |
NSP150,151..LHD..GEN..D..A PERU SPEC&HEATER CONTROL PANEL-MANUAL AIR CONDITIONER(DOP) |
1 | ||
| 55901-0D410 |
NSP151..5F..D..A ECUADOR SPEC&HEATER CONTROL PANEL-MANUAL AIR CONDITIONER(DOP) |
1 | ||
| 55901-0D410 |
NSP151..D..A BOLIVIA SPEC&HEATER CONTROL PANEL-MANUAL AIR CONDITIONER(DOP) |
1 | ||
| 55901-0D410 |
NSP151..5F..D..A CHILE SPEC&HEATER CONTROL PANEL-MANUAL AIR CONDITIONER(DOP) |
1 | ||
| 55901-0D410 |
NSP151..D..A;NSP150..5F..GEN..D LATIN AMERICA SPEC&HEATER CONTROL PANEL-MANUAL AIR CONDITIONER(DOP) |
1 | ||
| 55901-0D410 |
NSP151..D..A COSTA RICA SPEC&HEATER CONTROL PANEL-MANUAL AIR CONDITIONER(DOP) |
1 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-0D220 |
NSP151..D..G |
1 | ||
| 55906-0D231 |
NSP151..(D,R)..H |
1 | ||
| 55906-0D190 |
NSP151..(D,R)..F |
1 | ||
| 55906-0D190 |
NSP151..5F..G..A;NSP151..GCC..G..(A,C);NSP150..CVT..GCC..(A,C);NSP150..5F..GCC..R..(A,C);NSP151..LHD..(D,R)..(A,C,E);NSP150..LHD..(GEN,PH,VN)..(D,R)..(A,D,E) |
1 | ||
| 55909C - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-0D190 |
NSP151..D..G |
1 | ||
| 55909-0D170 |
NSP151..(D,R)..F |
1 | ||
| 55909-0D170 |
NSP151..5F..G..A;NSP150..5F..R..(A,C);NSP151..GCC..G..(A,C);NSP150..CVT..GCC..(A,C);NSP150..LHD..CVT..GEN..R;NSP151..LHD..(D,R)..(A,C,E);NSP150..LHD..(GEN,VN)..D..(A,E) |
1 | ||
| 55909-0D201 |
NSP151..(D,R)..H |
1 | ||
| Common parts | ||||
| 90167-T0011 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 5501 | ||||
| 8601 | ||||

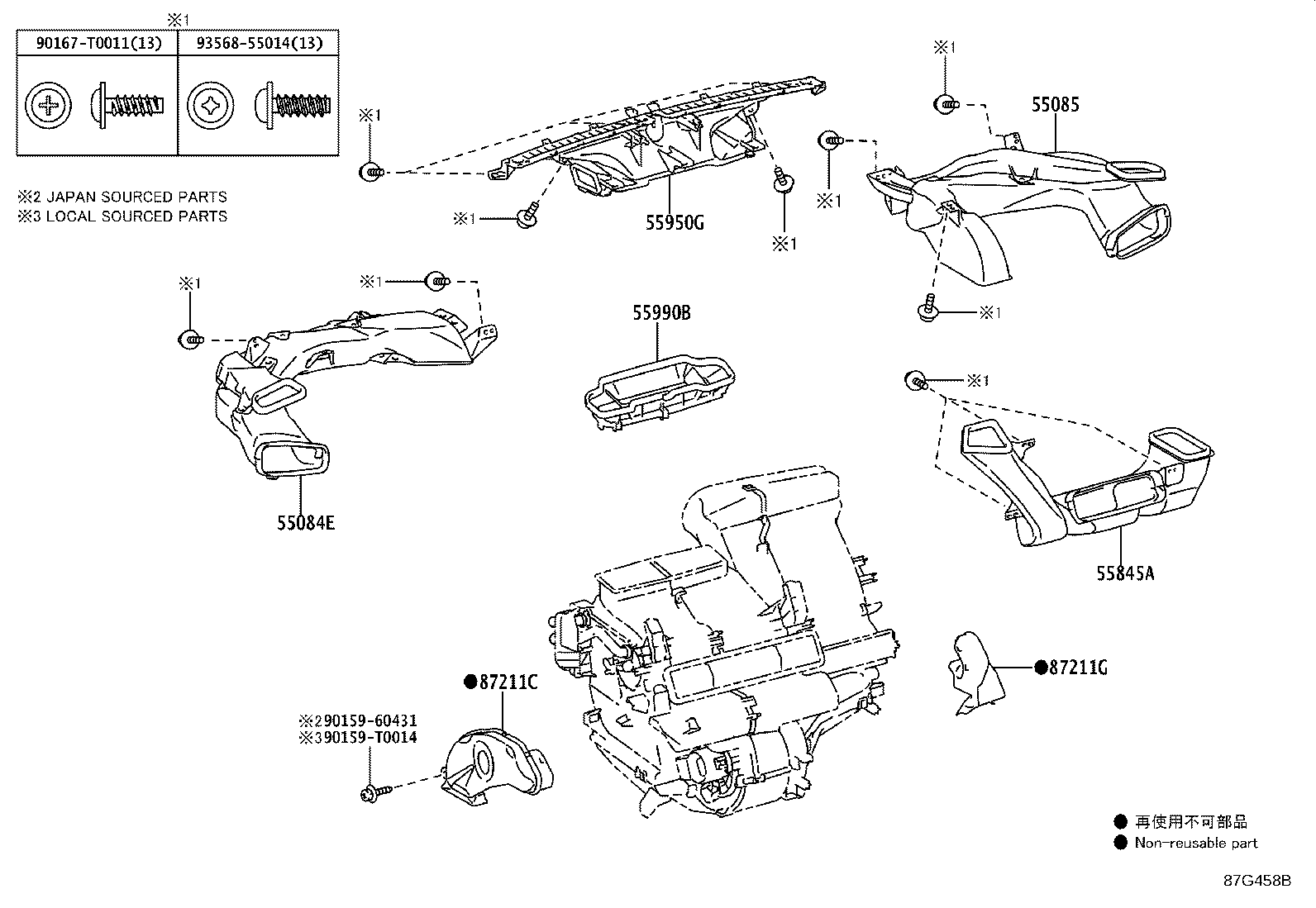

ILLUST NO. 2 OF 3(1710- )LHD..GEN..A ; (1801- )GCC ; (1803-)F ; (1807- )D,H ; (1808-
AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1 | ||||
| 55084-0D270 |
NSP151..H |
1 | ||
| 55084-0D260 |
NSP151..G |
1 | ||
| 55084-0D250 |
NSP151..F |
1 | ||
| 55084-0D200 |
NSP150,151..LHD..(GEN,VN)..(A,E) |
1 | ||
| 55084-0D220 |
NSP150,151..D |
1 | ||
| 55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2 | ||||
| 55085-0D210 |
NSP151..G |
1 | ||
| 55085-0D170 |
NSP150,151..D |
1 | ||
| 55085-0D200 |
NSP151..F |
1 | ||
| 55085-0D150 |
NSP150,151..LHD..(GEN,VN)..(A,E) |
1 | ||
| 55085-0D220 |
NSP151..H |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55870-0D080 |
NSP151..F |
1 | ||
| 55870-0D070 |
NSP150,151..D |
1 | ||
| 55870-0D090 |
NSP151..G |
1 | ||
| 55870-0D100 |
NSP151..H |
1 | ||
| 55870-0D030 |
NSP150,151..LHD..(GEN,VN)..(A,E) |
1 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-0D330 |
NSP150,151..D |
1 | ||
| 55950-0D320 |
NSP151..H |
1 | ||
| 55950-0D300 |
NSP151..F |
1 | ||
| 55950-0D340 |
NSP150,151..E |
1 | ||
| 55950-0D310 |
NSP151..G |
1 | ||
| 55990B - NOZZLE ASSY, DEFROSTER, LOWER | ||||
| 55990-0D070 |
NSP151..G |
1 | ||
| 55990-0D060 |
NSP151..F |
1 | ||
| 55990-0D110 |
NSP150,151..D |
1 | ||
| 55990-0D080 |
NSP151..H |
1 | ||
| 55990-0D030 |
NSP151..LHD..(A,E);NSP150..CVT..GCC..A;NSP150..5F..GCC..R..A;NSP150..LHD..(GEN,VN)..(A,E) |
1 | ||
| 87211C - DUCT, AIR, NO.4 | ||||
| 87211-0D630 |
NSP150,151..D |
1 | ||
| 87211-0D610 |
NSP151..F |
1 | ||
| 87211-0D560 |
NSP151..LHD..(A,E);NSP150..CVT..GCC..A;NSP150..5F..GCC..R..A;NSP150..LHD..(GEN,VN)..(A,E) |
1 | ||
| 87211-0D520 |
NSP151..G |
1 | ||
| 87211-0D530 |
NSP151..H |
1 | ||
| 87211G - DUCT, AIR, NO.5 | ||||
| 87211-0D360 |
NSP151..F |
1 | ||
| 87211-0D510 |
NSP151..G |
1 | ||
| 87211-0D540 |
NSP151..H |
1 | ||
| 87211-0D340 |
NSP150,151..D |
1 | ||
| 87211-0D320 |
NSP151..LHD..(A,E);NSP150..CVT..GCC..A;NSP150..5F..GCC..R..A;NSP150..LHD..(GEN,VN)..(A,E) |
1 | ||
| Common parts | ||||
| 90159-60431 | ||||
| 90159-T0014 | ||||
| 90167-T0011 | ||||
| 93568-55014 | ||||

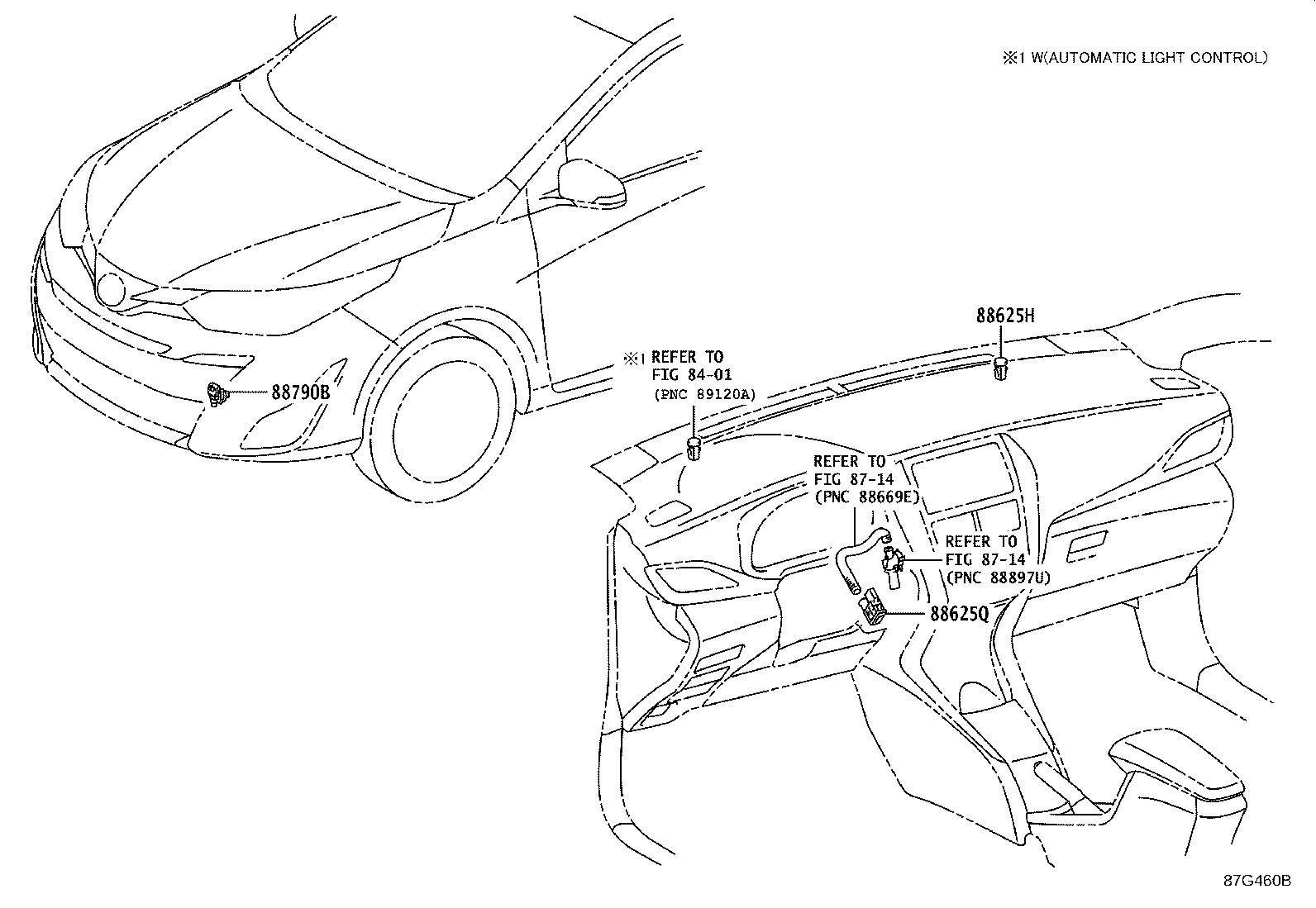

ILLUST NO. 3 OF 3(1710- )LHD..GEN..A ; (1801- )GCC ; (1803-)F ; (1807- )D,H ; (1808-
SENSOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88790B - THERMISTOR ASSY | ||||
| 88790-0K010 |
NSP151..F LOCAL SOURCED PARTS |
1 | ||
| 88790-0K010 |
NSP151..5F..D..C;NSP151..IDN..(G,R);NSP150..GCC..(G,R);NSP150..CVT..GCC..D;NSP150..CVT..GEN..G;NSP150,152..(GEN,PH,TH,VN)..(D,R);NSP151..(AGT,BZ,GCC,GEN,IND,PH,TH,VN)..(A,C,D,E,G,H) LOCAL SOURCED PARTS |
1 | ||
| 88790-28100 |
NSP151..F JAPAN SOURCED PARTS |
1 | ||
| 88790-28100 |
NSP151..5F..D..C;NSP151..IDN..(G,R);NSP150..GCC..(G,R);NSP150..CVT..GCC..D;NSP150..CVT..GEN..G;NSP150,152..(GEN,PH,TH,VN)..(D,R);NSP151..(AGT,BZ,GCC,GEN,IND,PH,TH,VN)..(A,C,D,E,G,H) JAPAN SOURCED PARTS |
1 | ||
| Linked diagrams | ||||
| 8401 | ||||
| 8714 | ||||

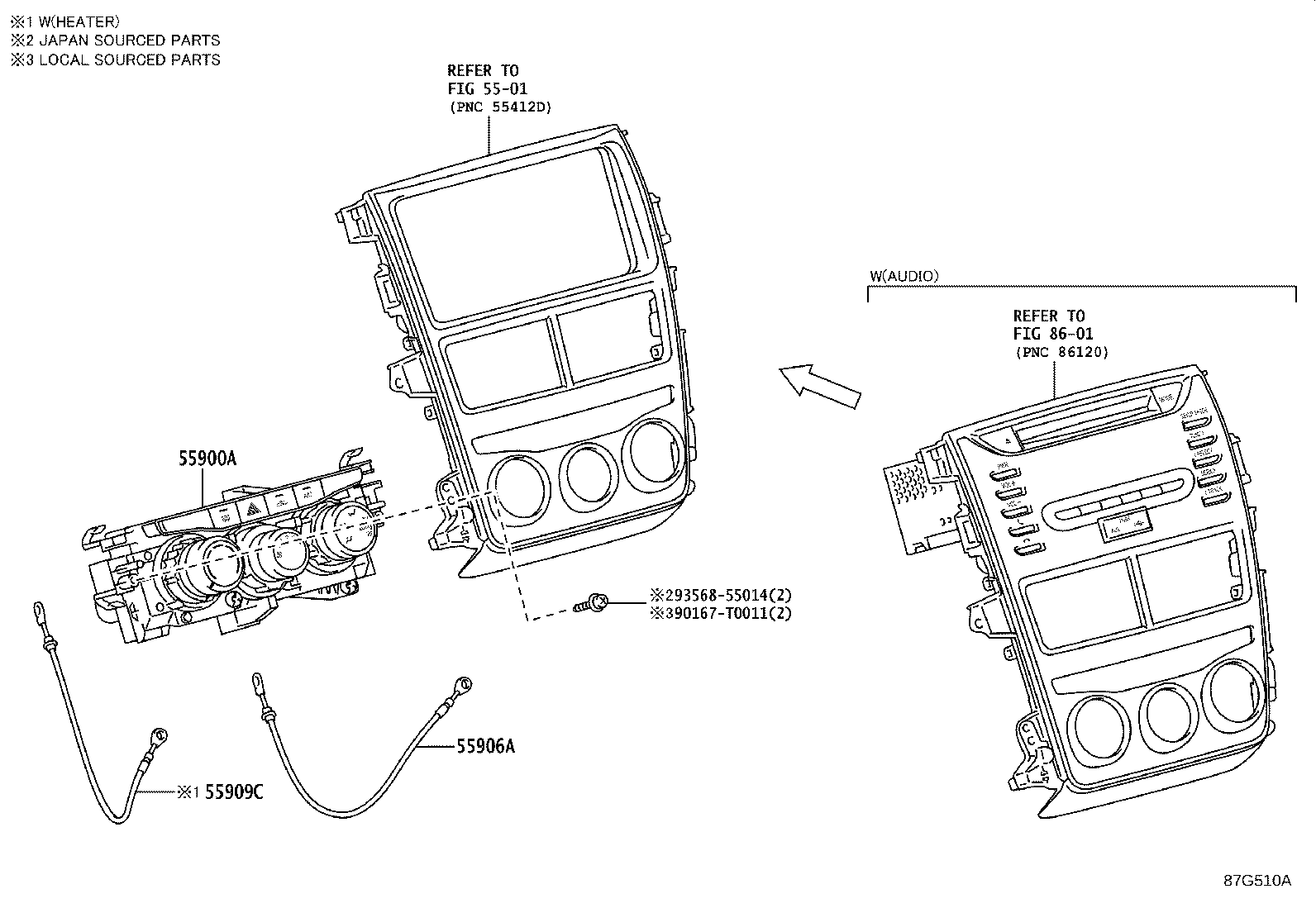

ILLUST NO. 1 OF 3(1710- )LHD..GEN..A ; (1801- )GCC ; (1803-)F ; (1807- )D,H ; (1808-
MANUAL HEATER CONTROL-MAKER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900A - CONTROL & ACCESSORY ASSY, HEATER | ||||
| 55900-0DG60 |
NSP150,151..LHD..GEN..D..A PERU SPEC |
1 | ||
| 55900-0DE30 |
NSP151..D..H |
1 | ||
| 55900-0DC40 |
NSP151..D..G |
1 | ||
| 55900-0DG60 |
NSP151..5F..D..A ECUADOR SPEC |
1 | ||
| 55900-0DG60 |
NSP151..D..A CHILE SPEC |
1 | ||
| 55900-0DG60 |
NSP150,151..LHD..GEN..D..A LATIN AMERICA SPEC |
1 | ||
| 55900-0DG80 |
NSP151..R..H |
1 | ||
| 55900-0DG60 |
NSP151..D..A BOLIVIA SPEC |
1 | ||
| 55900-0DC30 |
NSP151..R..F |
1 | ||
| 55900-0DG60 |
NSP151..D..A BOLIVIA SPEC&HEATER CONTROL PANEL-HEATER & WITHOUT(*AIC SWITCH) |
1 | ||
| 55900-0DB00 |
NSP150,151..LHD..(GEN,VN)..D..(A,E) |
1 | ||
| 55900-0DG60 |
NSP151..D..A COSTA RICA SPEC&HEATER CONTROL PANEL-HEATER & WITHOUT(*AIC SWITCH) |
1 | ||
| 55900-0DG60 |
NSP150,151..LHD..GEN..D LATIN AMERICA SPEC&HEATER CONTROL PANEL-HEATER & WITHOUT(*AIC SWITCH) |
1 | ||
| 55900-0DC20 |
NSP151..D..F |
1 | ||
| 55900-0DB20 |
NSP150..LHD..GEN..R;NSP151..5F..(G,R)..(A,E);NSP151..CVT..(GEN,VN)..R..(A,E) |
1 | ||
| 55900-0DJ50 |
NSP151..D..A EGYPT SPEC |
1 | ||
| 55900-0DG60 |
NSP151..5F..D..A CHILE SPEC&HEATER CONTROL PANEL-HEATER & WITHOUT(*AIC SWITCH) |
1 | ||
| 55900-0DG60 |
NSP150,151..5F..GEN..D PERU SPEC&HEATER CONTROL PANEL-HEATER & WITHOUT(*AIC SWITCH) |
1 | ||
| 55900-0DJ50 |
NSP151..5F..D..A ECUADOR SPEC |
1 | ||
| 55900-0DJ60 |
NSP151..5F..R..A EGYPT SPEC |
1 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-0D220 |
NSP151..D..G |
1 | ||
| 55906-0D231 |
NSP151..(D,R)..H |
1 | ||
| 55906-0D190 |
NSP151..(D,R)..F |
1 | ||
| 55906-0D190 |
NSP151..5F..G..A;NSP151..GCC..G..(A,C);NSP150..CVT..GCC..(A,C);NSP150..5F..GCC..R..(A,C);NSP151..LHD..(D,R)..(A,C,E);NSP150..LHD..(GEN,PH,VN)..(D,R)..(A,D,E) |
1 | ||
| 55909C - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-0D190 |
NSP151..D..G |
1 | ||
| 55909-0D170 |
NSP151..(D,R)..F |
1 | ||
| 55909-0D170 |
NSP151..5F..G..A;NSP150..5F..R..(A,C);NSP151..GCC..G..(A,C);NSP150..CVT..GCC..(A,C);NSP150..LHD..CVT..GEN..R;NSP151..LHD..(D,R)..(A,C,E);NSP150..LHD..(GEN,VN)..D..(A,E) |
1 | ||
| 55909-0D201 |
NSP151..(D,R)..H |
1 | ||
| Common parts | ||||
| 90167-T0011 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 5501 | ||||
| 8601 | ||||
