NSP151L-AEMGK (2017)
Toyota Yaris/Vios/Limo

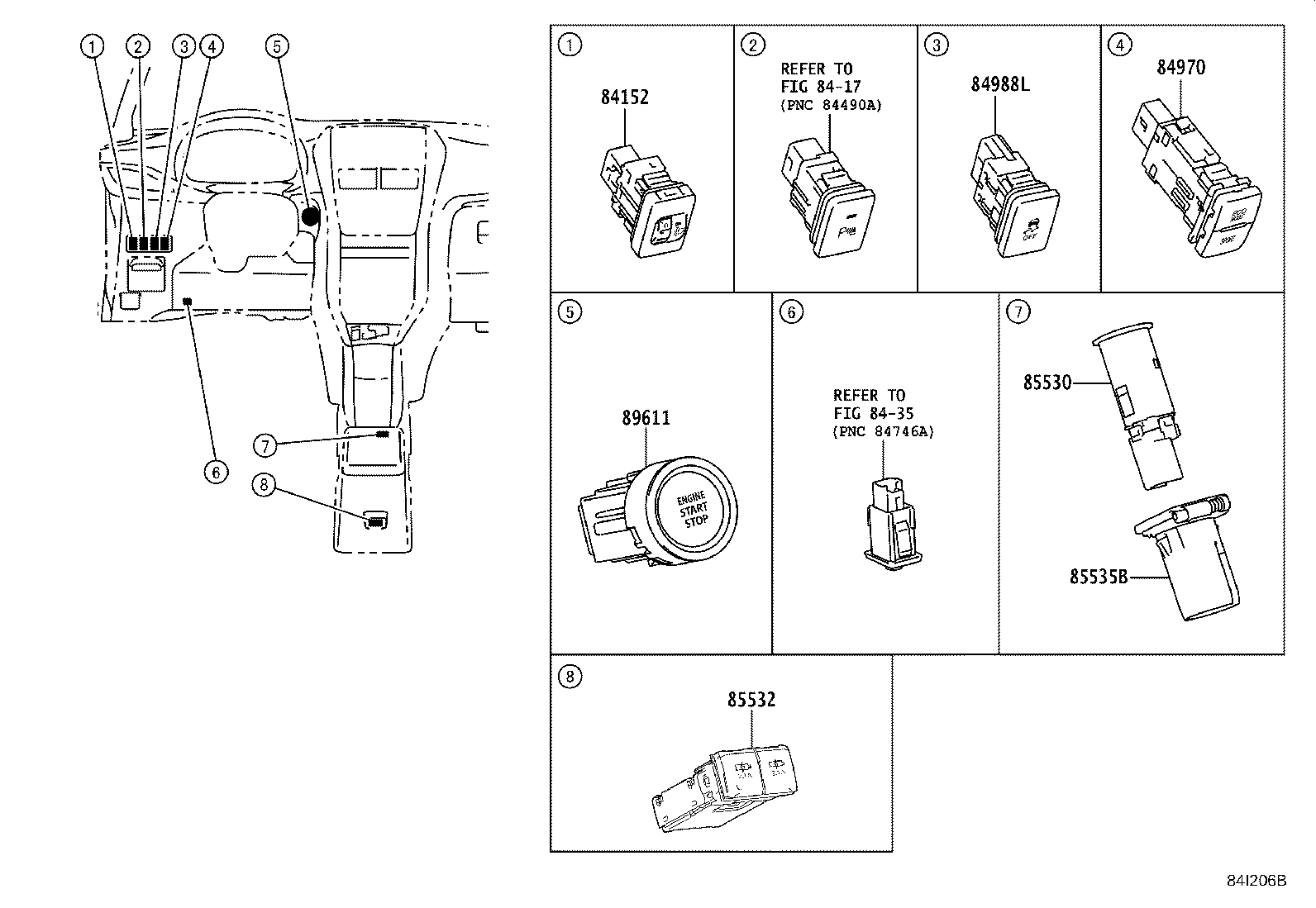

ILLUST NO. 5 OF 8(1710- )LHD..GEN..A ; (1801- )GCC,TAIW..A,C,F ; (1807- )D,E,H
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-0D190 |
NSP151..5F..(D,R)..A;NSP151..LHD..CVT..GEN..G..A ALGERIA SPEC |
1 | ||
| 84152-0D190 |
NSP151..5F..D..A;NSP151..CVT..GEN..R ECUADOR SPEC |
1 | ||
| 84152-0D190 |
NSP151..D..A;NSP151..5F..R..A EGYPT SPEC |
1 | ||
| 84988L - SWITCH, VSC OFF | ||||
| 84988-0K010 |
NSP151..D..A;NSP150..5F..GEN..D;NSP150..LHD..GEN..G LATIN AMERICA SPEC |
1 | ||
| 84988-02051 |
NSP150,151..E,F,H |
1 | ||
| 84988-0K010 |
NSP151..D..A;NSP151..5F..G..A COSTA RICA SPEC |
1 | ||
| 84988-0K010 |
NSP151..5F..(G,R)..A;NSP151..LHD..CVT..GEN..A;NSP150..LHD..CVT..GEN..D PERU SPEC |
1 | ||
| 84988-0K010 |
NSP151..5F..D..A;NSP151..LHD..GEN..(G,R)..A CHILE SPEC |
1 | ||
| 84988-0K010 |
NSP151..LHD..GEN..A BOLIVIA SPEC |
1 | ||
| 84988-0K010 |
NSP151..GEN..(D,R)..A MEXICO SPEC |
1 | ||
| 84988-0K010 |
NSP151..5F..D..A;NSP151..CVT..GEN..R ECUADOR SPEC |
1 | ||
| 84988-0K010 |
NSP150..LHD..GEN..R;NSP150..LHD..CVT..GEN..D;NSP151..LHD..GEN..(G,R)..A LATIN AMERICA SPEC |
1 | ||
| 84988-0K010 |
NSP150..LHD..GEN..R;NSP150,151..5F..GEN..D PERU SPEC |
1 | ||
| 84988-0K010 |
NSP151..5F..R..A;NSP151..LHD..CVT..GEN..(G,R) COSTA RICA SPEC |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-0K080 |
NSP151..G |
1 | ||
| 85530-0D040 |
NSP151..H |
1 | ||
| 85530-0D080 |
NSP151..F |
1 | ||
| 85532 - SOCKET, USB CHARGER | ||||
| 85532-06020 |
NSP151..GEN..R BOLIVIA SPEC&E-SPORT PACKAGE(GRADE MARK(S)) |
1 | ||
| 85532-06020 |
NSP151..GEN..R PERU SPEC&E-SPORT PACKAGE(GRADE MARK(S)) |
1 | ||
| 85532-06020 |
NSP151..GEN..R LATIN AMERICA SPEC&E-SPORT PACKAGE(GRADE MARK(S)) |
1 | ||
| 85532-06020 |
NSP151..GEN..R CHILE SPEC&E-SPORT PACKAGE(GRADE MARK(S)) |
1 | ||
| 85532-06020 |
NSP151..RHD..A;NSP151..LHD..G;NSP150..CVT..G..(A,C) |
1 | ||
| 85532-06020 |
NSP151..GEN..R COSTA RICA SPEC&E-SPORT PACKAGE(GRADE MARK(S)) |
1 | ||
| 85532-06020 |
NSP151..GEN..R MEXICO SPEC&E-SPORT PACKAGE(GRADE MARK(S)) |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-0D130 |
NSP151..G |
1 | ||
| 85535-0D160 |
NSP151..H |
1 | ||
| 85535-0D150 |
NSP151..F |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-0K031 |
NSP151..(G,R,V)..G |
1 | ||
| Linked diagrams | ||||
| 8417 | ||||
| 8435 | ||||

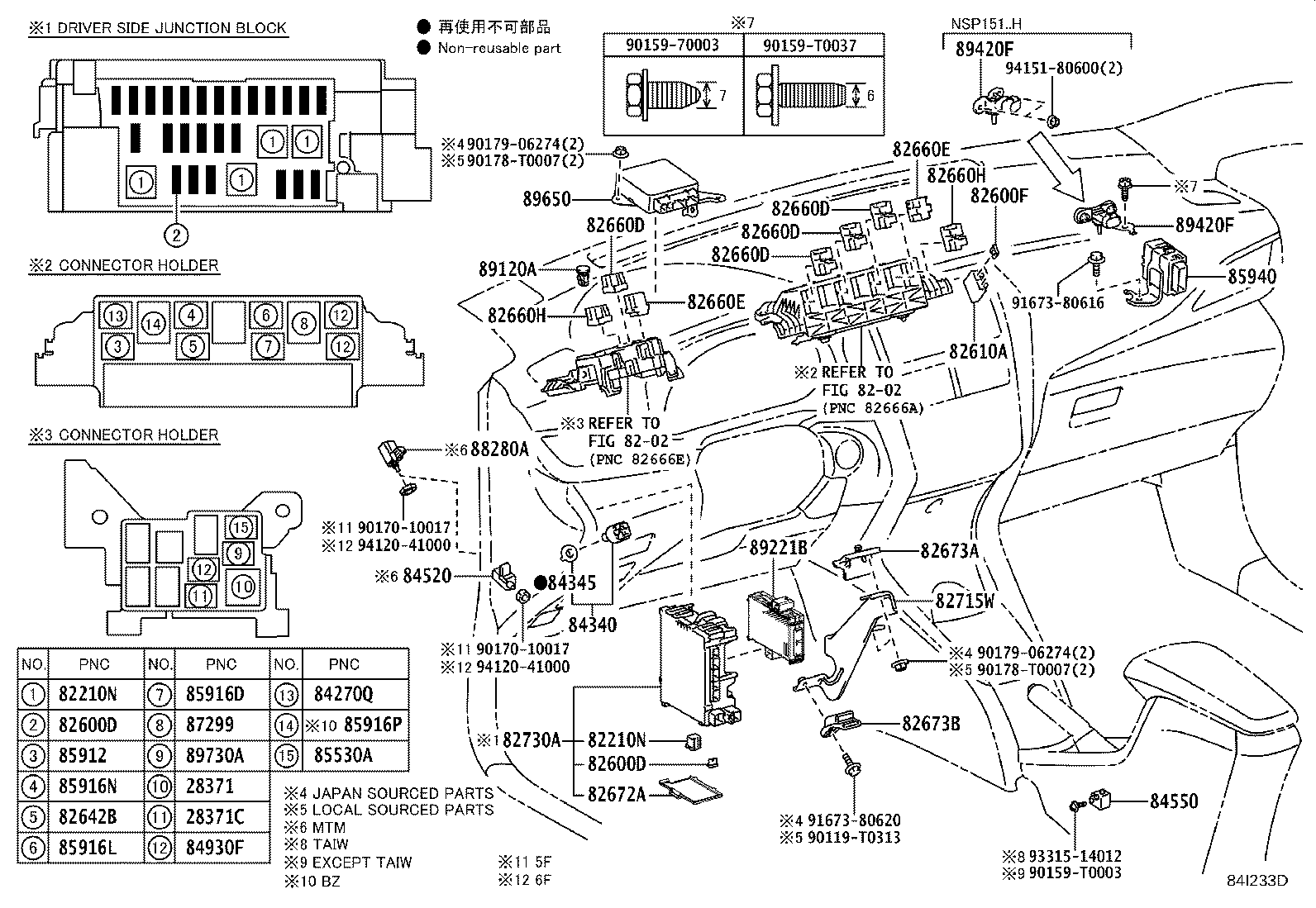

ILLUST NO. 4 OF 8(1710- )LHD..GEN..A ; (1801- )GCC,TAIW..A,C,F ; (1807- )D,E,H
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82642B - RELAY, DAY TIME RUNNING LIGHT, NO.1 | ||||
| 90987-T2001 |
NSP151..5F..(D,R)..A;NSP151..LHD..CVT..GEN..(D,G)..A EGYPT SPEC |
1 | ||
| 90987-T2001 |
NSP151..5F..D..A;NSP151..CVT..GEN..R ECUADOR SPEC |
1 | ||
| 90987-T2001 |
NSP151..5F..(D,R)..A;NSP151..LHD..CVT..GEN..G..A ALGERIA SPEC |
1 | ||
| 90987-02027 |
NSP151..GEN..R PERU SPEC&E-SPORT PACKAGE(GRADE MARK(S))&MLM PACKAGE,(J) |
1 | ||
| 90987-02027 |
NSP151..F (J) |
1 | ||
| 90987-T2001 |
NSP151..F (L) |
1 | ||
| 90987-02027 |
NSP151..5F..(D,R)..A;NSP151..LHD..CVT..GEN..G..A ALGERIA SPEC,(J) |
1 | ||
| 90987-T2001 |
NSP151..5F..(D,R)..A;NSP151..LHD..CVT..GEN..G..A ALGERIA SPEC,(L) |
1 | ||
| 90987-T2001 |
NSP151..GEN..R PERU SPEC&E-SPORT PACKAGE(GRADE MARK(S))&MLM PACKAGE,(L) |
1 | ||
| 90987-02027 |
NSP151..GEN..R BOLIVIA SPEC&E-SPORT PACKAGE(GRADE MARK(S))&MLM PACKAGE,(J) |
1 | ||
| 90987-02027 |
NSP151..D..A;NSP151..5F..R..A EGYPT SPEC,(J) |
1 | ||
| 90987-02027 |
NSP151..5F..D..A;NSP151..CVT..GEN..R ECUADOR SPEC,(J) |
1 | ||
| 90987-T2001 |
NSP151..GEN..R BOLIVIA SPEC&E-SPORT PACKAGE(GRADE MARK(S))&MLM PACKAGE,(L) |
1 | ||
| 90987-T2001 |
NSP151..5F..D..A;NSP151..CVT..GEN..R ECUADOR SPEC,(L) |
1 | ||
| 90987-T2001 |
NSP151..D..A;NSP151..5F..R..A EGYPT SPEC,(L) |
1 | ||
| 90987-02027 |
NSP151..GEN..R CHILE SPEC&E-SPORT PACKAGE(GRADE MARK(S))&MLM PACKAGE,(J) |
1 | ||
| 90987-02027 |
NSP152;NSP151..GEN..G;NSP150..CVT..GEN..G MLM PACKAGE,(J) |
1 | ||
| 90987-02027 |
NSP151..GEN..R MEXICO SPEC&E-SPORT PACKAGE(GRADE MARK(S))&MLM PACKAGE,(J) |
1 | ||
| 90987-02027 |
NSP151..GEN..R COSTA RICA SPEC&E-SPORT PACKAGE(GRADE MARK(S))&MLM PACKAGE,(J) |
1 | ||
| 90987-T2001 |
NSP151..GEN..R MEXICO SPEC&E-SPORT PACKAGE(GRADE MARK(S))&MLM PACKAGE,(L) |
1 | ||
| 90987-T2001 |
NSP152;NSP151..GEN..G;NSP150..CVT..GEN..G MLM PACKAGE,(L) |
1 | ||
| 90987-T2001 |
NSP151..GEN..R COSTA RICA SPEC&E-SPORT PACKAGE(GRADE MARK(S))&MLM PACKAGE,(L) |
1 | ||
| 90987-T2001 |
NSP151..GEN..R LATIN AMERICA SPEC&E-SPORT PACKAGE(GRADE MARK(S))&MLM PACKAGE,(L) |
1 | ||
| 90987-02027 |
NSP151..GEN..R LATIN AMERICA SPEC&E-SPORT PACKAGE(GRADE MARK(S))&MLM PACKAGE,(J) |
1 | ||
| 90987-T2001 |
NSP151..GEN..R CHILE SPEC&E-SPORT PACKAGE(GRADE MARK(S))&MLM PACKAGE,(L) |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-0D360 |
NSP151..F |
1 | ||
| 82673-0D400 |
NSP151..G |
1 | ||
| 82673-0D350 |
NSP150,151..E |
1 | ||
| 82673-0D340 |
NSP150,151..D |
1 | ||
| 82673-0D320 |
NSP151..LHD..(A,H);NSP150..LHD..GEN..D;NSP150..LHD..(G,R)..A;NSP150..CVT..GCC..D..A |
1 | ||
| 82715W - BRACKET, WIRING HARNESS CLAMP | ||||
| 82715-0DW90 |
NSP151..F |
1 | ||
| 82715-0DX40 |
NSP151..H |
1 | ||
| 82715-0DW80 |
NSP151..G |
1 | ||
| 82715-0DW90 |
NSP150..CVT..GCC..A;NSP151..LHD..(A,D,E);NSP150..5F..GCC..R..A;NSP150..LHD..(GEN,PH,VN)..(A,D,E) |
1 | ||
| 82730A - BLOCK ASSY, DRIVER SIDE JUNCTION | ||||
| 82730-0DA90 |
NSP151..D..H;NSP151..AGT..R |
1 | ||
| 82730-0DA50 |
NSP150,151..E |
1 | ||
| 82730-0DA70 |
NSP151..G |
1 | ||
| 82730-0DA40 |
NSP150,151..D |
1 | ||
| 82730-0DB00 |
NSP151..AGT..G;NSP151..(BZ,GEN)..(G,R,V)..H |
1 | ||
| 84270Q - RELAY, LAMP CUT | ||||
| 90987-02027 |
NSP151..H |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-09321 |
NSP151..(G,V)..G |
1 | ||
| 84340-09210 |
NSP151..GEN..R E-SPORT PACKAGE(GRADE MARK(S)) |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
NSP151..G |
1 | ||
| 84520 - SWITCH ASSY, CLUTCH START | ||||
| 84520-42010 |
NSP150..5F..GEN..D;NSP150..5F..(D,E,I);NSP150..5F..R..(A,C);NSP151..MTM..(AGT,BZ,GEN,IDN,IND,PH,PKN,VN)..(A,C,D,E,G,H,I) |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16060 |
NSP151..F,G |
1 | ||
| 85530A - RELAY, POWER OUTLET SOCKET | ||||
| 90987-02027 |
NSP151..GEN..R PERU SPEC&E-SPORT PACKAGE(GRADE MARK(S)),(J) |
1 | ||
| 90987-02027 |
NSP151..GEN..R BOLIVIA SPEC&E-SPORT PACKAGE(GRADE MARK(S)),(J) |
1 | ||
| 90987-02027 |
NSP151..GEN..R LATIN AMERICA SPEC&E-SPORT PACKAGE(GRADE MARK(S)),(J) |
1 | ||
| 90987-T2001 |
NSP151..GEN..R BOLIVIA SPEC&E-SPORT PACKAGE(GRADE MARK(S)),(L) |
1 | ||
| 90987-02027 |
NSP151..RHD..A;NSP151..LHD..G;NSP150..CVT..G..(A,C) (J) |
1 | ||
| 90987-T2001 |
NSP151..GEN..R PERU SPEC&E-SPORT PACKAGE(GRADE MARK(S)),(L) |
1 | ||
| 90987-02027 |
NSP151..GEN..R CHILE SPEC&E-SPORT PACKAGE(GRADE MARK(S)),(J) |
1 | ||
| 90987-02027 |
NSP151..GEN..R MEXICO SPEC&E-SPORT PACKAGE(GRADE MARK(S)),(J) |
1 | ||
| 90987-T2001 |
NSP151..GEN..R MEXICO SPEC&E-SPORT PACKAGE(GRADE MARK(S)),(L) |
1 | ||
| 90987-T2001 |
NSP151..GEN..R CHILE SPEC&E-SPORT PACKAGE(GRADE MARK(S)),(L) |
1 | ||
| 90987-T2001 |
NSP151..RHD..A;NSP151..LHD..G;NSP150..CVT..G..(A,C) (L) |
1 | ||
| 90987-T2001 |
NSP151..GEN..R COSTA RICA SPEC&E-SPORT PACKAGE(GRADE MARK(S)),(L) |
1 | ||
| 90987-T2001 |
NSP151..GEN..R LATIN AMERICA SPEC&E-SPORT PACKAGE(GRADE MARK(S)),(L) |
1 | ||
| 90987-02027 |
NSP151..GEN..R COSTA RICA SPEC&E-SPORT PACKAGE(GRADE MARK(S)),(J) |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02027 |
NSP151..(D,R)..H |
1 | ||
| 90987-T2001 |
NSP151..R..G;NSP152..HTWC;NSP151..5F..D;NSP151..RHD..(G,V)..(A,C,G);NSP150,151..LHD..CVT..(GEN,PH,VN)..G..(A,D,E) (L) |
1 | ||
| 90987-02027 |
NSP151..R..G;NSP152..HTWC;NSP151..5F..D;NSP151..RHD..(G,V)..(A,C,G);NSP150,151..LHD..CVT..(GEN,PH,VN)..G..(A,D,E) (J) |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02027 |
NSP151..(G,R,V)..G (J) |
1 | ||
| 90987-T2001 |
NSP151..(G,R,V)..G (L) |
1 | ||
| 90987-02027 |
NSP151..AGT..G;NSP151..(BZ,GEN)..(G,R,V)..H |
1 | ||
| 90987-T2001 |
NSP151..5F..R..A ALGERIA SPEC |
1 | ||
| 90987-T2001 |
NSP151..GEN..R PERU SPEC&E-SPORT PACKAGE(GRADE MARK(S)) |
1 | ||
| 90987-T2001 |
NSP151..GEN..R MEXICO SPEC&E-SPORT PACKAGE(GRADE MARK(S)) |
1 | ||
| 90987-T2001 |
NSP151..GEN..R LATIN AMERICA SPEC&E-SPORT PACKAGE(GRADE MARK(S)) |
1 | ||
| 90987-T2001 |
NSP151..CVT..R..E;NSP150..(G,R)..(D,I);NSP150..CVT..G..(A,C);NSP151..(GCC,GEN,IDN,PH,PKN,VN)..G..(A,C,D,E,I) |
1 | ||
| 90987-T2001 |
NSP151..GEN..R BOLIVIA SPEC&E-SPORT PACKAGE(GRADE MARK(S)) |
1 | ||
| 90987-T2001 |
NSP151..GEN..R COSTA RICA SPEC&E-SPORT PACKAGE(GRADE MARK(S)) |
1 | ||
| 90987-T2001 |
NSP151..GEN..R CHILE SPEC&E-SPORT PACKAGE(GRADE MARK(S)) |
1 | ||
| 85916L - RELAY, REAR FOG LAMP | ||||
| 90987-T2001 |
NSP151..(G,R,V)..G (L) |
1 | ||
| 90987-T2001 |
NSP151..D..A;NSP151..5F..R..A EGYPT SPEC |
1 | ||
| 90987-02027 |
NSP151..D..F;NSP151..(G,R,V)..(F,H) |
1 | ||
| 90987-T2001 |
NSP151..5F..D..A;NSP151..CVT..GEN..R ECUADOR SPEC |
1 | ||
| 90987-02027 |
NSP151..(G,R,V)..G (J) |
1 | ||
| 90987-T2001 |
NSP151..5F..(D,R)..A;NSP151..LHD..CVT..GEN..G..A ALGERIA SPEC |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-T2001 |
NSP151..G (L) |
1 | ||
| 90987-02027 |
NSP151..F,H |
1 | ||
| 90987-02027 |
NSP151..G (J) |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
NSP151..F,G,H |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-52030 |
NSP151..(G,V)..G |
1 | ||
| 88280A - SWITCH ASSY, CLUTCH | ||||
| 84520-42010 |
NSP151..5F..(D,R)..A ALGERIA SPEC |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-30020 |
NSP151..GEN..R PERU SPEC&E-SPORT PACKAGE(GRADE MARK(S))&MLM PACKAGE |
1 | ||
| 89121-30020 |
NSP151..5F..(D,R)..A;NSP151..LHD..CVT..GEN..G..A ALGERIA SPEC |
1 | ||
| 89121-30020 |
NSP151..GEN..R BOLIVIA SPEC&E-SPORT PACKAGE(GRADE MARK(S))&MLM PACKAGE |
1 | ||
| 89121-30020 |
NSP151..5F..D..A;NSP151..CVT..GEN..R ECUADOR SPEC |
1 | ||
| 89121-30020 |
NSP151..GEN..R LATIN AMERICA SPEC&E-SPORT PACKAGE(GRADE MARK(S))&MLM PACKAGE |
1 | ||
| 89121-30020 |
NSP151..D..A;NSP151..5F..R..A EGYPT SPEC&MLM PACKAGE |
1 | ||
| 89121-30020 |
NSP152;NSP151..GEN..G;NSP150..CVT..GEN..G MLM PACKAGE |
1 | ||
| 89121-30020 |
NSP151..GEN..R COSTA RICA SPEC&E-SPORT PACKAGE(GRADE MARK(S))&MLM PACKAGE |
1 | ||
| 89121-30020 |
NSP151..GEN..R CHILE SPEC&E-SPORT PACKAGE(GRADE MARK(S))&MLM PACKAGE |
1 | ||
| 89121-30020 |
NSP151..GEN..R MEXICO SPEC&E-SPORT PACKAGE(GRADE MARK(S))&MLM PACKAGE |
1 | ||
| 89221B - COMPUTER, BODY | ||||
| 89221-0D890 |
NSP151..5F..(D,R)..A EGYPT SPEC&MLM PACKAGE |
1 | ||
| 89221-0D810 |
NSP151..(G,R,V)..G |
1 | ||
| 89221-0D890 |
NSP151..5F..D..A BOLIVIA SPEC&RADIATOR GRILL(MATERIAL COLOR)&MLM PACKAGE |
1 | ||
| 89221-0D730 |
NSP151..D |
1 | ||
| 89221-0D830 |
NSP151..AGT..G;NSP151..(D,R)..H |
1 | ||
| 89221-0D890 |
NSP151..5F..D..A LATIN AMERICA SPEC&RADIATOR GRILL(MATERIAL COLOR)&MLM PACKAGE |
1 | ||
| 89221-0D890 |
NSP151..5F..D..A COSTA RICA SPEC&RADIATOR GRILL(MATERIAL COLOR)&MLM PACKAGE |
1 | ||
| 89221-0D820 |
NSP151..D..G |
1 | ||
| 89221-0D840 |
NSP151..(BZ,GEN)..(G,V)..H |
1 | ||
| 89221-0D890 |
NSP151..5F..D..A PERU SPEC&RADIATOR GRILL(MATERIAL COLOR)&MLM PACKAGE |
1 | ||
| 89221-0D750 |
NSP151..R..E |
1 | ||
| 89221-0D760 |
NSP151..G..E |
1 | ||
| 89221-0D890 |
NSP150,151..5F..GEN..D LATIN AMERICA SPEC&RADIATOR GRILL(MATERIAL COLOR) |
1 | ||
| 89221-0D890 |
NSP151..5F..D..A BOLIVIA SPEC&RADIATOR GRILL(MATERIAL COLOR) |
1 | ||
| 89221-0D890 |
NSP151..5F..D..A COSTA RICA SPEC&RADIATOR GRILL(MATERIAL COLOR) |
1 | ||
| 89221-0D710 |
NSP151..5F..(D,R)..A ALGERIA SPEC |
1 | ||
| 89221-0D890 |
NSP151..GEN..R PERU SPEC&E-SPORT PACKAGE(GRADE MARK(S)) |
1 | ||
| 89221-0DA30 |
NSP151..D..A;NSP150..5F..GEN..D LATIN AMERICA SPEC |
1 | ||
| 89221-0D780 |
NSP151..(D,R)..F |
1 | ||
| 89221-0DA30 |
NSP151..GEN..(D,R)..A BOLIVIA SPEC |
1 | ||
| 89221-0DA30 |
NSP151..D..A COSTA RICA SPEC |
1 | ||
| 89221-0D610 |
NSP151..GEN..R BOLIVIA SPEC&E-SPORT PACKAGE(GRADE MARK(S))&MLM PACKAGE |
1 | ||
| 89221-0D890 |
NSP151..GEN..R BOLIVIA SPEC&E-SPORT PACKAGE(GRADE MARK(S)) |
1 | ||
| 89221-0D610 |
NSP151..GEN..R PERU SPEC&E-SPORT PACKAGE(GRADE MARK(S))&MLM PACKAGE |
1 | ||
| 89221-0D880 |
NSP151..D..A;NSP151..5F..R..A EGYPT SPEC |
1 | ||
| 89221-0D610 |
NSP151..GEN..(D,R)..A MEXICO SPEC |
1 | ||
| 89221-0D890 |
NSP151..GCC..G..A;NSP151..LHD..(D,R)..A;NSP150..GCC..(G,R)..A;NSP150..(GEN,PKN)..(D,R) |
1 | ||
| 89221-0D890 |
NSP151..GEN..R CHILE SPEC&E-SPORT PACKAGE(GRADE MARK(S)) |
1 | ||
| 89221-0D890 |
NSP151..GEN..R LATIN AMERICA SPEC&E-SPORT PACKAGE(GRADE MARK(S)) |
1 | ||
| 89221-0D710 |
NSP151..5F..D..A;NSP151..CVT..GEN..R ECUADOR SPEC |
1 | ||
| 89221-0DA20 |
NSP151..GEN..G..A;NSP150..CVT..GEN..G |
1 | ||
| 89221-0DA30 |
NSP150..LHD..GEN..R;NSP150,151..5F..GEN..D PERU SPEC |
1 | ||
| 89221-0DA30 |
NSP151..5F..R..A;NSP150..LHD..CVT..GEN..D;NSP151..CVT..GEN..(D,R)..A PERU SPEC |
1 | ||
| 89221-0DA30 |
NSP151..CVT..GEN..R;NSP151..5F..(D,R)..A CHILE SPEC |
1 | ||
| 89221-0D890 |
NSP150,151..5F..GEN..D PERU SPEC&RADIATOR GRILL(MATERIAL COLOR) |
1 | ||
| 89221-0D640 |
NSP151..GEN..G;NSP150..CVT..GEN..G MLM PACKAGE |
1 | ||
| 89221-0D610 |
NSP151..GEN..R COSTA RICA SPEC&E-SPORT PACKAGE(GRADE MARK(S))&MLM PACKAGE |
1 | ||
| 89221-0D610 |
NSP151..GEN..R LATIN AMERICA SPEC&E-SPORT PACKAGE(GRADE MARK(S))&MLM PACKAGE |
1 | ||
| 89221-0DA30 |
NSP151..GEN..R COSTA RICA SPEC |
1 | ||
| 89221-0D710 |
NSP151..D..A;NSP151..5F..R..A EGYPT SPEC&MLM PACKAGE |
1 | ||
| 89221-0DA30 |
NSP150,151..LHD..GEN..R;NSP150..LHD..CVT..GEN..D LATIN AMERICA SPEC |
1 | ||
| 89221-0D890 |
NSP151..GEN..R COSTA RICA SPEC&E-SPORT PACKAGE(GRADE MARK(S)) |
1 | ||
| 89221-0D610 |
NSP151..GEN..R CHILE SPEC&E-SPORT PACKAGE(GRADE MARK(S))&MLM PACKAGE |
1 | ||
| 89420F - SENSOR ASSY, VACUUM | ||||
| 89421-26030 |
NSP151..H |
1 | ||
| 89420F - SENSOR ASSY, VACUUM | ||||
| 89421-26030 |
NSP151..H |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-52B20 |
NSP151..F JTEKT/DENSO |
1 | ||
| 89650-0D630 |
NSP150,151..LHD..(A,C,D,E) JTEKT/DENSO |
1 | ||
| 89650-0D650 |
NSP151..H JTEKT/DENSO |
1 | ||
| 89650-52F30 |
NSP151..G JTEKT/DENSO |
1 | ||
| 89650-0D820 |
NSP150..LHD..(G,R);NSP150..5F..GEN..D;NSP151..LHD..(A,C);NSP150..LHD..CVT..D JTEKT/DENSO |
1 | ||
| 89730A - RELAY(FOR SECURITY WARNING) | ||||
| 90987-02027 |
NSP151..F |
1 | ||
| 90987-T2001 |
NSP151..5F..(D,R)..A;NSP151..LHD..CVT..GEN..G..A ALGERIA SPEC |
1 | ||
| 90987-T2001 |
NSP151..GEN..(D,R)..A MEXICO SPEC |
1 | ||
| Common parts | ||||
| 90119-T0313 | ||||
| 90159-70003 | ||||
| 90159-T0003 | ||||
| 90159-T0037 | ||||
| 90170-10017 | ||||
| 90178-T0007 | ||||
| 90179-06274 | ||||
| 91673-80616 | ||||
| 91673-80620 | ||||
| 93315-14012 | ||||
| 94120-41000 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8202 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
