NSP151L-AEMGK (2017)

Toyota Yaris/Vios/Limo

Production Oct 2017 - Sep 9999
Engine 2NRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1804- )G

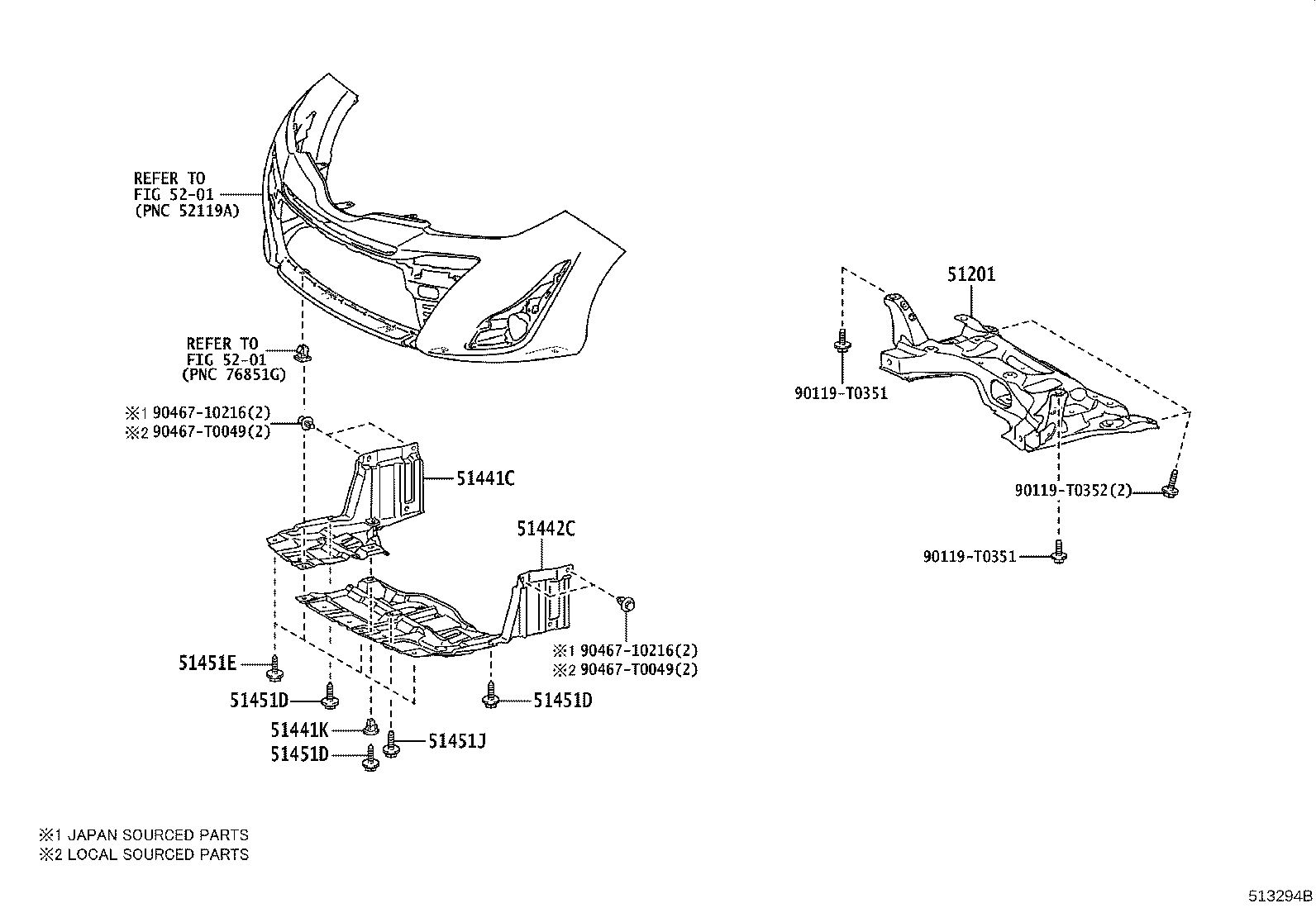

Click highlighted areas on diagram

diagram 51201 51441C 51441K 51442C 51451D 51451D 51451D 51451E 51451J 5201 5201 90119T0351 90119T0351 90119T0352 9046710216 9046710216 90467T0049 90467T0049
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-0D260

NSP150,151..5F..GEN..D

LATIN AMERICA SPEC

 1
51201-0D260

NSP151..5F..(G,R)..A

PERU SPEC

 1
51201-0D260

NSP151..5F..(D,G)..A

COSTA RICA SPEC

 1
51201-0D260

NSP151..5F..D..A

ECUADOR SPEC

 1
51201-0D171

NSP151..F

 1
51201-0D260

NSP151..5F..A

BOLIVIA SPEC

 1
51201-0D260

NSP151..5F..(D,R)..A

MEXICO SPEC

 1
51201-0D260

NSP151..5F..D..A;NSP150..LHD..5F..GEN

PERU SPEC

 1
51201-0D260

NSP150,151..LHD..5F..GEN..(G,R)

LATIN AMERICA SPEC

 1
51201-0D260

NSP151..5F..A

CHILE SPEC

 1
51201-0D260

NSP151..5F..R..A

COSTA RICA SPEC

 1
51441C - COVER, ENGINE UNDER, RH
51441-0D431

NSP151..G

 1
51441-0D310

NSP150,151..D

 1
51441-0D320

NSP151..F

 1
51441-0D500

NSP151..H

 1
51441-0D282

NSP151..5F..A

BOLIVIA SPEC&ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC, W(HEIGHT UP)

 1
51441-0D282

NSP151..5F..(D,G)..A

COSTA RICA SPEC

 1
51441-0D282

NSP151..5F..A

CHILE SPEC

 1
51441-0D282

NSP150,151..LHD..5F..GEN..(G,R)

LATIN AMERICA SPEC

 1
51441-0D282

NSP151..5F..(G,R)..A

PERU SPEC

 1
51441-0D282

NSP151..5F..R..A

COSTA RICA SPEC

 1
51441-0D282

NSP150,151..5F..GEN..D

LATIN AMERICA SPEC

 1
51441-0D282

NSP151..5F..D..A

ECUADOR SPEC&ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC, W(HEIGHT UP)

 1
51441-0D282

NSP151..5F..(D,R)..A

MEXICO SPEC&ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC, W(HEIGHT UP)

 1
51441-0D282

NSP151..5F..D..A;NSP150..LHD..5F..GEN

PERU SPEC

 1
51441K - GROMMET(FOR ENGINE UNDER COVER)
90189-06076

NSP150,151..LHD..5F..GEN..(G,R)

LATIN AMERICA SPEC

 1
90189-06076

NSP151..5F..(D,R)..A

MEXICO SPEC&ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC, W(HEIGHT UP)

 1
90189-06076

NSP150,151..5F..GEN..D

LATIN AMERICA SPEC

 1
90189-06076

NSP151..5F..(D,G)..A

COSTA RICA SPEC

 1
90189-06076

NSP151..5F..D..A

ECUADOR SPEC&ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC, W(HEIGHT UP)

 1
90189-06076

NSP151..5F..R..A

COSTA RICA SPEC

 1
90189-06076

NSP151..5F..A

BOLIVIA SPEC&ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC, W(HEIGHT UP)

 1
90189-06076

NSP151..5F..(G,R)..A

PERU SPEC

 1
90189-06076

NSP151..5F..D..A;NSP150..LHD..5F..GEN

PERU SPEC

 1
90189-06076

NSP151..5F..A

CHILE SPEC

 1
90189-T0022

NSP150..CVT..A;NSP151..LHD..GEN;NSP151..(GCC,TH)..A;NSP150..LHD..5F..GEN;NSP150..5F..GCC..R..A

(L)

 1
90189-06006

NSP150..CVT..A;NSP151..LHD..GEN;NSP151..(GCC,TH)..A;NSP150..LHD..5F..GEN;NSP150..5F..GCC..R..A

(J)

 1
51442C - COVER, ENGINE UNDER, LH
51442-0D200

NSP151..F

 1
51442-0D190

NSP150,151..D

 1
51442-0D310

NSP151..H

 1
51442-0D251

NSP151..G

 1
51442-0D172

NSP151..5F..(G,R)..A

PERU SPEC

 1
51442-0D172

NSP151..5F..A

BOLIVIA SPEC&ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC, W(HEIGHT UP)

 1
51442-0D172

NSP150,151..5F..GEN..D

LATIN AMERICA SPEC

 1
51442-0D172

NSP151..5F..D..A

ECUADOR SPEC&ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC, W(HEIGHT UP)

 1
51442-0D172

NSP150,151..LHD..5F..GEN..(G,R)

LATIN AMERICA SPEC

 1
51442-0D172

NSP151..5F..(D,G)..A

COSTA RICA SPEC

 1
51442-0D172

NSP151..5F..D..A;NSP150..LHD..5F..GEN

PERU SPEC

 1
51442-0D172

NSP151..5F..(D,R)..A

MEXICO SPEC&ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC, W(HEIGHT UP)

 1
51442-0D172

NSP151..5F..A

CHILE SPEC

 1
51442-0D172

NSP151..5F..R..A

COSTA RICA SPEC

 1
51451D - SCREW, NO.1
90159-T0008

NSP150..CVT..GEN;NSP151..LHD..GEN..A;NSP150..LHD..5F..GEN

ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL,WITH(HEIGHT UP),(L)

 2
90159-60383

NSP150..CVT..GEN;NSP151..LHD..GEN..A;NSP150..LHD..5F..GEN

ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL,WITH(HEIGHT UP),(J)

 2
51451D - SCREW, NO.1
90159-T0008

NSP150..CVT..GEN;NSP151..LHD..GEN..A;NSP150..LHD..5F..GEN

ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL,WITH(HEIGHT UP),(L)

 2
90159-60383

NSP150..CVT..GEN;NSP151..LHD..GEN..A;NSP150..LHD..5F..GEN

ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL,WITH(HEIGHT UP),(J)

 2
51451D - SCREW, NO.1
90159-T0008

NSP150..CVT..GEN;NSP151..LHD..GEN..A;NSP150..LHD..5F..GEN

ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL,WITH(HEIGHT UP),(L)

 2
90159-60383

NSP150..CVT..GEN;NSP151..LHD..GEN..A;NSP150..LHD..5F..GEN

ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL,WITH(HEIGHT UP),(J)

 2
51451E - SCREW, NO.2
90159-60488

NSP151..H

 4
90159-T0033

NSP151..5F..D..A;NSP151..LHD..CVT..GEN..G..A

ALGERIA SPEC&MLM PACKAGE

 4
90159-T0033

NSP151..D..A;NSP151..5F..R..A

EGYPT SPEC&MLM PACKAGE

 4
51451J - BOLT, NO.1
90119-T0144

NSP151..5F..(G,R)..A

PERU SPEC

 3
90119-06767

NSP151..F,H

 5
90119-T0144

NSP150,151..5F..GEN..D

LATIN AMERICA SPEC

 3
90119-T0144

NSP150,151..LHD..5F..GEN..(G,R)

LATIN AMERICA SPEC

 3
90119-T0144

NSP150..CVT..GEN;NSP151..LHD..GEN..A;NSP150..LHD..5F..GEN

ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL,WITH(HEIGHT UP),(L)

 11
90119-T0144

NSP151..5F..(D,R)..A

MEXICO SPEC&ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC, W(HEIGHT UP)

 3
90119-06767

NSP150..CVT..GEN;NSP151..LHD..GEN..A;NSP150..LHD..5F..GEN

ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL,WITH(HEIGHT UP),(J)

 11
90119-T0144

NSP151..5F..D..A;NSP150..LHD..5F..GEN

PERU SPEC

 3
90119-T0144

NSP151..5F..A

BOLIVIA SPEC&ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC, W(HEIGHT UP)

 3
90119-T0144

NSP151..5F..R..A

COSTA RICA SPEC

 3
90119-T0144

NSP151..5F..D..A

ECUADOR SPEC&ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC, W(HEIGHT UP)

 3
90119-T0144

NSP151..5F..A

CHILE SPEC

 3
90119-T0144

NSP151..5F..(D,G)..A

COSTA RICA SPEC

 3
Common parts
90119-T0351
90119-T0352
90467-10216
90467-T0049
Linked diagrams
5201
