NSP151L-AEMGK (2017)

Toyota Yaris/Vios/Limo

Production Oct 2017 - Sep 9999
Engine 2NRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1304- )5F

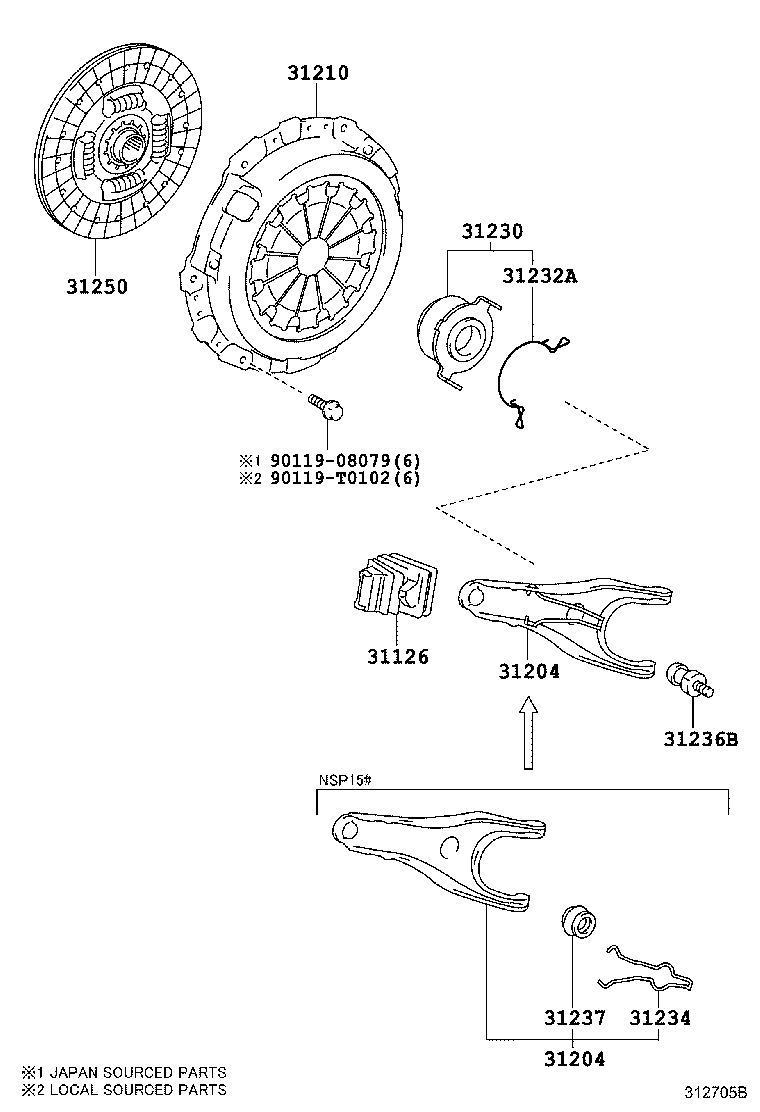

Click highlighted areas on diagram

diagram 31126 31204 31204 31210 31230 31232A 31234 31236B 31237 31250 9011908079 90119T0102
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-0D090

NSP150..5F..GEN..D;NSP150..5F..(D,E,I);NSP150..5F..R..(A,C);NSP151..5F..(GEN,IDN,PH,PKN,VN)..(A,C,D,E,I)

 1
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31204-0D040

NSP150..5F..GCC..R..(A,C);NSP150..LHD..5F..(GEN,PH,VN)..(A,D,E);NSP151..5F..(GEN,IDN,PH,VN)..(A,C,D,E)

 1
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31204-0D040

NSP150..5F..GCC..R..(A,C);NSP150..LHD..5F..(GEN,PH,VN)..(A,D,E);NSP151..5F..(GEN,IDN,PH,VN)..(A,C,D,E)

 1
31210 - COVER ASSY, CLUTCH
31210-0D240

NSP151..5F..(GEN,IDN,PH,PKN,VN)..(A,C,D,E,I)

 1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-0D012

NSP150..5F..GEN..D;NSP150..5F..(D,E,I);NSP150..5F..R..(A,C);NSP151..5F..(A,C,D,E,I)

 1
31230-0D011

NSP151..5F..(D,E);NSP150..5F..(A,C,D,E);NSP151..5F..(GEN,IDN,MA)

 1
31232A - CLIP, RELEASE BEARING HUB
31232-0D010

NSP150..5F..GEN..D;NSP150..5F..(D,E,I);NSP150..5F..R..(A,C);NSP151..5F..(GEN,IDN,PH,PKN,VN)..(A,C,D,E,I)

 1
31234 - SPRING, RELEASE FORK ANTI-RATTLE
31234-52020

NSP150..5F..GEN..D;NSP150..5F..(D,E,I);NSP150..5F..R..(A,C);NSP151..5F..(GEN,IDN,PH,PKN,VN)..(A,C,D,E,I)

 1
31236B - SUPPORT, RELEASE FORK
31236-0D020

NSP150..5F..GEN..D;NSP150..5F..(D,E,I);NSP150..5F..R..(A,C);NSP151..5F..(GEN,IDN,PH,PKN,VN)..(A,C,D,E,I)

 1
31237 - BOOT, CLUTCH RELEASE FORK SUPPORT
31237-0D020

NSP150..5F..GEN..D;NSP150..5F..(D,E,I);NSP150..5F..R..(A,C);NSP151..5F..(GEN,IDN,PH,PKN,VN)..(A,C,D,E,I)

 1
31250 - DISC ASSY, CLUTCH
31250-0D330

NSP151..5F..(GEN,IDN,PH,PKN,VN)..(A,C,D,E,I)

 1
Common parts
90119-08079
90119-T0102
