NSP150L-CEXRKV (2016)

Toyota Yaris/Vios/Limo

Production Oct 2016 - Dec 2017
Engine 1NRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 3(1304- )NSP151..TH..B,C ; (1304- )NCP15#,NSP150..RHD..B,C ; (1608-1812)MA ; (

Click highlighted areas on diagram

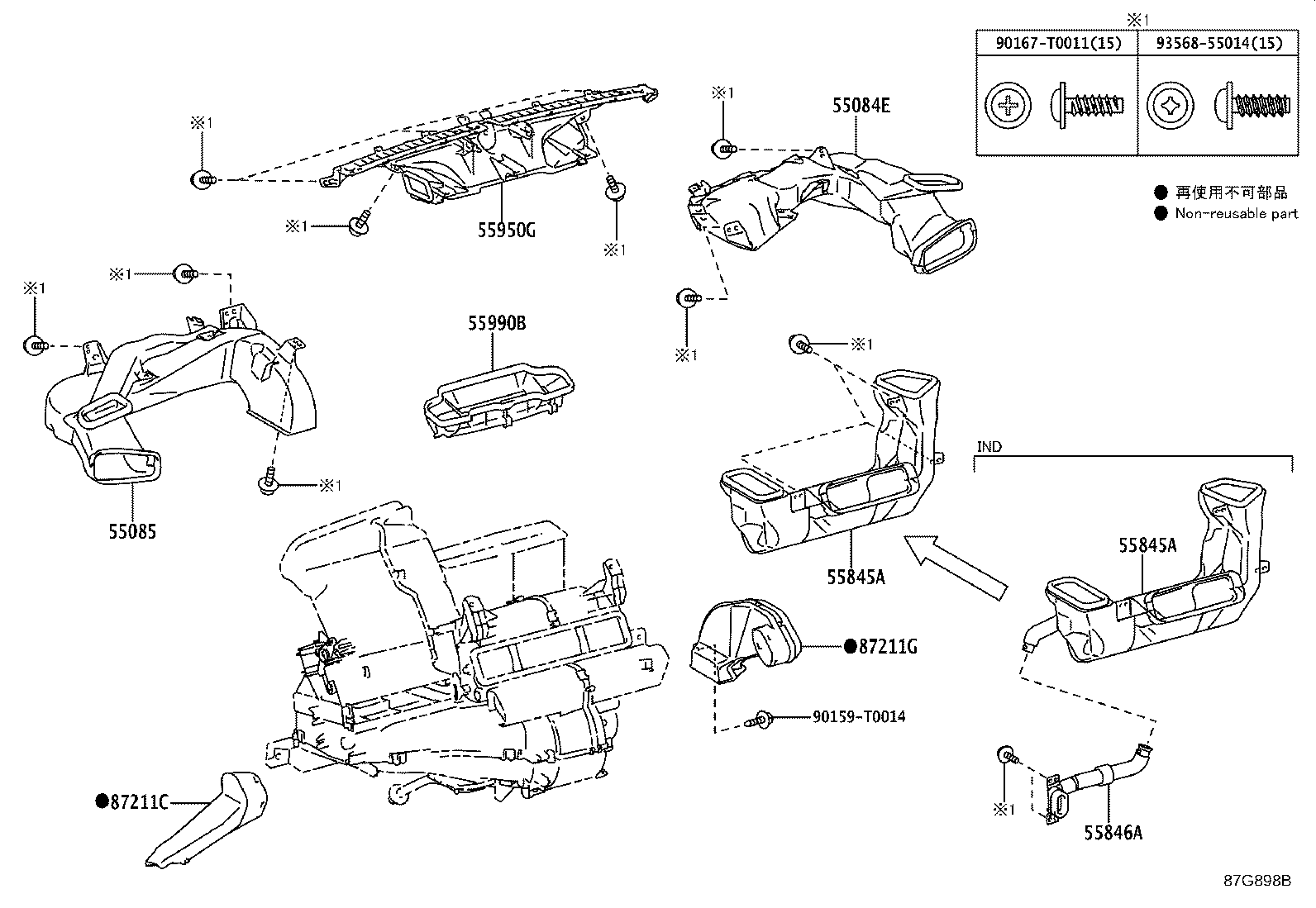

AIR DUCT

diagram 55084E 55085 55845A 55950G 87211C 87211G 90167T0011 90167T0011 90167T0011 90167T0011 90167T0011 90167T0011
Part # Description Qty Price
Common parts
90167-T0011

ILLUST NO. 3 OF 3(1304- )NSP151..TH..B,C ; (1304- )NCP15#,NSP150..RHD..B,C ; (1608-1812)MA ; (

Click highlighted areas on diagram

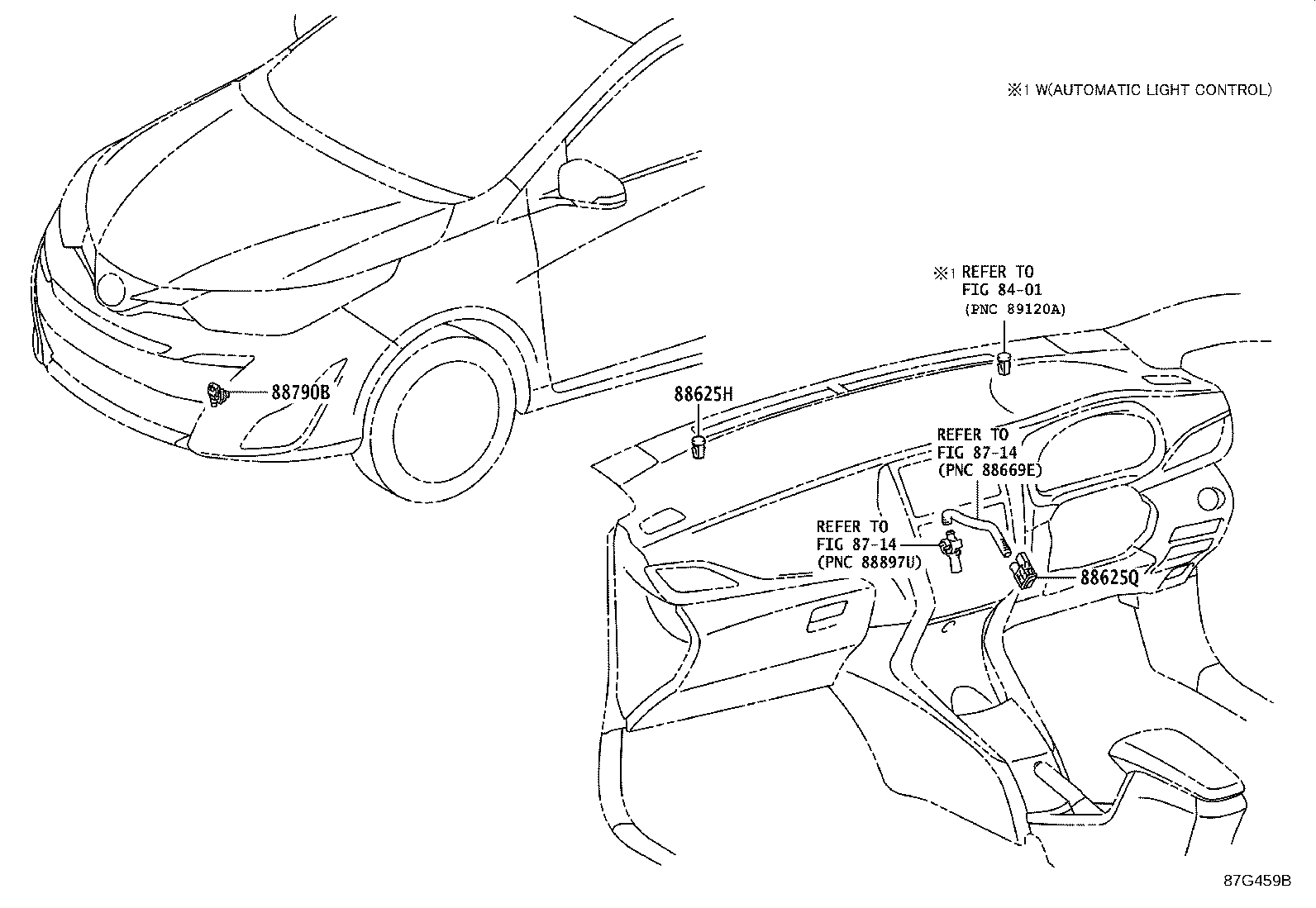

SENSOR

diagram 8714 8714 88625H 88625Q 88790B
Part # Description Qty Price
88790B - THERMISTOR ASSY
88790-22131

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

 1
Linked diagrams
8714

ILLUST NO. 1 OF 3(1708- )RHD..A,I ; (1801- )IDN ; (1804-)G ; (1901- )MA

Click highlighted areas on diagram

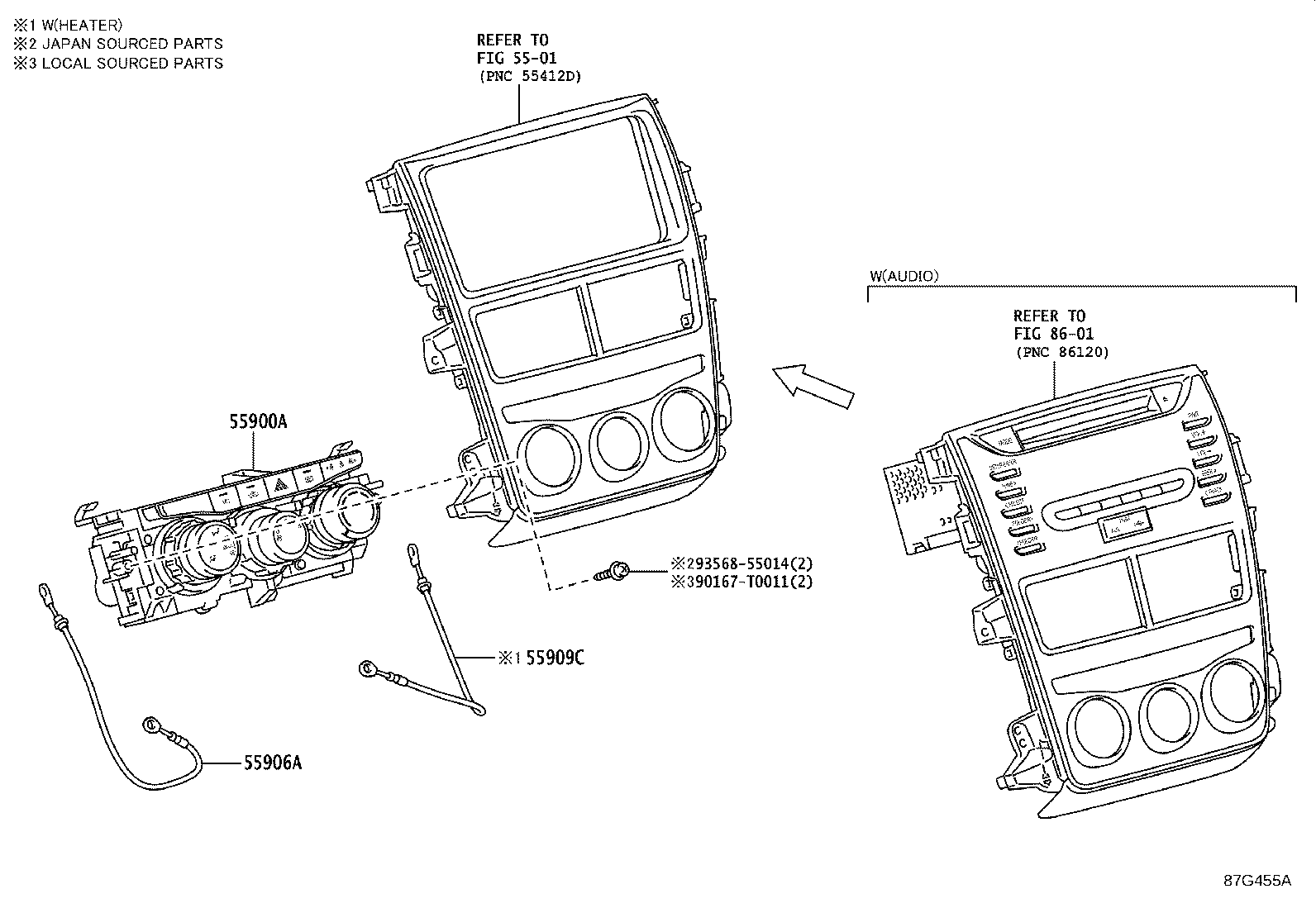

MANUAL HEATER CONTROL

diagram 5501 55900A 55906A 55909C 8601 90167T0011 9356855014
Part # Description Qty Price
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-0D190

NSP151..5F..G..A;NSP151..GCC..G..(A,C);NSP150..CVT..GCC..(A,C);NSP150..5F..GCC..R..(A,C);NSP151..LHD..(D,R)..(A,C,E);NSP150..LHD..(GEN,PH,VN)..(D,R)..(A,D,E)

 1
55909C - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-0D170

NSP151..5F..G..A;NSP150..5F..R..(A,C);NSP151..GCC..G..(A,C);NSP150..CVT..GCC..(A,C);NSP150..LHD..CVT..GEN..R;NSP151..LHD..(D,R)..(A,C,E);NSP150..LHD..(GEN,VN)..D..(A,E)

 1
Common parts
90167-T0011
93568-55014
Linked diagrams
5501
8601

ILLUST NO. 2 OF 3(1710- )LHD..GEN..A ; (1801- )GCC ; (1803-)F ; (1807- )D,H ; (1808-

Click highlighted areas on diagram

AIR DUCT

diagram 55084E 55085 55845A 55950G 55990B 87211C 87211G 9015960431 90159T0014 90167T0011 9356855014
Part # Description Qty Price
Common parts
90159-60431
90159-T0014
90167-T0011
93568-55014

ILLUST NO. 3 OF 3(1708- )RHD..A,I ; (1801- )IDN ; (1804-)G ; (1901- )MA

Click highlighted areas on diagram

SENSOR

diagram 8401 8714 8714 88625H 88625Q 88790B
Part # Description Qty Price
88790B - THERMISTOR ASSY
88790-22131

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

 1
Linked diagrams
8401
8714

ILLUST NO. 3 OF 3(1710- )LHD..GEN..A ; (1801- )GCC ; (1803-)F ; (1807- )D,H ; (1808-

Click highlighted areas on diagram

SENSOR

diagram 8401 8714 8714 88625H 88625Q 88790B
Part # Description Qty Price
88790B - THERMISTOR ASSY
88790-22131

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

 1
Linked diagrams
8401
8714

ILLUST NO. 1 OF 3(1710- )LHD..GEN..A ; (1801- )GCC ; (1803-)F ; (1807- )D,H ; (1808-

Click highlighted areas on diagram

MANUAL HEATER CONTROL-MAKER OPTION

diagram 5501 55900A 55906A 55909C 8601 90167T0011 9356855014
Part # Description Qty Price
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-0D190

NSP151..5F..G..A;NSP151..GCC..G..(A,C);NSP150..CVT..GCC..(A,C);NSP150..5F..GCC..R..(A,C);NSP151..LHD..(D,R)..(A,C,E);NSP150..LHD..(GEN,PH,VN)..(D,R)..(A,D,E)

 1
55909C - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-0D170

NSP151..5F..G..A;NSP150..5F..R..(A,C);NSP151..GCC..G..(A,C);NSP150..CVT..GCC..(A,C);NSP150..LHD..CVT..GEN..R;NSP151..LHD..(D,R)..(A,C,E);NSP150..LHD..(GEN,VN)..D..(A,E)

 1
Common parts
90167-T0011
93568-55014
Linked diagrams
5501
8601

ILLUST NO. 2 OF 3(1708- )RHD..A,I ; (1801- )IDN ; (1804-)G ; (1901- )MA

Click highlighted areas on diagram

AIR DUCT

diagram 55084E 55085 55845A 55845A 55846A 55950G 55990B 87211C 87211G 90159T0014 90167T0011 9356855014
Part # Description Qty Price
Common parts
90159-T0014
90167-T0011
93568-55014

ILLUST NO. 1 OF 3(1708- )GEN,PKN,TH..A,I ; (1801- )GCC,IDN; (1803- )F ; (1804- )G ; (18

Click highlighted areas on diagram

AUTO HEATER CONTROL

diagram 55900 55900 8601 90167T0011 90167T0011 9356855014 9356855014
Part # Description Qty Price
Common parts
90167-T0011
93568-55014
Linked diagrams
8601

ILLUST NO. 1 OF 3(1304- )NSP151..TH..B,C ; (1304- )NCP15#,NSP150..RHD..B,C ; (1608-1812)MA ; (

Click highlighted areas on diagram

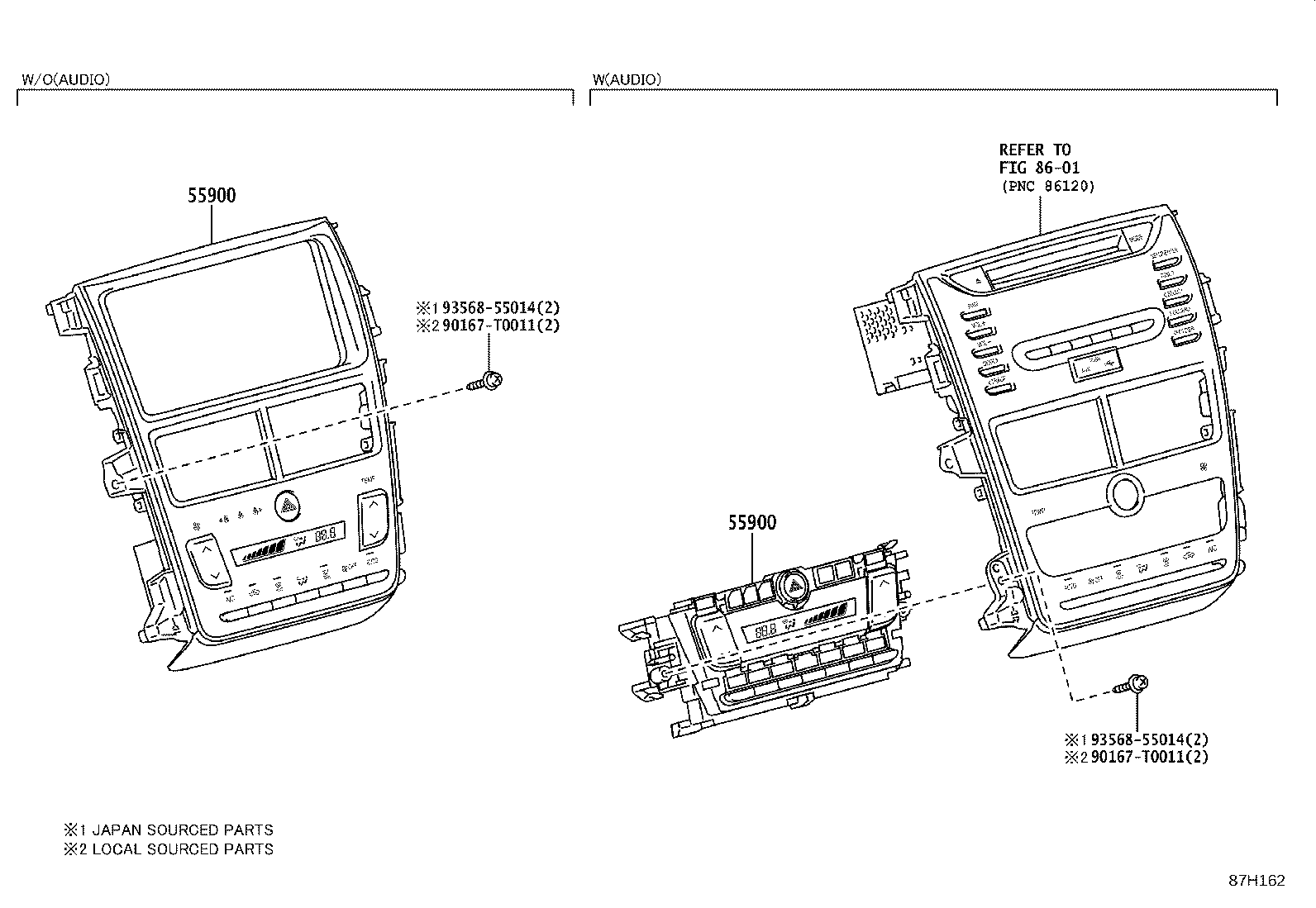

HEATER CONTROL

diagram 55900 55900A 55900A 55902C 55902H 55904A 55906A 55908A 55909C 55921A 55921A 55921A 55921A 55921B 55921B 55921B 81942A 81942B 9046710201 9356054010 9356054010
Part # Description Qty Price
55902H - CLIP(FOR AIR CONDITIONER PANEL)
90467-10203

NSP150..GCC;NSP151..GCC..G;NSP151..(D,R)..C;NSP151..GCC..R..B

 4
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-0D190

NSP151..5F..G..A;NSP151..GCC..G..(A,C);NSP150..CVT..GCC..(A,C);NSP150..5F..GCC..R..(A,C);NSP151..LHD..(D,R)..(A,C,E);NSP150..LHD..(GEN,PH,VN)..(D,R)..(A,D,E)

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-0D140

NSP150..GCC;NSP151..GCC..G;NSP151..(D,R)..C;NSP151..GCC..R..B

 1
55909C - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-0D170

NSP151..5F..G..A;NSP150..5F..R..(A,C);NSP151..GCC..G..(A,C);NSP150..CVT..GCC..(A,C);NSP150..LHD..CVT..GEN..R;NSP151..LHD..(D,R)..(A,C,E);NSP150..LHD..(GEN,VN)..D..(A,E)

 1
Common parts
90467-10201
93560-54010
