NSP150L-CEMDKV (2016)
Toyota Yaris/Vios/Limo
(1304- )

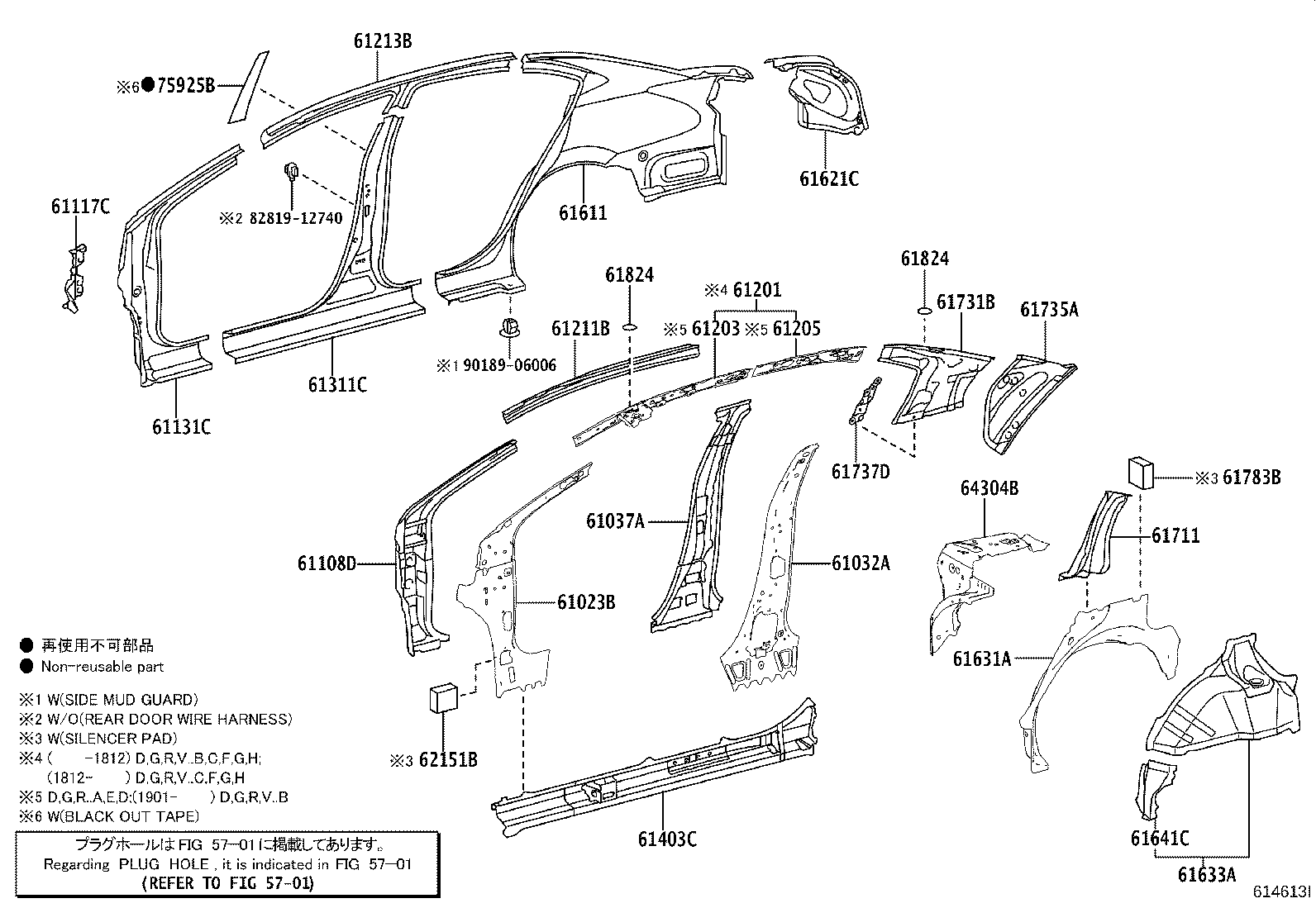

RH SIDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61117C - GUSSET, SIDE PANEL TO COWL, RH | ||||
| 61117-0D030 |
NSP150..D,I;NSP150..CVT..A;NSP151,152..A,D,I;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A |
1 | ||
| 61131C - PILLAR, FRONT BODY, OUTER RH | ||||
| 61131-0D170 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G |
1 | ||
| 61131-0D200 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 61211B - RAIL, ROOF SIDE, OUTER REAR RH | ||||
| 61211-0D240 |
NSP150..E,I;NSP150..CVT..A;NSP151,152..A,E,I;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A |
1 | ||
| 61213B - RAIL, ROOF SIDE, OUTER NO.2 RH | ||||
| 61213-0D140 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G |
1 | ||
| 61213-0D100 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 61311C - PANEL, REAR BODY FRONT OUTSIDE, RH | ||||
| 61311-0D130 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 61311-0D070 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-K0010 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G |
1 | ||
| 61711 - PANEL, ROOF SIDE, OUTER RH | ||||
| 61711-K0010 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G |
1 | ||
| 61711-K0030 |
NSP151..5F..IDN;NSP151..A,D,E,G,I;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-K0010 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G |
1 | ||
| 61731-K0060 |
NSP151..A,D,E,G;NSP151..5F..IDN;NSP150..CVT..GEN..G..A;NSP150..CVT..GCC..(A,C);NSP150..5F..GCC..R..(A,C);NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(GEN,PH,TH,VN)..(D,R)..(A,D,E) |
1 | ||
| 61735A - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-K0010 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G |
1 | ||
| 61735-K0020 |
NSP151..A,D,E,G;NSP151..5F..IDN;NSP150..CVT..GEN..G..A;NSP150..CVT..GCC..(A,C);NSP150..5F..GCC..R..(A,C);NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(GEN,PH,TH,VN)..(D,R)..(A,D,E) |
1 | ||
| 61737D - REINFORCEMENT, ROOF SIDE, INNER RH | ||||
| 61737-0D040 |
NSP150..D,I;NSP150..CVT..A;NSP151,152..A,D,I;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A |
1 | ||
| 61783B - PAD, REAR WHEEL OPENING EXTENSION, NO.1 | ||||
| 61783-0D100 |
NSP150..5F..GEN..R..A;NSP151..(G,R)..(A,D,E,I);NSP150..CVT..GEN..(G,R)..A;NSP150,152..(GCC,PH,PKN,TH)..(G,R)..(A,D,I) |
1 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-0D020 |
NSP150..D,E,I;NSP150..CVT..A;NSP151,152..A,D,E,I;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A |
2 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-0D020 |
NSP150..D,E,I;NSP150..CVT..A;NSP151,152..A,D,E,I;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A |
2 | ||
| Common parts | ||||
| 82819-12740 | ||||
| 90189-06006 | ||||
| Linked diagrams | ||||
| 5701 | ||||
(1708- )A,F,G ; (1801- )C,D,E,H ; (1901-)MA

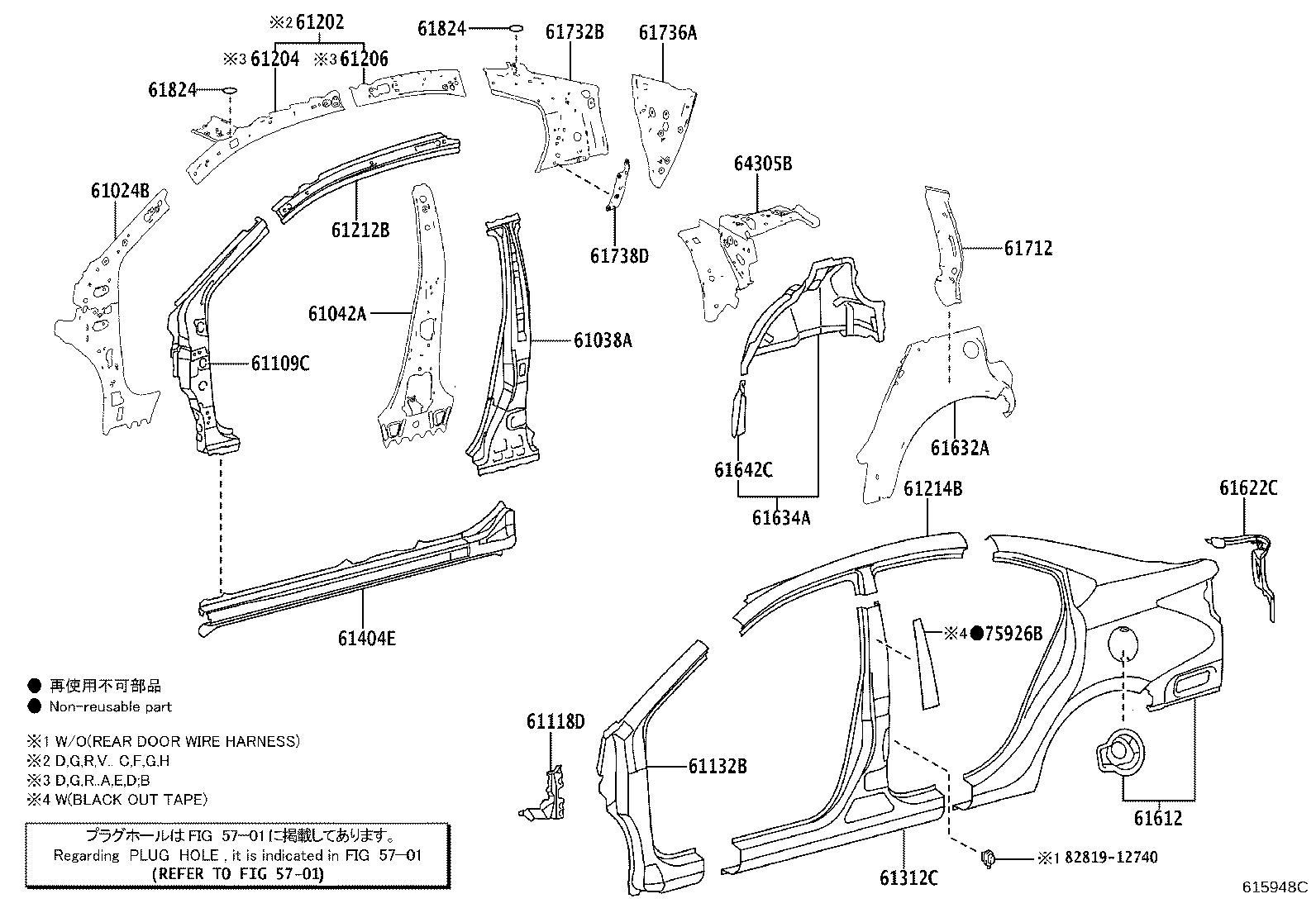

LH SIDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61118D - GUSSET, SIDE PANEL TO COWL, LH | ||||
| 61118-0D020 |
NSP150..D,I;NSP150..CVT..A;NSP151,152..A,D,I;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A |
1 | ||
| 61132B - PILLAR, FRONT BODY, OUTER LH | ||||
| 61132-0D170 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G |
1 | ||
| 61132-0D200 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 61212B - RAIL, ROOF SIDE, OUTER REAR LH | ||||
| 61212-0D230 |
NSP150..E,I;NSP150..CVT..A;NSP151,152..A,E,I;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A |
1 | ||
| 61214B - RAIL, ROOF SIDE, OUTER NO.2 LH | ||||
| 61214-0D100 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 61214-0D140 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G |
1 | ||
| 61312C - PANEL, REAR BODY FRONT OUTSIDE, LH | ||||
| 61312-0D070 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G |
1 | ||
| 61312-0D130 |
NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-K0010 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G |
1 | ||
| 61712 - PANEL, ROOF SIDE, OUTER LH | ||||
| 61712-K0010 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G |
1 | ||
| 61712-K0030 |
NSP151..5F..IDN;NSP151..A,D,E,G,I;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I) |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-K0010 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G |
1 | ||
| 61732-K0060 |
NSP151..A,D,E,G;NSP151..5F..IDN;NSP150..CVT..GEN..G..A;NSP150..CVT..GCC..(A,C);NSP150..5F..GCC..R..(A,C);NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(GEN,PH,TH,VN)..(D,R)..(A,D,E) |
1 | ||
| 61736A - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61736-K0010 |
NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G |
1 | ||
| 61736-K0020 |
NSP151..A,D,E,G;NSP151..5F..IDN;NSP150..CVT..GEN..G..A;NSP150..CVT..GCC..(A,C);NSP150..5F..GCC..R..(A,C);NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(GEN,PH,TH,VN)..(D,R)..(A,D,E) |
1 | ||
| 61738D - REINFORCEMENT, ROOF SIDE, INNER LH | ||||
| 61738-0D040 |
NSP150..D,I;NSP150..CVT..A;NSP151,152..A,D,I;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A |
1 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-0D020 |
NSP150..D,E,I;NSP150..CVT..A;NSP151,152..A,D,E,I;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A |
2 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-0D020 |
NSP150..D,E,I;NSP150..CVT..A;NSP151,152..A,D,E,I;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A |
2 | ||
| Common parts | ||||
| 82819-12740 | ||||
| Linked diagrams | ||||
| 5701 | ||||
