NSP150L-CEMDKV (2016)

Toyota Yaris/Vios/Limo

Production Oct 2016 - Dec 2017
Engine 1NRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1710- )LHD..A,D,E,H

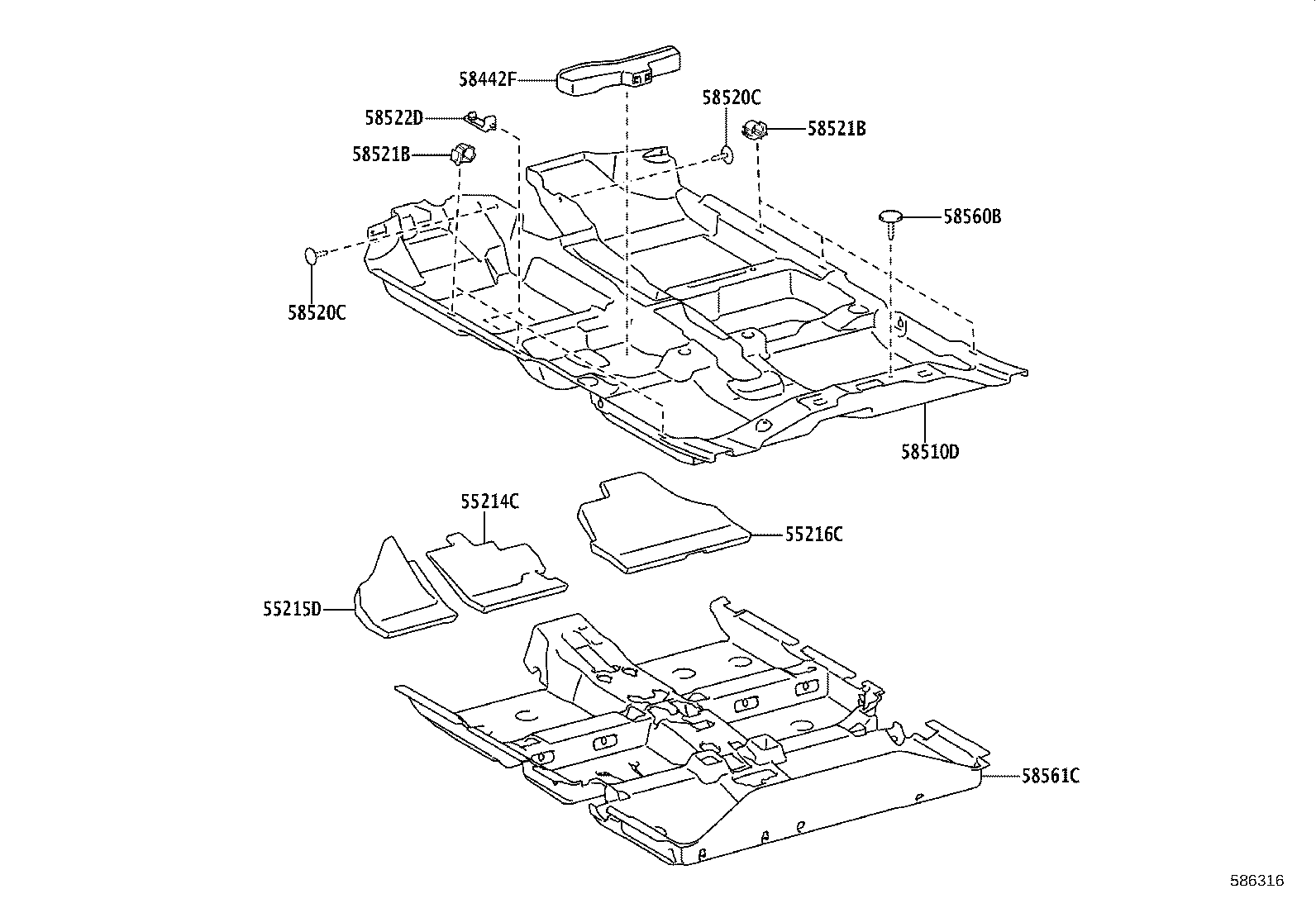

Click highlighted areas on diagram

diagram 55214C 55215D 55216C 58442F 58510D 58520C 58520C 58521B 58521B 58522D 58560B 58561C
Part # Description Qty Price
58442F - COVER, JACK
58442-0D110

NSP150..D,I;NSP150..CVT..A;NSP151,152..A,D,I;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-T0004A1

NSP151..GEN..D..B;NCP150..(GEN,TH)..D;NCP151,NSP150..(GCC,GEN)..(B,C);NCP150..(GCC,GEN,IDN,PH,TH,VN)..(G,R);NSP151..(GCC,GEN,IDN,TH,VN)..(G,R)..(B,C)

SHELL,TRIM0#

 2
90467-T0004C1

NSP151..IDN..D;NSP151..(GCC,GEN,MA,PH,TH,VN)..(B,C);NCP15#,NSP150..(GCC,GEN,IDN,MA,PH,TH,VN)..(B,C)

BLACK,TRIM2#

 2
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-T0004A1

NSP151..GEN..D..B;NCP150..(GEN,TH)..D;NCP151,NSP150..(GCC,GEN)..(B,C);NCP150..(GCC,GEN,IDN,PH,TH,VN)..(G,R);NSP151..(GCC,GEN,IDN,TH,VN)..(G,R)..(B,C)

SHELL,TRIM0#

 2
90467-T0004C1

NSP151..IDN..D;NSP151..(GCC,GEN,MA,PH,TH,VN)..(B,C);NCP15#,NSP150..(GCC,GEN,IDN,MA,PH,TH,VN)..(B,C)

BLACK,TRIM2#

 2
58521B - HOOK, FLOOR CARPET
58521-52050

NSP151..5F..IDN;NSP151..A,D,E,G,I;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

 6
58521B - HOOK, FLOOR CARPET
58521-52050

NSP151..5F..IDN;NSP151..A,D,E,G,I;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

 6
58522D - HOOK, FLOOR CARPET, NO.2
58522-52030

NCP15#,NSP150,151..B,C

 2
58522-52030

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

 2
58560B - CLIP(FOR FLOOR CARPET, REAR)
90467-0704923

NSP150,151..B,C

BLACK

 1
