NSP150L-CEMDKV (2016)

Toyota Yaris/Vios/Limo

Production Oct 2016 - Dec 2017
Engine 1NRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1304-1801)B,C ; (1801- )B

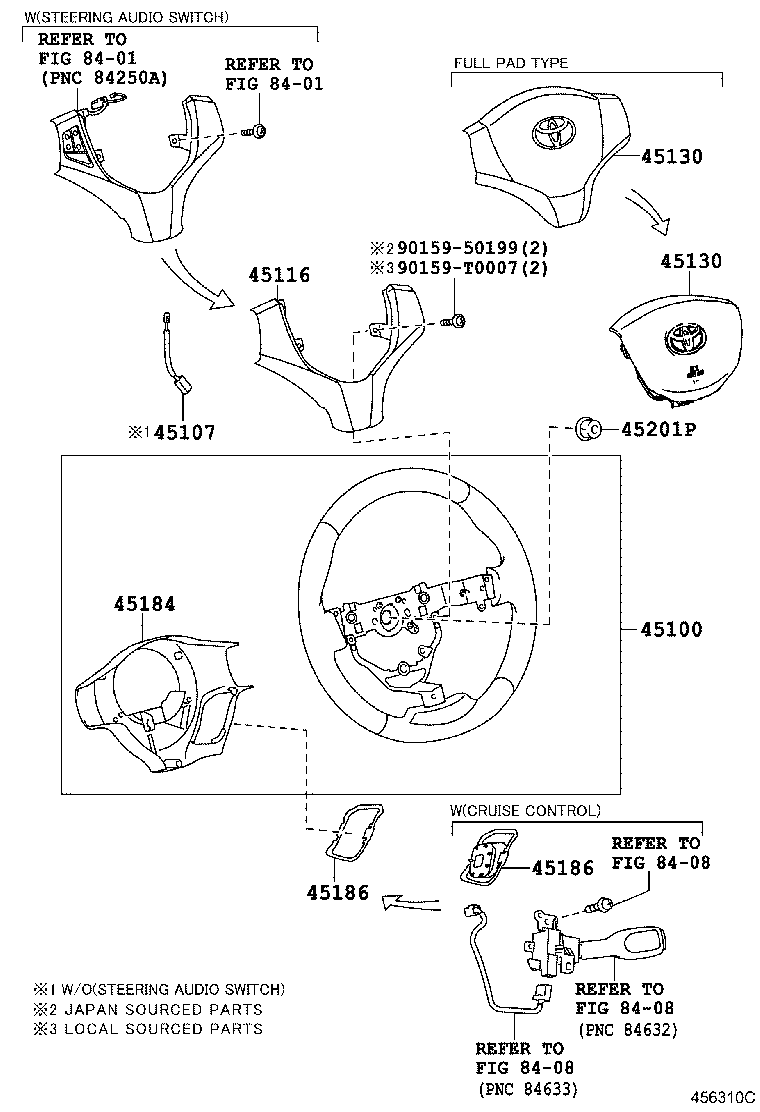

Click highlighted areas on diagram

3-SPOKE

diagram 45100 45107 45116 45130 45130 45184 45186 45186 45201P 8401 8401 8408 8408 8408 9015950199 90159T0007
Part # Description Qty Price
45107 - WIRE SUB-ASSY, HORN BUTTON
45107-52010

NSP151..CVT..D..(A,G);NSP151..(GCC,TH)..R..A;NSP151..(GCC,IDN)..R..C;NSP150..CVT..GCC..(D,R)..(A,C);NSP150,151..5F..(GCC,VN)..R..(A,C,E);NSP150..(GEN,PH,PKN,VN)..D..(A,D,E,I);NSP151..MTM..(GEN,IDN,IND)..D..(A,C,G)

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-0D050C0

NSP150..GCC;NSP151..GCC..G;NSP151..GCC..R..B;NSP151..(GCC,TH)..R..C

BLACK,TRIM0#,2#

 1
45186-02250C0

NSP151..A;NSP151..GCC..G..C;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP150,152..CVT..(A,C);NSP151..(GCC,IDN)..R..C

BLACK,TRIM0#,2#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-0D050C0

NSP150..GCC;NSP151..GCC..G;NSP151..GCC..R..B;NSP151..(GCC,TH)..R..C

BLACK,TRIM0#,2#

 1
45186-02250C0

NSP151..A;NSP151..GCC..G..C;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP150,152..CVT..(A,C);NSP151..(GCC,IDN)..R..C

BLACK,TRIM0#,2#

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

 1
90179-12071

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

 1
Common parts
90159-50199
90159-T0007
Linked diagrams
8401
8408

(1708- )NSP150,152..A,D,E,I ; (1708- )NSP151..AGT,BZ,MA,PKN ; (1708- )NSP1

Click highlighted areas on diagram

3-SPOKE

diagram 45100 45107 45116 45130 45184 45186 45186 45201P 45713A 8401 8401 8401 8401 8401 8401 8401 8408 8408 8408 90159T0007 90159T0007 90159T0007
Part # Description Qty Price
45107 - WIRE SUB-ASSY, HORN BUTTON
45107-52010

NSP151..CVT..D..(A,G);NSP151..(GCC,TH)..R..A;NSP151..(GCC,IDN)..R..C;NSP150..CVT..GCC..(D,R)..(A,C);NSP150,151..5F..(GCC,VN)..R..(A,C,E);NSP150..(GEN,PH,PKN,VN)..D..(A,D,E,I);NSP151..MTM..(GEN,IDN,IND)..D..(A,C,G)

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-0D050C0

NSP150..GCC;NSP151..GCC..G;NSP151..GCC..R..B;NSP151..(GCC,TH)..R..C

BLACK,TRIM0#,2#

 1
45186-02250C0

NSP151..A;NSP151..GCC..G..C;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP150,152..CVT..(A,C);NSP151..(GCC,IDN)..R..C

BLACK,TRIM0#,2#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-0D050C0

NSP150..GCC;NSP151..GCC..G;NSP151..GCC..R..B;NSP151..(GCC,TH)..R..C

BLACK,TRIM0#,2#

 1
45186-02250C0

NSP151..A;NSP151..GCC..G..C;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP150,152..CVT..(A,C);NSP151..(GCC,IDN)..R..C

BLACK,TRIM0#,2#

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

NSP150..GCC;NSP151..(D,R)..C;NSP151..GCC..R..B;NSP151..(GCC,IDN)..G

 1
90179-12071

NSP151..5F..IDN;NSP150..CVT..(A,C);NSP151..A,D,E,G,H,I;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C;NSP150,152..(PH,PKN,TH,VN)..(A,D,E,I)

 1
Common parts
90159-T0007
Linked diagrams
8401
8408
