NSP150L-BEXDK (2016)

Toyota Yaris/Vios/Limo

Production Apr 2016 - Sep 2017
Engine 1NRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1604- )1NRFE,2NRFE,3NRFE..CVT..A,B,C,D,E,F,G,I

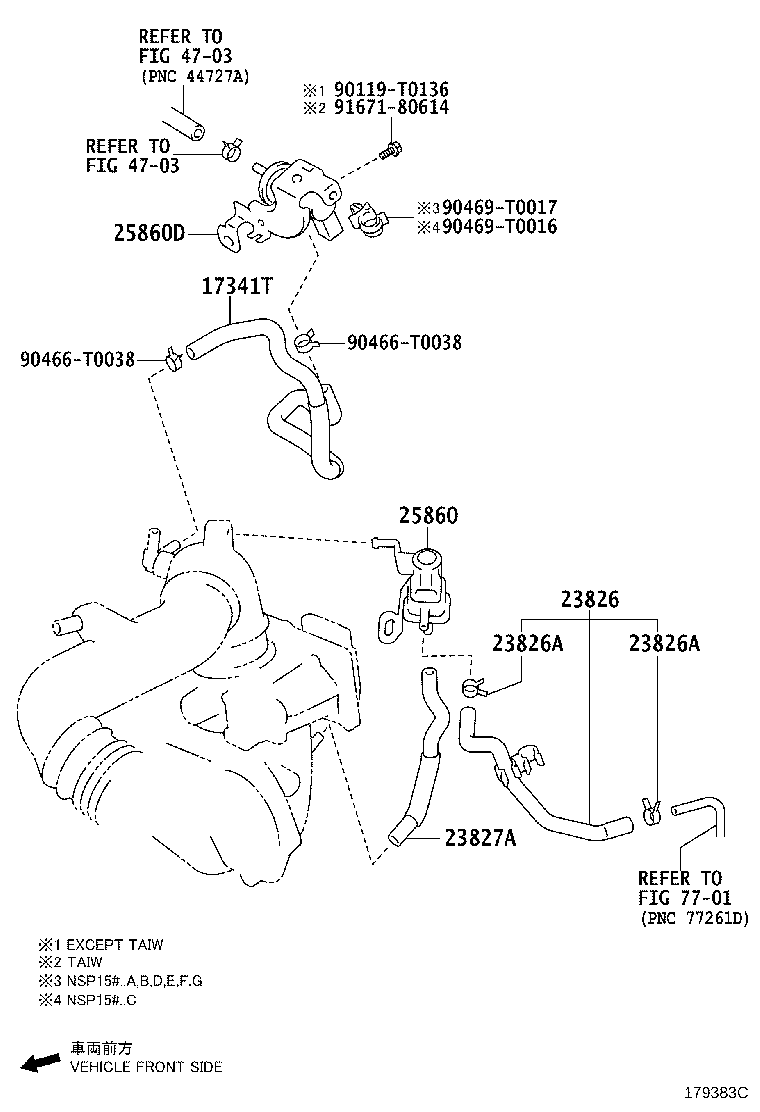

Click highlighted areas on diagram

diagram 17341T 23826 23826A 23826A 23827A 25860 25860D 4703 4703 7701 90119T0136 90466T0038 90466T0038 90469T0016 90469T0017 9167180614
Part # Description Qty Price
17341T - HOSE, AIR, NO.1
17341-0Y070

1NRFE,2NRFE..NSP15#..CVT..(GCC,GEN)..B

 1
17341-0Y070

1NRFE,2NR#..NSP150,151..CVT..(A,D,E,H)

 1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-0Y140

1NRFE,2NRFE..NSP150,151..GEN

 1
23826-0Y140

1NRFE..NSP150..D,E,I;2NRFE..NSP151..5F..IDN;2NRFE..NSP151..A,D,E,G,I;1NRFE..NSP150..CVT..(A,C);1NRFE..NSP150..5F..R..(A,C);1NRFE..NSP150..5F..GEN..D..A;2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C

 1
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
90466-11003

1NRFE,2NRFE..NSP150,151..GEN

 2
90466-11003

1NRFE..NSP150..D,E,I;2NRFE..NSP151..5F..IDN;2NRFE..NSP151..A,D,E,G,I;1NRFE..NSP150..CVT..(A,C);1NRFE..NSP150..5F..R..(A,C);1NRFE..NSP150..5F..GEN..D..A;2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C

 2
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
90466-11003

1NRFE,2NRFE..NSP150,151..GEN

 2
90466-11003

1NRFE..NSP150..D,E,I;2NRFE..NSP151..5F..IDN;2NRFE..NSP151..A,D,E,G,I;1NRFE..NSP150..CVT..(A,C);1NRFE..NSP150..5F..R..(A,C);1NRFE..NSP150..5F..GEN..D..A;2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C

 2
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-0Y140

1NRFE,2NRFE..NSP150,151..GEN

 1
23827-0Y140

2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..(A,C);2NRFE..NSP151..A,D,E,G,H,I;1NRFE..NSP150..5F..R..(A,C);1NRFE..NSP150..5F..GEN..D..A;1NRFE,2NRFBE..NSP150,151..D,E,H,I;2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-0Y090

1NRFE,2NRFE..NSP150,151..GEN

 1
25860-0Y090

2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..(A,C);2NRFE..NSP151..A,D,E,G,H,I;1NRFE..NSP150..5F..R..(A,C);1NRFE..NSP150..5F..GEN..D..A;1NRFE,2NRFBE..NSP150,151..D,E,H,I;2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C

 1
25860D - VALVE ASSY, VACUUM SWITCHING, NO.2
25860-0Y040

1NRFE,2NRFE..NSP15#..CVT..(GCC,GEN)..B

 1
25860-0Y040

2NRFE..NSP151..CVT..(A,D,E,G,H,I);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE,2NRFBE..NSP150,151..CVT..(A,C,D,H,I)

 1
Common parts
90119-T0136
90466-T0038
90469-T0016
90469-T0017
91671-80614
Linked diagrams
4703
7701
