NSP150L-BEXDK (2016)

Toyota Yaris/Vios/Limo

Production Apr 2016 - Sep 2017
Engine 1NRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1604- )1NRFE,3NRFE..CVT

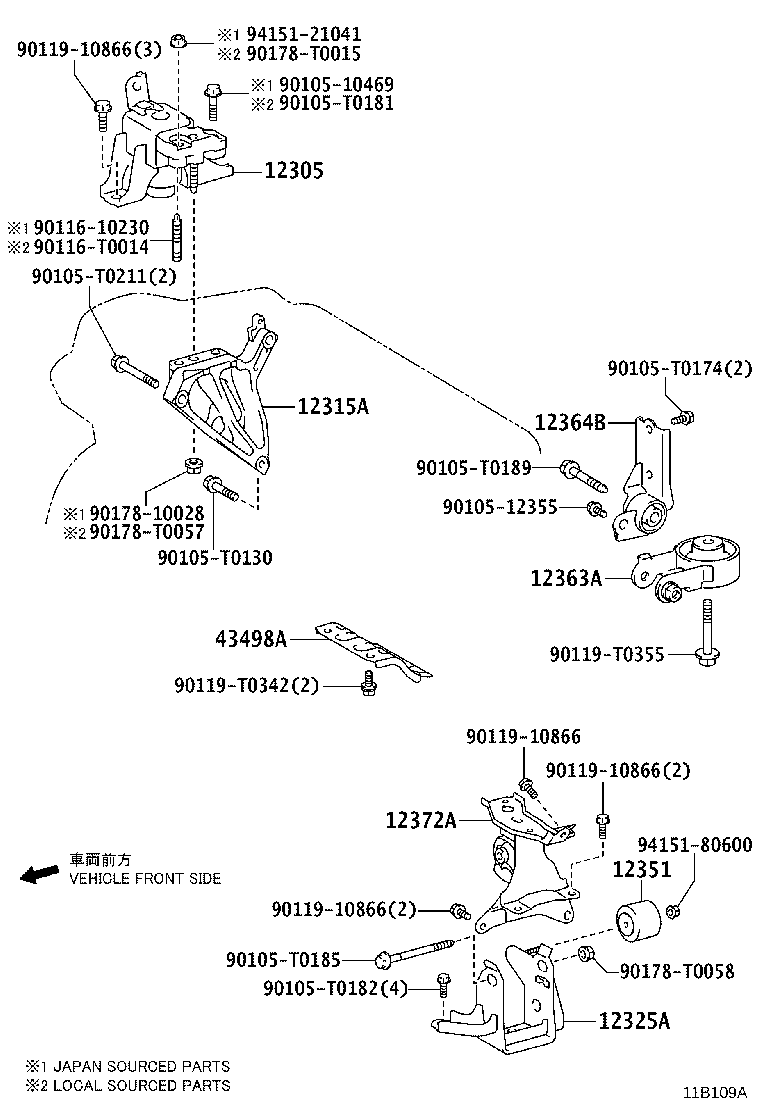

Click highlighted areas on diagram

diagram 12305 12315A 12325A 12351 12363A 12364B 12372A 43498A 9010510469 9010512355 90105T0130 90105T0174 90105T0181 90105T0182 90105T0185 90105T0189 90105T0211 9011610230 90116T0014 9011910866 9011910866 9011910866 9011910866 90119T0342 90119T0355 9017810028 90178T0015 90178T0057 90178T0058 9415121041 9415180600
Part # Description Qty Price
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-0Y110

1NRFE,2NRFE..NSP150,151..GEN

 1
12305-0Y110

1NRFE..NSP150..D,E,I;1NRFE..NSP150..CVT..A;1NRFE..NSP150..5F..GCC..R..A;1NRFE..NSP150..LHD..5F..GEN..A;2NRFE,3NRFE..NSP151,152..A,D,E,I

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-0Y070

1NRFE,2NRFE..NSP150,151..GEN

*230 OR *432

 1
12315-0Y010

1NRFE,2NRFE..NSP150,151..GEN

*264

 1
12315-0Y010

2NRFE..NSP151..A,D,E,G;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE..NSP150..(GEN,PH,VN)..(D,R)..(A,D,E)

*264

 1
12315-0Y070

2NRFE..NSP151..A,D,E,G;2NRFE..NSP151..5F..IDN;1NRFE..NSP150..CVT..GEN..G..A;1NRFE..NSP150..CVT..GCC..(A,C);1NRFE..NSP150..5F..GCC..R..(A,C);2NRFE..NSP151..CVT..(GCC,IDN)..(G,R)..C;1NRFE,3NRFE..NSP150,152..(GEN,PH,TH,VN)..(D,R)..(A,D,E)

*230 OR *432

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-0Y140

1NRFE,3NRFE..NSP150,152..CVT..(A,D,I)

 1
12325-0Y140

1NRFE..NSP150..CVT..GEN

 1
12351 - DAMPER, ENGINE MOUNTING
12351-37100

1NRFE..NSP150..CVT..GEN

 1
12351-37100

1NRFE,3NRFE..NSP150,152..CVT..(A,D,I)

 1
12363A - ROD, ENGINE MOVING CONTROL
12363-0Y100

1NRFE..NSP150..CVT..GEN

 1
12363-0Y100

1NRFE,3NR#..NSP150,152..CVT..(A,D,I)

 1
12364B - ROD, ENGINE MOVING CONTROL, NO.2
12364-0Y040

1NRFE..NSP150..CVT..GEN

 1
12364-0Y040

1NRFE,3NRFE..NSP150,152..CVT..(A,D,I)

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-0Y140

1NRFE..NSP150..CVT..GEN

 1
12372-0Y141

1NRFE,3NRFE..NSP150,152..CVT..(A,D,I)

 1
43498A - INSULATOR, DRIVE SHAFT HEAT, NO.1
43498-52070

NSP150..CVT

 1
43498-0D200

NSP150..CVT..GEN

 1
43498-0D200

NSP150,152..CVT..(A,C,D,I)

 1
Common parts
90105-10469
90105-12355
90105-T0130
90105-T0174
90105-T0181
90105-T0182
90105-T0185
90105-T0189
90105-T0211
90116-10230
90116-T0014
90119-10866
90119-T0342
90119-T0355
90178-10028
90178-T0015
90178-T0057
90178-T0058
94151-21041
94151-80600
