NSP150L-AEXRKV (2018)

Toyota Yaris/Vios/Limo

Production Jan 2018 - Sep 9999
Engine 1NRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1902- )HTWC ; (1902- )NSP150..CVT

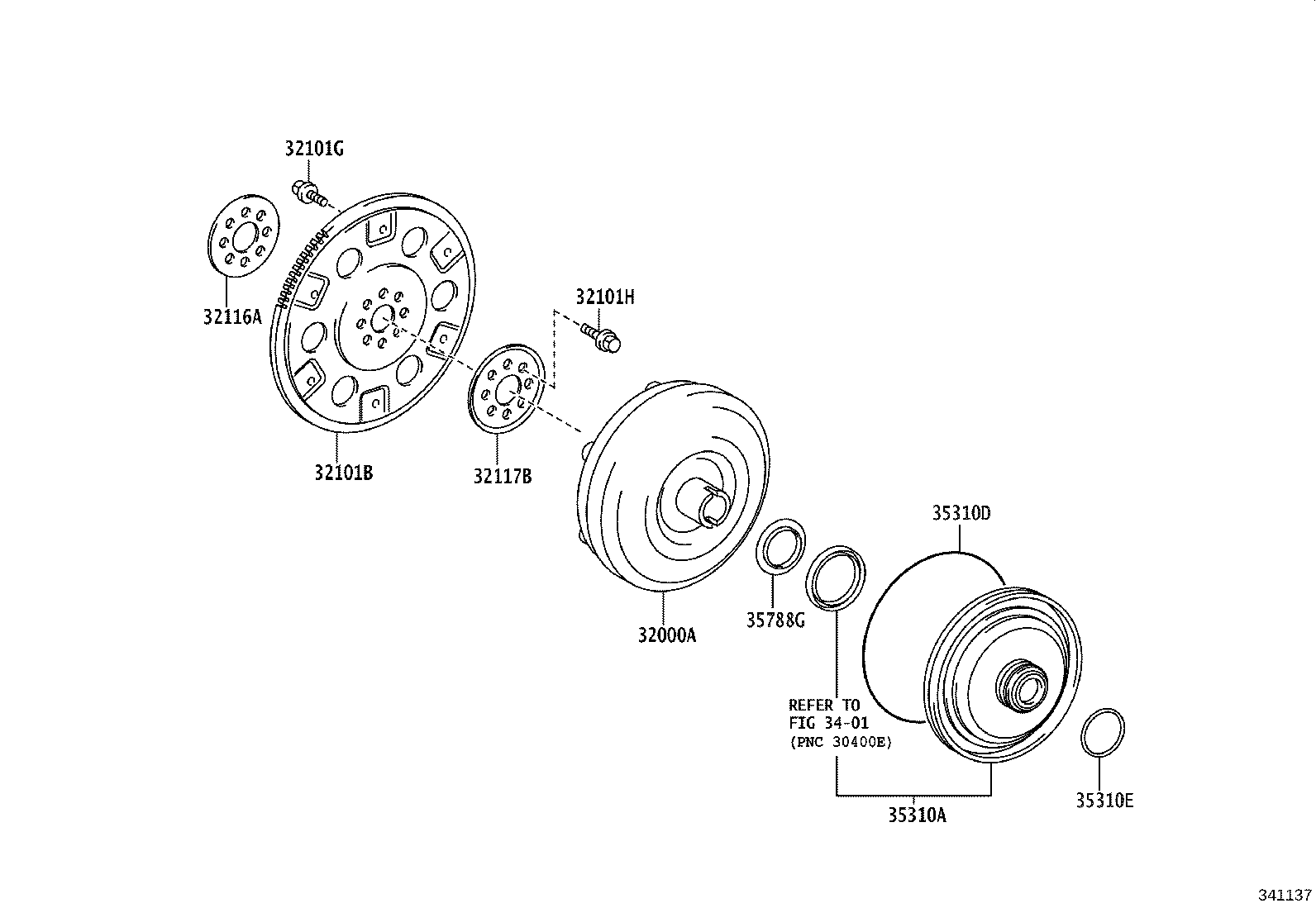

Click highlighted areas on diagram

K411

diagram 32000A 32101B 32101G 32101H 32116A 32117B 3401 35310A 35310D 35310E 35788G
Part # Description Qty Price
32101B - GEAR SUB-ASSY, DRIVE PLATE & RING
32101-0D040

NSP150..CVT;NSP151..CVT..D..A;NSP151..CVT..(G,R)..(A,C,I)

 1
35310A - PUMP ASSY, FRONT OIL
35310-52090

NSP150..CVT;NSP152..HTWC

 1
35310D - RING, O (FOR FRONT OIL PUMP)
90301-99093

NSP150,152..CVT

 1
35310E - SEAL, TYPE T OIL (FOR FRONT OIL PUMP)
35617-52060

NSP150,152..CVT

 2
35788G - RACE, THRUST BEARING
35789-52060

NSP150..CVT;NSP152..HTWC

 1
Linked diagrams
3401
