NCP150R-BEPGKD (2013)

Toyota Yaris/Vios/Limo

Production Apr 2013 - Jun 2015

Engine 1NZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(1304- )

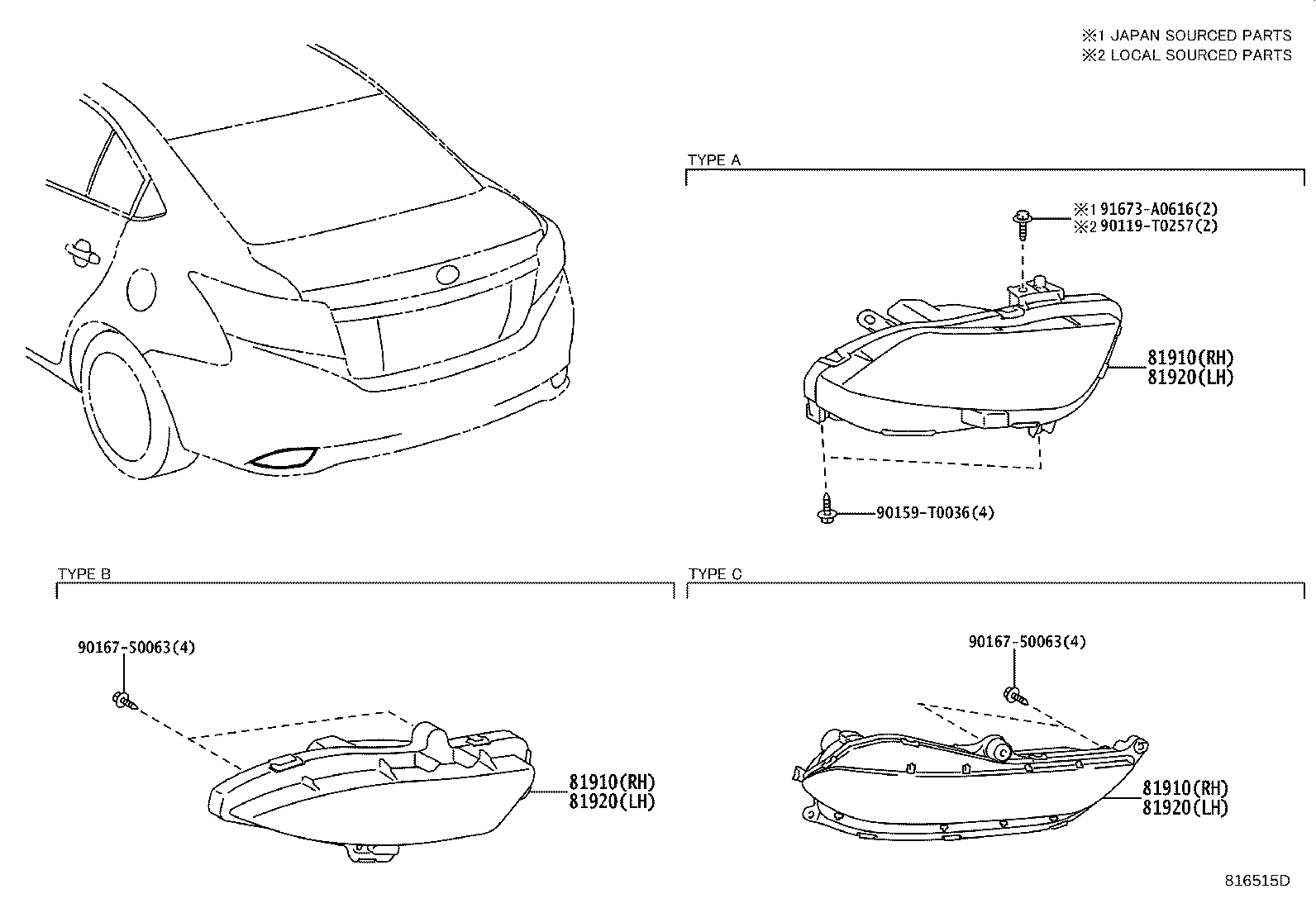

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
81910 - REFLECTOR ASSY, REFLEX, RH
81580-0D130	NCP150..IDN..B TYPE A:REFER ILLUST.	04/2013 - 06/2015	1
81910 - REFLECTOR ASSY, REFLEX, RH
81580-0D130	NCP150..IDN..B TYPE A:REFER ILLUST.	04/2013 - 06/2015	1
81910 - REFLECTOR ASSY, REFLEX, RH
81580-0D130	NCP150..IDN..B TYPE A:REFER ILLUST.	04/2013 - 06/2015	1
81920 - REFLECTOR ASSY, REFLEX, LH
81590-0D110	NCP150..IDN..B TYPE A:REFER ILLUST.	04/2013 - 06/2015	1
81920 - REFLECTOR ASSY, REFLEX, LH
81590-0D110	NCP150..IDN..B TYPE A:REFER ILLUST.	04/2013 - 06/2015	1
81920 - REFLECTOR ASSY, REFLEX, LH
81590-0D110	NCP150..IDN..B TYPE A:REFER ILLUST.	04/2013 - 06/2015	1
Common parts
90119-T0257
90159-T0036
90167-50063
91673-A0616
