NCP150R-BEPGKD (2013)
Toyota Yaris/Vios/Limo
Production
Apr 2013
-
Jun 2015
Engine
1NZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1304-1609)NCP15#..RHD ; (1604-1901)NSP150,151..RHD..B ; (1610-1801)RHD..C ; (1901-

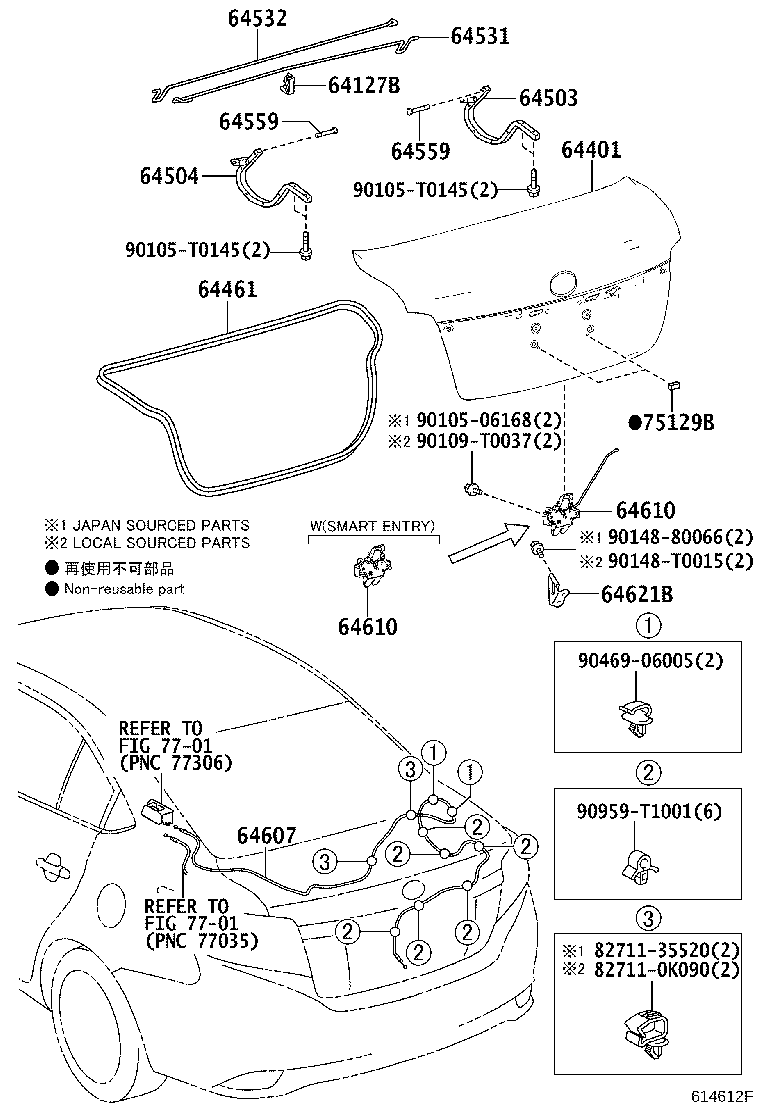

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64127B - SUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR | ||||
| 64127-0D060 |
NCP150..IDN..B |
1 | ||
| 64127-0D060 |
NCP15#..C |
1 | ||
| 64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64401-0D160 |
NCP150..IDN..B |
1 | ||
| 64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR | ||||
| 64461-0D090 |
NCP150..IDN..B |
1 | ||
| 64503 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH | ||||
| 64503-0D040 |
NCP150..IDN..B |
1 | ||
| 64503-0D040 |
NCP15#..C |
1 | ||
| 64504 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH | ||||
| 64503-0D040 |
NCP15#..C |
1 | ||
| 64503-0D040 |
NCP150..IDN..B |
1 | ||
| 64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH | ||||
| 64531-0D170 |
NCP150..IDN..B |
1 | ||
| 64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH | ||||
| 64532-0D170 |
NCP150..IDN..B |
1 | ||
| 64559 - PIN, LUGGAGE DOOR HINGE | ||||
| 64559-12040 |
NCP15#..C |
2 | ||
| 64559-12040 |
NCP150..IDN..B |
2 | ||
| 64559 - PIN, LUGGAGE DOOR HINGE | ||||
| 64559-12040 |
NCP15#..C |
2 | ||
| 64559-12040 |
NCP150..IDN..B |
2 | ||
| 64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL | ||||
| 64607-0D210 |
NCP150..IDN..B |
1 | ||
| 64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64600-0D040 |
NCP150..IDN..G..B |
1 | ||
| 64610-0D080 |
NCP150..IDN..(D,R)..B |
1 | ||
| 64600-0D040 |
NCP150..IDN..G..C |
1 | ||
| 64610-0D080 |
NCP151..C;NCP150..(D,R)..C;NCP150..(GCC,TH)..G..C |
1 | ||
| 64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64600-0D040 |
NCP150..IDN..G..B |
1 | ||
| 64610-0D080 |
NCP150..IDN..(D,R)..B |
1 | ||
| 64600-0D040 |
NCP150..IDN..G..C |
1 | ||
| 64610-0D080 |
NCP151..C;NCP150..(D,R)..C;NCP150..(GCC,TH)..G..C |
1 | ||
| 64621B - STRIKER, LUGGAGE COMPARTMENT DOOR LOCK | ||||
| 64621-06080 |
NCP15#..C |
1 | ||
| 64621-06080 |
NCP150..IDN..B |
1 | ||
| 75129B - CUSHION, REAR LICENCE PLATE | ||||
| 75129-0D030 |
NCP150..IDN..B |
2 | ||
| Common parts | ||||
| 82711-0K090 | ||||
| 82711-35520 | ||||
| 90105-06168 | ||||
| 90105-T0145 | ||||
| 90109-T0037 | ||||
| 90148-80066 | ||||
| 90148-T0015 | ||||
| 90469-06005 | ||||
| 90959-T1001 | ||||
| Linked diagrams | ||||
| 7701 | ||||
